Testing an electric oil pressure gauge requires a specialised oil pressure test tool, though its use is straightforward. The first step is to locate the engine oil pressure sender near the oil sump on the engine block. The next step is to check the car's repair manual to ensure the correct procedure is followed. Once located, an oil drain pan should be placed underneath the engine to catch any oil spillage. The electrical connector can then be removed from the oil pressure sender, and the sender can be removed from the engine block. After this, the tester can be mounted by following the attachment instructions for the oil pressure kit. The engine should then be allowed to idle for five minutes or until it reaches operating temperature. Using the car's owner's manual, the RPM required to perform the oil pressure test should be found. Finally, the oil pressure range for a given RPM should be found using the car's owner's manual or repair guide.
Characteristics and Values of an Electric Oil Pressure Gauge
| Characteristics | Values |
|---|---|
| Resistance | Falls with increasing pressure |
| Voltage | 12V |
| Zero Point Voltage | 1.11V |
| Sensor Resistance | 200 ohms |
| Accuracy | Varies, may not be linear |
| Precision | Not as important as repeatability |
| Testing Tools | Specialized oil pressure test tool, oil pressure gauge |
Explore related products
What You'll Learn
Check for common causes of low and high oil pressure
Low oil pressure can be caused by a variety of factors, including:
- Oil consumption: Oil may be consumed due to evaporation, burning caused by worn piston rings, or leaks. Older engines tend to burn more oil.
- Oil viscosity: If the viscosity is too low or too high, it can affect oil pressure. Viscosity is influenced by factors such as the original lubricant viscosity, operating temperatures, and the presence of contaminants.
- Oil level: If the oil level is too low, it can result in low oil pressure. Regular oil changes and checking the oil level are important to maintain the correct oil level.
High oil pressure can also have several causes, including:
- Dirty or contaminated oil filters: Over time, filters can become clogged with dust, debris, soot, rust, or gum, leading to increased resistance and higher oil pressure.
- Blocked passages: Blockages in the passages to the crankshaft can prevent oil from flowing efficiently and lubricating the engine properly.
- Oil pump issues: If the oil pump is old or faulty, it may not push the lubricant through the system effectively, resulting in high or low pressure.
- Oil aeration: Air can get into the system and bind with the oil under pressure, increasing pressure and causing malfunctions.
- Relief valve malfunction: If the relief valve malfunctions, it can lead to a rapid and unsafe increase in oil pressure.
- Oil viscosity: Using oil with the wrong viscosity for your engine can lead to high oil pressure. The ideal oil pressure is generally between 25-65 PSI, and a PSI over 80 is often considered too high.
Electric Oven Setup: Plug-and-Play or Hardwired?
You may want to see also
Explore related products
Test the resistance of the gauge with a multimeter
To test the resistance of an electric oil pressure gauge with a multimeter, you should first ensure that your engine is switched off. Then, pull the sender wire and test the resistance from the signal terminal to the body of the sensor. Next, test the resistance from the signal terminal to any part of the engine block or heads for a good ground. The values indicated by the multimeter for these two tests should match. If they differ, there is electrical resistance through the mounting threads.
The resistance should generally fall within a range of 50 (low) to 16 ohms (high), depending on your oil pressure. A reduction in ohms indicates that the sensor is functional. However, it does not guarantee its accuracy. To verify accuracy, you need to test against a known pressure source or utilise resistors or a potentiometer for the gauge.
If you are testing a sensor with a multimeter, you can set it to ohms resistance (200). The sensor resistance should be approximately 75 ohms, with a 10% margin of error, when the engine is off.
It is important to note that the resistances are typically quite small, resulting in a relatively large current. Therefore, caution is advised to prevent damage to the multimeter.
Get Your Electrical License: Enroll in Classes Now!
You may want to see also
Explore related products
Locate the engine oil pressure sender
The engine oil pressure sender, also known as the oil pressure switch, is usually located in the cylinder block near the oil filter or its housing. The oil filter housing is typically found on the "service" side of the engine, which includes the injector pump, seawater pump, oil filter, fuel filter, and stop solenoid.
For older vehicles, the switch may be wired directly to the oil pressure gauge. In modern vehicles, the switch may be located near the oil cooler, rather than the oil filter.
The exact location of the switch depends on the vehicle. For example, in a Honda Civic, the switch is usually integrated into the sidewall of the cylinder block near the oil filter housing. In contrast, older models, such as the 1998 Ford F-150, typically have the switch located above the oil pan.
To locate the engine oil pressure sender, refer to your vehicle's service manual. Once located, you can disconnect the electrical connector and remove the switch using the appropriate wrench or socket set. When installing a new switch, be sure to tighten it securely without over-tightening.
Voltage and Electric Potential: What's the Difference?
You may want to see also
Explore related products

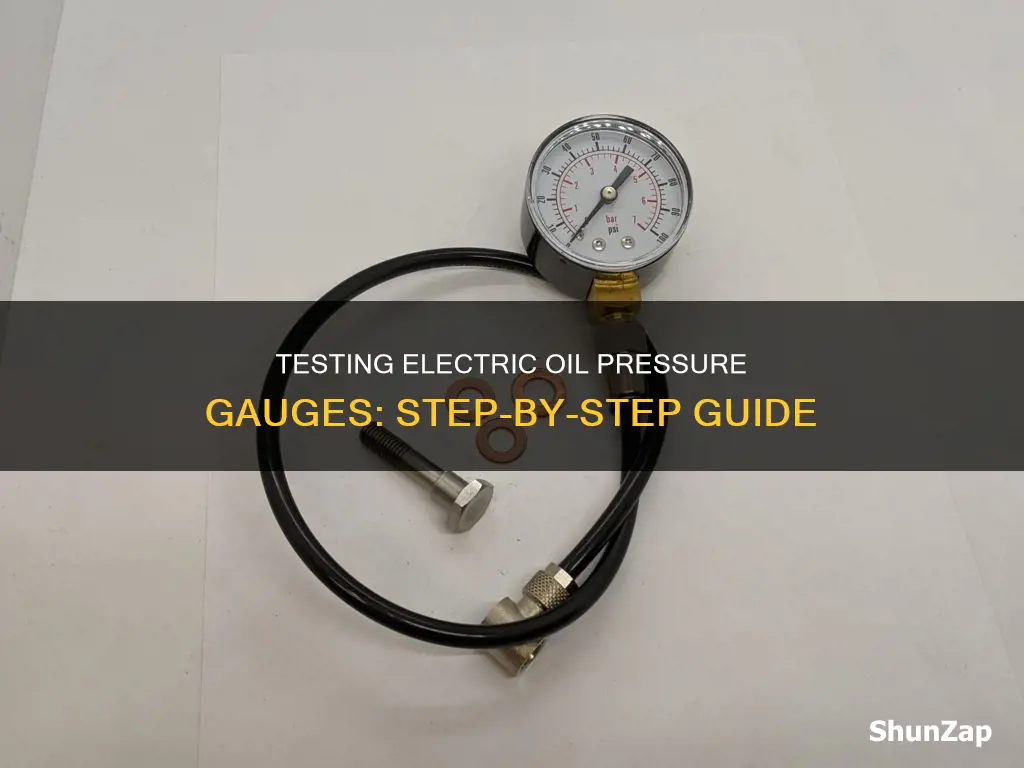

Use a specialised oil pressure test tool
One way to test an electric oil pressure gauge is to use a specialised oil pressure test tool. These tools are designed to accurately measure the pressure of your oil, and they can help you identify any issues with your gauge.
There are a variety of oil pressure test tools available on the market, ranging from simple mechanical gauges to more sophisticated digital scanners. Some popular options include the ANCEL V5BT Bidirectional Test OBD2 Scanner, the BUYI SI Car Oil Pressure Gauge Tester, and the COSMOBETTY Engine Oil Pressure Test Kit. These tools often come with additional features, such as smoke leak detectors or pressure gauges, which can help you further diagnose any issues with your vehicle.
When using an oil pressure test tool, it is important to follow the instructions carefully and ensure that you are using the correct tool for your specific vehicle. You may need to consult your vehicle's manual or seek advice from a mechanic to ensure you are using the tool correctly.
It is worth noting that accuracy is crucial when testing oil pressure. Even a small discrepancy in the reading can indicate a problem with your oil pressure gauge. Therefore, it is recommended to compare the readings from your electric oil pressure gauge with those from a reliable, accurate pressure gauge to ensure accuracy.
How AC Fan Speed Impacts Your Power Bill
You may want to see also
Explore related products
Compare the gauge indication with an accurate pressure gauge
Comparing the gauge indication with an accurate pressure gauge is a crucial step in ensuring the accuracy of your electric oil pressure gauge readings. Here are some detailed instructions to help you through this process:
Firstly, it is important to understand the characteristics of your electric oil pressure gauge. This includes factors such as the voltage, resistance, and pressure sensitivity of the gauge. For instance, if you have a 12V electric oil pressure gauge, you would expect the needle to indicate zero pressure at zero volts, and as the voltage increases, the needle should move accordingly to indicate increasing pressure.
Now, you will need to obtain an accurate pressure gauge to compare readings. This could be a mechanical gauge, which many automotive experts prefer due to its accuracy and reliability. Compare the readings of your electric oil pressure gauge with this accurate gauge at various pressure levels. Take note of the voltages and resistances at different pressure points.
For example, let's say your electric oil pressure gauge has a resistance of 25 ohms. At 1.3V, the needle should indicate 0 PSI, at 3.3V it should read 50 PSI, and at 4.9V, it should max out at 100 PSI. Compare these readings with the accurate pressure gauge to see if they align.
If the readings do not match, you may need to calibrate your electric oil pressure gauge. This can be done using series and parallel resistors. For instance, if the 'no pressure' resistance is higher than expected, you can add a resistor in parallel with the sensor to adjust the reading.
By comparing your electric oil pressure gauge with an accurate pressure gauge, you can ensure the precision and reliability of your measurements. This process allows you to make any necessary adjustments to your electric oil pressure gauge, ensuring it provides accurate information about your vehicle's oil pressure.
Electric Drum Kits: A Quieter Church Option?
You may want to see also
Frequently asked questions
If your car’s oil pressure gauge is fluctuating or has flatlined, you may need to test it.
You will need a specialised oil pressure test tool, an oil drain pan, a socket (usually 1 1/16”), and an oil pressure kit.
First, locate the engine oil pressure sender near the oil sump on the engine block. Place the oil drain pan underneath the engine to catch any spillage. Remove the electrical connector from the oil pressure sender, and then remove the oil pressure sender from the engine block. Reattach the electrical connector. Attach the oil pressure kit, following the instructions. Check the engine oil level and top off as needed. Let the engine idle for five minutes or until it reaches operating temperature. Finally, find the RPM required to perform the test and the oil pressure range for a given RPM using your car’s owner’s manual.
