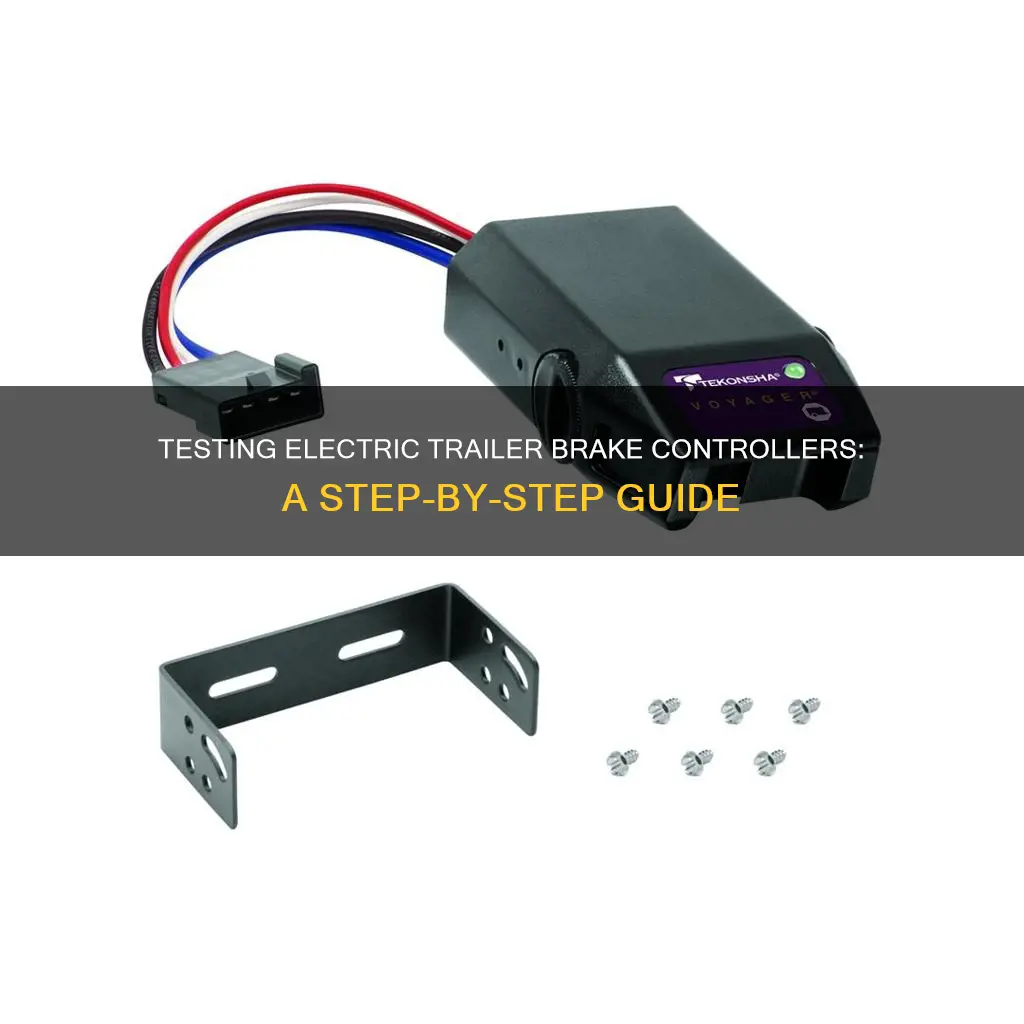

Testing an electric trailer brake controller is important to ensure that your trailer brakes are working correctly. There are several methods to test an electric trailer brake controller, and the process may vary depending on the specific brake controller you have. One common method is to use a circuit tester or a multimeter to check for voltage drops or measure the current flowing to the brake wires. You can also test the brake controller by observing the trailer's response when you press the brake pedal or activate the brakes manually. It is recommended to refer to the specific instructions for your brake controller and seek expert advice if you encounter any issues.
Characteristics and Values Table for Testing Electric Trailer Brake Controller
| Characteristics | Values |
|---|---|
| Circuit Tester | PTW2993 |
| Pin Placement | One grounded, the other on the output pin |
| Brake Power Output Wire | Blue wire |
| Multimeter | Set to Ohms |
| Probe Placement | One on the blue wire, the other on the brake magnet wire |
| Current | Should be within the recommended specification |
| Load on Brake Line | Requires a 7-way tester and an adapter |
Explore related products
What You'll Learn
Use a circuit tester to check for a slight amperage draw on the output circuit
To test an electric trailer brake controller, you can use a circuit tester to check for a slight amperage draw on the output circuit. This can be done by using a circuit tester like the PTW2993, with one pin grounded and the other on the output pin. You can then hit the brake pedal of the vehicle and observe if the brake controller operates normally. It is worth noting that you will need assistance during this process as it is difficult to be at the rear of the vehicle and press the brake pedal simultaneously.
A multimeter is a tool that can be used to measure amperage, which is the amount of electricity flowing through a circuit. Before using a multimeter, ensure that it is rated for the number of amps travelling through the circuit. Most power sources will have the maximum amps printed on a nameplate, and you can compare this to the maximum amps the multimeter can handle, which is usually found on the back of the device or in the instruction manual.
To measure amperage with a multimeter, follow these steps:
- Turn off the power to the circuit.
- Insert the red probe, which indicates a positive wire, into the "A" socket on the multimeter.
- Insert the black probe, which indicates a negative wire, into the "COM" socket on the multimeter. "COM" stands for "common", and if it is not marked as such, you may see a negative symbol instead.
- Select either AC or DC current on the meter by checking the nameplate on your power source for this information. AC (alternating current) is typically used in household appliances and electric motors, while DC (direct current) is used in battery-powered motors and devices.
- Ensure that the multimeter is set to a higher amp setting than what you are measuring.
- Connect the circuit's wires to the meter's probes and leave them in place for 60 seconds.
- Read the number on the digital display, which represents the amperage.
Alternatively, you can use a clamp meter, which is suitable for measuring high current without breaking the circuit. Clamp meters do not become part of the circuit, unlike multimeters, and they can provide quick and safe current readings without disconnecting wires. Simply attach the clamp to the wire near the circuit breaker and ensure that whatever is on the circuit is turned on.
Service Electric's Fiber Optic Cable Burial: What You Need to Know
You may want to see also
Explore related products
Check for voltage drops across a connection with a volt meter
To test an electric trailer brake controller, you can check for voltage drops across a connection with a volt meter. This process involves looking for a poor connection, which could be caused by corrosion on the exposed connection.
Firstly, ensure you have a decent volt meter. You can then begin to check for voltage drops. If you don't find a drop on the positive side, you can conduct the same test on the negative side, checking between the negative battery post and the case of the starter. If you need to do this alone, you can use clip leads to hold the probes in place while you crank the starter and watch the meter.
It is important to note that a starter motor will draw hundreds of amps, which is too much current to measure with a multimeter. Instead, you can measure the drop in voltage across a connection and use it to infer the presence of resistance at that connection.
For smaller devices, there should be no measurable voltage drop between a wire and its connector, no more than 0.1 volts between a connector and terminal, and no more than 0.3 volts across a switch.
If you are experiencing issues with your trailer brakes, it could be a problem with the brake controller itself, or it could be an issue with the truck or trailer.
Why You Should Turn Off Your Electricity Flood
You may want to see also
Explore related products
Use a multimeter to test trailer brake wiring
To test electric trailer brake wiring with a multimeter, you will need to set the multimeter to Ohms and place the negative probe on one of the brake magnet wires, and the positive probe on the other magnet wire. If the multimeter produces a reading below or above the specified resistance range for your brake magnet size, then the brake is faulty and needs to be replaced.
Firstly, you should identify the wires. The wire that feeds power to the brake controller is the black wire. The blue wire exits the back of the brake controller. The red wire should only have power when the brake pedal is pressed. If there is power on the red wire before the brake pedal is pressed, then the red wire from the brake controller has been connected to the wrong circuit.
To test the amperage, you can connect the ammeter inline with the blue wire exiting the back of the brake controller. If the amperage is greater than the specified amount, replace the magnet or magnets. If the reading is less than the specified amount, the leads are faulty and the magnet or magnets should be replaced.
If you are having trouble locating the wires, you can use a compass to apply an electric current to the brakes through the controller. If the compass doesn't move, then the current isn't being supplied to the magnets and there could be a problem with the controller or the wires.
You can also test the trailer lights by clipping the multimeter to the green contact on the trailer cord and setting the multimeter to continuity mode.
Electric Unicycles: Street Legal Status in Texas?
You may want to see also
Explore related products
Measure the current from the connector to the brake wires
To measure the current from the connector to the brake wires, you will need to use a circuit tester or a multimeter. A circuit tester, such as the part #PTW2993, can be used to test the brake output wire by grounding one pin and connecting the other pin to the output pin. Then, by pressing the brake pedal, you can observe if the brake controller is operating normally. If it is not, a more comprehensive test can be performed by severing the blue brake output wire near the brake controller and applying the manual slide. This will allow you to test for output to the controller side of the wire.
Alternatively, a multimeter can be used to measure the current. First, connect one probe to the blue wire coming from the connector plug and the other probe to one of the brake magnet wires. With the car turned on, activate the brakes either through the pedal or the electric control panel. Measure the amount of current coming from the connector to the brake wires and compare it to the recommended specification. If the current deviates from the specified range, it indicates an issue with the controller or wires.
It is important to note that the power setting on the brake controller, the testing method, and whether the brakes or manual override is activated can influence the voltage on the brake output wire. Therefore, it is recommended to set the power gain on the brake controller to the maximum and have someone apply the manual override while testing.
Additionally, you can perform a simple test to check for a magnetic field created by the electric brakes. Allow a friend to apply current to the brakes through the controller, and then use a metal tool, such as a wrench or screwdriver. If the metal does not stick to the tool, it suggests a problem with the controller or its wires.
Electric Tobacconist USA: Safe Site or Scam?
You may want to see also
Explore related products
Check for a direct short from the blue wire to earth
If you are experiencing problems with your electric trailer brake controller, there are several troubleshooting methods you can try. Firstly, ensure that all lights on your trailer are functioning properly, including turn signals, brake lights, and running lights. Utilise a multimeter to confirm voltage levels and continuity. It is important to tighten all wiring connections to prevent loose parts that may lead to inconsistent power supply. Inspect the grounding wires for any signs of corrosion and ensure that covers are in place to protect electrical components from harsh weather conditions.
To specifically address a direct short from the blue wire to earth, you can perform the following steps:
- Disconnect the battery's negative terminal before commencing any work to avoid an electrical short circuit.
- Visually inspect the wiring loom for any signs of damage. The Rock Guard mounting bolt may have pinched the chassis wiring loom, resulting in the blue wire grounding to the chassis. Remove the cover plate to access this area.
- Use a multimeter to test the trailer brake wiring between the brake controller and the brake magnet. Set the multimeter to Ohms and place the negative probe on one of the brake magnet wires, then place the positive probe on the other magnet wire.
- If the multimeter reading is below or above the specified resistance range for your brake magnet size, it indicates a faulty brake that requires replacement.
- Additionally, you can sever the blue brake output wire near the brake controller, leaving sufficient room for reconnection. Use a circuit tester, such as the Quickee Tester, to check for output to the controller side of the severed wire.
Electric Bills: Paying to Build Credit?
You may want to see also
Frequently asked questions
You can test your brake controller without a trailer by using a circuit tester like the part #PTW2993. Ground one pin and place the other on the output pin, then hit the brake pedal. You should see the brake controller operate normally.
You can use a circuit tester, a volt meter, or a multimeter.
One common problem is that the trailer brakes only work with the manual override lever and not the brake pedal. This can often be fixed by checking the red wire of the brake controller. Another common issue is an overload error, which is indicated by an OL error code. This could be caused by a bad ground or a short to the blue brake output wire.
