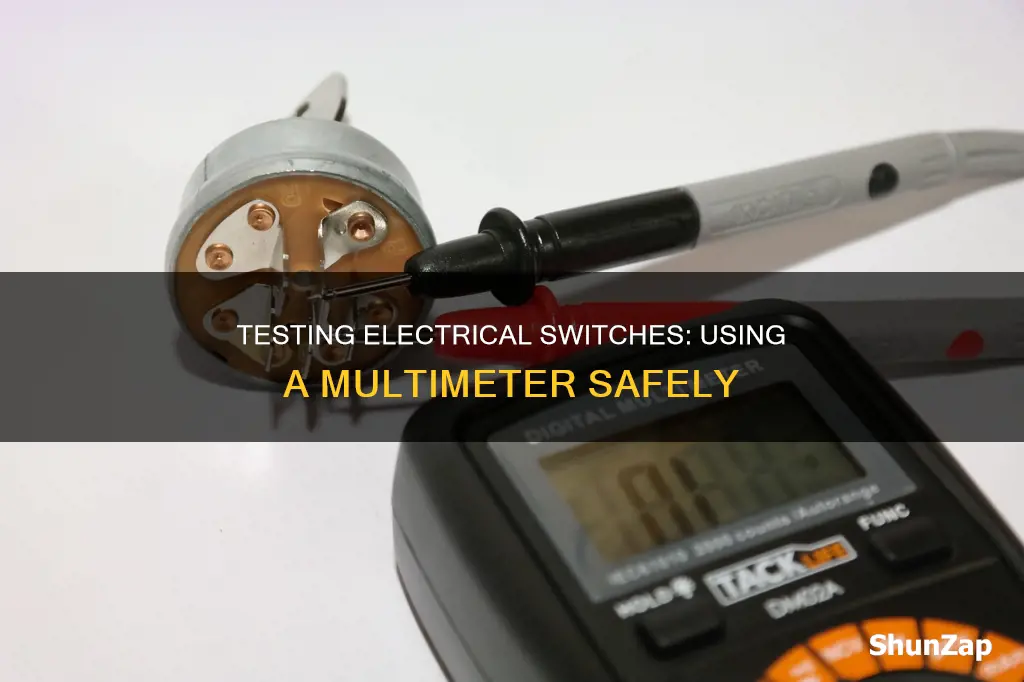

Testing an electrical switch with a multimeter is a quick, easy, and inexpensive way to diagnose electrical problems. A multimeter is a versatile tool that can measure voltage, current, and resistance. It is indispensable for diagnosing electrical issues across a wide range of devices, from simple household appliances to complex electronic circuits. Before testing, it is important to turn off the electricity to your switch and use a non-contact voltage tester to ensure that the power is off. When testing a switch, set the multimeter to ohms and ensure that there is a clear path of resistance between the two poles when the switch is on, and that the circuit opens when the switch is off. Digital multimeters are preferred for their ease of use and features like auto-ranging, which automatically adjusts to the correct measurement range. When choosing a multimeter, look for one with a high degree of accuracy, durability, and the ability to measure low resistance.
| Characteristics | Values |
|---|---|
| Multimeter type | Analog or digital |
| Multimeter features | Auto-ranging, accuracy, low resistance measurement capability, durability and reliability |
| Preparation | Turn off the electricity to your switch, remove the switch panel cover, test for live voltage |
| Multimeter settings | Continuity or resistance/ohms, AC |
| Testing procedure | Test each wire in the electrical box with the multimeter, touch the multimeter probes to the switch terminals, test each side terminal |
| Expected results | When the switch is on, there should be a clear path of resistance between the two poles; when the switch is off, the circuit should open |
Explore related products
What You'll Learn
Turn off the power to the light switch circuit
Before you begin testing a light switch with a multimeter, it is imperative that you turn off the power to the light switch circuit. This is a crucial safety precaution that must not be overlooked.
Working with electricity can be dangerous, and even life-threatening, so it is always advised to hire a professional electrician to do this for you. If you are determined to do it yourself, you must take the necessary steps to ensure your safety.
To turn off the power to the light switch circuit, you need to access the correct circuit breaker and switch it to the "off" position. Circuit breakers are typically located in basements or closets, behind an electrical panel door. If you are fortunate, your breakers will be labelled, making it easy to identify which circuits they operate. However, if they are not labelled, you can flip each breaker until you find the one that shuts off the circuit you need to access.
It is important to note that even if you believe the breaker is off, you should still check whether the wire is live. This can be done using a non-contact voltage tester, which will beep if it detects a live current. You can also visually inspect the wires; if you see a bare copper or green ground wire, this indicates that the power is still on.
Once you have confirmed that the power is off, you can safely proceed with testing or repairing the light switch.
Electrical Cord Wrapping: DIY with Rope
You may want to see also
Explore related products
Remove the light switch cover
Before attempting to remove the light switch cover, it is important to prioritise your safety. Working with electricity can be dangerous, so it is recommended to hire a professional electrician to do the job for you. If you choose to proceed, ensure that you turn off the electricity to your switch before working on it. Access the correct circuit breaker and switch it to the "off" position. These are typically located in basements or closets, behind an electrical panel door. If you are unsure which circuit breaker to switch off, turn off the main power supply.
Now, you can begin the process of removing the light switch cover. Most light switches are covered by a decorative panel, which needs to be removed to access the switch. First, locate the screws on the switch cover plate. Using a flat-blade screwdriver, unscrew the mounting screws and gently pull off the cover plate to expose the switch wiring. Be careful not to touch any wires. If your switch cover does not have screws, you may need to use a butter knife or scraper to gently pry the cover off. Alternatively, if you have very strong fingers, you may be able to remove it by hand.
With the cover plate removed, you should now see the switch wiring. Before proceeding, it is crucial to test for live voltage. Use a non-contact voltage tester to ensure that the power is indeed off. Wave the voltage tester around the front and sides of the switch without making direct contact. If it beeps, stop immediately and shut off the power. Once you have confirmed that there is no electrical current, you are ready to proceed with testing or replacing the light switch.
Electric Shaver Foil: When to Replace It?
You may want to see also
Explore related products
Set the multimeter to ohms
To test an electrical switch with a multimeter, you must first ensure that the power to the circuit is off at the breaker. Then, remove the light switch cover. For smaller switches, you can do this by pulling the plastic part away from the switch body. For larger, standalone switches, use a screwdriver to pry off the cover.
Now, set the multimeter to ohms. On a digital multimeter, this will be indicated by the symbol Ω, which is the Greek letter omega. On an analog multimeter, you will see a scale on the display, labelled with Ω, resistance, or the Ω symbol.
To set your multimeter to ohms, you will typically need to turn a selector knob or press a button to select the unit of measurement. On some multimeters, the ohms setting is combined with the continuity setting. This is because the resistance of a component is measured in ohms.
Once your multimeter is set to ohms, you can plug the probes into the correct jacks. If you are using a multimeter to test a resistor, the black probe should be plugged into the common port, and the red probe into the jack marked for ohms.
Sharpening Rapala Electric Fillet Knives: A Step-by-Step Guide
You may want to see also
Explore related products
Test for live voltage before proceeding
Before you begin testing an electrical switch with a multimeter, it is imperative to prioritise your safety by ensuring that the power is turned off. Working with electricity can be dangerous, so caution is essential.
Turn Off the Power
Locate your circuit breaker, typically found in basements or closets behind an electrical panel door. Switch the circuit breaker to the "off" position. If your breakers are not labelled, you may need to flip each breaker until you find the one that shuts off the circuit you need to access.
Test for Live Voltage
Use a non-contact voltage tester to double-check that the power is indeed off. Wave the voltage tester around the front and sides of the switch without making direct contact. If it beeps, stop immediately, as this indicates the presence of live voltage. Return to your circuit breaker and ensure that the power is off.
Remove the Switch Panel Cover
Most light switches have a decorative panel that needs to be removed to access the switch. Use a screwdriver to carefully remove the screws on the switch cover plate and gently pull off the cover plate to expose the switch wiring.
Use a Multimeter for Testing
A multimeter is a versatile tool that can measure voltage, amperage, and resistance. It is essential to test the multimeter itself before use to ensure accuracy. Set the multimeter dial to "continuity or resistance/ohms" to test for continuity. Touch the two tester probes together, and you should get a reading near 0 or 0.5. Once you've confirmed that the multimeter is functioning correctly, you can proceed to test the light switch.
Electrical Inspections: Are They Legally Required?
You may want to see also
Explore related products
Test the switch for continuity
Testing a switch for continuity is an important step in electrical diagnostics. It helps determine whether electricity can flow uninterrupted through a switch, ensuring its functionality and preventing potential issues. Here is a detailed step-by-step guide on how to test a switch for continuity using a multimeter:
Step 1: Ensure Safety
Before beginning the test, it is crucial to prioritize safety. Make sure to turn off the power to the circuit at the breaker. Use a voltage tester to confirm that there is no live electricity flowing through the circuit. This step is essential to prevent accidents and injuries when working with electrical components.
Step 2: Prepare the Multimeter
Set up your multimeter for the continuity test. Select the continuity test mode by turning the dial to the designated setting. The symbol for continuity may vary depending on the brand and model of your multimeter but often includes an arrow forming a circle or a sound wave symbol.
Step 3: Check Multimeter Functionality
Before testing the switch, ensure that your multimeter is functioning correctly. Touch the probes of the multimeter together, and it should emit a beep, indicating that it is working properly.
Step 4: Test the Switch
Now, you can proceed to test the switch. Turn the switch on and touch one probe of the multimeter to one of the terminal screws of the switch. It doesn't matter which terminal screw you choose. Then, touch the other probe to the remaining terminal screw. If the switch is functioning correctly, the multimeter should emit a continuous beep, indicating continuity. Additionally, the multimeter's display should read zero ohms of resistance.
Step 5: Repeat the Test with the Switch Off
Turn the switch off and repeat the test. When the switch is off, there should be no beep, indicating an open circuit. This confirms that the switch is functioning as intended, interrupting the electrical pathway when turned off.
By following these steps, you can effectively test a switch for continuity using a multimeter. This process helps ensure the operational integrity of the switch and can assist in diagnosing any potential issues with the switch or the circuit.
The Volt: Hybrid or Electric?
You may want to see also
Frequently asked questions
A multimeter is a versatile tool that can measure voltage, current, and resistance. It is used to diagnose electrical issues. There are two main types: analog and digital.
First, ensure the power is off and test for live voltage with a non-contact voltage tester. Remove the switch panel cover and set the multimeter to ohms. When the switch is on, check for a clear path of resistance between the two poles. When the switch is off, ensure the circuit opens.
If you notice any wear or malfunction, it may be time to replace your light switch. Some clear signs include an audible snap, crackle, or pop when flipping the switch, or if a new light bulb doesn't turn on.
Look for a multimeter that can measure low resistance to identify issues like corrosion or wear in the switch contacts. Auto-ranging is a useful feature that automatically adjusts the measurement range, simplifying the testing process. Accuracy and durability are also key factors to consider.
