Umair Gaines
Tracing an electrical circuit to a breaker is a common task for homeowners and electricians. It involves identifying which circuit breaker controls a specific electrical outlet or fixture. This process is important for effective circuit mapping, safety, and controlling power in different areas. While it can be done manually by switching breakers on and off and checking outlets, there are also tools available, such as circuit breaker finders, tracers, and testers, that make the job quicker and easier. These tools can help locate wires and breakers, identify electrical issues, and improve safety. When working with electrical circuits, it is crucial to prioritize safety by using appropriate protective equipment and ensuring a basic understanding of tool functionality.
| Characteristics | Values |
|---|---|
| Safety | Always wear personal protective equipment (PPE) such as safety glasses, insulated gloves, and protective footwear. |
| Tools | Breaker finder, multimeter, non-contact voltage tester, insulated tools, labeling materials, flashlight, wire tracer, voltage tester, plug-in circuit tester, outlet tester, toner/transmitter, alligator clips, circuit breaker tester, light, radio, cell phones, and a ground fault circuit interrupter (GFCI) or a residual current device (RCD). |
| Process | Map circuit breakers, identify the corresponding outlet or electrical device, label each breaker with a unique identifier, trace one circuit at a time, switch off one breaker, check and label outlets, note light fixtures and fixed appliances, connect the transmitter to the outlet, run the receiver probe, switch a breaker off and on, repeat for all outlets, identify breakers by size, trace breakers during the day, turn the pen device with the arrow and light on the left, use a circuit tracer, connect the green test lead to a separate ground, connect the red test lead to the screw of the hot wire, connect the test leads to the transmitter, close the clamp around the wire, select the mode, move the receiver along the wall to find the highest signal level, trace the highest signal level, align the sensor perpendicular to the breaker, scan each breaker or fuse, record results, mark the breakers, and identify hardwired devices. |
Explore related products
What You'll Learn
Using a circuit breaker finder
A circuit breaker finder is a small, battery-operated tool that can be used to trace electrical circuits to their respective breakers. It is a convenient tool that can help you get the job done quickly and without requiring any wiring modifications. Circuit breaker finders are typically priced between $30 and $50, making them a relatively affordable tool for serious DIY enthusiasts. They can also be rented from home improvement centres or tool lease outlets for $10 to $15 per day.

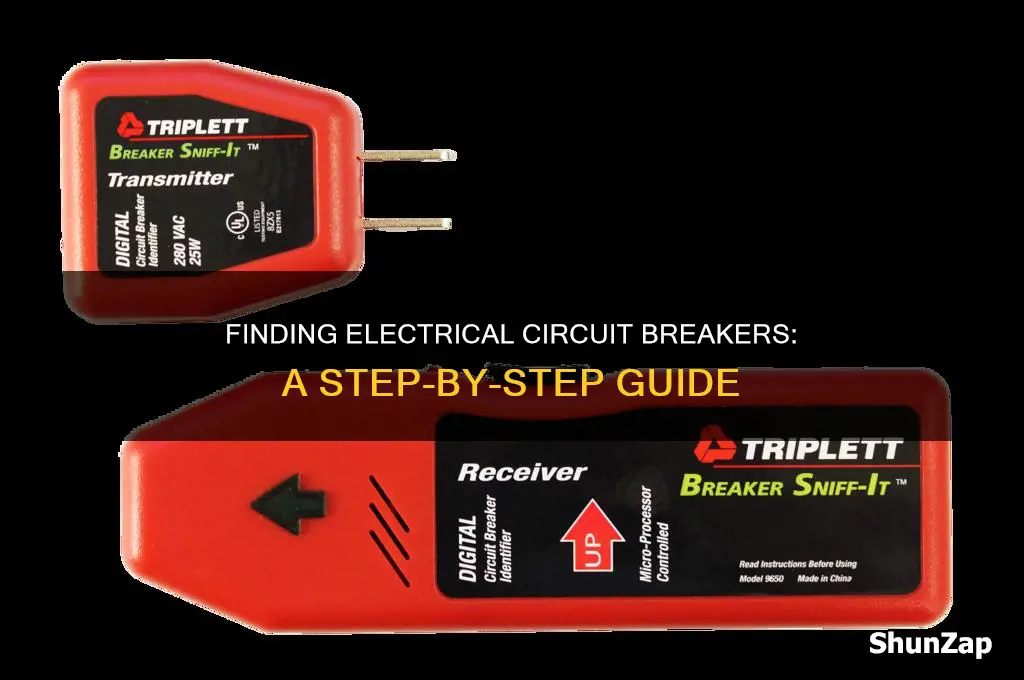

Circuit breaker finders usually consist of two parts: a transmitter and a receiver. The transmitter is plugged into a household outlet or light socket (using an adapter) to identify the controlling circuit breaker or fuse. The transmitter is powered by a battery, often a 9-volt battery installed in the handle. The battery compartment can be easily accessed by sliding a cover back on the bottom of the receiver. After installing the battery, adjust the receiver for maximum sensitivity.
To confirm that the receiver will pick up the transmitter's signal, plug the transmitter into a wall outlet with the power turned on. The transmitter should light up, indicating that it is receiving power. Once the transmitter is plugged in, use the receiver to scan the circuit breaker box. When the receiver passes over the correct circuit breaker, it will rapidly beep and flash, indicating that the correct breaker has been found.
Unlocking Electro Shuffle: How Many V-Bucks to Spend?
You may want to see also
Explore related products
Mapping your circuit breakers
The simplest way to map your circuit breakers is by using a circuit breaker locator or finder. These devices are available for purchase or rent at home improvement centres or tool lease outlets. They are usually priced at $10 to $15 for daily use. You can also use a circuit tracer or a CAT 5 networking toner, but these are more expensive.
To use a circuit breaker finder, follow these steps:
- Draw a map of your house and mark all the outlets and light fixtures in each room.
- Number each outlet and light fixture.
- Go to your circuit breaker panel and assign a number to each breaker.
- Plug the transmitter into a wall outlet or light socket using an adapter.
- The transmitter will send a faint electronic signal through the circuit wires.
- Use the receiver to locate the matching circuit breaker in your breaker box. The receiver will beep and flash when it passes over the correct breaker.
- Note the number of the breaker on your map next to the corresponding outlet or light fixture.
- Repeat for all outlets and light fixtures.
It is important to always put safety first when working with electricity. Make sure to follow safety protocols and use proper safety gear. Additionally, some outlets may be split in two, or set up as switched outlets, so be sure to identify these and take careful notes on your map.
Harvesting Electricity: Fruits and Vegetables' Power Source
You may want to see also
Explore related products
Using a wire tracer
First, ensure you have a blueprint of your home, as this will show the wiring placement in every room. If you don't have one, you can request it from a construction company or a local government office. You can then begin the process of connecting the transmitter. This can be done through a test lead or a current clamp. For most applications, a direct test lead connection is best. Connect the red and green test leads to the transmitter, with the red lead connected to the hot wire on the load side of the circuit.
Next, connect the green test lead to a separate ground, depending on the type of circuit you are tracing. If a direct connection on a bare conductor is unavailable, an advanced wire tracer can use a current clamp on low impedance closed circuits. However, the signal may not be as strong, so keep the receiver nearby. To use a current clamp, connect the test leads to the transmitter, then close the clamp around the wire you wish to trace.
With the transmitter activated, you can now trace the wiring on the circuit. Keep the receiver at least 3 feet away from the transmitter to minimise signal interference. Select the mode you wish to use, such as scan or precise signal detection. Move the receiver along the wall to find the highest signal level, indicating the presence of the wire. Most receivers will guide you in aligning parallel to the wire.
Once you have identified the wire, you can trace it to the end or to a connection with other equipment. To identify breakers, use the receiver to detect the signal from the transmitter. Align the sensor perpendicular to the breaker and scan each breaker or fuse for over a second in repeated passes. Record the results and mark the breakers for future reference.
Electric Slide: Dildo Dance or Disco Delight?
You may want to see also
Explore related products
$49.98
Safety precautions
Tracing an electrical circuit to a breaker is a potentially dangerous task that requires careful preparation and adherence to safety precautions. Here are some essential safety guidelines to follow when attempting to trace an electrical circuit to a breaker:
- Personal Protective Equipment (PPE): It is crucial to wear appropriate PPE, including safety glasses to protect your eyes from any electrical arcs or sparks, insulated gloves to safeguard against electric shocks, and protective footwear to prevent injuries from falling objects or electrical hazards.
- Insulated Tools: Ensure that you use insulated tools when working with live electrical circuits. These tools are designed to provide insulation from electrical currents, reducing the risk of electric shock.
- Non-Contact Voltage Tester: Before working on any electrical box or circuit, always use a non-contact voltage tester to check for live circuits. This device allows you to quickly determine if a circuit is live without making direct contact, reducing the risk of electric shock.
- Initial Panel Inspection: Prior to beginning any work, carefully remove the panel cover and conduct a visual inspection of the electrical panel. Look for any signs of damage, overheating (such as burn marks or discoloration), or loose connections. Addressing these issues is essential to ensure a safe working environment.
- Clear Plan and Documentation: Before starting the circuit tracing process, have a clear plan and the necessary documentation tools ready. Create a comprehensive circuit directory by documenting every circuit breaker and its corresponding outlet or electrical device. Label each breaker with a unique identifier and map it to its specific zone or area. This systematic approach helps avoid confusion during maintenance or emergencies.
- Work During Daytime: It is advisable to perform circuit tracing during the daytime when there is less disruption for building occupants. Working at night when everyone is home and the lights are on increases the risk of accidents.
- Qualified Electrician: While you may be able to trace circuits and perform basic maintenance, it is always best to consult a qualified electrician for any electrical work. They have the training and experience to handle a wide range of electrical issues safely and effectively.
Remember, working with electricity can be dangerous, and your safety should always be the top priority. By following these safety precautions and using the appropriate tools, you can help ensure a safe and successful circuit tracing experience.
How Electrical Signals Power Muscles
You may want to see also
Explore related products
Testing and repairs
Testing Circuit Breakers:
- Safety First: Always prioritize safety when working with electricity. Wear personal protective equipment (PPE), including safety glasses, insulated gloves, and protective footwear.
- Visual Inspection: Before beginning any work, carefully remove the panel cover and perform a visual inspection. Look for signs of damage, overheating, or loose connections. Tighten any loose connections to ensure accurate tracing and reduce risks.
- Tools: Use a reliable multimeter to test electrical circuits. Additionally, a non-contact voltage tester allows you to quickly check for live circuits without direct contact, enhancing safety.
- Breaker Finder: A breaker finder or circuit tracer is a valuable tool. It simplifies the process of identifying corresponding circuit breakers to outlets or fixtures. Plug the transmitter into an outlet, and then use the receiver probe to identify the correct breaker.
- Mapping: Create a map or diagram of your electrical circuits. Label each breaker with a unique identifier and map it to its specific zone or area. This simplifies maintenance and troubleshooting.
- Isolation: When testing a specific circuit, isolate it by switching off the corresponding breaker. This helps in clear identification and reduces the risk of accidents.
- Indicator Devices: Use indicator devices to check accompanying outlets. Connect the indicator to the outlet you want to trace, and then switch the breaker on and off to observe any changes in the indicator state.
Repairs and Troubleshooting:
- Circuit Breaker Issues: If a circuit breaker trips, having a map of your circuits will help you quickly identify the affected circuit. You can then focus on repairing or replacing that specific circuit.
- Wire Tracing: To trace wires within walls, ceilings, or floors, advanced wire tracers are useful. They can detect the transmitter signal, making breaker identification faster and more accurate.
- Sensitivity Adjustment: If you're using a wire tracer and no signal is detected, try adjusting the sensitivity to identify the line or phase wire from the neutral line.
- Toner Kit: For identifying breakers, a toner kit can be used. Connect the transmitter's alligator clips to the wires going to the receptacle, and the toner/receiver will emit a sound when you're close to the wire.
- Receptacle Tester: As a budget-friendly option, use a receptacle tester. Plug it into an outlet and then shut off breakers one by one until you find the one that cuts power to the receptacle.
- Documentation: Always keep a clear record of your findings and repairs. Documentation helps in future troubleshooting and ensures a systematic approach to maintenance.
Remember, when in doubt or dealing with complex electrical issues, it is best to consult a qualified electrician to ensure safe and effective repairs.
Adjusting Electric Trailer Brakes: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The simplest way to trace an electrical circuit to its breaker is to use a circuit tracer or a circuit breaker finder. These tools can identify the correct breaker with a visual or audible alert.
Plug the transmitter of the breaker finder into an outlet, which will send a signal back to the circuit breaker. Then, run the receiver probe along the line of breakers until you find the correct one.
It is important to wear appropriate personal protective equipment (PPE) such as safety glasses, insulated gloves, and protective footwear. Ensure that you are using insulated tools that are in good condition and rated for electrical work. Also, always check for live circuits with a non-contact voltage tester before beginning work.
One alternative method is to use a multimeter to trace the circuit. Another low-tech method is to switch off breakers one by one and use a plug-in circuit tester to identify which outlets are powered by each circuit.
It is important to clearly label each breaker with a unique identifier and map it to its specific zone or area. Use a spreadsheet or a detailed diagram to stay organized. Also, remember to document every circuit breaker and its corresponding outlet or electrical device.
