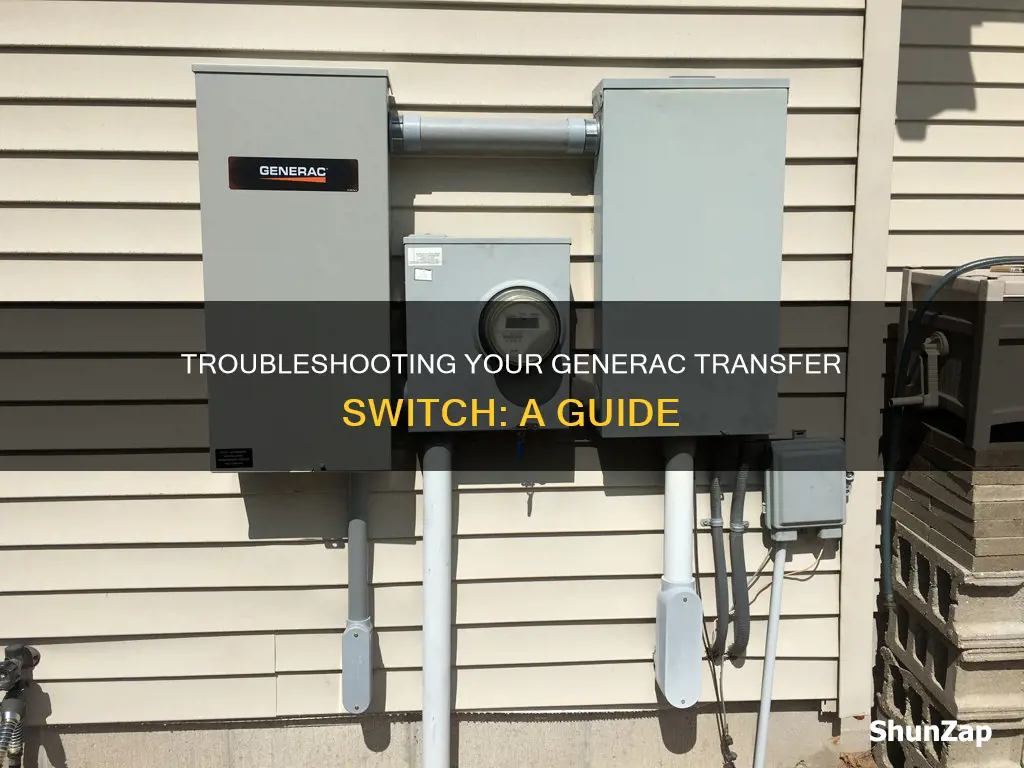

Troubleshooting an electrical transfer switch in a Generac generator is a complex task that should only be performed by qualified and certified technicians with proper personal protective equipment (PPE). The Generac generator is a powerful tool that facilitates the transfer of power during a power outage and once utility power is restored, it switches back. However, issues may arise, such as the generator failing to switch back to utility power, which can be caused by various factors including faulty wiring, grounded or ungrounded wires, or problems with the transfer relay, coil, or limit switch. To resolve these issues, technicians can perform tests and inspections, such as measuring voltage at solenoid terminals or checking for loose wires, corrosion, or moisture inside the transfer switch. It is important to prioritize safety and regular maintenance to ensure the optimal functioning of the Generac generator and its critical role in emergency power systems.
| Characteristics | Values |
|---|---|
| Troubleshooting | Test the switch in standby position with all power off, including the generator. Remove the 23 wire from the terminal, then turn on the utility breaker. If the switch doesn't move, there is a problem with the transfer relay, limit switch, or upper coil. |
| Transfer Switch Issue | If the 23 wire is normal and ungrounded, check for a loose wire in the transfer switch to the upper coil. If the coil, wiring, ice cube relay, or limit switch are faulty, this can be the cause. |
| Voltage | Measure voltage at the solenoid terminals to confirm if the solenoid is burned out or if the control circuitry is malfunctioning. |
| Water and Moisture | Water inside the ATS can cause electronics to short out and burn out the controller. Water can also lead to corrosion and damage connections over time. |
| Maintenance | Regular preventative maintenance by qualified technicians is essential to avoid ATS failure. This includes inspecting for issues, tightening connections, vacuuming debris, and testing components. |
| Safety | Only qualified and certified technicians with proper PPE should handle, service, or troubleshoot automatic transfer switches to avoid severe injury or death. |
Explore related products
What You'll Learn
Check for water and moisture inside the ATS
Water and moisture inside the Automatic Transfer Switch (ATS) can be extremely detrimental to the electrical components. It can cause short circuits, burn out the controller, and lead to corrosion and damaged connections over time. Therefore, it is crucial to regularly check for water and moisture accumulation inside the ATS to prevent potential issues.
Visual Inspection: Begin by visually inspecting the ATS for any signs of water intrusion or moisture accumulation. Look for water droplets, condensation, or any visible indications of water ingress. Pay close attention to the conduit penetrations, as water intrusion through these openings is a common issue. If you have recently experienced strong storms or heavy rainfall, there is an increased likelihood of water ingress.
Moisture Detection: Utilize moisture detection tools, such as moisture meters, to identify hidden moisture within the ATS and its surrounding areas. Moisture meters can help identify moisture content in materials like concrete, wood, and drywall, which may be affected by moisture even if they appear dry to the naked eye. Conduct a comprehensive moisture inspection, including areas like attics, crawl spaces, windows, doors, and exterior walls, as these are prime locations for moisture ingress.
Preventative Measures: To prevent water and moisture issues, ensure that all openings, conduit penetrations, and fittings are properly sealed. Silicone can be used to seal gaps and prevent water ingress. Additionally, consider the use of a waterproof Myers Hub if penetration was made on the top of the ATS. Regular maintenance by qualified technicians is essential to tighten connections, vacuum debris, and identify any signs of corrosion or heat marks.
Safety Precautions: It is imperative to prioritize safety when working with electrical equipment and water. Only qualified and certified technicians with proper personal protective equipment (PPE) should handle and service the ATS. Working on the ATS without the necessary qualifications and safety gear can be hazardous and may result in severe injury or worse.
Manufacturer's Guidelines: Refer to the Generac owner's manuals, troubleshooting guides, and error code help for specific instructions and recommendations related to your particular model. These resources can provide detailed steps and troubleshooting procedures specific to your Generac ATS.
Remember, checking for water and moisture inside the ATS is a critical aspect of maintaining the proper functioning of your emergency power system. By following these steps and staying vigilant, you can help prevent potential electrical issues and ensure the reliability of your ATS during power outages.
Repairing Walls After Electrical Work: A Step-by-Step Guide
You may want to see also
Explore related products
Test for voltage at the solenoid terminals
When troubleshooting a Generac electrical transfer switch, it is important to remember that only qualified and certified technicians with proper personal protective equipment (PPE) should handle the equipment. Working on the switch without the proper gear and knowledge may result in severe injury or death.
To test for voltage at the solenoid terminals, first ensure that the ATS switches back to utility power properly. Then, measure for voltage at the solenoid terminals. This will confirm whether the solenoid is burned out or if the control circuitry is malfunctioning. The solenoid terminals should have a voltage of 12V or 240V. If the solenoid is not functioning properly, it can be replaced.
If the solenoid is burned out, it may be due to a lightning strike. In this case, the magnetos are most likely shot and will need to be replaced. If the control circuitry is malfunctioning, it could be due to water and moisture inside the ATS, which can cause electronics to short out and burn out the controller. A qualified technician will need to diagnose the problem and repair the issues on-site or order a new replacement.
To further troubleshoot, you could try temporarily jumping one solenoid's wires to the other solenoid, with the original wires disconnected. As with most troubleshooting, use a process of elimination, starting with the easiest things to check.
Electrical Fires: The Dangers of That Distinctive Smell
You may want to see also
Explore related products
Check for loose wires in the transfer switch
If you are experiencing issues with your Generac transfer switch, it is important to identify and fix loose wire connections to ensure the safety and functionality of your electrical system. Loose wire connections can lead to electrical problems, such as sparking and arcing, and pose safety risks.
To check for loose wires in the transfer switch, start by turning off the power to the affected switch, light fixture, or outlet. This is an important safety precaution to prevent accidents or injuries. Once the power is off, carefully remove the cover plate to access the wires.
Use a flashlight to inspect the screw terminals and wires for any signs of looseness or improper connections. Pay attention to any buzzing, crackling, or flickering lights, as these can be indicators of loose wire connections. If you notice any loose wires, use wire connectors to secure and tighten the connections. Make sure all connections are tight and secure before turning the power back on.
If you are unsure or uncomfortable performing these steps, it is recommended to contact a qualified technician or electrician. They will have the proper training, protective gear, and equipment to safely handle, service, and troubleshoot your Generac transfer switch. Regular maintenance and inspections by professionals can help identify and prevent potential issues with your transfer switch and ensure its proper functioning.
Waterproofing Electrical Connections: Plug and Socket Protection
You may want to see also
Explore related products
Check if the 23 terminal is grounded
It is important to note that only qualified and certified technicians with proper personal protective equipment (PPE) should handle, service or troubleshoot automatic transfer switches. Working on a Generac transfer switch without the proper gear and knowledge may result in severe injury or death.
To check if the 23 terminal is grounded, follow these steps:
- Ensure that the generator is off and there is no power supply to the transfer switch.
- Locate the 23 wire at the terminal in the transfer switch.
- Disconnect the 23 wire from the terminal.
- Check if the 23 wire is grounded by using a continuity meter. It should read continuity to ground when the wire is disconnected from the terminal.
- If the 23 wire is not grounded, as indicated by a lack of continuity to ground, proceed to the next steps.
- Remove the connectors from the PCB and re-check for continuity to ground. If continuity is lost, it indicates that the PCB is grounding the wire, and there may be a stuck transfer relay on the PCB.
- Inspect the PCB for any signs of damage, such as burning, grounding, or discolouration.
- If no issues are found with the PCB, further diagnostics may be required to identify the cause of the problem.
It is worth noting that the 23 wire is typically not grounded during utility power supply. When utility power is lost, the controller initiates the process of starting the generator, and the 23 wire is pulled to ground. This results in a reference back to the 194 wire (+12V) through the relay.
Adjusting Your Dixon ZTR Electric Clutch: A Step-by-Step Guide
You may want to see also
Explore related products
Schedule regular maintenance to avoid ATS failure
To ensure the proper functioning of an automatic transfer switch (ATS), scheduling routine maintenance checks is essential. ATS plays a critical role in emergency power systems, and regular maintenance can help prevent failures and extend the equipment's lifespan. Here are some key considerations for scheduling regular maintenance to avoid ATS failure:
Qualified Technicians
Only qualified and certified technicians with proper personal protective equipment (PPE) should handle ATS maintenance and repairs. Working on an ATS without the necessary qualifications and safety gear can be extremely dangerous and may lead to severe injury or worse. Qualified technicians will have the expertise to thoroughly inspect the ATS for any issues. They will look for signs of corrosion, dust buildup, heat marks, and loose connections. Technicians will also perform a live building load test to ensure the ATS functions correctly.
Regular Maintenance Intervals
Annual checkups are recommended to maintain an ATS in proper working order. Regular maintenance can help identify and address issues before they become more significant problems. It is also beneficial to conduct a thorough visual inspection of the ATS, checking for any signs of wear and tear on cables and other components. This proactive approach ensures the ATS is ready to respond in the event of a power outage.
Deep Cleaning
During maintenance, a deep cleaning of the ATS is essential. This involves removing arc chutes or transfer switch barriers to access the contacts within. Any surface deposits, dirt, or grime should be wiped away with a clean, dry, non-abrasive cloth. This process helps prevent corrosion and ensures optimal electrical conductivity.
Comprehensive Testing
As part of the maintenance routine, a variety of tests should be conducted to simulate different power scenarios. These include a complete normal power outage, a re-energized normal power source following an outage, a complete loss of emergency power, and single-phase conditions. By observing how the ATS responds to these simulated events, technicians can identify any potential issues and fine-tune the system.
Preventative Measures
In addition to regular maintenance, some preventative measures can be implemented to reduce the risk of ATS failure. For example, ensuring the ATS is protected from water and moisture is crucial, as this can cause electrical shorts, controller damage, and corrosion over time. Regularly checking for tripped breakers, which can occur due to power surges or overcurrent, is also important.
By scheduling regular maintenance with qualified technicians, conducting thorough inspections and tests, and implementing preventative measures, you can significantly reduce the likelihood of ATS failure. This proactive approach ensures the reliability and longevity of your emergency power system.
Electricity Costs in Florida: Cheaper at Night?
You may want to see also
Frequently asked questions
This could be due to a faulty transfer relay, limit switch, or upper coil. If the 23 wire is normal and ungrounded, check for a loose wire in the transfer switch to the upper coil. If you have 12V at the transfer switch when the power is removed, measure for voltage at the solenoid terminals to confirm whether the solenoid is burned out or the control circuitry is malfunctioning.
Water is the worst enemy of electrical components. It can short out electronics and burn out the controller. Only qualified and certified technicians with proper personal protective equipment (PPE) should handle and service the ATS. Contact a qualified technician to diagnose and repair the problem.
Schedule regular preventative maintenance services with a qualified service provider. They will complete a full inspection, looking for issues, signs of corrosion, dust buildup, or heat marks. They will also tighten all connections, vacuum out any debris, and manually test all components.
Check if you have 12V at the transfer switch when the power is removed. If not, measure for voltage at the solenoid terminals. If there is no voltage at the solenoid terminals, the issue could be with the solenoid or the control circuitry.
