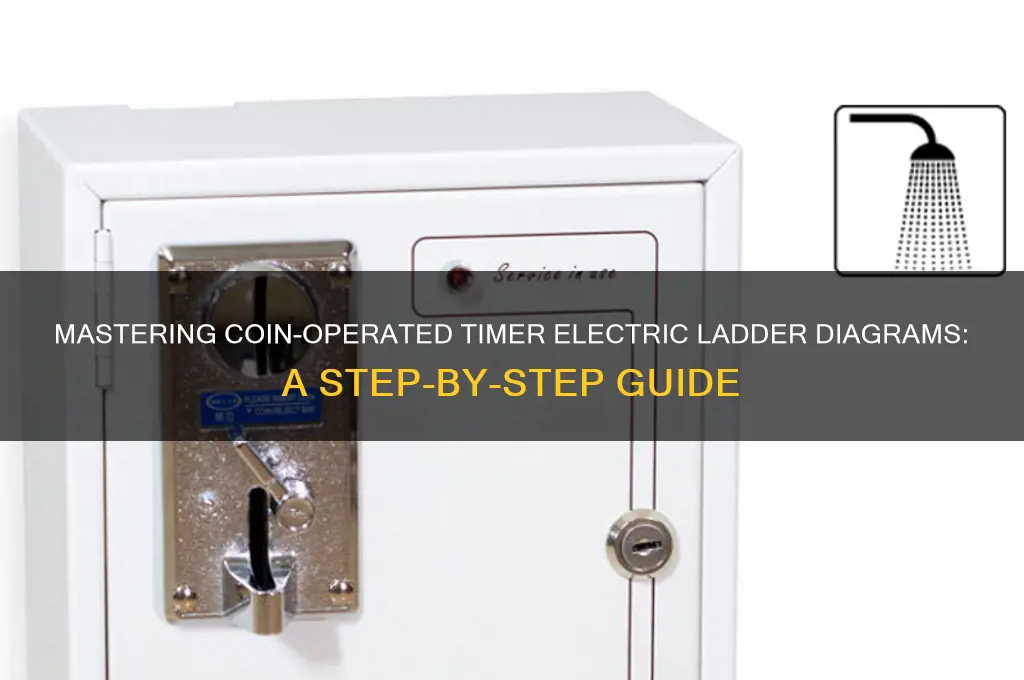

A coin-operated timer electric ladder diagram is a specialized control system used to manage the operation of devices, such as washing machines or arcade games, that require payment via coins to function. Understanding how to use this system involves interpreting the ladder diagram, a graphical representation of the electrical circuit, which outlines the sequence of operations triggered by coin insertion. The diagram typically includes components like relays, timers, and switches, each representing a step in the process, such as activating the machine, setting a time limit, or initiating a refund mechanism. By following the logic flow of the ladder diagram, users can troubleshoot issues, ensure proper functionality, and maintain the system effectively, making it an essential skill for technicians and operators in industries reliant on coin-operated machinery.
| Characteristics | Values |
|---|---|
| Power Source | Typically 120V or 240V AC, depending on the model and regional standards |
| Coin Mechanism | Accepts coins of specific denominations (e.g., quarters, tokens) with adjustable settings for price per use |
| Timer Range | Adjustable time intervals, usually from 1 to 30 minutes, set by the operator |
| Relay Output | Controls the electrical circuit to activate the ladder or device for the purchased time |
| Reset Function | Automatically resets the timer and relay after the purchased time expires |
| Housing Material | Durable materials like metal or heavy-duty plastic to withstand outdoor/indoor use |
| Wiring Connections | Requires connection to the main power supply and the device being controlled (e.g., electric ladder) |
| Ladder Diagram Components | Includes power supply, coin mechanism, timer relay, contactor, and control switches |
| Safety Features | Overload protection, short-circuit protection, and emergency stop functionality |
| Installation Requirements | Must comply with local electrical codes and regulations; professional installation recommended |
| Maintenance | Periodic cleaning of the coin mechanism and inspection of electrical connections |
| Compatibility | Works with various devices requiring timed activation, such as electric ladders, washing machines, or arcade games |
| Dimensions | Varies by model, typically compact for easy installation in tight spaces |
| Weight | Typically 5-15 lbs, depending on the size and material of the unit |
| Price Range | $100 to $500, depending on features and brand |
| Common Brands | Coin-Op Timer, Seaga, Standard Change-Makers, and others |
Explore related products
$12.99 $15.99
What You'll Learn
- Understanding Timer Functions: Learn basic timer operations and settings for coin-operated electric ladder diagrams
- Wiring Connections: Identify and connect wires correctly in a coin-operated timer system
- Programming Logic: Create ladder logic sequences for timer activation and control
- Troubleshooting Tips: Diagnose and fix common issues in coin-operated timer systems
- Safety Protocols: Ensure safe operation and maintenance of coin-operated timer systems
Understanding Timer Functions: Learn basic timer operations and settings for coin-operated electric ladder diagrams
Coin-operated timers in electric ladder diagrams serve as the heartbeat of automated systems, controlling the duration and sequence of operations. These timers, often integrated into vending machines, laundry equipment, or arcade games, rely on precise settings to ensure functionality and user satisfaction. Understanding their basic operations begins with recognizing the two primary types: on-delay and off-delay timers. On-delay timers activate a circuit after a preset time, while off-delay timers keep a circuit active for a specified duration after the input signal stops. For instance, a coin-operated washing machine might use an on-delay timer to start the wash cycle only after sufficient coins are inserted, ensuring payment before service.
To configure these timers, familiarity with their settings is crucial. Most coin-operated systems use programmable logic controllers (PLCs) with timer instructions like TON (Timer On-delay) and TOF (Timer Off-delay). The key parameters include preset time (PT), which defines the duration in seconds or milliseconds, and accumulator value (ACC), which tracks elapsed time. For example, setting PT to 300 seconds ensures a 5-minute operation after coin insertion. Practical tip: Always test timer settings in a controlled environment before deployment to avoid malfunctions, such as a vending machine dispensing items prematurely or halting mid-cycle.
Analyzing ladder diagrams reveals how timers interact with other components. A typical diagram might show a timer connected to a relay, motor, or solenoid. For instance, in a coin-operated air compressor, the ladder diagram could include a TON instruction to delay motor start-up, preventing immediate pressure surges. Caution: Incorrect wiring or timing values can lead to system failures or safety hazards. Always cross-reference the timer’s datasheet with the ladder diagram to ensure compatibility and accuracy.
Comparing timer functions across applications highlights their versatility. In a coin-operated arcade game, timers might control bonus rounds or power-ups, requiring shorter, more dynamic intervals (e.g., 10–30 seconds). Conversely, industrial laundry machines may use longer timers (e.g., 20–40 minutes) for wash and rinse cycles. This adaptability underscores the importance of tailoring timer settings to the specific demands of each system. Takeaway: Mastery of timer functions not only ensures operational efficiency but also enhances user experience by delivering consistent, reliable performance.
Finally, troubleshooting timer-related issues requires a systematic approach. Common problems include incorrect PT values, faulty input signals, or hardware malfunctions. Start by verifying the timer’s preset time against the desired operation duration. Use a multimeter to check for continuity in the input circuit and inspect the timer’s contacts for wear or damage. For advanced diagnostics, simulate the timer’s behavior in a PLC software environment to isolate software from hardware issues. Practical tip: Maintain a log of timer settings and adjustments for future reference, streamlining maintenance and reducing downtime. By demystifying timer functions, operators can optimize coin-operated systems for longevity and performance.
