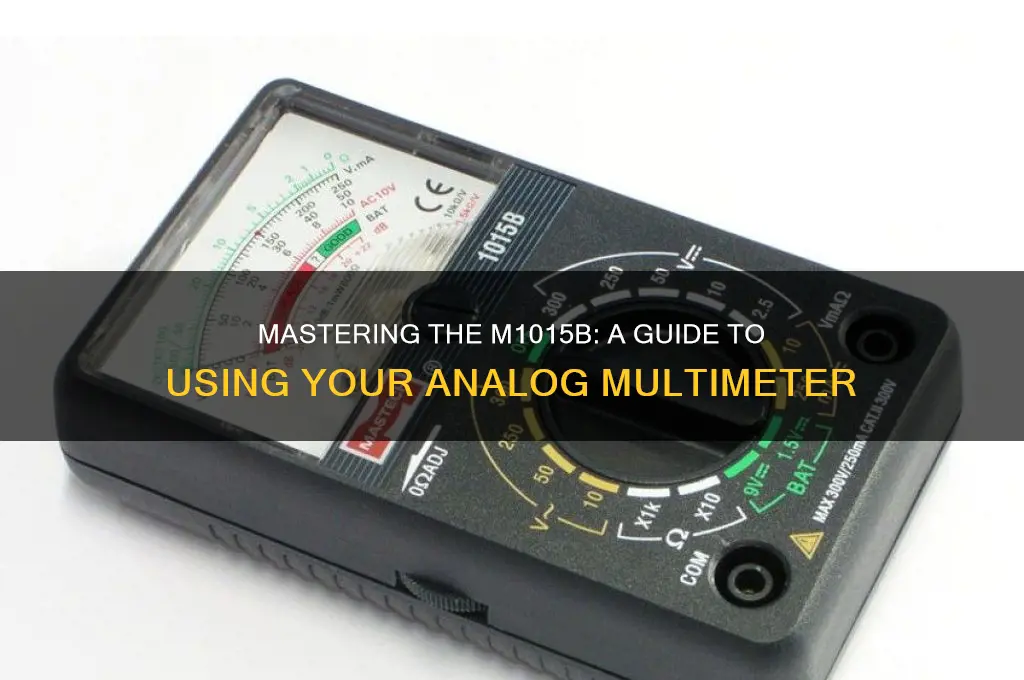

The commercial electric analog multimeter M1015B is a versatile tool used for measuring voltage, current, and resistance in electrical circuits. To use it effectively, start by selecting the appropriate measurement range on the rotary switch, ensuring it matches the expected value of the parameter being tested. Connect the test leads to the correct terminals—red for positive and black for negative—and then touch the probes to the circuit points. Observe the needle’s movement on the analog scale to read the measurement, ensuring accuracy by aligning the needle with the scale’s markings. Always prioritize safety by ensuring the circuit is de-energized before connecting the meter and double-checking the settings to avoid damage to the device or injury.
Explore related products
What You'll Learn
- Understanding Multimeter Basics: Learn the functions, components, and safety precautions for using the M1015B effectively
- Setting Up the Multimeter: Properly connect probes, select ranges, and prepare for accurate measurements
- Measuring Voltage: Step-by-step guide to measure AC/DC voltage with the M1015B multimeter
- Testing Current Flow: Safely measure amperage using the multimeter’s current testing capabilities
- Resistance Measurement: How to check resistance values accurately with the M1015B multimeter
Understanding Multimeter Basics: Learn the functions, components, and safety precautions for using the M1015B effectively
The M1015B analog multimeter is a versatile tool for measuring voltage, current, and resistance, but its effectiveness hinges on understanding its core functions and components. At its heart lies the analog needle, which sweeps across a graduated scale to indicate measured values. Unlike digital multimeters, the M1015B requires manual range selection via a rotary switch, demanding careful attention to avoid overloading the device. The front panel features additional terminals for specific measurements, such as common (COM) and voltage/resistance (VΩ), each serving distinct purposes. Mastering these elements is the first step toward accurate and safe multimeter use.
Consider the rotary switch, often the most intimidating component for beginners. This selector dial determines the measurement type and range, with options like AC/DC voltage, resistance, and current. For instance, measuring household AC voltage (120V or 240V) requires selecting the appropriate range to prevent damage. Resistance measurements, on the other hand, necessitate connecting the test leads across the component while ensuring the circuit is de-energized. Each setting corresponds to a specific scale on the meter face, requiring the user to interpret the needle’s position relative to that scale. This interplay between the switch and the display underscores the importance of precision in analog multimeter operation.
Safety precautions are non-negotiable when using the M1015B. Always start by inspecting the test leads for damage, as frayed or exposed wires can lead to electrical shocks or short circuits. When measuring high voltage, use insulated tools and wear protective gear, such as rubber gloves. Never measure current in a live circuit without proper training, as this can overload the meter and pose severe risks. Additionally, ensure the meter is set to the correct range before connecting it to a circuit; starting with the highest range and working downward minimizes the risk of damage. These practices not only protect the user but also extend the multimeter’s lifespan.
A practical tip for beginners is to calibrate the M1015B before each use by adjusting the zero-ohm control. With the test leads connected and the meter set to the lowest resistance range, turn the control until the needle reads zero. This ensures accurate resistance measurements. For voltage checks, verify the meter’s functionality by testing a known source, such as a battery, before proceeding to unknown circuits. Such habits foster confidence and accuracy, transforming the M1015B from a daunting device into an indispensable diagnostic tool. By combining technical knowledge with cautious practice, users can harness the full potential of this analog multimeter.
