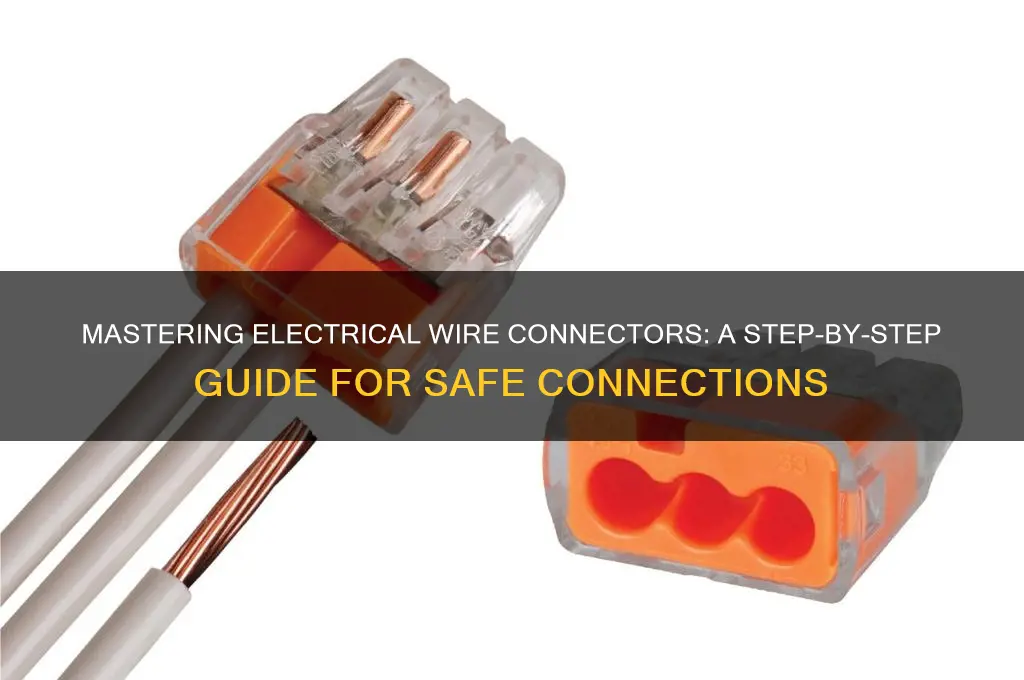

Electrical wire connectors are essential tools for safely and efficiently joining wires in various applications, from home repairs to professional electrical installations. These connectors come in different types, such as twist-on wire connectors, push-in connectors, and lever-nut connectors, each designed for specific wiring needs. To use them effectively, start by stripping the wires to expose the conductive ends, ensuring they are clean and free of insulation. Next, align the wires and insert them into the connector according to the manufacturer’s instructions, tightening or securing the connector as required. Properly using electrical wire connectors ensures a secure, reliable connection, minimizes the risk of short circuits or loose wires, and complies with safety standards, making them a fundamental skill for anyone working with electrical systems.
| Characteristics | Values |
|---|---|
| Types of Connectors | Wire nuts, twist-on connectors, lever nuts, push-in connectors, crimp connectors, terminal blocks, butt connectors, spade connectors, ring terminals, etc. |
| Preparation | Strip wire insulation (typically 1/2 inch), ensure clean and straight wire ends. |
| Matching Wire Gauge | Use connectors rated for the wire gauge being connected (e.g., 14 AWG, 12 AWG). |
| Twisting Wires | Twist wires together clockwise before inserting into the connector (for wire nuts, twist-on connectors). |
| Insertion | Insert stripped wires into the connector until they reach the base. |
| Securing Mechanism | Tighten wire nuts by hand or with pliers; snap lever nuts closed; push wires into push-in connectors; crimp connectors with a crimping tool. |
| Insulation | Ensure connectors provide insulation to prevent short circuits (e.g., wire nuts, twist-on connectors). |
| Waterproofing | Use waterproof connectors or apply sealant for outdoor or wet environments. |
| Testing Connections | Use a multimeter to test continuity and ensure a secure connection. |
| Safety Precautions | Turn off power before connecting wires; wear safety gear (gloves, goggles). |
| Compatibility | Ensure connectors are compatible with wire type (solid, stranded) and voltage rating. |
| Temperature Rating | Choose connectors with appropriate temperature ratings for the application. |
| Reusability | Some connectors (e.g., push-in, twist-on) are reusable; others (e.g., crimp) are not. |
| Labeling | Label connections for future reference, especially in complex wiring systems. |
| Application-Specific Connectors | Use specialized connectors for specific applications (e.g., automotive, marine, industrial). |
| Compliance | Ensure connectors meet relevant standards (e.g., UL, CE, IEC). |
Explore related products
What You'll Learn
- Types of Connectors: Identify various connectors like wire nuts, terminal blocks, and crimp connectors for specific applications
- Stripping Wires: Properly strip wire insulation using strippers to expose the correct length of conductor
- Connecting Wires: Securely join wires using connectors, ensuring tight and reliable electrical connections
- Safety Precautions: Follow safety guidelines to prevent shocks, short circuits, and other electrical hazards during installation
- Testing Connections: Use a multimeter to verify connectivity and ensure the circuit functions correctly after wiring
Types of Connectors: Identify various connectors like wire nuts, terminal blocks, and crimp connectors for specific applications
Electrical wire connectors are the unsung heroes of any wiring project, ensuring safe and reliable connections. Among the most common types are wire nuts, terminal blocks, and crimp connectors, each designed for specific applications. Wire nuts, for instance, are twist-on connectors ideal for joining two or more wires together. They come in various sizes, color-coded to match wire gauges: blue for 22–16 AWG, orange for 16–14 AWG, and yellow for 12 AWG. Always strip wires to the correct length (about ½ inch) and twist them clockwise before securing with a wire nut to ensure a tight connection.
Terminal blocks, on the other hand, are stationary connectors used for organizing and securing wires in control panels or junction boxes. They allow for easy disconnection and reconnection of wires, making troubleshooting simpler. There are several types, including screw-clamp, spring-clamp, and barrier strips. For high-vibration environments, screw-clamp terminal blocks are preferred due to their robust hold. When using terminal blocks, ensure the wire gauge matches the block’s rating and tighten screws to the manufacturer’s torque specifications to avoid damage.
Crimp connectors offer a permanent, gas-tight connection by compressing a metal sleeve around a wire. They are commonly used in automotive and aerospace applications where reliability is critical. To use crimp connectors, strip the wire, insert it into the connector, and apply the correct crimping tool. The tool’s die must match the connector’s size to avoid under or over-crimping. A properly crimped connector should have a uniform barrel shape and no exposed wire strands. Always inspect the crimp before use to ensure it meets standards.
Choosing the right connector depends on the application’s requirements. For temporary or low-voltage connections, wire nuts are cost-effective and easy to use. Terminal blocks excel in scenarios requiring frequent access or multiple connections. Crimp connectors are best for high-stress environments where durability is paramount. Understanding these differences ensures not only functionality but also safety, as improper connections can lead to shorts, overheating, or equipment failure. Always follow manufacturer guidelines and local electrical codes when selecting and installing connectors.
