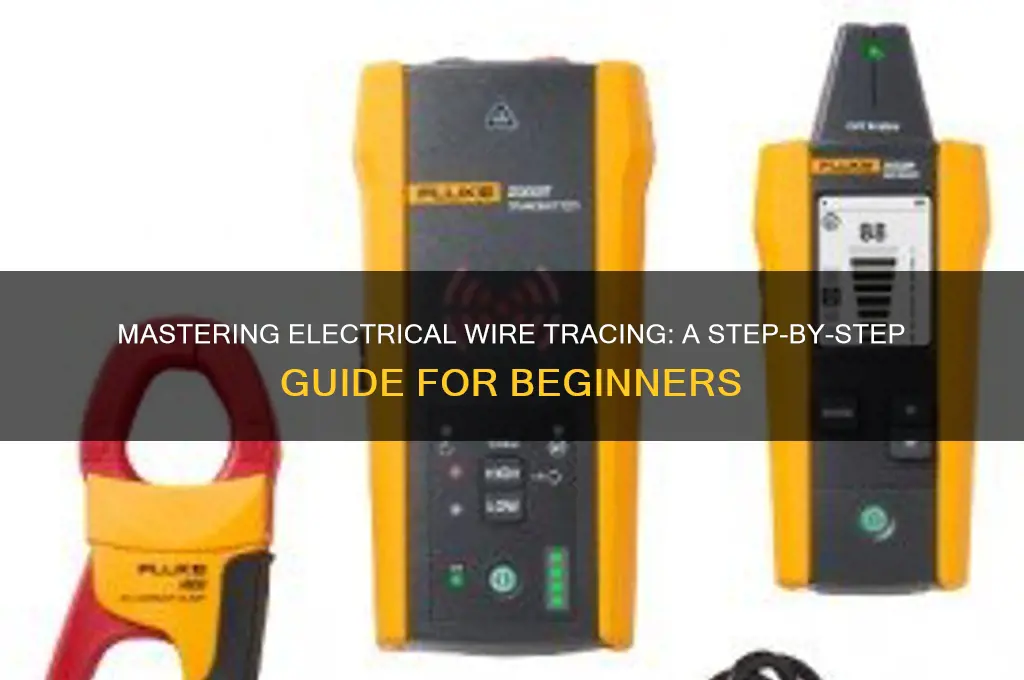

An electrical wire tracer is a valuable tool for identifying and locating wires within walls, floors, or electrical systems, making it essential for electricians, contractors, and DIY enthusiasts. To use one effectively, start by ensuring the power to the circuit is turned off for safety. Next, connect the tracer’s transmitter to the wire you want to trace, either directly or through an outlet or junction box. Activate the transmitter, which sends a signal through the wire. Then, use the receiver to detect the signal by running it along the surface where the wire is hidden. The receiver will indicate the wire’s path with audible beeps, visual lights, or a meter reading, allowing you to pinpoint its location accurately. Always follow the manufacturer’s instructions and safety guidelines to ensure precise and safe wire tracing.
| Characteristics | Values |
|---|---|
| Purpose | To identify and trace the path of electrical wires within walls or conduits. |
| Types of Tracers | Wired (direct connection) and Wireless (inductive or radiative). |
| Components | Transmitter, Receiver, and Probes/Clamps. |
| Power Source | Battery-operated or AC-powered. |
| Frequency Range | Typically 10 Hz to 100 kHz for most tracers. |
| Signal Strength Indicator | LED or LCD display showing signal intensity. |
| Wire Compatibility | Works with live or dead wires (depending on the model). |
| Depth Detection | Up to 3-4 inches (7.5-10 cm) in walls, varies by material. |
| Safety Features | Insulated probes, auto-shutoff, and overload protection. |
| Usage Steps | 1. Connect transmitter to wire. 2. Use receiver to trace signal. |
| Applications | Electrical repairs, renovations, and locating faults. |
| Accuracy | High accuracy within specified depth and material conditions. |
| Portability | Handheld and lightweight for easy handling. |
| Cost Range | $50 to $500 depending on features and brand. |
| Common Brands | Greenlee, Klein Tools, Fluke, and Ideal Industries. |
| Maintenance | Regularly check batteries and clean probes/clamps. |
| Limitations | May not work through thick metal or heavily shielded walls. |
Explore related products
What You'll Learn
- Understanding Tracer Types: Learn about different wire tracer models and their specific functionalities for accurate tracing
- Safety Precautions: Follow essential safety steps to avoid electrical hazards while using a wire tracer
- Connecting the Tracer: Properly attach the tracer to the circuit for reliable signal detection
- Interpreting Signals: Decode tracer readings to identify wire paths and potential faults effectively
- Troubleshooting Tips: Solve common issues like weak signals or incorrect readings during wire tracing
Understanding Tracer Types: Learn about different wire tracer models and their specific functionalities for accurate tracing
Electrical wire tracers are not one-size-fits-all tools. Understanding the different types and their functionalities is crucial for accurate tracing, whether you're a professional electrician or a DIY enthusiast. The market offers a variety of models, each designed to tackle specific tracing challenges. For instance, tone generators are commonly used for identifying wires within a bundle, while circuit tracers excel at mapping entire circuits. Knowing which tool to use can save time and prevent errors.
Consider the non-contact voltage tracers, which are ideal for quick, surface-level tracing without physical wire connection. These devices detect electromagnetic fields around live wires, making them safe for initial assessments. However, they may lack precision in complex wiring setups. In contrast, powered tracers require direct connection to the circuit but offer more accurate results, especially in identifying specific wires within a conduit. For professionals dealing with intricate systems, advanced digital tracers with features like distance measurement and wire mapping are indispensable.
When selecting a tracer, assess your needs based on the complexity of the wiring system. For residential projects, a basic tone generator paired with a probe might suffice. Commercial or industrial environments, however, often demand more sophisticated tools like multi-function tracers that combine voltage detection, circuit mapping, and fault locating. Always check the tracer's compatibility with your wiring system—some models may not work with certain types of cables or voltage ranges.
Practical tips can enhance your tracing accuracy. For example, when using a tone generator, ensure the signal strength is adjusted to avoid interference from nearby wires. If working with buried or concealed wires, pair your tracer with a signal amplifier for better penetration. Additionally, always test the tracer on a known circuit before starting to ensure it’s functioning correctly. Understanding these nuances not only improves efficiency but also minimizes the risk of damaging wires or circuits during the tracing process.
In conclusion, the key to mastering electrical wire tracing lies in matching the right tool to the task. By familiarizing yourself with the functionalities of different tracer types, you can approach any wiring challenge with confidence. Whether it’s a simple home repair or a complex industrial installation, the right tracer makes all the difference. Invest time in learning these tools, and you’ll find that tracing wires becomes less of a guesswork and more of a precise science.
Testing Small Electric Motors: Multimeter Guide for Quick Diagnostics
You may want to see also
Explore related products
Safety Precautions: Follow essential safety steps to avoid electrical hazards while using a wire tracer
Before tracing any wires, ensure the power is off at the circuit breaker or fuse box. This step is non-negotiable. Even low-voltage circuits can deliver a dangerous shock, and the risk of accidental contact with live wires is high when maneuvering a tracer. Verify the power is off using a non-contact voltage tester at the outlet or panel you’re working on. If you’re unsure about the wiring configuration, consult a professional electrician to avoid catastrophic mistakes.
Always wear insulated gloves and safety goggles when using a wire tracer. These tools provide a critical barrier against accidental shocks and protect your eyes from potential debris dislodged during the tracing process. Avoid wearing jewelry or loose clothing that could snag on wires or equipment. Additionally, work in dry conditions and ensure your hands and the tracer are free from moisture, as water conducts electricity and increases the risk of injury.
Understand the limitations of your wire tracer. Most models are designed for specific voltage ranges, typically between 12V and 600V. Using a tracer outside its rated range can damage the device or lead to inaccurate readings. Always check the manufacturer’s guidelines before use. For high-voltage systems, such as those in industrial settings, rely on specialized equipment and trained personnel to avoid life-threatening hazards.
When tracing wires in walls or ceilings, avoid piercing or drilling into the surface without first confirming the wire’s location. Use the tracer’s non-invasive mode to map the path of the wire externally. If you must penetrate the surface, do so cautiously and only after de-energizing the circuit. Even small punctures can expose live wires, leading to shocks, fires, or damage to the wiring system.
Finally, maintain a safe distance from energized components and never touch exposed wires or terminals while tracing. Keep the tracer’s probe insulated and avoid contact with other conductive materials. If you encounter damaged or frayed wires during the process, stop immediately and address the issue before proceeding. Safety is not just a precaution—it’s a mindset that ensures you complete the task without harm.
Electric Guitar String Compatibility: Can You Use Any Type?
You may want to see also
Explore related products
Connecting the Tracer: Properly attach the tracer to the circuit for reliable signal detection
Attaching an electrical wire tracer to a circuit is a delicate process that demands precision. Unlike simply clipping a multimeter, tracers rely on inductive coupling to detect signals, meaning their position and connection method directly impact accuracy. A poorly attached tracer can lead to weak or nonexistent signals, rendering the tool useless.
Steps for Secure Connection:
- Identify the Target Wire: Before connecting, visually trace the wire you intend to test. Follow its path from the power source to the device, noting any junctions or potential interference points.
- Choose the Right Attachment Method: Most tracers offer two connection options:
- Clip-on: Ideal for exposed wires, this method provides a direct connection. Ensure the clip jaws firmly grasp the wire without damaging the insulation.
- Inductive Probe: For wires encased in conduit or difficult to access, the inductive probe allows for non-invasive detection. Hold the probe close to the wire, maintaining a consistent distance for optimal signal pickup.
- Minimize Interference: Electrical noise from nearby appliances or power lines can distort the tracer's signal. Turn off unnecessary devices and keep the tracer away from potential sources of interference.
- Test and Adjust: After connecting, activate the tracer and observe the signal strength. If the signal is weak, try repositioning the clip or probe slightly. Experiment with different orientations to find the strongest reading.
Cautions:
- Safety First: Always de-energize the circuit before connecting the tracer if possible. If working on live circuits, use extreme caution and ensure the tracer is rated for such applications.
- Insulation Integrity: Never pierce wire insulation to make a connection. This can compromise safety and damage the wire.
- Tracer Sensitivity: Some tracers are more sensitive than others. Refer to the manufacturer's instructions for specific guidance on optimal connection methods and signal interpretation.
Properly connecting an electrical wire tracer is crucial for accurate signal detection. By following these steps, understanding the limitations, and prioritizing safety, you can effectively utilize this tool to trace wires, identify faults, and troubleshoot electrical systems with confidence. Remember, a secure and interference-free connection is the foundation for successful wire tracing.
Nighttime Energy Usage: Uncovering Devices That Drain Electricity After Dark
You may want to see also
Explore related products
Interpreting Signals: Decode tracer readings to identify wire paths and potential faults effectively
Electrical wire tracers emit a signal along a wire, and the receiver detects this signal to trace the wire’s path. However, interpreting these signals requires more than just following a beep. The strength and consistency of the signal can reveal critical details about the wire’s condition and location. For instance, a steady, strong signal indicates a clear, unbroken path, while intermittent or weak signals may suggest damage, splices, or interference from nearby wires. Understanding these nuances is key to diagnosing faults and ensuring accurate tracing.
To decode tracer readings effectively, start by calibrating the tracer according to the manufacturer’s instructions. Most devices have adjustable sensitivity settings, which should be fine-tuned to match the environment. In noisy electrical areas, reduce sensitivity to minimize false signals; in open spaces, increase it to detect weaker signals. Once calibrated, trace the wire while observing the signal strength meter or audible tone. A sudden drop in signal strength often points to a break or fault in the wire, while a split signal may indicate a junction or splice. Always cross-reference findings with a wiring diagram if available.
One practical tip is to use the tracer’s inductive or direct-connect modes strategically. Inductive mode is ideal for tracing live wires without physical contact, but it may pick up signals from adjacent wires. Direct-connect mode, where the transmitter is attached to the wire, provides a clearer signal but requires access to the wire’s endpoint. For buried or concealed wires, combine tracer readings with visual inspection or thermal imaging to confirm the path. For example, if the tracer detects a fault in a wall, use a stud finder to locate the wire’s approximate position before cutting into the drywall.
Comparing tracer readings in different scenarios can sharpen your diagnostic skills. For instance, a wire with a consistent signal but no power at the endpoint likely has a disconnected load, not a fault in the wire itself. Conversely, a wire with fluctuating signals and visible charring near an outlet suggests a short circuit. By correlating tracer data with physical evidence, you can pinpoint issues more accurately. Practice by tracing known good and faulty wires to familiarize yourself with typical signal patterns.
In conclusion, interpreting tracer signals is both an art and a science. It demands attention to detail, critical thinking, and a systematic approach. By mastering signal patterns, adjusting settings appropriately, and cross-referencing findings, you can identify wire paths and faults with confidence. Whether troubleshooting a home circuit or mapping industrial wiring, this skill transforms the tracer from a simple tool into a powerful diagnostic instrument.
Fish Tank Electricity Usage: How Much Power Does Your Aquarium Consume?
You may want to see also
Explore related products
Troubleshooting Tips: Solve common issues like weak signals or incorrect readings during wire tracing
Weak signals during wire tracing often stem from insufficient transmitter power or improper connections. To amplify the signal, ensure the transmitter is securely clamped to the wire and that the circuit is live. If the signal remains faint, try using a higher power setting on the transmitter, if available. For buried or shielded wires, consider using an induction mode, which creates a stronger electromagnetic field around the wire. Always verify that the wire is not damaged or corroded, as this can attenuate the signal. If the wire is part of a complex network, isolate it by disconnecting parallel circuits to reduce interference.
Incorrect readings frequently arise from environmental interference or misidentification of wires. To minimize interference, avoid tracing wires near large metal objects, power lines, or other active circuits. Use the tracer’s filtering features, if available, to isolate the target frequency. When identifying wires in a bundle, double-check by tracing from both ends of the wire to ensure consistency. If the tracer indicates a wire that doesn’t match your expectations, retest using a different mode (e.g., switching from tone to current tracing) to confirm the result. Label wires as you go to avoid confusion, especially in multi-wire setups.
Signal loss over long distances is a common challenge, particularly in industrial or commercial settings. To combat this, position the transmitter as close as possible to the tracing area and use a receiver with a sensitive antenna. For extended runs, consider using signal amplifiers or repeaters, though these are typically reserved for specialized applications. If tracing through walls or floors, maintain a consistent distance between the receiver and the surface to avoid signal drop-offs. Test shorter segments of the wire individually to pinpoint where the signal weakens, which can help identify breaks or faults.
False positives can occur when the tracer picks up signals from nearby wires or devices. To avoid this, use the tracer’s “null” or “zero” function to calibrate it to the environment before tracing. If working in a crowded electrical space, temporarily shut off non-essential circuits to reduce background noise. For bundled wires, separate them slightly to improve isolation. If the tracer still gives inconsistent results, switch to a passive tracing mode, which detects existing currents rather than relying on a transmitted signal. Always cross-reference findings with a multimeter or visual inspection to ensure accuracy.
Finally, user error is a frequent culprit in wire tracing issues. Familiarize yourself with the tracer’s manual, as features and modes vary by model. Practice on a simple circuit before tackling complex systems. Keep the receiver’s antenna perpendicular to the wire for optimal signal detection. If using a tone-based tracer, ensure the tone generator is compatible with the receiver. Regularly check batteries or power sources, as low power can lead to erratic readings. By methodically addressing these common issues, you’ll improve accuracy and efficiency in wire tracing tasks.
How Much Electricity Do Battery Chargers Really Consume?
You may want to see also
Frequently asked questions
An electrical wire tracer is a tool used to locate and identify electrical wires within walls, floors, or ceilings. It helps electricians and DIY enthusiasts trace the path of wires, find breaks, or identify specific circuits without damaging the structure.
First, connect the transmitter to the wire you want to trace. Then, use the receiver to follow the signal emitted by the transmitter along the wire's path. The receiver will indicate the wire's location with audible beeps or visual signals.
Yes, most electrical wire tracers can work on live wires, but always follow the manufacturer's instructions and safety guidelines. Ensure the tool is rated for live wire tracing and take precautions to avoid electrical hazards.
Check the transmitter’s connection to the wire and ensure it’s properly attached. Reduce interference by moving away from other electrical devices or metal objects. If the issue persists, the wire may be too deep or damaged, requiring further investigation.
Yes, there are analog and digital wire tracers, as well as models for specific applications (e.g., live wires, non-energized circuits). Choose based on your needs: digital tracers offer more precision, while analog tracers are simpler and often more affordable. Consider the environment and the type of wiring you’ll be tracing.
