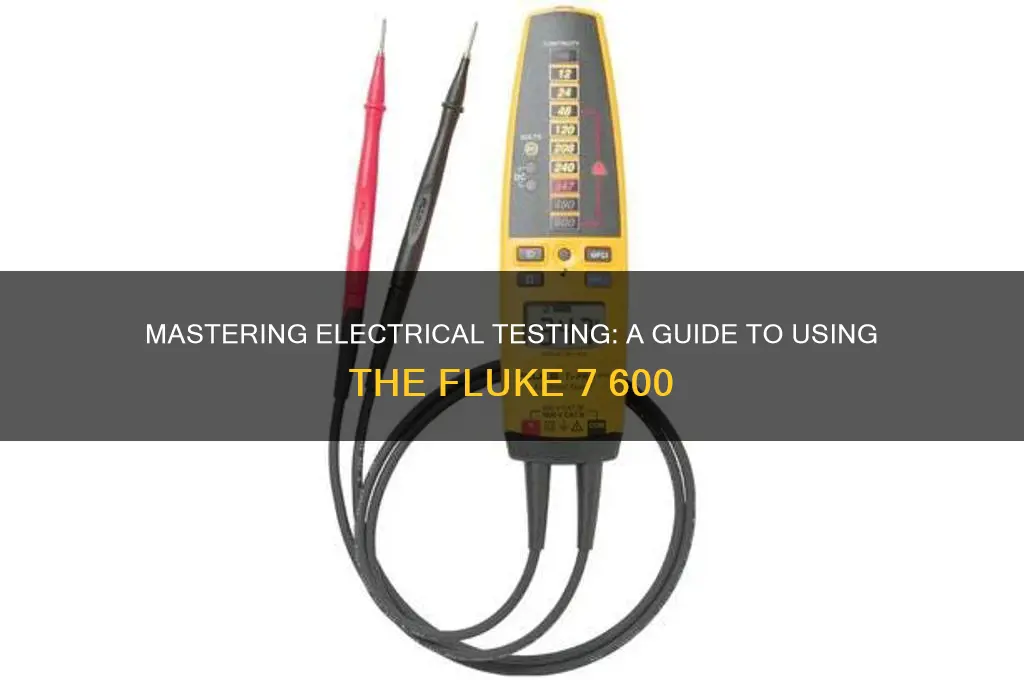

The Fluke 77-600 Electrical Tester is a versatile and reliable tool designed for both professional electricians and DIY enthusiasts, offering a wide range of features to diagnose electrical issues efficiently. This compact device combines voltage detection, continuity testing, and current measurement capabilities, making it ideal for troubleshooting circuits, outlets, and wiring systems. To use the Fluke 77-600, start by selecting the appropriate testing mode via the rotary dial, ensuring the tester is set to the correct range for accurate readings. For voltage testing, simply touch the probe tips to the circuit or outlet, and the built-in LED indicators will illuminate to confirm the presence of voltage. Continuity testing is equally straightforward, requiring the probes to be connected across the circuit to check for unbroken pathways. Additionally, the tester’s current measurement function allows users to assess load conditions, aiding in identifying overloads or faults. Always prioritize safety by ensuring the device is properly insulated and the circuit is de-energized when necessary. With its user-friendly design and robust functionality, the Fluke 77-600 is an indispensable tool for ensuring electrical systems operate safely and efficiently.
Explore related products
What You'll Learn
- Safety Precautions: Essential safety measures to prevent electrical hazards while using the Fluke 7 600 tester
- Basic Setup: Step-by-step guide to prepare and configure the tester for accurate measurements
- Voltage Testing: Techniques to measure AC/DC voltage safely and efficiently with the device
- Continuity Checks: How to verify circuit continuity and identify breaks using the tester
- Advanced Features: Exploring specialized functions like frequency measurement and diode testing
Safety Precautions: Essential safety measures to prevent electrical hazards while using the Fluke 7 600 tester
Electrical testing demands vigilance, especially with tools like the Fluke 7 600. Before engaging the tester, verify that the circuit is de-energized. Use a non-contact voltage detector to confirm the absence of live voltage, as visual inspection alone can be misleading. Even low-voltage systems can cause harm under certain conditions, so treat every test point as potentially hazardous until proven otherwise.
Personal protective equipment (PPE) is non-negotiable. Wear insulated gloves rated for the voltage level you’re working with, and ensure they’re free of tears or punctures. Safety goggles protect against arc flashes or debris, while flame-resistant clothing minimizes injury risks in high-energy environments. For outdoor work, add a hard hat and ensure your footwear is slip-resistant and electrically insulated.
The Fluke 7 600’s test leads are its lifeline—and yours. Inspect them before each use for fraying, exposed conductors, or damaged insulation. Replace any compromised leads immediately. When connecting the tester, attach the leads one at a time, starting with the black (common) lead first to reduce the risk of accidental shorts. Always stand to the side of the panel, not directly in front, when engaging live circuits.
Environmental conditions amplify risks. Avoid using the tester in wet or damp locations unless it’s specifically rated for such conditions. If working outdoors, monitor weather conditions and cease testing if lightning is detected. In confined spaces, ensure proper ventilation to prevent the buildup of flammable gases or vapors, which could ignite from an arc flash.
Finally, stay alert and focused. Fatigue or distraction increases the likelihood of errors, such as misreading measurements or mishandling leads. Work with a partner when possible, especially in high-risk scenarios, to provide oversight and assistance. Regularly review the tester’s manual to refresh your knowledge of its safety features and limitations. Treating safety as a habit, not a checklist, ensures the Fluke 7 600 remains a tool for precision, not peril.
