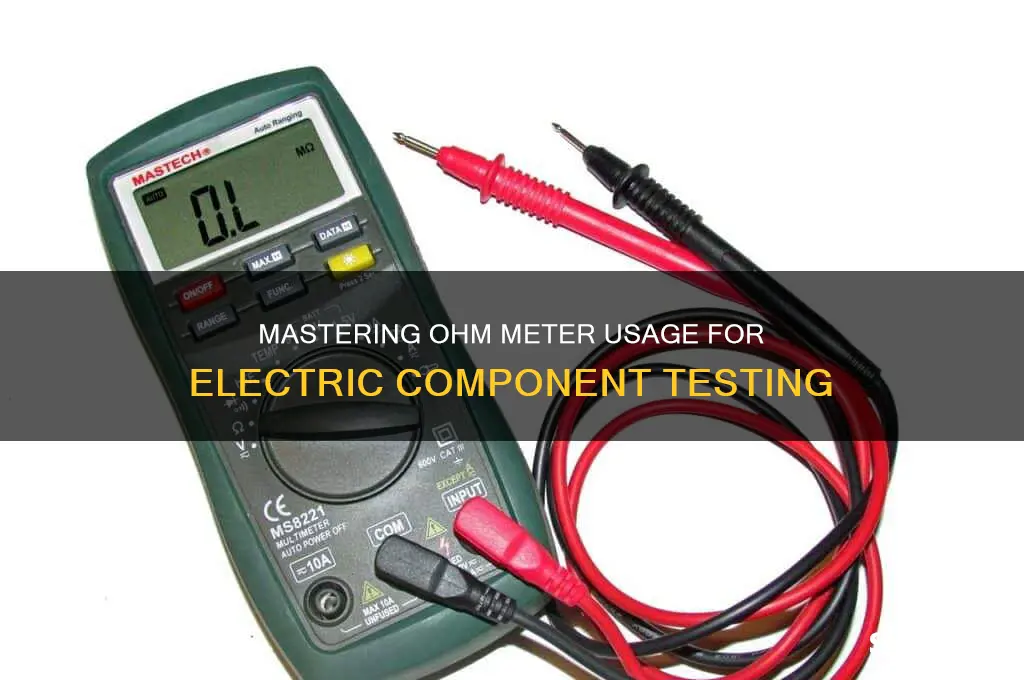

Using an ohmmeter to test electric parts is a fundamental skill for diagnosing and troubleshooting electrical circuits. An ohmmeter measures resistance in ohms (Ω), which helps determine the integrity of components like wires, resistors, switches, and fuses. To use an ohmmeter, first ensure the power to the circuit is turned off to avoid damage or injury. Connect the ohmmeter’s probes to the component being tested, typically with the red probe on one end and the black probe on the other. The meter will display the resistance value, which should match the expected range for the component. For example, a closed switch should read close to 0 ohms, while an open circuit will show infinite resistance (OL). Always consult the component’s specifications or a manual for accurate reference values. Proper use of an ohmmeter ensures reliable testing and helps identify faulty parts efficiently.
| Characteristics | Values |
|---|---|
| Purpose | Measure electrical resistance of components or circuits. |
| Required Tool | Multimeter with ohmmeter function or standalone ohmmeter. |
| Safety Precautions | Ensure power is off, discharge capacitors, and avoid live circuits. |
| Component Preparation | Disconnect the component from the circuit to isolate it. |
| Meter Settings | Set the multimeter to the ohms (Ω) range suitable for the expected resistance. |
| Probe Placement | Touch the probes to the component terminals or ends. |
| Reading Interpretation | Lower resistance indicates better conductivity; infinite resistance means open circuit. |
| Common Ranges | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (depending on the multimeter). |
| Accuracy | Depends on the multimeter's precision and range selected. |
| Applications | Testing resistors, fuses, switches, wires, and other electrical components. |
| Limitations | Cannot measure resistance in live circuits; accuracy affected by temperature. |
| Additional Tips | Calibrate the meter if necessary; use a known resistor for testing accuracy. |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off, wear protective gear, and avoid live circuits when testing
- Setting Up the Meter: Select the correct resistance range and connect test leads properly
- Testing Resistors: Measure resistance values to verify functionality and detect faults in resistors
- Checking Continuity: Test for unbroken circuits using the continuity mode on the meter
- Identifying Open/Short Circuits: Diagnose open or short circuits in components using resistance readings
Safety Precautions: Ensure power is off, wear protective gear, and avoid live circuits when testing
Before touching any electrical component with an ohmmeter, verify that the power is completely off. This isn’t just a suggestion—it’s a non-negotiable rule. Residual charge or live circuits can deliver shocks, damage components, or even cause fires. Use a non-contact voltage tester to confirm no current is flowing. If working on larger systems, physically disconnect the power source at the breaker or fuse box. Assume nothing; test everything.
Protective gear isn’t optional when working with electricity. Insulated gloves rated for electrical work are essential, as they prevent direct contact with live wires or components. Safety goggles shield your eyes from potential sparks or debris. For high-voltage systems, consider a full-body arc flash suit. These precautions may seem excessive for small projects, but the consequences of skipping them can be severe. Invest in quality gear—your safety is worth it.
Testing live circuits with an ohmmeter is a critical mistake. Ohmmeters send a small current through the component being tested. If applied to a live circuit, this can overload the meter, damage the circuit, or create a short. Worse, it can energize the component unexpectedly, posing a shock hazard. Always isolate the component from the power source before testing. If in doubt, consult a professional or refer to the equipment’s manual for safe testing procedures.
Even with power off, capacitors in circuits can hold a charge long after the system is disconnected. Always discharge capacitors using a resistor or insulated tool before testing. Similarly, inductive loads like motors or transformers can retain energy. Treat every component as potentially hazardous until proven otherwise. This cautious approach ensures you’re not just following safety rules but internalizing a mindset that prioritizes prevention over reaction.
Finally, plan your work and work your plan. Before starting, identify all potential hazards in the circuit or system. Label wires and components to avoid confusion. Keep a fire extinguisher nearby, rated for electrical fires (Class C). Have a first-aid kit accessible. By preparing for the worst while aiming for the best, you minimize risks and maximize efficiency. Safety isn’t a step—it’s the foundation of every electrical task.
Dyson Fans Energy Efficiency: Do They Consume High Electricity?
You may want to see also
Explore related products
Setting Up the Meter: Select the correct resistance range and connect test leads properly
Before measuring resistance with an ohmmeter, selecting the correct resistance range is crucial for accurate readings. Most multimeters offer multiple ranges, typically starting from 200 ohms (Ω) up to 20 megohms (MΩ). If you’re testing a component like a resistor, start with a range higher than the expected value to avoid overloading the meter. For instance, a 10kΩ resistor should be measured on the 20kΩ or 200kΩ range. If the reading is near the lower limit of the range, switch to a lower range for precision. This step ensures the meter operates within its optimal sensitivity, preventing errors or damage.
Connecting the test leads properly is equally vital for reliable measurements. Begin by identifying the leads: the black lead connects to the "COM" (common) terminal, while the red lead connects to the "Ω" or "VΩ" terminal. Ensure the leads are firmly inserted into the correct ports, as loose connections can lead to erratic readings. When testing, touch the probes to the component’s terminals, maintaining steady contact. Avoid touching the metal tips of the probes while testing, as body resistance can skew results. For surface-mount components, use tweezers or alligator clips to ensure stable contact without shorting adjacent pins.
A common mistake is neglecting to zero the ohmmeter before testing, especially on analog models. After selecting the resistance range and connecting the leads, short the probes together and adjust the "ZERO ADJ" knob until the needle reads zero ohms. This calibrates the meter for accurate measurements. Digital multimeters often auto-zero, but it’s still wise to check by shorting the leads and ensuring the display reads "0.00" or close to it. Skipping this step can introduce offset errors, making readings unreliable.
In practical scenarios, consider the component’s environment. For example, testing a resistor in a live circuit can yield inaccurate results due to parallel paths or voltage interference. Always disconnect power and isolate the component before measuring. Additionally, be mindful of temperature effects, as resistance changes with heat. Allow components to cool to room temperature for consistent readings. These precautions, combined with proper meter setup, ensure precise and safe resistance measurements.
Using Chicken Wire for Electric Fences: Pros, Cons, and Best Practices
You may want to see also
Explore related products
Testing Resistors: Measure resistance values to verify functionality and detect faults in resistors
Resistors are fundamental components in electronic circuits, and their precise resistance values are critical for proper functionality. Over time, resistors can degrade, leading to open or short circuits, or their values may drift due to environmental factors. Testing resistors with an ohmmeter is a straightforward yet essential skill for diagnosing circuit issues and ensuring reliability. By measuring resistance, you can verify if a resistor is within its specified tolerance, identify open or shorted resistors, and confirm if it’s the correct component for the circuit.
To test a resistor, start by isolating it from the circuit to avoid parallel or series connections that could skew readings. Use a digital multimeter (DMM) set to the resistance (ohms) function, typically denoted by the Ω symbol. Touch the probes to the resistor’s leads, ensuring a firm connection. A functional resistor will display a reading within its tolerance range, usually ±5% for standard resistors. For example, a 10kΩ resistor should read between 9.5kΩ and 10.5kΩ. If the reading is infinite (OL or open loop), the resistor is open and needs replacement. Conversely, a reading of zero indicates a short circuit, meaning the resistor has failed and is acting as a direct conductor.
When testing surface-mount resistors (SMDs), precision is key due to their small size. Use tweezers or a specialized probe to hold the component securely while testing. Be cautious not to apply excessive pressure, as this can damage the resistor or its leads. For through-hole resistors, ensure the probes make contact with the metal leads rather than the plastic body to obtain an accurate reading. Always double-check the polarity of polarized components like LEDs or capacitors nearby, as misidentification can lead to incorrect diagnoses.
One practical tip is to compare the measured resistance with the resistor’s color code or marked value. For instance, a resistor marked with brown, black, orange, and gold bands should read 10kΩ ±5%. Discrepancies between the measured value and the marked value signal a potential issue. Additionally, test resistors under operating conditions if possible, as temperature can affect resistance values, particularly in circuits with high power dissipation.
In conclusion, testing resistors with an ohmmeter is a quick and effective way to diagnose faults and ensure circuit integrity. By isolating the component, using the correct technique, and comparing readings to expected values, you can confidently identify defective resistors and maintain optimal circuit performance. This skill is invaluable for both troubleshooting and preventive maintenance in electronics.
Using UK Electrical Devices in the USA: Compatibility and Safety Tips
You may want to see also
Explore related products
Checking Continuity: Test for unbroken circuits using the continuity mode on the meter
Continuity testing is a fundamental skill for anyone working with electrical circuits, offering a quick and reliable way to verify the integrity of a circuit. This process involves using the continuity mode on a multimeter, a feature specifically designed to check if a circuit is complete and unbroken. By emitting a small current, the meter detects whether the flow of electricity is uninterrupted, signaling a functional connection. This method is particularly useful for diagnosing issues in wires, fuses, switches, and other components where breaks or faults might not be immediately visible.
To perform a continuity test, start by setting your multimeter to the continuity mode, often denoted by a symbol resembling a sound wave or a diode. Ensure the circuit is de-energized to avoid damage to the meter or the component being tested. Next, touch the probes to the two ends of the circuit or component you’re examining. If the circuit is unbroken, the meter will emit a beep or display a low resistance value, typically close to zero ohms. This indicates a clear path for current flow. Conversely, no beep or a high resistance reading suggests an open circuit, pointing to a break or fault that needs addressing.
One practical example of continuity testing is checking a fuse. Fuses are designed to protect circuits by breaking the connection when excessive current flows. Over time, they can blow without showing visible signs of damage. By placing the multimeter probes on either end of the fuse, you can instantly determine if it’s still functional. A blown fuse will show no continuity, while a good one will. This simple test saves time and eliminates guesswork in troubleshooting electrical systems.
While continuity testing is straightforward, there are a few cautions to keep in mind. Always ensure the power is off before testing to prevent short circuits or damage to the meter. Additionally, be aware that some components, like diodes or transistors, may show partial continuity due to their design. In such cases, understanding the expected behavior of the component is crucial for accurate interpretation. Finally, always double-check your meter settings to avoid confusion between continuity and resistance modes.
In conclusion, mastering continuity testing with a multimeter is an invaluable skill for diagnosing electrical issues efficiently. Its simplicity and immediacy make it a go-to method for professionals and hobbyists alike. By following proper procedures and understanding the nuances of different components, you can confidently identify and resolve circuit interruptions, ensuring the reliability and safety of your electrical systems.
LED Bulbs in Electric Fires: Safe or Risky Alternative?
You may want to see also
Explore related products
Identifying Open/Short Circuits: Diagnose open or short circuits in components using resistance readings
Resistance readings from an ohmmeter serve as a diagnostic lifeline when tracing open or short circuits in electrical components. An open circuit occurs when the current flow is interrupted, often due to a broken wire or disconnected terminal, resulting in infinite resistance (displayed as "OL" on most multimeters). Conversely, a short circuit happens when current bypasses its intended path, typically due to a damaged component or wiring fault, showing near-zero resistance. Understanding these signatures allows you to pinpoint faults without relying on visual inspection alone.
To diagnose an open circuit, isolate the suspected component or circuit section and measure resistance across its terminals. If the ohmmeter reads "OL," the circuit is open, indicating a break in continuity. For instance, testing a fuse should yield near-zero resistance if intact; an "OL" reading confirms it’s blown. Always ensure power is disconnected before testing to avoid damaging the meter or the circuit. For complex systems, consult a wiring diagram to trace the circuit path accurately.
Short circuits demand a different approach. Set your ohmmeter to the lowest resistance range and test across points where a short is suspected, such as between a wire and ground or between two conductors. A reading significantly lower than expected—often near zero—indicates a short. For example, a resistor in a circuit should show a value close to its rated resistance; anything drastically lower suggests a parallel short. Be cautious not to misinterpret low-resistance components like inductors or capacitors as faults.
Practical tips enhance accuracy: always zero the ohmmeter (adjusting for lead resistance) before testing, and ensure test leads are firmly connected to the component. For in-circuit testing, temporarily disconnect one end of the component to avoid parallel pathways skewing readings. If diagnosing automotive circuits, use a fused test lead to prevent accidental shorts during measurement. Remember, resistance readings are context-dependent—compare results to known values or specifications for definitive conclusions.
In summary, mastering resistance readings transforms an ohmmeter into a powerful tool for circuit diagnosis. Open circuits manifest as infinite resistance, while shorts appear as near-zero values. By combining methodical testing with contextual knowledge, you can swiftly isolate faults, saving time and preventing further damage. Whether troubleshooting household appliances or industrial machinery, this technique remains a cornerstone of electrical diagnostics.
Stainless Steel on Electric Coil Stoves: Safe Usage Tips and Advice
You may want to see also
Frequently asked questions
An ohmmeter is a device used to measure electrical resistance in ohms (Ω). It works by passing a small current through the component being tested and measuring the voltage drop across it. The resistance is then calculated using Ohm's Law (R = V/I).
First, ensure the power to the circuit is turned off. Then, connect the ohmmeter's probes to the component: the red (positive) probe to one end and the black (negative) probe to the other. Avoid touching the probes together while connected to the component to prevent false readings.
No, using an ohmmeter on live circuits is dangerous and can damage the meter or cause electrical hazards. Always disconnect power before testing any component with an ohmmeter.
A reading of "OL" (open loop) or "∞" (infinity) indicates that the resistance is too high to measure, suggesting the component is open or not conducting electricity. This often means the part is broken or disconnected.
