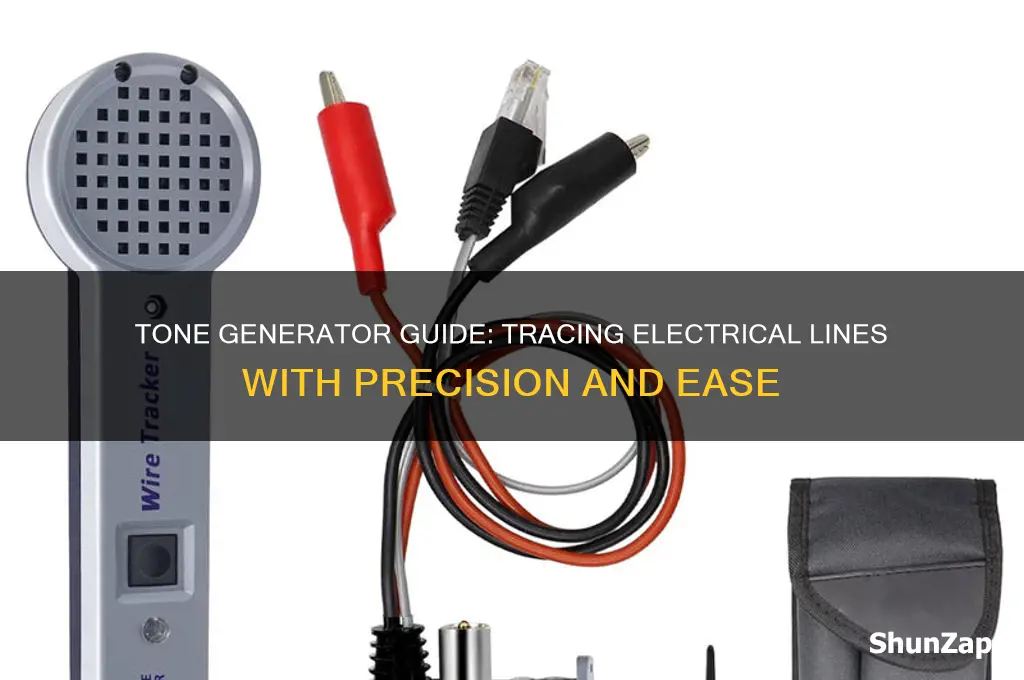

A tone generator is a valuable tool for tracing electrical lines, particularly in complex wiring systems where identifying specific circuits can be challenging. By emitting a distinct audio signal, the tone generator allows technicians to locate wires within walls, conduits, or bundles by matching the signal at the receiving end. To use it effectively, first connect the tone generator to the wire you want to trace, ensuring a secure connection. Then, use a compatible tone probe or amplifier to detect the signal along the line, following the path until you reach the desired endpoint. This method is efficient, non-invasive, and minimizes the risk of damaging the wiring, making it an essential technique for electricians and DIY enthusiasts alike.
| Characteristics | Values |
|---|---|
| Purpose | Trace electrical lines, identify wire paths, locate breaks or faults in wiring systems |
| Equipment Needed | Tone generator, amplifier probe, test leads, alligator clips, headphones (optional) |
| Tone Generator Types | Analog (fixed frequency), Digital (adjustable frequency), Inductive (for live wires), Non-inductive (for dead wires) |
| Common Frequencies | 1 kHz, 2 kHz, 5 kHz, 10 kHz (varies by model) |
| Steps | 1. Connect tone generator to wire at one end, 2. Use amplifier probe to trace signal along wire path, 3. Follow strongest signal to locate wire |
| Safety Precautions | Ensure power is off (if applicable), use insulated tools, wear protective gear |
| Applications | Residential wiring, automotive wiring, telecommunications, data cables |
| Advantages | Non-invasive, quick identification, works in walls/conduits |
| Limitations | Signal attenuation in long wires, interference from other electronics, requires access to both ends of wire |
| Alternative Methods | Voltage detector, thermal imaging, cable identifiers |
| Latest Advancements | Digital tone generators with LCD displays, smartphone apps for signal detection, wireless tracing systems |
Explore related products
What You'll Learn
Understanding Tone Generator Basics
Tone generators are indispensable tools for electricians and DIY enthusiasts alike, offering a precise method to trace electrical lines hidden behind walls or within complex wiring systems. At their core, these devices emit a specific frequency signal through a wire, which can then be detected by a compatible receiver. This process simplifies the identification of circuits, ensuring that you can locate the correct wire without unnecessary guesswork or invasive procedures. Understanding the basics of how a tone generator operates is the first step toward mastering its application in electrical tracing.
Consider the anatomy of a tone generator: it typically consists of a signal transmitter and a receiver. The transmitter connects to the wire you wish to trace, injecting a low-voltage AC signal into the circuit. The receiver, equipped with a probe or inductive clamp, picks up this signal, often accompanied by an audible tone or visual indicator. For instance, a common frequency used in tone generators is 1 kHz, which strikes a balance between signal penetration and detectability. Familiarizing yourself with these components and their functions is crucial for effective use.
One practical tip is to ensure the tone generator is compatible with the wiring system you’re working on. For example, some generators are designed for low-voltage systems (like doorbell wiring), while others handle high-voltage circuits (such as household electrical lines). Always verify the voltage range and frequency capabilities of your device to avoid damage or inaccurate readings. Additionally, using a tone generator in conjunction with a multimeter can provide a more comprehensive understanding of the circuit’s condition, ensuring safety and accuracy.
A common misconception is that tone generators work only with live wires. In reality, many models can trace both live and dead circuits, though the process may differ slightly. For dead wires, the transmitter must be connected directly to the wire, whereas live wires can often be traced inductively. This versatility makes tone generators a valuable tool in various scenarios, from troubleshooting faulty outlets to mapping out entire electrical systems in a home or building.
Finally, mastering the basics of a tone generator involves practice and attention to detail. Start with simple setups, like tracing a single wire in an accessible area, before tackling more complex systems. Pay attention to environmental factors, such as electromagnetic interference from nearby appliances, which can affect signal detection. With patience and a solid understanding of its fundamentals, a tone generator becomes an intuitive extension of your problem-solving toolkit, transforming the once-daunting task of tracing electrical lines into a straightforward process.
