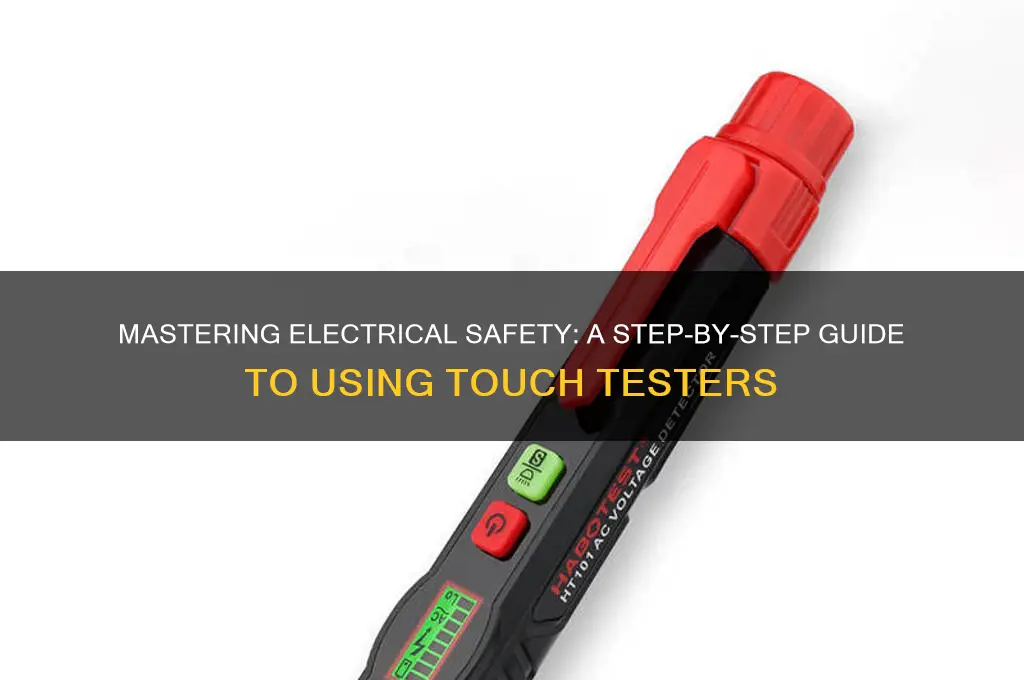

A touch electrical tester, also known as a non-contact voltage tester, is a handy tool for safely detecting live electrical currents in wires, outlets, and switches without direct contact. To use it, first ensure the tester is functioning by testing it on a known live circuit. Hold the tester firmly, with the sensor tip close to but not touching the surface being tested, and observe the indicator—usually a light or sound—to determine if voltage is present. Always follow safety precautions, such as wearing insulated gloves and avoiding use in wet conditions, to minimize the risk of electrical shock. This tool is essential for DIY enthusiasts and professionals alike to verify power status before working on electrical systems.
| Characteristics | Values |
|---|---|
| Purpose | To safely check for the presence of live electrical current in outlets, wires, or devices. |
| Safety Precautions | Always ensure the tester is functioning properly before use. Never touch exposed wires or terminals directly. Work in dry conditions and avoid contact with water. |
| Tester Types | Pen-style (non-contact), Screwdriver-style (contact), Outlet testers (plug-in). |
| Indicator Types | LED lights, audible beeps, or both. |
| Steps to Use | 1. Test the Tester: Verify functionality on a known live source. 2. Inspect the Tester: Ensure no damage to the probe or indicator. 3. Touch the Probe: Gently touch the probe to the surface being tested (wire, outlet slot, or device). 4. Observe Indicator: Look for LED illumination or listen for beeps to indicate live current. |
| Interpretation | Live Current: Indicator activates. No Current: Indicator remains off. |
| Limitations | May not detect low-voltage or high-impedance circuits. Cannot determine voltage level or wiring correctness. |
| Maintenance | Regularly test functionality. Replace batteries as needed. Keep clean and dry. |
| Common Uses | Checking for live wires, verifying outlet functionality, troubleshooting electrical issues. |
| Alternatives | Multimeter, voltage tester, circuit analyzer. |
Explore related products
$36.39 $49.95
$38.46 $49.95
What You'll Learn
- Understanding Tester Components: Identify probe, indicator light, and power button functions for accurate testing
- Safety Precautions: Wear insulated gloves, avoid wet conditions, and ensure device is off before testing
- Testing Outlets: Insert probe into outlet slots, observe light indicator for live or dead circuits
- Checking Wires: Touch probe to wire ends, confirm continuity or breaks in electrical connections
- Troubleshooting Tips: Diagnose common issues like faulty wiring, dead batteries, or incorrect tester usage
Understanding Tester Components: Identify probe, indicator light, and power button functions for accurate testing
A touch electrical tester is a compact tool designed to detect live electrical currents, but its effectiveness hinges on understanding its core components. The probe is the primary point of contact, typically a metal tip that you touch to wires, outlets, or circuits to initiate the test. Its sensitivity is critical; even slight pressure can activate the tester, so a steady hand is essential. The indicator light, often an LED, provides visual feedback—usually glowing red or green—to signal the presence of electricity. Lastly, the power button activates the device, ensuring it’s ready for use. Without mastering these components, misreads or false negatives can occur, compromising safety.
Consider the probe’s role in a practical scenario: testing a three-prong outlet. Touch the probe to the hot wire (usually black or red) and observe the indicator light. If it illuminates, the circuit is live. However, if the probe is applied too lightly or at an angle, the tester may fail to detect current, leading to a dangerous assumption of safety. This highlights the importance of consistent pressure and proper alignment. For beginners, practicing on known live and dead circuits builds familiarity with the probe’s sensitivity.
The indicator light’s behavior varies by model, but most follow a simple binary system: on (live) or off (dead). Some advanced testers include additional lights or beeping sounds for different voltage levels, such as low (50-120V) or high (above 120V). Misinterpreting these signals can lead to overconfidence or unnecessary caution. For instance, a dim light might indicate weak current rather than a dead circuit, requiring further investigation. Always consult the user manual to decode your tester’s specific indicators.
The power button is often overlooked but plays a pivotal role in conserving battery life and ensuring readiness. Some testers have an auto-off feature, while others require manual shutdown. A common mistake is assuming the tester is operational without first pressing the power button, leading to false negatives. Habitually checking the power status before each test eliminates this risk. Additionally, keeping the battery compartment clean and using high-quality batteries ensures consistent performance.
In summary, the probe, indicator light, and power button are interdependent components that demand individual attention. The probe’s sensitivity requires deliberate handling, the indicator light’s signals necessitate precise interpretation, and the power button’s functionality ensures the tester is operational. By mastering these elements, users can conduct accurate tests, minimizing errors and maximizing safety. Treat each component as a tool within a tool, and your electrical testing will be both efficient and reliable.
