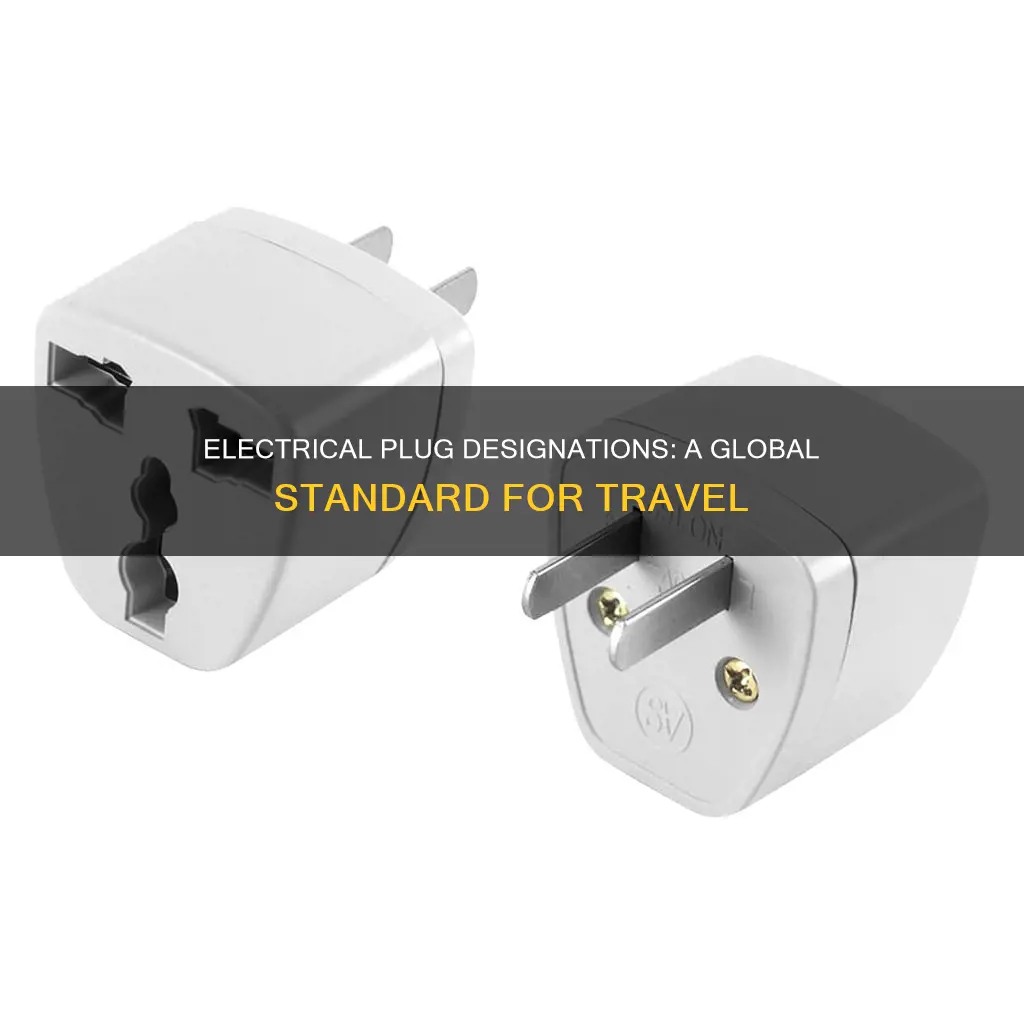

There are 15 different types of electric plugs and outlets used across the world, with Types A and C being the most common. These plugs and sockets are regulated by local governments and can be a hassle for travellers to navigate. Adapters allow travellers to connect their devices to foreign sockets, but they do not change the voltage or frequency, which can cause problems for appliances even at the correct voltage. The International Electrotechnical Commission (IEC) maintains a guide with letter designations for generally compatible types of plugs, with Type N being the IEC's choice for the standard universal plug.
Explore related products
What You'll Learn
The 15 different plugs used around the world
There are 15 different types of electric plugs used across the globe. The two most common plug types are Type A and Type C. Type A plugs have two polarised prongs that differ slightly in size. This plug style is considered unsafe and has been outlawed for use in new constructions in the United States since 1965. Type A plugs are used in the US, along with Type B.
Type G plugs are used in the UK, Ireland, Malaysia, Malta, Singapore, and countries in the Arabian Peninsula. Type H plugs are used in Israel, the Gaza Strip, and the West Bank. Type I plugs are used in Australia, Argentina, China, and New Zealand. Type J plugs are used in Liechtenstein and Switzerland.
The International Electrotechnical Commission (IEC) has selected Type N as the standard universal plug. However, many countries in Latin America, Africa, and Asia use a varied assortment of plugs, which can be challenging for travellers.
Electric Fences: Grounding Safety and Connection Essentials
You may want to see also
Explore related products
The two electricity frequencies
There are 15 different types of electric plugs and outlets used across the world. Type A and Type C are the most frequently used plugs globally, and the US uses Types A and B, while the UK uses Type G. The International Electrotechnical Commission (IEC) has set Type N as the standard universal plug.
The world runs on one of two electricity frequencies: 50Hz or 60Hz. This difference in frequency does not affect most devices, as they are designed to accommodate a range of frequencies. However, it may impact clocks or devices with critical clock functions.
When travelling with electronic devices, it is essential to be aware of the voltage and frequency requirements of your devices and the electrical standards of your destination. Most countries have a well-defined plug and voltage standard, but some regions, particularly in Latin America, Africa, and Asia, may use a mix of plugs and voltages.
To ensure your devices function properly and safely, it is recommended to use adapter plugs that fit your device and the foreign outlet. Additionally, check the voltage requirements of your devices and the voltage standard at your destination. If there is a mismatch, you may need a voltage conversion accessory.
It is worth noting that some devices have a switch for voltage selection, and many modern devices can accommodate a wide range of voltages and frequencies, making them usable worldwide with the appropriate plug adapters.
Understanding Electric Block Consumption: kWh Explained
You may want to see also
Explore related products
The International Electrotechnical Commission's standard universal plug
There are 15 different types of electric plugs and outlets used around the world. The plugs and sockets used in a given area are regulated by local governments. The International Electrotechnical Commission (IEC) maintains a guide with letter designations for generally compatible plug types. The IEC 60320 is a set of standards published by the IEC that defines non-locking appliance couplers for connecting power supply cords to electrical appliances. These couplers are intended for use with devices operating at voltages up to 250 V (AC) and currents up to 16 A. The standard specifies various types of connectors, differentiated by shape and size, to accommodate different combinations of current ratings, temperature tolerances, and earthing requirements.
The IEC 60320 standard uses the term "coupler" to refer collectively to both the appliance inlets and outlets, as well as the connectors on power supply cords. The parts of the couplers are defined as follows:
- Connector: The part of the appliance coupler attached to the power supply cord.
- Appliance inlet: The part of the appliance coupler integrated as a part of an appliance or equipment.
- Plug connector: The part of the interconnection coupler attached to the power supply cord.
- Appliance outlet: The part of the interconnection coupler from which the supply is obtained.
- Cord set: An assembly with one cable or cord fitted with a non-rewirable plug and connector for connecting to an electrical supply.
The IEC 60320 standard also includes specifications for two-pole and two-pole with earth couplers, as well as interconnection couplers that enable the connection and disconnection of appliances to power cords. The standard uses the terms "male" and "female" for individual pins and socket contacts, and connectors and appliance outlets are fitted with socket contacts, while appliance inlets and plug connectors are fitted with pin contacts. Each type of coupler is identified by a standard sheet number, with appliance couplers identified by the letter "C" followed by a number.
While the IEC 60320 standard provides a comprehensive framework for appliance couplers and connectors, it is important to note that adaptors between different plug and socket standards may not meet technical standards for durability, plug retention force, and other performance requirements. Additionally, physical compatibility does not ensure voltage or frequency match, and a voltage converter may be required for electrical compatibility in regions with different voltage standards.
Electric Guitars: The Materials Behind the Music
You may want to see also
Explore related products
Plug and voltage standards in Latin America, Africa and Asia
Plug and voltage standards can vary widely across different countries, and this is no different in Latin America, Africa, and Asia. Many countries in these regions use a variety of different plugs and sockets, and sometimes voltage can differ between regions within the same country. This can make it difficult for travellers to know which plug adapters or transformers they will need.
Latin America
Type A and Type C plugs are the most commonly used plugs worldwide, and this is also true in many Latin American countries. However, the specific type of plug and socket used can vary between countries in the region. For example, Mexico uses Type A and B plugs, while Brazil uses Type C and N plugs.
Africa
Africa also has a variety of plug and socket types in use across the continent. South Africa, for example, has adopted Type N as the preferred plug and socket standard since 2013. However, the older Type M socket is still allowed as long as there is an adjacent Type N socket. Other countries in Africa may use different types of plugs and sockets, and voltage standards may vary as well.
Asia
In Asia, the plug and voltage standards can vary by country and sometimes even by region within a country. Some countries in Asia use Type A and Type C plugs, which are the most common types worldwide. However, there are also countries in Asia that use other types of plugs and sockets, such as Type I or Type G. The voltage supply may also differ between countries or regions in Asia, so it is important to check the specific requirements for your destination before travelling.
It is always a good idea to check the plug and voltage standards for your specific destination before travelling to Latin America, Africa, or Asia. This will help you ensure that you have the correct plug adapters and transformers and that your devices are compatible with the local electricity supply.
Electric Kiln Temperature Distribution: Cooler at the Bottom?
You may want to see also
Explore related products
Safety features of plugs and sockets
Electrical plugs and sockets come in 15 different types worldwide, with Types A and C being the most frequently used. The safety features of plugs and sockets are designed to prevent electrical accidents, electric shocks, and fires. Here are some of the safety features incorporated into plugs and sockets:
Ground Fault Circuit Interrupters (GFCI)
GFCIs are safety devices that protect against electric shock. They are required in locations near water sources, such as bathrooms, kitchens, basements, and laundry rooms. GFCIs have sensors that detect any variation from the normal electrical current, which could indicate the presence of water or other conductors that may cause electrocution. When such a variation is sensed, the GFCI shuts off the electricity flow to prevent accidents.
Tamper-Resistant Outlets
These outlets are designed to prevent children from inserting foreign objects into the sockets. They have a built-in shutter system that only opens when two prongs are inserted simultaneously. This feature ensures that children remain safe even if they attempt to play with the outlets.
Arc Fault Circuit Interrupters (AFCI)
AFCI breakers protect against electrical fires caused by arcs. Arcs occur when the electrical current flows along a disrupted path, such as frayed wires or overloaded plugs. When an arc is detected, the AFCI turns off the power to the circuit, preventing potential fire hazards. AFCI breakers are commonly installed in bedrooms, living rooms, basements, and other areas with a high risk of electrical fires.
TEST and RESET Buttons
Some outlets have TEST and RESET buttons. The TEST button is used to check if the outlet is functioning correctly and cutting off power when necessary. Pressing the TEST button is recommended monthly to ensure the outlet's safety mechanisms are working. If the outlet fails to shut off power when required, an electrician should be called to inspect the wiring. The RESET button is used to restore power after testing or after the outlet has shut off power due to a detected issue.
Compatibility and Voltage Standards
While some countries have well-defined plug and voltage standards, others, particularly in Latin America, Africa, and Asia, use a variety of incompatible plugs and voltages. This variation can make it challenging for travellers to determine the correct plug adapters or transformers needed for their trips. It is important to use the correct adapters and transformers to ensure safety when using electrical devices in different countries.
Solar Eclipse: Electrical Grid Blackout Risk?
You may want to see also
Frequently asked questions
There are 15 types of electrical plugs in use internationally. Type A and Type C are the most frequently used plugs worldwide.
Plug sockets are typically either grounded (with 3 holes) or polarized (with 2 holes of different sizes).
The mains supply for most countries is between 220 and 240 volts (50 or 60 Hz).
Type N.
Yes, you will likely need a plug adapter for your travels. Adapters allow travellers to connect devices to foreign sockets, but they do not change the voltage or frequency. You can buy these at big international airports.
