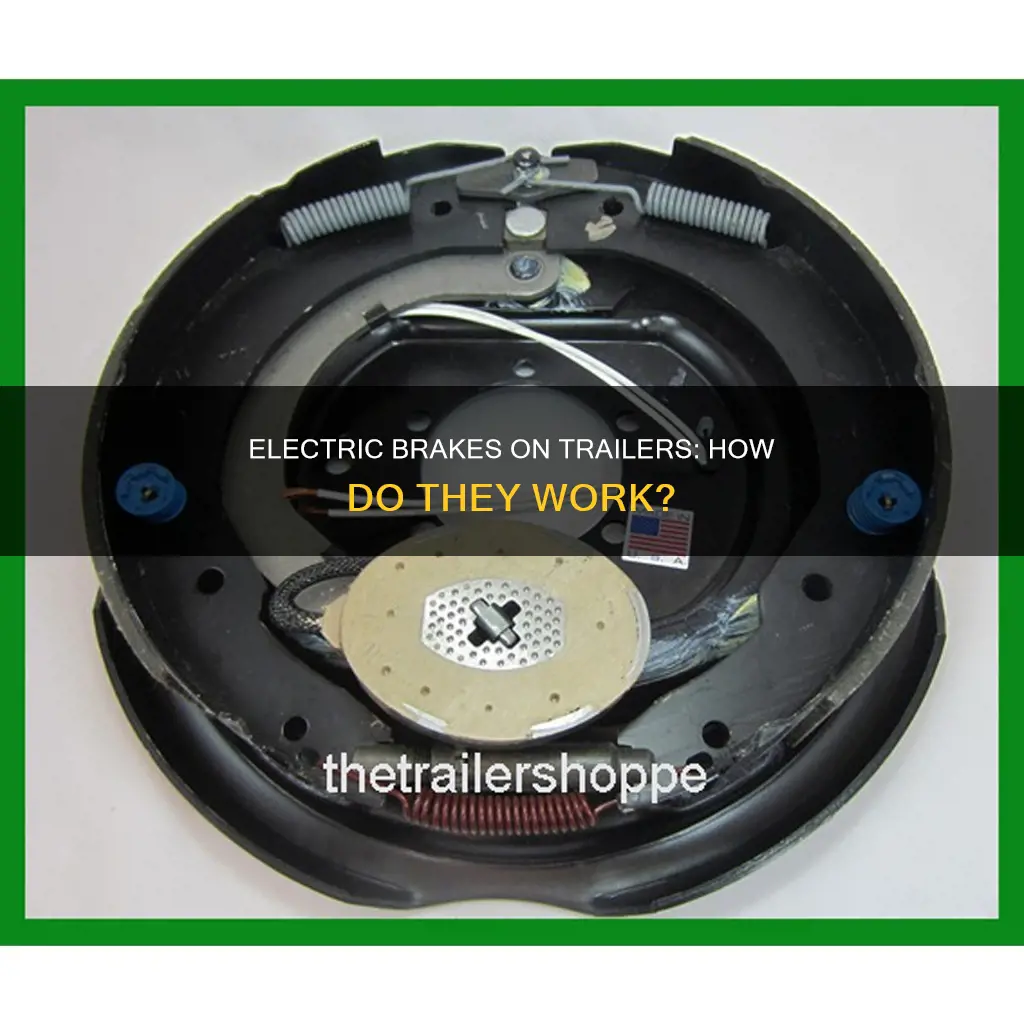

Electric brakes are a popular option for modern trailers due to their precision, reliability, and ease of use. They work by activating electromagnetic brake drums to create attrition and slow the trailer down. Electric brakes are connected to the tow vehicle's power and are regulated by a brake control unit or electric brake controller. The brake controller is an electronic device that activates and controls the electric brakes of a trailer. It is mounted on the trailer and plugged into the connector on the vehicle. When the driver steps on the brakes, it sends a current to the brake control in the vehicle, which then sends a current back to the trailer to activate the brakes.
| Characteristics | Values |
|---|---|
| Type | Electric brakes |
| How they work | Activating electromagnetic brake drums to create attrition and slow the trailer down |
| Connection | An electrical connection on the trailer plugs into the connector on the vehicle |
| Wiring | Dedicated trailer wires facilitate communication between the tow vehicle and the trailer's brakes |
| Safety | A breakaway system, comprised of a switch and special dedicated battery, activates the trailer brakes in the event of an unintended vehicle detachment |
| Adjustability | Drivers can fine-tune the braking force to match the load weight and road conditions |
| Compatibility | A wide range of trailers, including recreational vehicles, utility trailers, cargo trailers, horse trailers, and more |
| Ease of maintenance | Require less frequent adjustments compared to other braking systems |
| Control | Proportional brake controls can sense how quickly the tow vehicle is stopping and apply the same amount of braking power to the trailer |
| Installation | Can be mounted on any trailer and towed by any vehicle |
Explore related products
What You'll Learn
Electric brakes require an electrical connection to the tow vehicle
Electric brakes on a trailer are a practical and popular option due to their precision, reliability, and ease of use. They are also highly adaptable, accommodating different types of trailers with ease. Unlike surge brakes, which operate independently, electric trailer brakes require an electrical connection to the tow vehicle to function. This is facilitated by dedicated trailer wires that enable communication between the tow vehicle and the trailer brakes.
The electrical connection on the trailer plugs into the connector on the vehicle, with electrical wires running from the trailer connector back to each brake on the axle. When the driver applies the brakes, a current is sent to the brake control in the vehicle, which then sends a current back to the trailer to activate the brakes. This process is managed by a brake controller, which can be mounted on any trailer and connected to any vehicle. The brake controller is an electronic device that activates and controls the electric brakes of a trailer.
There are several types of brake controllers, including non-proportional, time-based, proportional, and inertia-based. Older non-proportional controllers are activated when the driver presses the brake, applying a set level of braking force based on the chosen setting. Newer proportional controllers, on the other hand, measure the changing momentum or inertia of the vehicle and send a precise amount of voltage to the trailer brakes, ensuring that the speed of the trailer matches that of the tow vehicle. This results in a smoother and more efficient braking experience.
The installation process for a trailer brake controller may vary depending on the manufacturer. However, the basic steps typically include disconnecting the tow vehicle's negative battery cable, choosing the mounting location, drilling holes, mounting the interface bracket, and connecting the interface using a vehicle-specific wiring harness. It is important to follow safety precautions during installation, such as disconnecting the battery to prevent injury or damage to electronics.
Overall, electric brakes on a trailer offer a safe and reliable solution, but they require an electrical connection to the tow vehicle to function effectively.
Becoming an Electrical Contractor: Nebraska Requirements and Steps
You may want to see also
Explore related products
They are controlled by a brake control unit or electric brake controller
Electric trailer brakes are controlled by a brake control unit or an electric brake controller. These are often found on camper trailers or boat trailers. They are electronic devices that activate and control the electric brakes of a trailer. The brake controller is an important component of a safe towing experience. It can be easily set up in minutes and mounted on any trailer, to be towed by any vehicle.
The brake control unit or electric brake controller is an essential part of the electric braking system on a trailer. Electric brakes are popular options for modern trailers due to their precision, reliability, and ease of use. They are also compatible with a wide range of trailers, including recreational vehicles, utility trailers, and cargo trailers. Electric brakes are actuated by electricity, receiving electric signals from the tow vehicle's brake controller.
The brake controller allows the driver to fine-tune the braking force to match the load weight and road conditions, ensuring optimal performance and safety. This adjustability is a key feature of electric brakes. The controller can be split into two parts: an interface positioned within the driver's reach in the cab, and the central part responsible for activating the trailer's brakes.
There are several types of electric brake controllers, including non-proportional, time-based, proportional, and inertia-based. The newer proportional controllers are not directly connected to the car's brakes and can measure the changing momentum or inertia of the moving car via an accelerometer. They send a precise amount of voltage to the trailer brakes to ensure the speed of the trailer matches that of the tow vehicle, providing a smoother braking experience.
The installation process for a trailer brake controller may vary based on the manufacturer, but it typically involves disconnecting the tow vehicle's negative battery cable, choosing a mounting location, drilling holes, mounting the interface bracket, and connecting the interface with a vehicle-specific wiring harness.
Easy Electric Scooter E4 Error Fix
You may want to see also
Explore related products
$184.99
Electric brakes are more precise, reliable, and easier to use
Electric brakes on a trailer are connected to the tow vehicle's power and are regulated by a brake control unit or electric brake controller. They work by activating electromagnetic brake drums to create attrition and slow the trailer down.
Secondly, electric brakes are more reliable because they eliminate the possibility of overexerting the cable, which is a common point of failure in mechanical braking systems. While some argue that electric brakes are less reliable in emergency situations, such as electrical system failure, others counter that cars are better than ever, and the risk of system failure is low.
Finally, electric brakes are easier to use because they are operated by a button or switch, requiring no physical effort to apply. This ease of use also makes them more comfortable and convenient, especially in situations where a mechanical brake may be difficult to apply, such as on steep slopes.
While electric brakes may have higher upfront costs and maintenance requirements, they can offer substantial long-term savings due to reduced maintenance costs. Therefore, electric brakes are a popular choice for trailers, ensuring a smoother and more efficient braking experience.
Strategies for Passing the Electrical PE Exam
You may want to see also
Explore related products
![POWERSTOP Brake Kit For 2014-2015 Acura ILX, 2003-2007 Honda Accord, Civic CR-V Element [Model Specific] Front OE Replacement Brake Rotors and Ceramic Brake Pads Replacement, KOE1043](https://m.media-amazon.com/images/I/71onTg3tW0L._AC_UY218_.jpg)
They are compatible with a wide range of trailers
Electric trailer brakes are a practical and popular option for modern trailers. They are compatible with a wide range of trailers, including recreational vehicles, utility trailers, cargo trailers, horse trailers, and boat trailers. This versatility makes them a go-to solution for many towing applications.
Electric trailer brakes work by activating electromagnetic brake drums to create attrition and slow the trailer down. They require an electrical connection to the tow vehicle to operate. An electrical connection on the trailer plugs into the connector on the vehicle, and electrical wires run from the trailer connector back to each brake on the axle. When the driver steps on the brakes, it sends a current to the brake control in the vehicle, which then sends a current back to the trailer to activate the brakes.
There are two main types of electric trailer brake controllers: non-proportional and proportional. Non-proportional electric brake controllers are activated when the driver presses the brakes, applying braking force over time based on the chosen setting. The drawback of this type of controller is that the response of the trailer brakes will be the same, regardless of whether the brakes on the tow vehicle are applied gently or abruptly.
Proportional electric brake controllers, on the other hand, measure the changing momentum or inertia of the moving car via an accelerometer. They work independently of the tow vehicle's brakes and send the precise amount of voltage to the trailer brakes to ensure that the speed of the trailer matches that of the tow vehicle. This results in a smoother braking experience and ensures that the trailer brakes last longer.
Electric trailer brakes offer several advantages, including safety, less stress on the vehicle, and compliance with legal requirements. They are also known for their ease of maintenance, requiring less frequent adjustments compared to other braking systems.
Summer Electricity Costs: Why the Spike?
You may want to see also
Explore related products
Electric brakes are easy to maintain and adjust
Electric brakes on a trailer are a type of braking system that uses electrical signals, electromagnets, and brake pads to help the trailer stop while towing. They are connected to the vehicle through an electrical connection on the trailer that plugs into the connector on the vehicle. This allows the trailer brakes to be activated when the driver steps on the brakes, sending a current back to the trailer brakes.
Maintaining electric trailer brakes is important to ensure they are working well and safely. This includes keeping an eye on the electromagnet located in the brake drum, ensuring it is not loose or disconnected. Additionally, checking for wear indicators on the magnets is crucial to know when a replacement is needed. It is also recommended to change the brake filter every 2 to 3 years to maintain optimal air passage.
Adjusting electric trailer brakes is a straightforward process that involves the following steps:
- Chock the trailer wheels and jack up one side of the trailer, ensuring the jack is placed under the trailer frame and not the axle.
- Remove any covers, caps, or plugs to access the trailer brakes. This can be done using a flathead screwdriver to pry out the cover.
- Locate the star wheel adjuster inside the brake chamber, typically found below the brake drum.
- Using a trailer brake spoon, brake adjustment tool, or flathead screwdriver, pry down on the brake spoon handle to tighten the brake pads or shoes.
- Turn the star wheel adjuster one click at a time, spinning the tire between each click to ensure it spins freely.
- Once the trailer tire becomes difficult to turn, stop tightening the adjuster. If necessary, loosen the adjuster wheel by prying upward on the adjustment tool.
- Repeat this process on the other side of the trailer.
It is recommended to check and adjust electric trailer brakes every 3,000 miles or 3 months to ensure safe towing. This process allows for the proper maintenance and adjustment of electric trailer brakes, ensuring optimal performance and safety.
Philippine Electrical System: Safe or Not?
You may want to see also
Frequently asked questions
Electric brakes on a trailer are a braking system that relies on electricity to bring the vehicle to a stop. They are connected to the tow vehicle's power and are regulated by a brake control unit or electric brake controller.
Electric brakes work by activating electromagnetic brake drums to create attrition and slow the trailer down. They are activated by the driver pressing the brake pedal, which sends an electrical signal to the trailer brakes.
Electric brakes are popular for modern trailers due to their precision, reliability, and ease of use. They are also adjustable, allowing drivers to fine-tune the braking force to match the load weight and road conditions.
The process of installing electric brakes can vary depending on the manufacturer. However, some common steps include disconnecting the tow vehicle's negative battery cable, choosing where to mount the controller, drilling holes for the mounting bracket, and connecting the interface using a vehicle-specific wiring harness. Additionally, some brake controllers offer features such as Bluetooth connectivity and LED displays for added convenience and safety.
