A circuit breaker trips when it senses an abnormal power draw and shuts off the electrical flow to prevent overheating and potential electrical fires. This can be caused by an overloaded circuit, a short circuit, or a ground fault. An overloaded circuit occurs when a circuit tries to draw more power than it is designed to carry, usually when too many high-power devices are running on the same circuit. A short circuit is an abnormal connection between two nodes of an electric circuit, which can cause circuit damage, overheating, and fire. Ground faults happen when a hot wire touches a grounded metal portion of the electrical system, redirecting the electrical current away from appliances and towards the grounding system.
| Characteristics | Values |
|---|---|
| Overloaded circuit | Too many appliances running on the same circuit, too much amperage, loose or corroded wires or connections |
| Short circuit | Hot wire touches a neutral wire, causing a large amount of current to flow and overload the circuit |
| Ground fault | Hot wire touches a grounded metal portion of the electrical system, redirecting the electrical current |
| Old or faulty breaker | Breakers, switches, outlets and wiring deteriorate over time |
Explore related products
What You'll Learn
Overloaded circuits
An overloaded circuit can be caused by having too many appliances running on the same circuit, especially high-power devices such as air conditioners, hairdryers, or heaters. These appliances can also overheat, causing the entire circuit to overheat and trip the breaker. To prevent overloading, it is recommended to distribute high-power devices across different outlets on different circuits. Turning off or unplugging devices when they are not in use can also help reduce the load on a circuit.
Another cause of overloaded circuits is loose or corroded wires or connections. This can lead to excess power being drawn, causing the circuit wires to heat up. Signs of an overloaded circuit include melted plastic housing, burning smells, hot hardware, and loose wires. It is important to address these issues promptly to prevent potential electrical hazards.
Additionally, outdated breaker boxes can contribute to overloaded circuits. Worn connectors in older breaker boxes may prevent the breaker from tripping when it should, leading to circuit overload and an increased risk of electrical fires. Upgrading to modern breaker boxes with proper wiring can help mitigate this issue.
It is important to note that if a circuit breaker trips frequently, it may indicate a larger underlying problem. In such cases, it is advisable to contact a professional electrician to inspect the electrical system and ensure it is functioning safely and efficiently.
The Weighty Debate: Electric Cars, Heavy or Light?
You may want to see also
Explore related products
Short circuits
A short circuit is an abnormal connection between two nodes of an electric circuit intended to be at different voltages. It occurs when a hot wire touches another hot wire, a neutral wire, or a metal electrical box. This can be caused by a lack of electrical maintenance, old age, or improper installation. Homeowners who attempt to wire in a switch or outlet themselves may also cause short circuits.
To prevent short circuits, it is important to maintain your home's electrical system and ensure proper installation. If you suspect a short circuit, do not run power to that circuit and contact a professional electrician to address the issue.
In summary, short circuits occur when there is an abnormal connection between nodes in an electric circuit, causing safety hazards. Proper maintenance, installation, and professional assistance are key to preventing and addressing short circuits and related issues.
Electric Fence Tape: Installation and Connection Guide
You may want to see also
Explore related products
Ground faults
A ground fault occurs when a hot wire touches a grounded metal portion of your electrical system. This can be a metal electrical box, or the casing of a lamp, for example. Ground faults are often caused by a wire's insulation breaking down, or improper installation. This can be due to a lack of maintenance, the age of the electrical system, or a pinched wire.
When a ground fault occurs, the electricity travels to the ground instead of to your appliances. This redirection of the current means that anyone or anything that comes into contact with the grounding system will become a path for the current, which can be extremely dangerous.
Ground fault circuit interrupters (GFCI) are safety devices that are often found in bathrooms, kitchens, and outdoors. They are designed to trip at the outlet, rather than the breaker, and have been required in certain areas of the home since the 1970s.
It is important to note that if a breaker is tripping frequently, it may be a sign of a serious electrical issue, and a professional electrician should be consulted.
Disassembling Your GE Washer: Step-by-Step Guide
You may want to see also
Explore related products
Old or faulty breakers
Breakers have a rating that determines how much current they can safely carry and interrupt. If a breaker exceeds its maximum amperage, it will trip, and its switch handle will move between the "on" and "off" positions. Breakers can also trip due to a problem with the breaker itself, such as old age or faulty wiring.
A ground fault occurs when a hot wire touches a grounded metal portion of your electrical system, such as a metal electrical box or the casing of a lamp. This can be caused by a lack of maintenance, the age of the electrical system, or improper installation. Ground faults can be particularly dangerous, leading to electrocution.
A short circuit is another potential cause of a tripped breaker. This happens when a hot wire touches another hot or neutral wire, causing a large amount of current to flow and overload the circuit. Short circuits can also be caused by a lack of maintenance or old age, as well as animals chewing on wires.
If your breaker is old or faulty, it's important to contact a professional electrician to determine the source of the problem and make any necessary repairs or replacements.
A Beginner's Guide: Installing Electrical Sockets Safely
You may want to see also
Explore related products
Worn connectors
In addition to worn connectors, loose or corroded wires and connections can also contribute to circuit overload and breaker trips. This can be caused by improper installation or a lack of maintenance. It is important to inspect your electrical system regularly and contact a professional electrician if you notice any signs of wear or corrosion.
To prevent circuit overload and reduce the risk of electrical fires, it is recommended to distribute high-power devices across different circuits. This can help reduce the load on any single circuit and prevent overloading. Additionally, turning off or unplugging devices that are not in use can also help reduce the load on the circuit.
If you suspect that worn connectors or other electrical issues are causing your breaker to trip, it is essential to contact a professional electrician. They can inspect your electrical system, identify any worn connectors or other issues, and make the necessary repairs or replacements to ensure the safety of your home.
Electricity Outages: Night-Time Power Loss Mystery
You may want to see also
Frequently asked questions
An electrical breaker, also known as a circuit breaker, is a device that automatically shuts off the electrical flow to a circuit when it senses an abnormal power draw. This typically happens when a circuit is overloaded, which can be due to too many appliances running on the same circuit or an appliance overheating.
There are three primary causes of an electrical breaker tripping: an overloaded circuit, a short circuit, and a ground fault. An overloaded circuit occurs when a circuit tries to draw more power than it is designed to carry, leading to excess power and overheating. A short circuit happens when a hot wire touches another wire or a neutral wire, causing a large amount of current to flow and overload the circuit. A ground fault occurs when a hot wire touches a grounded metal portion of the electrical system, causing electricity to travel to the ground instead of to appliances.

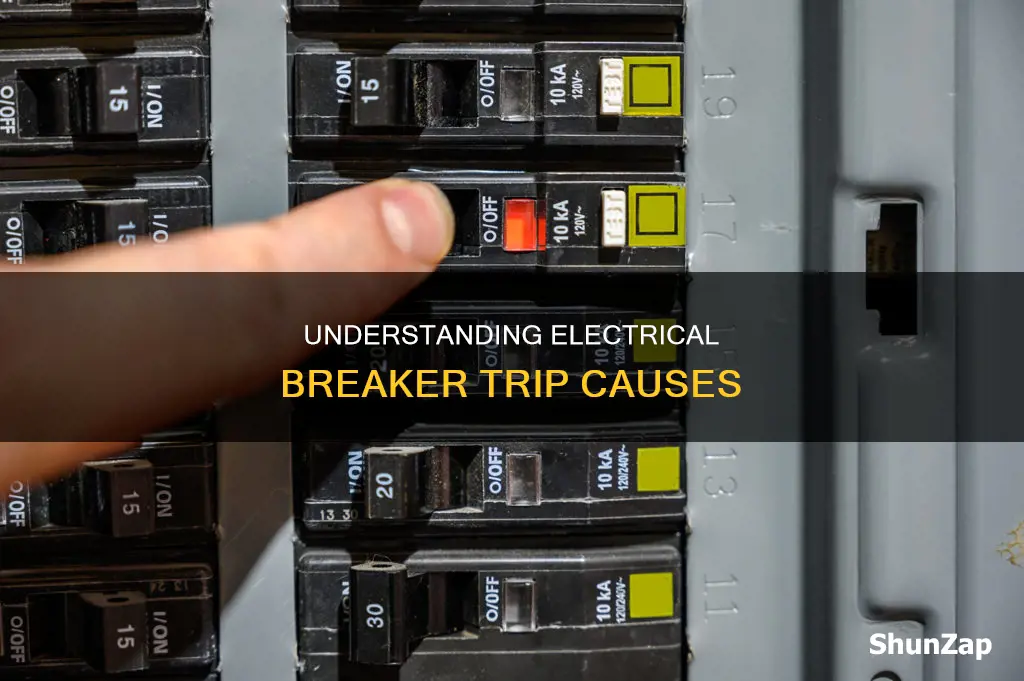

To identify a tripped breaker, look for the breaker's switch handle, which will have moved between the "on" and "off" positions. Depending on your electrical panel, the trip may cause only a minimal movement of the handle, so you may need to look closely at the switches to determine which one has tripped.
If your breaker keeps tripping, it is essential to contact a professional electrician to determine the source of the problem. In the meantime, you can try to identify any correlations between certain devices and the breaker tripping by noting which devices are plugged into the circuit and whether the breaker trips when they are in use. You can also try moving devices to different circuits to see if the problem persists.
