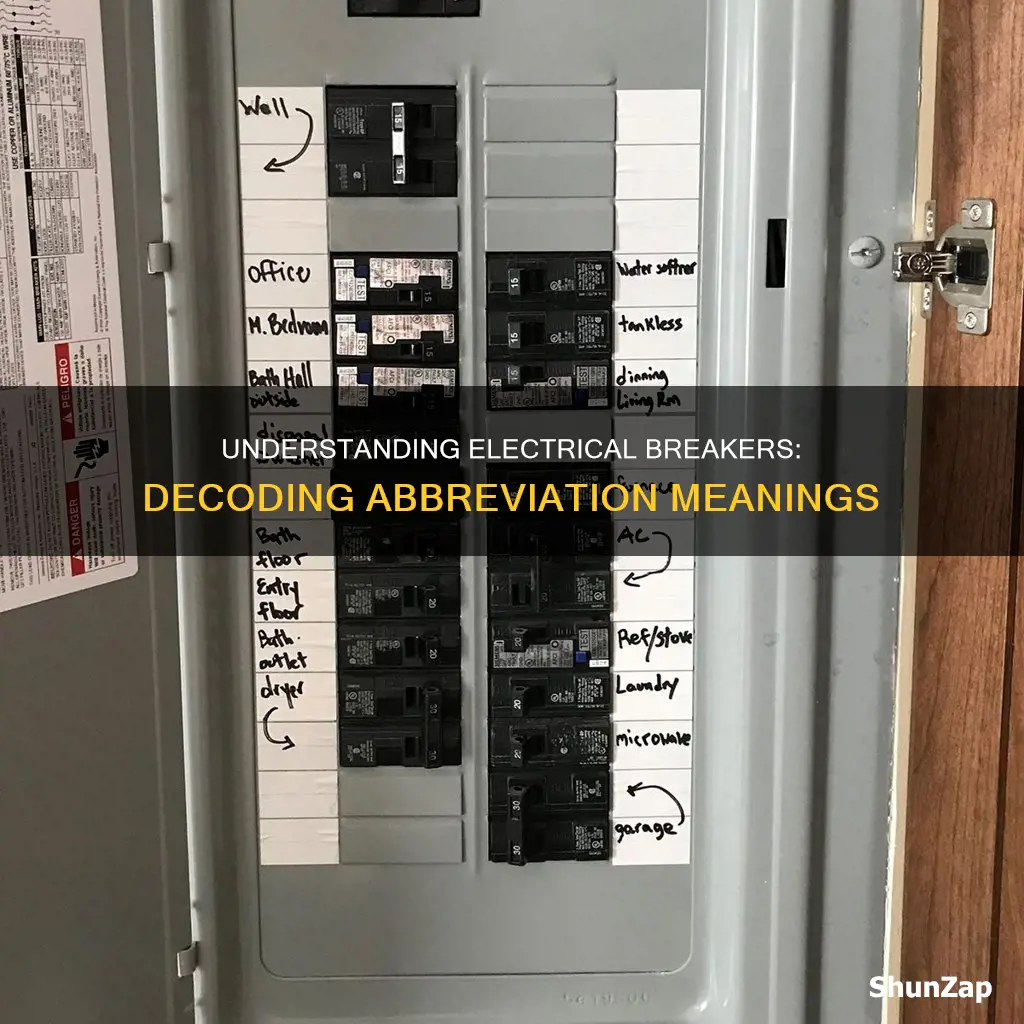

Understanding the electrical system in your home can be confusing, especially when trying to decipher the abbreviations on electrical breakers. These abbreviations are often used to indicate the specific circuits or appliances that a breaker controls. For example, Liv/Kit LTS could stand for Living Room/Kitchen Lights, while FAU could be a Forced Air Unit or a small on-demand water heater. It's important to note that there may be variations in the abbreviations used, and sometimes, as in the case of G.D.O., you may need to investigate further to determine what a particular abbreviation stands for.
Characteristics and Values of Abbreviations on Electrical Breakers
| Characteristics | Values |
|---|---|
| First number in a label | Floor level |
| Subsequent numbers | 01, 02, 03, etc. indicating the corner/wall on each floor |
| Label colors | Outlets working on the same breaker |
| Basement label | 101, 102, 103, etc. |
| FAU | Forced Air Unit (air handler) or a small on-demand water heater |
| Kit | Kitchen |
| LTS | Lights |
| G.D.O. | Garage Door Opener |
Explore related products
What You'll Learn
FAU could mean Forced Air Unit, or it could be related to faucets
When it comes to electrical breakers, abbreviations are often used to label the different circuits and their functions. One such abbreviation that has sparked some discussion is "FAU". In this context, FAU could mean Forced Air Unit, or it could be related to faucets.
Forced Air Unit (FAU) is the term used to describe an indoor unit that consists of a blower, air conditioning coils, and sometimes electric heat strips or a hydronic coil. This unit does not have a gas or oil burner, which distinguishes it from a furnace. The Forced Air Unit is an all-in-one package, often in the shape of a furnace, that provides heating or cooling for a building. This interpretation of FAU is supported by several sources, with some specifying that it stands for Forced Air Unit and others stating that it could be an air handler or AHU (Air Handling Unit).
On the other hand, FAU could also be related to faucets. In one instance, a user questioned the meaning of FAU on their breaker panel, and another user suggested that it could stand for a small on-demand water heater, with "FAUcet" being the specific term. This interpretation is less common but still a possibility, depending on the context of the breaker panel and the other abbreviations present.
It is worth noting that the abbreviations used on electrical breakers can vary depending on the region and the specific setup of the electrical system. In some cases, there may not be a standard set of abbreviations, and the labels may be more intuitive to the person who installed the system. To fully understand the meaning of FAU in a specific context, it is essential to consider the other abbreviations used, the layout of the building, and the electrical plan.
To confirm the exact meaning of FAU in a particular electrical breaker setup, it is recommended to consult a professional electrician or refer to a comprehensive guide on electrical terminology and abbreviations. Electrical systems can be complex and vary greatly, so it is always best to seek expert advice when in doubt.
UK Electrical Symbols: Understanding Their Meanings and Significance
You may want to see also
Explore related products
LTS likely means lights
When it comes to electrical breakers, LTS likely stands for "lights". This is especially true if the full abbreviation is Liv/Kit LTS, which stands for "Living Room/Kitchen Lights". To be sure, you can try turning everything on and plugging something into every outlet. Then, flip off the breakers one by one to see what turns off. This will help you identify which breaker controls which lights or appliances in your home.
It is important to understand the terminology and abbreviations used in your breaker box to ensure you are safely and correctly operating your electrical system. While LTS likely means lights, as lights are a common feature controlled by breakers, other abbreviations can be more ambiguous and context-dependent. For example, FAU could stand for a Forced Air Unit (like an air handler) or it could be a small on-demand water heater, depending on the specific appliance in your home.
Similarly, Kit can refer to kitchen appliances in general, so it might indicate a dishwasher or an oven, for instance. These abbreviations are not always standardised and can vary from region to region and even from home to home. Therefore, it is always a good idea to check for yourself what each breaker controls to avoid any confusion or mishaps when operating your electrical system.
By taking the time to understand your breaker box, you can ensure you are safely managing your home's electrical power. This knowledge can help you make informed decisions when it comes to tasks like replacing a fuse or resetting a tripped breaker. It is also useful for energy-saving strategies, such as turning off power to appliances or rooms that are not in use.
Black Square Basics: Electrical Schematic Symbol Meaning
You may want to see also
Explore related products
Kit probably refers to kitchen appliances
When it comes to electrical breakers, abbreviations are used to indicate the specific circuits or appliances they control. In this context, "Kit" is likely short for "Kitchen", referring to kitchen appliances or outlets. For instance, "Liv/Kit LTS" means "Living Room/Kitchen Lights". So, "Kit |O|" could refer to a kitchen outlet or appliance, such as a dishwasher or oven.
Now, let's focus on the use of "kit" in relation to kitchen appliances. Abbreviations are commonly used in various fields, including real estate, construction, and culinary arts, to save space and improve clarity in documentation. In these contexts, "kitchen" can be abbreviated as "kitch.," "kit.," or simply "K". Using "kit" as an abbreviation for kitchen is especially helpful when creating shopping lists, selecting recipes, or referring to kitchen tasks and meal plans, enhancing communication efficiency.
In the culinary industry, "kitch." is the more prevalent abbreviation for kitchen. However, "kit" is also recognised and understood within this sphere. When planning meals or creating recipes, using "kit" as shorthand for kitchen appliances can be practical. For example, when writing a recipe, you might instruct someone to "blend the ingredients in a food processor or blender until smooth". Here, a blender or food processor is a kitchen appliance that can be substituted with the abbreviation "kit", resulting in: "blend the ingredients in a kit appliance until smooth". This condensed phrasing improves readability and saves space.
Additionally, when discussing kitchen appliances, "kit" can be used in a broader sense to refer to a collection of essential tools for cooking or baking. A "kitchen starter kit", for instance, might include a set of knives, cutting boards, a skillet, a stand mixer, a hand mixer, a Dutch oven, a coffee maker, a food processor, or a blender. These kits are often marketed to those moving into a new home or developing an interest in cooking or baking, providing them with a foundational set of tools to begin their culinary journey.
The Intriguing World of the Prefix "Electro
You may want to see also
Explore related products
Numbering can indicate floor level
Numbering electrical breakers is an important way to keep track of the various circuits that power different parts of a home. The first number in a sequence can be used to indicate the floor level, with the following two digits indicating the specific room or area on that floor. For example, a breaker labelled 101 would be for the basement, while 201 would indicate a room on the second floor. This system allows for easy identification and reference, especially when combined with a colour-coded floor plan.
One way to number electrical breakers is to start with the first number, indicating the floor level. For example, 1 for the basement, 2 for the first floor, and so on. The next two digits can then be used to identify the specific room or area on that floor. So, 101 could be for the basement living room, while 102 might be for the basement kitchen. This system provides a clear and logical way to organise and label the breakers.
Colour-coding can also be used to differentiate between breakers. Using the same colour on the breaker panel and the floor plan ensures a clear understanding of which breaker controls which area. This is especially helpful when dealing with multiple floors or a large number of circuits. For example, a breaker controlling outlets on both the first and second floors could be written in the same colour as the outlets on the floor plan.
Additionally, it is important to label the breaker panel clearly. Labels should indicate which breakers control which areas or appliances in the home. This can be done by writing the corresponding room or appliance next to each breaker. For example, "Living Room/Kitchen Lights" or "Oven/Dishwasher". These labels help to quickly identify circuits and troubleshoot any issues.
When creating a floor plan, it is helpful to include electrical paths and circuit numbers. This allows for easy reference when working with the breaker panel. By including circuit numbers next to the actual outlets, it becomes straightforward to identify which breaker controls each outlet. This comprehensive approach ensures a clear understanding of the electrical system.
The Spark of Electricity: Names for Girls with Electric Meanings
You may want to see also
Explore related products
A breaker labelled 30A @ 240VAC is likely a heater
When looking at electrical breakers, the abbreviations used often refer to the maximum amperage the device can handle before tripping. For instance, 30A @ 240VAC indicates a maximum of 30 amps and 240 volts of alternating current. This is likely to be a heater, a water heater, or an electric dryer. It could also be an induction range or a welder, but these are less common applications.
The specific device connected to the breaker can be determined by its amperage and voltage ratings. In this case, 30A @ 240VAC is most likely a heater, as it is a common application for this rating. This is because delivering thousands of watts of power is more efficient at 240V, and heaters require a significant amount of power.
Additionally, this breaker is likely to be a double-pole breaker, which is required for 240V high-current applications. A double-pole breaker has two nodes, one for each 120V leg, which together provide the 240V circuit. Single-pole breakers over 30A are rare, as they are less efficient at delivering high power.
It's important to note that this is specific to the USA/Canada electric distribution model and a few other places that use the same model. In most other parts of the world, a single-pole breaker is typically 220-240V 50Hz.
To identify the specific device connected to the breaker, it is recommended to turn everything on and plug items into outlets, and then flip the breakers one at a time to see what turns off. This will help you determine which devices are controlled by each breaker.
Understanding the Heart: Calculating the Mean Electrical Axis
You may want to see also
Frequently asked questions
LTS stands for "Living Room/Kitchen Lights".
FAU stands for "Forced Air Unit" or a small on-demand water "FAUcet".
Comp is an abbreviation for a trash compactor.
The circle with two lines through it is the de facto North American standard electrical plan symbol for a duplex receptacle, so that line is short for "Kitchen Receptacles".
The list of electrical abbreviations used in a set of construction drawings varies from office to office. It is recommended to check the front section of the drawing set for the abbreviations used.
