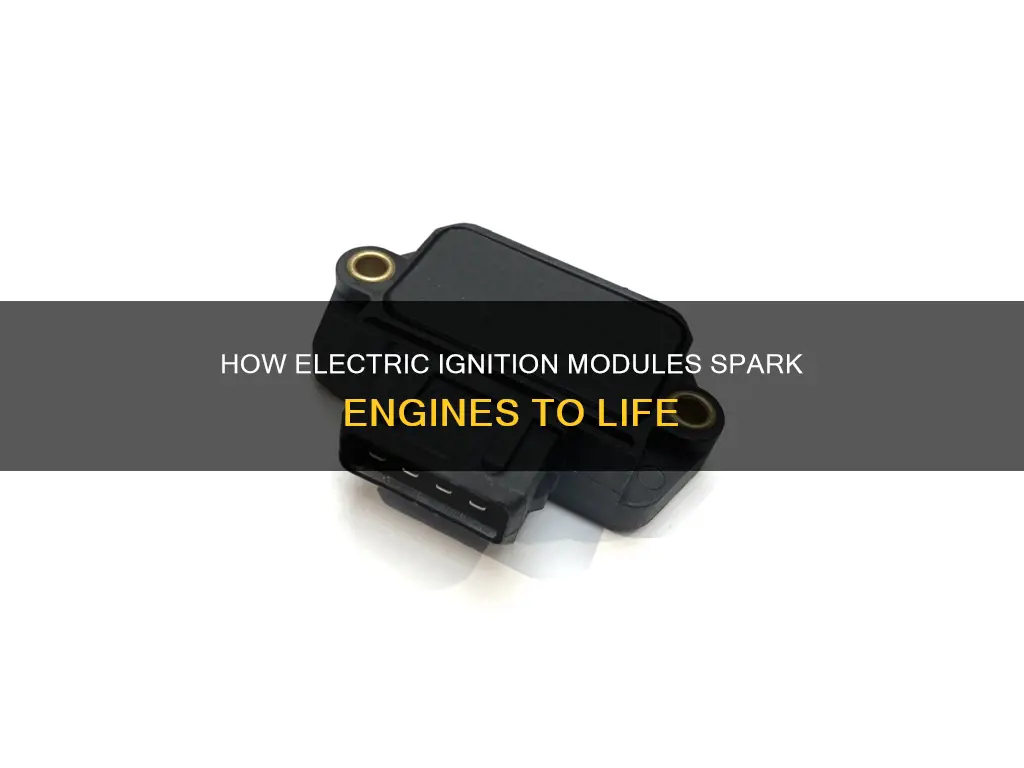

An ignition module is an essential component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. Ignition modules are of two main types: traditional mechanical and electronic. While mechanical ignition modules rely on mechanical components to function, electronic modules use solid-state electronics to provide more precise control over ignition timing, enhancing engine performance and reducing fuel consumption and emissions. Electronic ignition modules are more durable and reliable than their mechanical counterparts, but they come with a higher initial cost.
| Characteristics | Values |
|---|---|
| Types | Traditional mechanical modules, electronic modules, distributorless ignition |
| Function | Controls ignition timing and spark generation |
| Interaction | Interacts with other components, such as the ignition coil and distributor |
| Reliability | Electronic modules are more reliable and durable as they have no moving parts |
| Maintenance | Mechanical modules require regular maintenance and adjustments |
| Performance | Electronic modules improve engine performance, fuel efficiency, and reduce emissions |
| Cost | Electronic modules have a higher initial cost and replacement cost |
| Cooling | Require cooling surfaces or heat sinks made from aluminium |
| Plug connectors | Must be clean and free from corrosion to prevent malfunctions or cable fires |
| Voltage | Voltages between 28,000 V and 35,000 V are needed to generate sparking |
| Current | Primary current can be 10 A or more |
| Current limiting | Most modules have automatic current limiting to prevent coil overload |
| Activation | Requires external input, often from a "hall effect sensor" |
Explore related products
$23.49
What You'll Learn
- Electronic ignition control modules offer improved reliability and performance
- Mechanical ignition control modules are prone to wear and require regular maintenance
- Electronic ignition control modules are more expensive than mechanical modules
- Ignition modules have cooling surfaces or heat sinks to prevent overheating
- Ignition modules require a control signal from a sensor
Electronic ignition control modules offer improved reliability and performance
An ignition module is an essential component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. There are two main types of ignition control modules: traditional mechanical modules and electronic modules.
Secondly, electronic modules provide more precise control over ignition timing, improving engine performance and fuel efficiency. They utilize solid-state electronics, including transistors, capacitors, and integrated circuits, to manage ignition timing and spark generation accurately. This precise control leads to improved engine performance and reduced emissions.
Thirdly, electronic modules require less maintenance compared to mechanical modules. While mechanical modules may be simpler in design, they need regular maintenance and part replacements to ensure optimal performance. Electronic modules, with their advanced electronics, may have a higher initial cost and require complete replacement if they fail. However, they do not need the same level of ongoing maintenance as mechanical modules.
In summary, electronic ignition control modules offer enhanced reliability, durability, and performance compared to traditional mechanical modules. They provide more accurate control over ignition timing, improved engine performance, and reduced maintenance requirements. The choice between the two types ultimately depends on the vehicle's specific requirements, budget, and desired performance.
The Right Way to Tighten Your Electric Chainsaw Blade
You may want to see also
Explore related products
Mechanical ignition control modules are prone to wear and require regular maintenance
An ignition control module is a crucial component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. The ignition control module is the brain behind the ignition system's operation. It interacts with other components, such as the ignition coil and distributor, to generate sparks immediately.
There are two main types of ignition control modules: mechanical and electronic. Mechanical ignition control modules were commonly used in the past and relied on mechanical components and points to control the ignition system. The points would open and close to create the electrical signals for spark generation.
However, these mechanical modules were prone to wear and tear due to their many mechanical parts. They required regular maintenance, including adjustments and replacement of parts, to ensure optimal performance. The need for regular maintenance and the higher susceptibility to wear and degradation over time are notable differences between mechanical and electronic ignition control modules.
Electronic ignition control modules, on the other hand, offer enhanced reliability and durability. They utilize solid-state electronics to control the ignition system and feature electronic components such as transistors, capacitors, and integrated circuits to manage ignition timing and spark generation precisely. Electronic modules provide more accurate and consistent ignition system control, leading to improved engine performance and fuel efficiency. They require less maintenance and are less susceptible to mechanical failure due to their solid-state construction.
In summary, mechanical ignition control modules are more prone to wear and require regular maintenance, while electronic ignition control modules offer improved reliability, durability, and performance. The choice between the two types depends on factors such as cost, desired performance, and specific vehicle requirements.
The Hollow Body Electric Guitar: What's it For?
You may want to see also
Explore related products
Electronic ignition control modules are more expensive than mechanical modules
An ignition control module is an essential component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. There are two main types of ignition control modules: traditional mechanical modules and electronic modules.
In the past, mechanical ignition control modules were commonly used in vehicles. These modules relied on mechanical components and points to control the ignition system. However, mechanical modules were prone to wear and required regular maintenance, including adjustments and replacement of parts.
Electronic ignition control modules, on the other hand, utilize solid-state electronics to control the ignition system. They feature electronic components such as transistors, capacitors, and integrated circuits to manage ignition timing and spark generation precisely. Electronic modules provide more accurate and consistent ignition system control, leading to improved engine performance and fuel efficiency. They are also more reliable and durable since they have no moving parts susceptible to wear and tear.
Despite their advantages, electronic ignition control modules are more expensive than mechanical modules. Advanced electronics and integrated circuits increase the manufacturing and replacement costs of electronic modules. In the event of a failure, electronic modules often require complete replacement, while mechanical modules may allow for individual component replacement. Therefore, the higher initial cost of electronic modules can be a potential disadvantage, especially when considering the specific requirements, budget, and desired performance of the vehicle.
Selling Your Electrical Business: Strategies for Success
You may want to see also
Explore related products
Ignition modules have cooling surfaces or heat sinks to prevent overheating
An ignition module is a crucial component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. The electronics in the ignition module, which switch the primary current for the ignition coil on and off, become very hot due to the high current (power loss). Therefore, ignition modules are designed with cooling surfaces or heat sinks to prevent overheating.
Ignition modules have cooling surfaces or heat sinks, typically made from aluminium, to dissipate the heat generated by the high current passing through the module. This is essential to prevent the electronics from overheating and self-destructing. By providing an increased surface area, the cooling surfaces or heat sinks enhance heat transfer away from the module, ensuring its optimal performance and longevity.
The choice between a traditional mechanical ignition module and an electronic module depends on various factors, including cost, performance requirements, and reliability. Mechanical modules rely on mechanical components and points to control the ignition system, while electronic modules utilise solid-state electronics, offering enhanced reliability, durability, and precision. Electronic modules provide more accurate control over ignition timing, improving engine performance and reducing emissions.
It is imperative that ignition modules are never operated without their designated cooling measures in place. This includes ensuring that the cooling surfaces or heat sinks are properly attached to the module and treated with a thermal heat sink paste to optimise heat transfer. By following these precautions, the potential for overheating is significantly reduced, and the ignition module can function effectively and safely.
In summary, ignition modules play a critical role in vehicle ignition systems, and their proper cooling is essential to prevent overheating and ensure optimal performance. The presence of cooling surfaces or heat sinks in ignition modules is, therefore, a vital feature that contributes to the overall reliability and functionality of modern vehicles.
Harley-Davidson's 1966 Electra Glide: A Limited Edition Classic
You may want to see also
Explore related products
Ignition modules require a control signal from a sensor
An ignition module is a crucial component of a vehicle's ignition system. It controls the ignition timing and spark generation, ensuring efficient combustion and optimal engine performance. The ignition module interacts with other components, such as the ignition coil and distributor, to generate sparks at the correct time.
There are two main types of ignition control modules: traditional mechanical modules and electronic modules. Mechanical modules rely on mechanical components and points to control the ignition system, while electronic modules utilise solid-state electronics for more precise control. Electronic ignition modules have become more prevalent in modern vehicles due to their improved reliability and performance.
Most vehicles use a "hall effect sensor" to activate the ignition module. The hall effect sensor produces a small current in response to a changing magnetic field, similar to how ignition points physically open and close in response to the movement of an eccentric ring on the distributor shaft. This current activates the ignition module, initiating the ignition process.
The choice between mechanical and electronic ignition modules depends on factors such as cost, desired performance, and specific vehicle requirements. While electronic modules offer enhanced reliability and precision, mechanical modules may be preferred for their simpler design and lower initial cost. However, they require more maintenance and are prone to wear over time.
Switching Energy Suppliers: How to Check Your Current Provider
You may want to see also
Frequently asked questions
An electric ignition module is a component in electronic ignition systems that functions as the contact breaker for the coil or coils. It is an electronic replacement for old, mechanical contact breakers like ignition points.
An ignition module works by interrupting the flow of current through the primary winding of an ignition coil and creating a high-voltage pulse in the secondary winding. This pulse is then delivered to the spark plugs, igniting the petrol/air mixture compressed by the piston.
Electric ignition modules offer enhanced reliability and durability as they are not susceptible to the same kind of wear and tear that mechanical modules are. They also provide more precise control over ignition timing, improving engine performance and reducing emissions.
