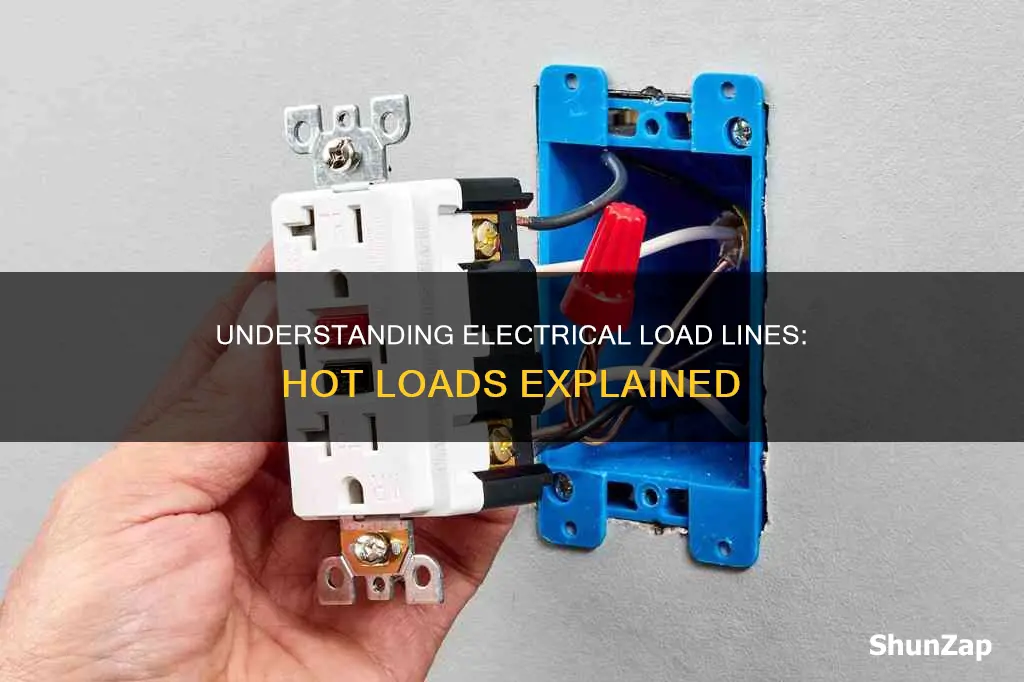

In electrical wiring, a hot load line refers to a load wire that is hot, meaning it carries an electrical current. Load wires, also known as downstream or outgoing wires, are those that carry power from a device onward to other devices further along the circuit. They are typically black, red, or blue in residential wiring and have a higher voltage capacity than neutral or ground wires. Load wires play a crucial role in conducting electricity to power appliances and fixtures in our homes. Understanding the difference between line and load wires is essential for safety when working with electrical systems.
| Characteristics | Values |
|---|---|
| Line Wire | Carries electricity from the power source to the electrical panel/device/appliance |
| Load Wire | Distributes electricity to outlets and fixtures/moves electricity to the next device on the chain |
| Line Wire Identification | Black or red; "Hot" wire; Shows voltage even when the circuit is off |
| Load Wire Identification | White or light-colored; No voltage when the circuit is off |
| Safety Mechanisms | Line wires are insulated and colour-coded; Load wires have built-in fuses or circuit breakers |
| Circuit Overload | Can lead to overheating and potential fire hazards |
| Circuit Underload | Can cause electricity to 'back up' and cause flickering lights |
Explore related products
What You'll Learn
- Line wires are always hot and carry electricity from the source to the device
- Load wires are the outgoing electricity that moves power to the next device
- Line and load wires are distinguished by colour-coding and voltage testing
- A circuit with too many loads will overheat, while too few will cause electricity to back up
- Understanding the difference between line and load wires is crucial for safety
Line wires are always hot and carry electricity from the source to the device
In electrical wiring, the terms "line" and "load" refer to the wires that deliver power from the source to a device ("line") and those that carry power onwards to other devices further along the circuit ("load"). Line wires are typically black or red, while load wires are often white or light-coloured.
Line wires are always "hot", meaning they carry an electrical current, and act as the "supply lines" of electrical power. They are insulated and often colour-coded to prevent accidental contact and ensure proper connections. The colour-coding system, however, is not standardised, and the same colours can be used for both line and load wires, which can be confusing. For example, black is commonly used for line wires, but it can also be used for load wires. Other colours used for line wires include red and blue.
To distinguish between line and load wires, one can use a volt pen or voltage tester. Line wires will show voltage even when the circuit is off, while load wires will not. It is crucial to identify the correct wires to avoid dangerous short circuits or electrocution. If in doubt, it is recommended to consult a professional electrician.
Line wires carry electricity from the power source to the electrical panel or device, while load wires distribute electricity to the outlets, fixtures, or the next device on the chain. In a simple on-off light switch, mixing up the line and load wires may not affect the operation, but it becomes critical when installing a GFCI (Ground Fault Circuit Interrupter) outlet, as incorrect installation can lead to safety failures.
