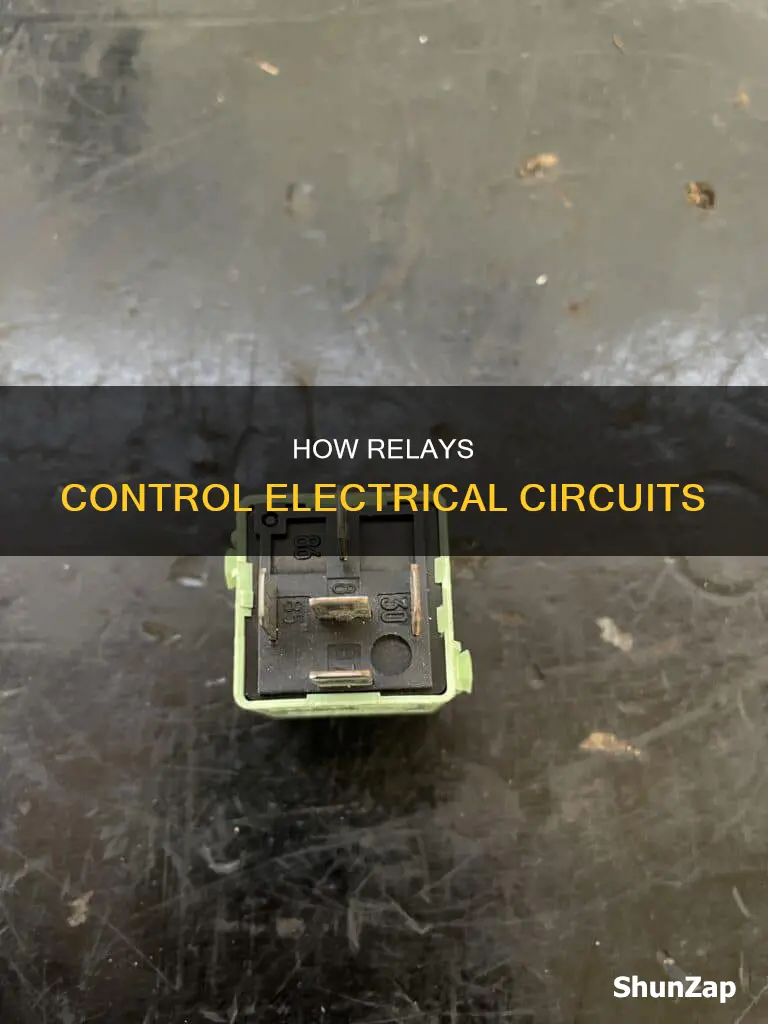

Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are used to protect electrical systems from high voltage or current, allowing the safe operation of any equipment they are connected to. There are two main types of relays: electromechanical relays and solid-state relays. Electromechanical relays use a magnetic force to open and close contacts, while solid-state relays use semiconductors to control the switching mechanism. Solid-state relays are known for their quick operation and long life compared to electromechanical relays. Relays can be used in a variety of applications, from commercial and industrial uses to home and consumer products, such as lighting control systems, protection systems for electronics, and telecommunication.
Explore related products
What You'll Learn
Relays are electrically operated switches
There are two main types of relays: electromechanical relays and solid-state relays. Electromechanical relays use a magnetic force to open and close contacts, while solid-state relays have no contacts and switching is totally electronic. Electromechanical relays are the most basic type of relay and use an electromagnetic coil to manipulate the movable contact. However, this physical motion can take longer and lead to internal arcing, which can degrade the relay over time. Solid-state relays, on the other hand, operate using a semiconductor that controls the relay's switching mechanism. They are known for their quick operation and long life compared to electromechanical relays.
Relays can have different types of terminals, including coil, common, normally open (NO), and normally closed (NC). The coil terminal is connected to a low-power source that controls the relay's switching mechanism. The common terminal functions as the output of the relay and is connected to the circuit being controlled. NO terminals are open by default until the relay becomes active, while NC terminals are closed until the relay activates and then open.
Relays are used for protection of electrical apparatus and transmission lines. They can detect overload, short circuits, and other faults. Relays can also be used for the logical control of complex switching systems and can perform basic operations of Boolean combinatorial logic. Multi-voltage relays are a type of relay designed to work for wide voltage ranges and are used in installations with unstable supply voltages.
Electric Motorcycles: Who's Leading the Race?
You may want to see also
Explore related products
They protect electrical systems from high voltage
A relay is a type of switch within an electronic system. They are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. The primary purpose of a relay is to protect the electrical system from high voltage or current, allowing the safe operation of any equipment it connects to.
A protective relay is a type of relay that detects defective lines or apparatus or other power system conditions of an abnormal or dangerous nature and initiates an appropriate control circuit action. Protective relays are designed to protect zones of the power system. They are a necessary component of any electrical setup, as they prevent safety hazards and damage to equipment. They monitor voltage to determine if levels rise too high or fall too low. If the voltage fluctuates too much, the relay trips, shutting off the system and preventing equipment damage and safety issues.
Protective relays do not directly measure the input quantities (current or voltage) they are trying to protect. Instead, they require instrument transformers that isolate the relay from the dangerous high-voltage and current levels of the power delivery system. Current transformers (CT) are used to measure current in AC circuits, while potential transformers (PT) or voltage transformers (VT) are used to measure voltage (potential difference) in AC circuits.
Digital protective relays use a microprocessor to analyse power system voltages, currents, and other process quantities for the detection of faults in an industrial process system. They can also provide functions such as communications (SCADA) interface, monitoring of contact inputs, metering, waveform analysis, and other useful features. Digital relays can also store multiple sets of protection parameters, allowing the behaviour of the relay to be changed during maintenance of attached equipment.
Solid-state relays operate using a semiconductor that controls the relay's switching mechanism. This is done using a low-voltage optical signal from the semiconductor which, when triggered, allows the operation of the controlled higher-voltage load.
Amana Electric Dryer: Installation Guide and Tips
You may want to see also
Explore related products
![EHDIS 4-Pin Relay 12V 80A Automotive Car Relay On/Off Normally Open Car Truck Boat SPST Relays High Power Model JD2912-1H-12VDC 80A 14VDC [2 Pack]](https://m.media-amazon.com/images/I/71fdNfViyTL._AC_UY218_.jpg)
![[2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB, Smart Home Controller](https://m.media-amazon.com/images/I/81WS9ok2FqL._AC_UY218_.jpg)
Electromechanical relays are the most basic type
Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are commonly found in a variety of applications, from commercial and industrial uses to home and consumer products.
The physical motion of electromechanical relays can take longer than other types of relays and can lead to internal arcing, which can degrade the relay over time. The contacts on electromechanical relays can also be replaced, whereas other types of relays, such as solid-state relays, must be entirely replaced when any part becomes defective.
Solid-state relays operate using a semiconductor that controls the relay's switching mechanism. This is done using a low-voltage optical signal from the semiconductor, which, when triggered, allows the operation of the controlled higher-voltage load. Solid-state relays are known for their quick operation and comparatively long life. However, they generate additional heat through the operation of the semiconductor, which can cause issues or require built-in solutions to prevent overheating.
The Electric Chair: A Gruesome Device's Design
You may want to see also
Explore related products
Solid-state relays are faster and longer-lasting
Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are used to control the flow of energy or the operation of a system. Relays can be categorised into movable contacts (mechanical relays) and no movable contacts (MOS FET relay, solid-state relay).
Solid-state relays (SSRs) are faster and longer-lasting than electromechanical relays. SSRs switch faster than electromechanical relays because they have no moving parts to wear out or erode, and no contacts to pit or build up carbon. A typical mechanical relay can have an electrical lifespan of up to 1.3 million operations, whereas SSRs can perform infinite switching cycles during their life cycle.
SSRs are also totally silent in operation. This is important in noise-sensitive applications and in terms of electrical 'noise'. Sensitive automation systems such as temperature controllers can suffer interference from electromagnetic relays arcing when the contacts come together. SSRs completely eliminate this problem and only require a very small current to switch from open to closed.
SSRs have a longer operational lifetime and are more reliable than electromechanical relays. They are also less sensitive to environmental factors like magnetic fields, vibrations, mechanical wear, and shock. However, one downside of SSRs is the additional heat they generate through the operation of the semiconductor, which can cause issues or require built-in solutions to prevent overheating.
Upgrading Your Die Shockwave: Electric Conversion Guide
You may want to see also
Explore related products
Multi-voltage relays work for wide voltage ranges
Relays are electrically operated switches that open and close circuits by receiving electrical signals from outside sources. They are used to protect electrical systems from high voltage or current, allowing the safe operation of any equipment they are connected to.
Multi-voltage relays are devices designed to work for wide voltage ranges, such as 24 to 240 VAC and VDC, and wide frequency ranges, such as 0 to 300 Hz. They are used in installations that do not have stable supply voltages. The working principle of multi-voltage relays is similar to that of traditional relays, relying on the action of an electromagnet. When the current flows through the coil, the electromagnet generates a magnetic field, attracting the iron core and driving the contacts to either open or close, thereby controlling the circuit.
Unlike conventional relays, multi-voltage relays are designed to accommodate different input voltages and ensure stable operation across all voltage levels. This is achieved by adjusting the relay's design parameters and internal circuitry, allowing it to work reliably across a range of voltage levels. Multi-voltage relays can operate across a wide range of voltages, eliminating the need to select different relay models for different voltage conditions. This simplifies inventory management and production processes.
Multi-voltage relays are crucial control components that have become indispensable in many electronic devices and electrical systems due to their unique functions and wide range of applications. They enhance the reliability and efficiency of equipment and contribute to energy conservation and environmental protection. They are used in various sectors, including home appliances, industrial automation, automotive electronics, and telecommunication equipment.
