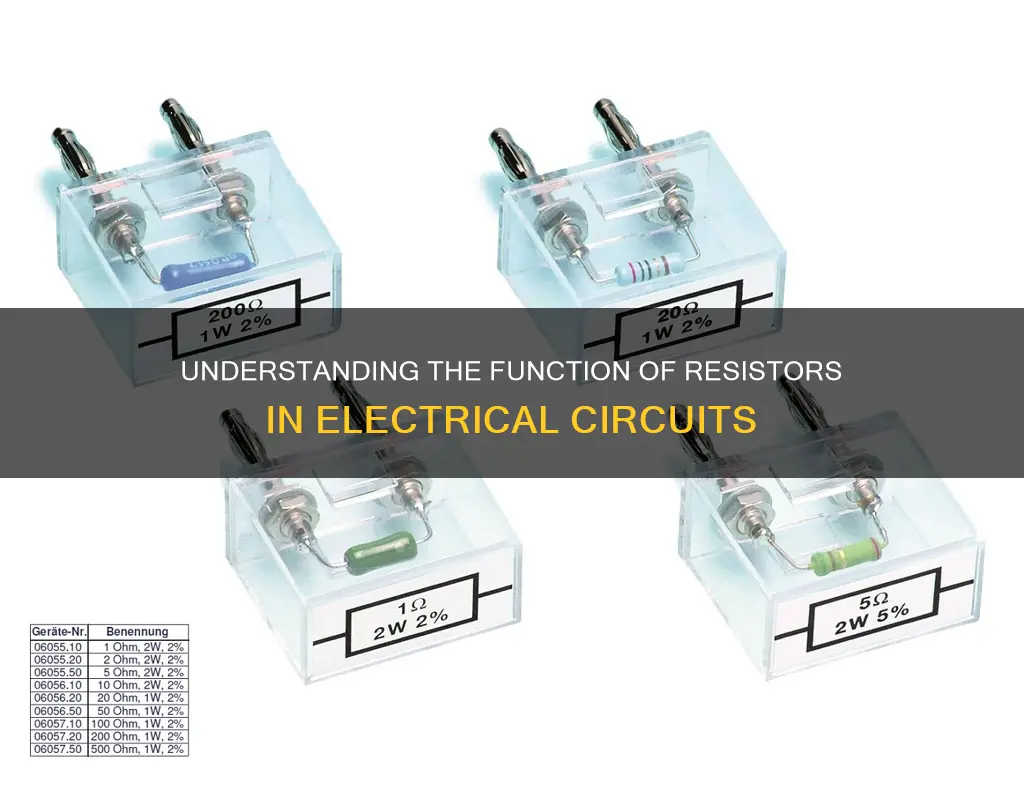

A resistor is a passive electrical component that controls or restricts the flow of electric current in a circuit. In other words, it limits the amount of electrical current that can flow across a circuit in an electronic device. Resistors are used in electronics to design circuits with specific currents and voltages. Ohm's Law describes the relationship between voltage, resistance, and current, and is used to calculate the resistance of a resistor, which is measured in ohms (Ω). The more resistance a material has, the harder it is for current to flow through it. Resistors are made from materials such as carbon, metal film, or wirewound, and are found in almost all electrical networks and electronic circuits.
Explore related products
What You'll Learn
Resistors oppose the flow of electrons
In electricity and electronics, resistors are used to oppose the flow of electrons, thereby limiting the current in a circuit. This is a vital function for the safe operation of electronic devices.
The resistor is a passive electrical component, which means it doesn't actively do anything to the circuit. Instead, it controls or restricts the flow of electrical current by providing resistance. This resistance is measured in ohms (Ω). The more resistance a material has, the harder it is for current to flow through it. So, the higher the resistance value of a resistor, the more it can restrict the flow of current passing through it.
Ohm's Law describes the relationship between voltage, resistance, and current. It states that the voltage across a resistor is equal to the current passing through it multiplied by its resistance. This law is essential in understanding how resistors work and designing circuits. By using resistors, designers can control the currents and voltages in their circuits, which is important because everything in electronics happens because of currents and voltages.
Resistors are made from high electrical resistance materials such as carbon, metal film, or wirewound. They can be found in almost all electrical networks and electronic circuits. Examples of resistors include the filament in a light bulb and the heating element in a toaster, which convert electrical energy into heat and light due to their resistance.
Voltage in Ecuador: A Comprehensive Guide
You may want to see also
Explore related products
$5.49 $5.99
Resistors limit the flow of electric current
Resistors are passive electrical components that limit the flow of electric current in a circuit. They achieve this by opposing the flow of electrons, thereby increasing the resistance in the circuit. The more resistance there is in a circuit, the harder it is for the current to flow.
The resistance of a resistor is measured in ohms (Ω). Ohm's Law describes the relationship between voltage, resistance, and current: V is the symbol for voltage, I for current, and R for resistance. The law states that the voltage across a resistor is equal to the current passing through it multiplied by its resistance.
Resistors are used for many purposes, including limiting electric current, voltage division, heat generation, matching and loading circuits, gain control, and setting time constants. They are commercially available with resistance values over a range of more than nine orders of magnitude.
In electronic circuits, resistors can be used to reduce current flow, adjust signal levels, divide voltages, bias active elements, and terminate transmission lines, among other uses. They are essential in protecting other components from excessive current that could cause damage.
The type of resistor used depends on the specific requirements of the circuit. For example, wirewound resistors are durable and accurate but suffer from parasitic reactance at high frequencies. On the other hand, metal foil resistors offer high precision and stability but are more expensive to manufacture.
Storing Electricity in the Human Body: Is It Possible?
You may want to see also
Explore related products
Resistors are passive components
The primary function of a resistor is to limit the flow of electric current. They are used to reduce current flow, adjust signal levels, divide voltages, bias active elements, and terminate transmission lines, among other uses. Resistors are commercially available with resistance values over a range of more than nine orders of magnitude. The resistance value of a resistor is indicated by its manufacturing tolerance, expressed as a percentage of the resistance value.
In an electrical circuit, resistors are essential for the safe operation of electronic devices. They protect other components from excessive current that could cause damage. By using resistors, designers can control the currents and voltages in their circuits. For example, a current-limiting resistor controls the brightness of an LED.
Resistors are also used in voltage regulators, sensors, and temperature controllers. They are reliable, durable, and have a long operational life. The choice of resistor depends on specific requirements, such as cost, precision, power, and stability. For instance, wire-wound resistors are the oldest type and can be used for both high precision and high power applications, while metal foil resistors offer the highest precision and stability.
Overall, resistors are passive components that play a crucial role in the functioning of electrical circuits by providing resistance to control the flow of electric current.
Understanding Electricity Units: R50 Buys You How Much?
You may want to see also
Explore related products
Resistors are made from different materials
Resistors are passive electrical devices that control or restrict the flow of electrical current in a circuit. They are made from materials that impede the flow of electrons, and the resistance offered by a resistor is measured in ohms.
Resistors are made from a variety of materials, including carbon, metal, wire, and alloys. Carbon composition resistors, for instance, are made from a mixture of finely powdered carbon and an insulating material, usually a ceramic. The resistance is determined by the ratio of the fill material (the powdered ceramic) to carbon—a higher concentration of carbon results in lower resistance. Thick film resistors, which gained popularity in the 1970s, are made by applying a thick layer of resistive material onto an insulating substrate. Thin film resistors, on the other hand, are produced by sputtering or vacuum deposition of the resistive material onto an insulating substrate.
Wirewound resistors are another type of resistor made by winding a metal wire, typically nichrome, around a core made of ceramic, plastic, or fiberglass. These resistors can handle higher currents compared to carbon-composition resistors of a similar physical size. Metal film resistors are usually made of nichrome or tantalum nitride, and they offer better stability, temperature coefficient, and tolerance than carbon film resistors.
The choice of material for a resistor depends on its specific properties and areas of use. Each material has unique advantages and disadvantages, and by varying the characteristics such as conductivity, surface area, and length, the resistance can be controlled to the desired accuracy.
Unplugging Appliances: Energy Saving or Myth?
You may want to see also
Explore related products
![100 PCS 10K ohm Resistor 1/4w (0.25 Watt) ±1% Tolerance Metal Film Fixed Resistors, Over 200 Multiple Values (0~22M ohm) of Resistance Optional(10K ohm,10K R,10K Ω) [CJ25-006] 10K Ω](https://m.media-amazon.com/images/I/51jhJScJ-RL._AC_UY218_.jpg)
Resistors are used for voltage division
A resistor is a passive electrical component that limits the current in a circuit by providing a specific amount of resistance, measured in ohms (Ω). When voltage is applied across a resistor, it reduces the amount of current flowing through the circuit compared to what would flow without it. This is essential in protecting other components from excessive current that could cause damage.
The voltage divider equation assumes that you know three values of the circuit: the input voltage (Vin), and both resistor values (R1 and R2). Given those values, we can use this equation to find the output voltage (Vout). If R2 and R1 are equal, the output voltage is half that of the input. If R2 is much larger than R1, then the output voltage will be very close to the input. Conversely, if R2 is much smaller than R1, the output voltage will be tiny compared to the input.
Voltage dividers have tons of applications and are among the most common circuits electrical engineers use. They are used for adjusting the level of a signal, for bias of active devices in amplifiers, and for measurement of voltages. A Wheatstone bridge and a multimeter both include voltage dividers. A potentiometer is used as a variable voltage divider in the volume control of many radios.
Diagnosing Electrical Problems: Your Multimeter Companion
You may want to see also
Frequently asked questions
A resistor is a passive electrical component that controls or restricts the flow of electrical current in a circuit. It does so by opposing the flow of electrons, which is referred to as resistance.
Resistance is measured in ohms (Ω). The more resistance, the harder it is for current to flow through the material. The relationship between voltage, resistance, and current is described by Ohm's Law: V (voltage) is directly proportional to I (current) and inversely proportional to R (resistance).
Examples of resistors include the filament in a lightbulb and the heating element in a toaster, which convert electrical energy into heat and light due to their resistance.
