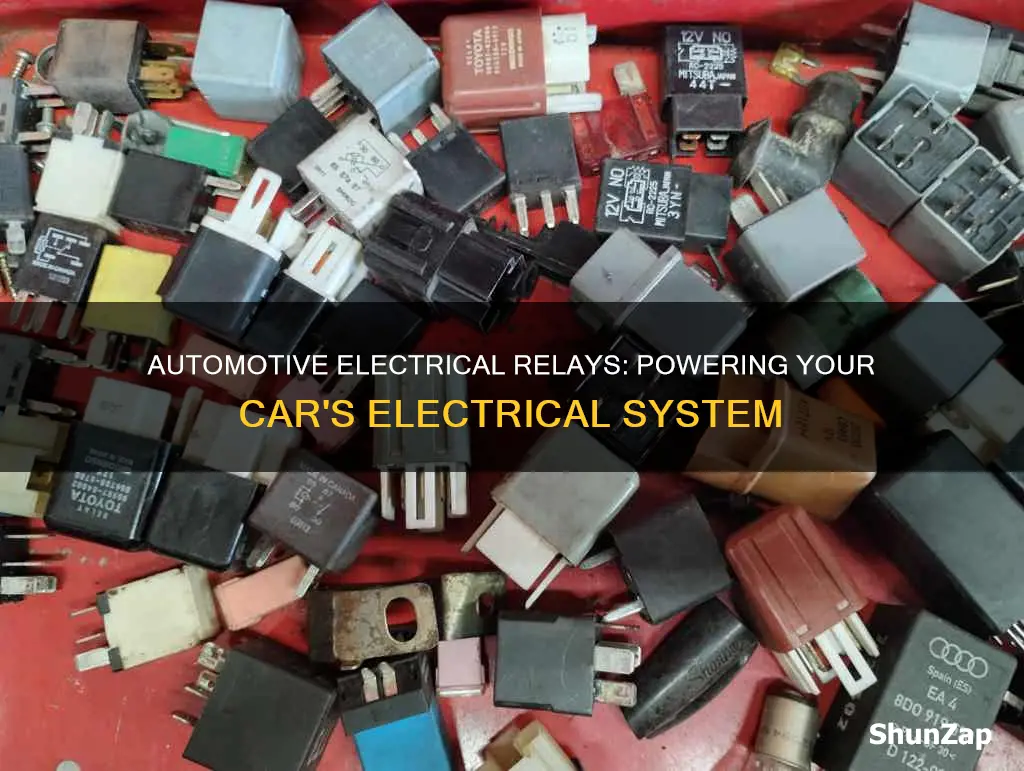

Automotive electrical relays are essential components in a car's electrical system, enhancing performance, safety, and longevity. They control and direct electricity, ensuring efficient power distribution to various components, such as headlights, horns, and auxiliary lamps. Relays consist of terminals and two main parts: the coil and the contacts. The terminals, such as 30, 85, 86, and 87, facilitate the flow of electrical current through the relay. The coil, with its wound wire, generates a magnetic field, while the contacts enable the switching of circuits. By using relays, cars can prevent circuits from being permanently completed, protecting the battery and reducing the risk of fires. Additionally, relays extend the lifespan of switches by preventing overheating and enhancing the brightness of lights. Overall, relays are crucial for optimizing a vehicle's electrical performance and ensuring the safe and efficient operation of various systems.
Explore related products
What You'll Learn
How relays control electricity
Automotive electrical relays are essential components that support the electrical performance of vehicles. They control and direct electricity, enhancing the electrical current's strength and reducing resistance. Relays consist of two parts: the coil and the contacts. They are designed to streamline the flow of electrical currents, making the vehicle's electrical system more efficient.
Relays play a crucial role in managing electrical systems, ensuring efficiency, safety, and longevity. They are commonly used to control devices that require a large amount of current, such as headlights, fog lamps, horns, and fuel pumps. By using a relay, a small current controlled by a switch flips a switch in the relay, allowing a large current to flow and run these devices. This also helps keep the wires carrying heavy currents shorter and away from the cabin of the vehicle, enhancing safety.
The type of relay used depends on the specific application. For example, a 4-pin relay is commonly used for fog lamps and horns, while a 5-pin relay is used for controlling the electrical current to the headlamp or stop lamp. The 5-pin relay has an additional terminal, 87a, which provides an output to run a circuit with a double load on a single relay, improving efficiency and preventing obstacles in the electrical current.
Additionally, relays can serve as a locking mechanism in cars, securing the electrical current. They automatically connect and disconnect the electrical current, ensuring that circuits are not permanently completed, which would drain the battery. Relays also extend the lifespan of switches by preventing them from overheating, enhancing the durability of the vehicle's electrical components.
Overall, relays are vital in automotive electrical systems, enabling the efficient and safe control of electricity to various components, ensuring the proper functioning and longevity of the vehicle's electrical systems.
