A double tap in an electrical box means that two wires are connected to a single circuit breaker that is only designed to accept one wire. This is a common defect, but it is also a fire hazard and should be addressed as soon as the homeowner becomes aware of it. While it is relatively inexpensive and easy to fix, it should only be performed by an electrician.
| Characteristics | Values |
|---|---|
| Occurrence | Double taps are a common defect in electrical panels |
| Visibility | Only visible when the panel cover is removed |
| Safety | Double taps are a fire hazard due to potential loose connections, which can cause overheating, arcing, and sparking |
| Repair | Requires an electrician to fix; typically involves adding a new breaker to the breaker box |
| Cost | Costs can vary depending on the electrician and local rates; some users have reported costs of $265 |
Explore related products
What You'll Learn
Double taps are a common defect and fire hazard

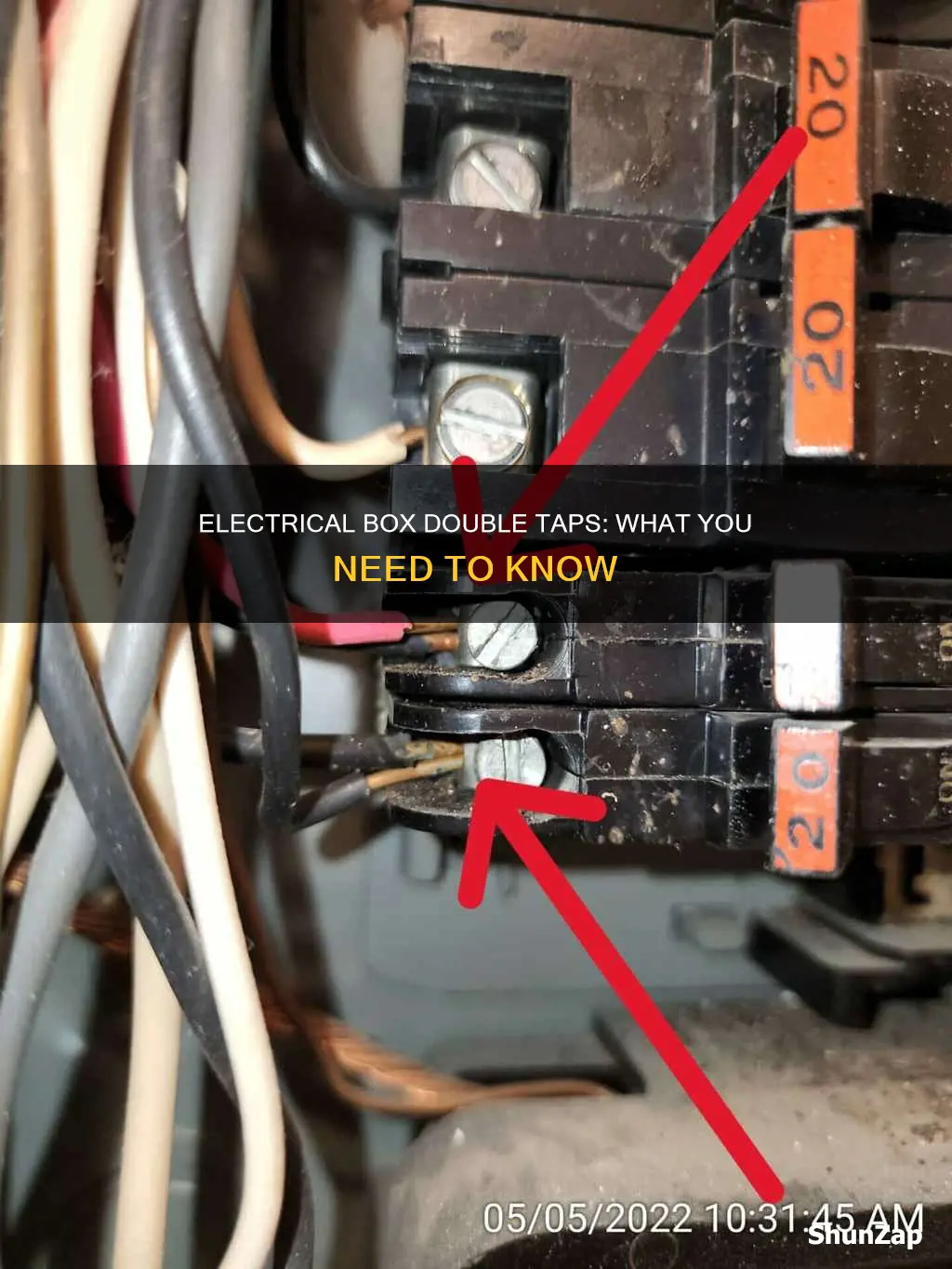

Double taps are a common electrical defect in electric service panels. They occur when two wires are connected to a single circuit breaker that is only engineered to accept one wire. This is a problem because two wires in a single breaker may not be properly tightened to the breaker, and loose wires can cause overheating and arcing, which can lead to a fire. While this is a common defect, it is also a fire hazard and should be addressed as soon as a homeowner becomes aware of it.
Double taps are only visible when the panel cover is removed. They are the most common electric panel defect found by home inspectors, especially in older homes. Newer panels are typically designed to allow for the addition of extra circuits as needed, so double taps are not commonly found in newer homes. If you find a double tap in your home, you should call an electrician to have your panel evaluated. The potential for an electrical fire is serious, and your homeowners' insurance will likely require this issue to be repaired immediately.
Double taps are relatively easy and inexpensive to fix in most situations. The most common repair is to simply add another circuit breaker to the panel and connect one of the wires to it. However, occasionally there is not enough room for another breaker, which may be why the double tap exists in the first place. In this case, a larger panel board may be needed, but only an electrician can tell you for sure.
It is important to note that not all breakers are designed to accept only one wire. Some breakers are designed to accept multiple wires, and in this case, it is not a problem. For example, Square D and Cutler Hammer both manufacture breakers that are rated to accept two wires (double taps). When two wires are allowed, a tiny graphic of two wires will be visible at the front or side of the breaker.
