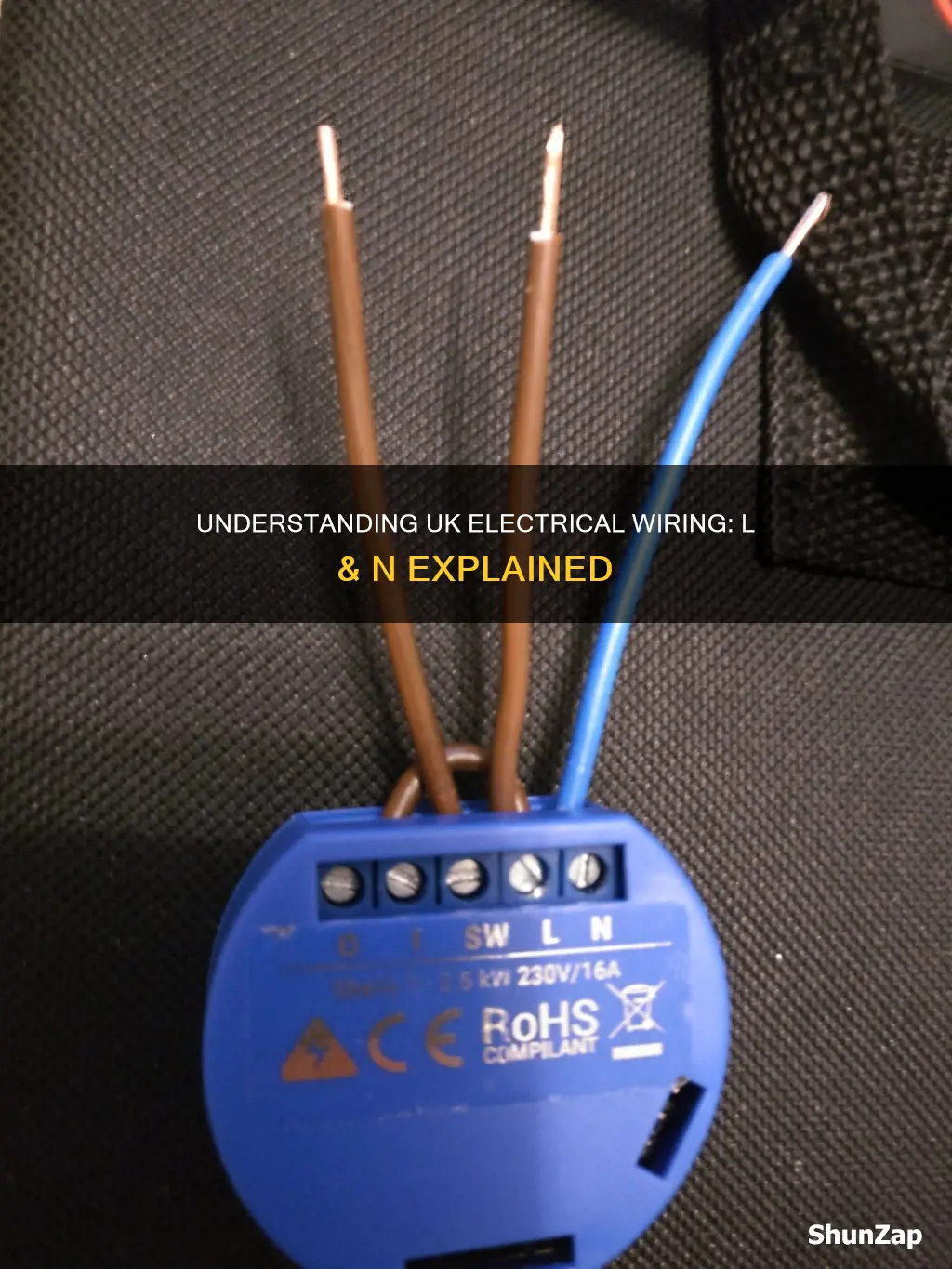

In electrical wiring, L and N are symbols that refer to live and neutral wires, respectively. The L wire is the live or line wire, which means it is connected to the hot terminal and carries the electrical current. The N wire, on the other hand, is the neutral wire, which creates a return path for the current and is connected to the ground. Both L and N wires are necessary for supplying electrical circuits with alternating current. In the UK, live wires were previously red but have since become brown, while black neutral wires have been replaced with blue ones.
L and N in Electrical Wiring in the UK
| Characteristics | Values |
|---|---|
| L Meaning | Live or Line |
| N Meaning | Neutral |
| L Wire Colour | Brown (previously black or red) |
| N Wire Colour | Blue (previously black or white) |
| L Wire Connection | Hot terminal (sometimes labelled 'L') |
| N Wire Connection | Neutral terminal (sometimes labelled 'N') |
| L and N Wire Contact | Should be avoided to prevent short circuits |
| Ground Wire Colour | Yellow-green |
| Ground Wire Connection | Earth |
Explore related products
What You'll Learn
L and N wires must not touch
In electrical wiring, L and N are used to represent live and neutral wires, respectively. The L wire is the live wire, which means it is connected to the power source and carries an electric current. On the other hand, the N wire is the neutral wire, which completes the circuit and returns the current to the power source. These two wires are essential for supplying electrical circuits with alternating current.
While the L and N wires work together to complete the electrical circuit, it is crucial to understand that they serve distinct purposes and have different characteristics. The L wire, also known as the "hot" wire, carries the full voltage of the power source, typically 120 volts or 230 volts in AC power supply. It is essential to exercise extreme caution when handling the L wire, as direct contact with it can result in electric shocks or other hazardous consequences.
The N wire, on the other hand, is connected to the ground and serves as the return path for the electric current. It is designed to carry the electricity back to the power source after it has passed through the live wire and powered the connected devices. The N wire is intended to always be at 0 volts compared to the ground, ensuring a safe return path for the current.
Given the significant differences in the functions and properties of the L and N wires, it is of utmost importance that they do not come into contact with each other. Mixing up these wires or connecting them to the incorrect terminals can lead to a hazardous condition known as "reverse polarity." Reverse polarity can cause electrical devices to malfunction, and in some cases, it may even result in electrical fires or pose a risk of electrocution.
To ensure safety and proper functioning of electrical circuits, it is imperative to follow established colour-coding practices and wiring standards. In the UK, for example, the L wire is typically brown, while the N wire is blue. By adhering to these conventions, the risk of L and N wires touching or being incorrectly connected is significantly reduced, minimising the potential for electrical hazards.
Electrical Insulation: Understanding Product Safety and Functionality
You may want to see also
Explore related products
L is for 'live' or 'line'
In electrical wiring, L stands for 'Live' or 'Line'. The live wire is the black or red conductor and is sometimes labelled with an 'L'. It carries the current and is connected to the hot terminal.
The live wire is also referred to as the 'hot line'. It is important to distinguish the live wire from the neutral wire to prevent short circuits and fires. The live wire is connected to the hot terminal, while the neutral wire is connected to the neutral terminal.
In a 3-pin plug, the live wire is one of the two ends, with the other end being the neutral wire. The middle pin is the ground wire, which is also used for positioning. The ground wire is short-circuited to the ground through a deeply buried electrode.
In a 2-core cable, the live wire is typically brown or black, although in older installations, it may be red. It is important to be aware of the colour-coding of wires as miswiring a circuit can lead to reverse polarity.
The live wire carries the AC 120 volts relative to the ground. It is important to note that the live wire can be dangerous and should be handled with caution.
Understanding Impedance: Electrical Resistance and Reactance Explained
You may want to see also
Explore related products
N is for 'neutral'
N is for Neutral. In electrical wiring, the 'N' wire is the neutral wire. It is typically coloured blue and sometimes white. It is connected to the ground and has a voltage of 0V compared to the ground. The neutral wire creates a return path for the current.
The neutral wire is connected to the ground in one place only, such as the main breaker box. In the UK, older installations may have black neutral wires. The neutral wire is connected to the ground through a deeply buried electrode.
The neutral wire is vital to the workings of a GFCI (Ground Fault Circuit Interrupter). A GFCI detects ground faults by comparing the incoming and outgoing currents. It is important to note that the L and N wires should not be reversed, as this can lead to reverse polarity, which can cause electrocution.
The N wire is also important in powering appliances with multiple components, such as an induction cooktop with burners and an oven. The neutral wire must be connected to each component to function properly.
Understanding Electrical Polarity: Polar Components Explained
You may want to see also
Explore related products
Ground and neutral wires are distinct
In electrical wiring, L stands for live wire, and N stands for neutral wire. Both are required to supply electrical circuits with alternating current. However, ground and neutral wires are distinct.
A ground wire is a safety feature that is not intended to carry current under normal operating conditions. It connects any exposed metal parts in an appliance, such as a microwave oven or coffee pot, to the earth. This is to prevent hazardous voltages from appearing on equipment and to eliminate the risk of electric shock in the event of a short circuit. A ground wire only carries current if there is a circuit fault.
On the other hand, a neutral wire is a circuit conductor that forms a part of the live circuit along with the hot wire. It provides the return path for the current provided by the hot wire and is also connected to the earth. In a polyphase AC system, the neutral conductor is intended to have similar voltages to each of the other circuit conductors but may carry very little current if the phases are balanced.
In a typical office wall outlet, the hot, neutral, and ground wires are the three electrical connections. All office equipment requires only the hot and neutral wires to function. The third or ground wire is connected to the exposed metal parts of the equipment.
It is important to note that the terms "ground" and "earth" are used interchangeably, with "ground" being more common in North American English and "earth" more common in British English.
Electrical Plug Feels Hot: What Could Be the Cause?
You may want to see also
Explore related products
How to check for L and N in the electrical box
L and N are symbols used to represent live and neutral wires, respectively, in electrical wiring. The live wire carries electricity from the source, while the neutral wire completes the circuit. It is crucial to identify these wires correctly to ensure safety and the proper functioning of electrical devices. Here is a step-by-step guide on how to check for L and N in your electrical box:
Step 1: Understand the Basics
Before working with electrical wiring, it is essential to have a basic understanding of the components and their functions. The live wire (L) is connected to the fuse box or circuit breaker and carries electricity from the source. The neutral wire (N) is connected to the ground or earth and completes the electrical circuit.
Step 2: Identify Wire Colours
In the UK, the live wire (L) is typically brown or red, while the neutral wire (N) is usually blue or black. However, it is important to verify the colour coding in your local electrical code and standards, as variations may exist. For example, in Germany, the default colours for a 3-wire cable are green/yellow for earth, brown for live, and blue for neutral.
Step 3: Use a Voltmeter or Multimeter
To check for L and N in your electrical box, you can use a voltmeter or a multimeter. After unscrewing the light bulb, connect the voltmeter to the wires in the box. Check for a voltage of around 230V between the brown or black wire (L) and the blue wire (N). If there is no voltage, it indicates an interruption in the L wire. Remember to turn off the circuit breakers before conducting any voltage checks.
Step 4: Check for Continuity
You can use a continuity tester or set your multimeter to continuity mode to identify the neutral wire. The wire that shows continuity with the ground wire or has zero resistance is likely the neutral wire (N). This method can be helpful if you are unsure about the colour coding or need further confirmation.
Step 5: Consult Manufacturer's Instructions
If you are setting up a new appliance or electrical device, always refer to the manufacturer's instructions or user manual. These documents can provide crucial information on correctly identifying and connecting the live (L) and neutral (N) wires for that specific device.
Step 6: Prioritize Safety
Working with electricity can be dangerous. Always turn off the power before handling electrical wires. Inspect cords for damage, avoid overloading circuits, and do not hesitate to seek professional help if you are uncertain about any aspect of the process. Your safety should always be the top priority.
The Buzzing Brilliance of Electric Colors
You may want to see also
Frequently asked questions
L stands for Live or Line.
N stands for Neutral.
In the UK, L wires are brown, previously red. N wires are blue, previously black.
L wires carry the current, while N wires create a return path for the current.
The ground and neutral wires are distinct and perform different functions. They only connect in the breaker box.
