In the world of electrical distribution, the main lug is a component in electrical paneling or distribution equipment. It is the point where the primary service conductors connect and distribute power. Main lug panels are often used when a primary panel with a main breaker is already present. They help extend circuits and distribute electricity to specific areas, like a garage or workshop. They are also used in industrial settings where multiple distribution points are required.

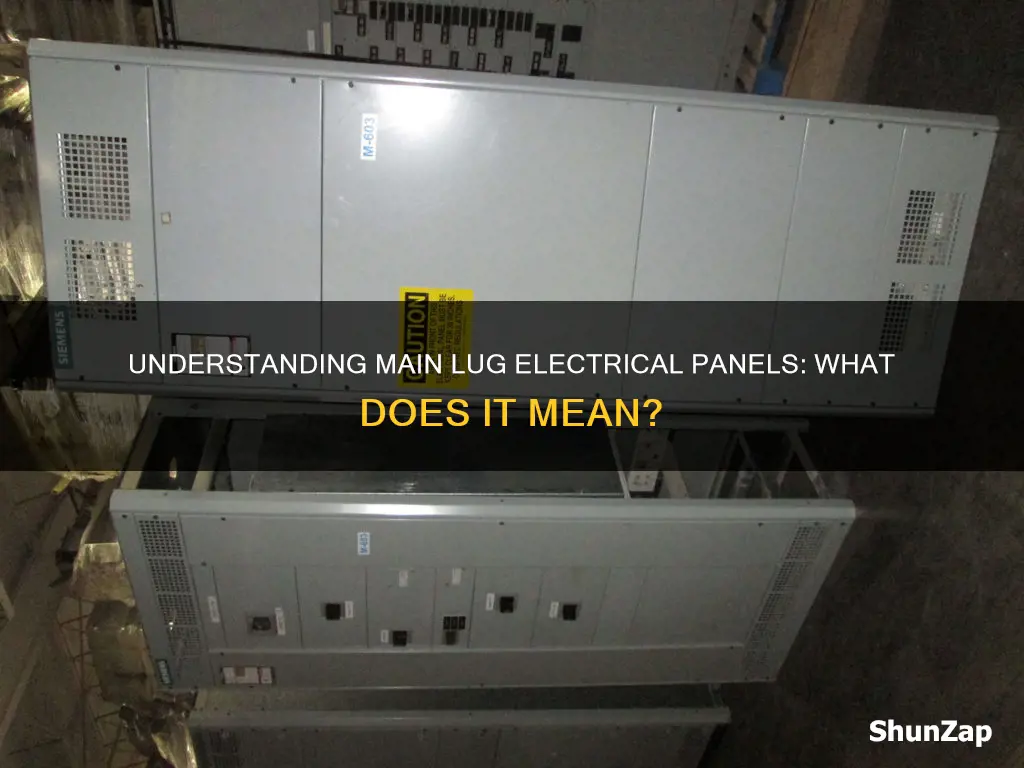

Main Lugs on an Electrical Panel
| Characteristics | Values |
|---|---|
| Definition | A component in electrical paneling or distribution equipment |
| Function | Serves as a connection hub, channeling energy without the ability to interrupt |
| Use Case | Commonly used in electrical panels when a separate main disconnecting means is required by code or design |
| Use Case | Used when a primary panel with a main breaker is already present |
| Use Case | Used as subpanels in remote parts of a building, like a garage or workshop |
| Use Case | Used in industrial settings where multiple distribution points are required |
| Safety | Does not have built-in overcurrent protection; safety depends on the main breaker in the primary panel |
| Safety | Does not have a breaker; relies on an upstream breaker to control the power |
| Safety | Requires an overcurrent device upstream; this can be at the meter, an enclosed breaker, or a fused disconnect |
| Safety | Safe when installed correctly |
| Safety | Rated for specific amperage levels |
| Safety | Come in various sizes and configurations |
| Safety | Must follow all local electrical codes |
| Safety | Avoid overloading circuits by adding too many devices or appliances |
Explore related products
$55.63
What You'll Learn
Main lug panels are often used when a primary panel with a main breaker is already present
Every building, whether residential or commercial, requires a reliable electrical system. Electrical panels (also known as load centres) are at the heart of this system, distributing power throughout the space.
There are two main types of panels: lug panels and breaker panels. Each type has a unique purpose and role. Electrical panels are also referred to as the control hub of an electrical system.
Since main lug panels don't have built-in overcurrent protection, their safety depends on the main breaker in the primary panel. In the absence of a breaker, main lug panels rely on an upstream breaker to control the power. Therefore, in the event of an electrical overload or short circuit, the main breaker in the primary panel serves as a critical safeguard.
Electricity in Human Connection: What Does it Mean?
You may want to see also
Explore related products
Main lug panels don't have built-in overcurrent protection
Main lug panels, also known as main lug only (MLO) panels, are electrical panels that do not have a built-in breaker. Instead, they rely on an upstream breaker in the primary panel to control the power. This means that if you need to shut off the power, you must access the main breaker elsewhere.
Now, here's the crucial part: main lug panels don't have built-in overcurrent protection. This means that they depend on the main breaker in the primary panel for safety. If that breaker fails or is not sized correctly, it can lead to dangerous situations. For example, without a functioning breaker, there is no way to stop an electrical overload or short circuit from spreading, potentially resulting in electrical fires or damage.
To ensure safety, it is crucial to connect the main lug panel to an adequately rated breaker in the main panel. All local electrical codes must be followed, and it is important to avoid overloading circuits with too many devices or appliances. When installed correctly, main lug panels are safe and can effectively distribute power across a large property.
Main lug panels are often used as subpanels, where safety is managed by another breaker upstream. They are commonly found in older homes and are suitable for industrial settings, especially in factories and large buildings that require multiple distribution points.
Understanding Electric Potential: A Key to Unlocking Voltage Secrets
You may want to see also
Explore related products
Main lug panels are safe when installed correctly
Main lug panels are commonly used when a primary panel with a main breaker is already present. They are useful for managing electrical systems in separate building areas. For example, a smaller subpanel in your basement can control circuits for that specific space.
However, it is important to note that main lug panels do not have built-in overcurrent protection. Their safety depends on the main breaker in the primary panel. If the breaker fails, there is no way to prevent an electrical overload or short circuit from spreading. Therefore, it is crucial to ensure that the primary panel has the proper protections in place.
A main breaker is an essential component of an electrical panel. It controls the flow of electricity from the power source to the entire building. It acts as a master switch, allowing users to shut off power to the whole system with a single flip. The main breaker also provides protection against dangerous electrical issues. In the event of an overload or short circuit, the breaker will automatically trip and cut the power supply. This safety feature helps prevent electrical fires and keeps wires from overheating.
To summarise, main lug panels are safe when installed correctly and paired with a main breaker. Together, they can effectively distribute power and ensure the safety of your electrical systems.
Electric Code: Understanding the Language of Electricity
You may want to see also
Explore related products
Main lug panels are commonly used in older homes
Main lug panels are safe when installed correctly, but they do not have built-in overcurrent protection. Safety in these panels depends on the main breaker in the primary panel. If that breaker fails, there is no way to stop an electrical overload or short circuit from spreading. Therefore, it is important to ensure that the primary panel has the proper protections in place.
Main lug panels are often used as subpanels, where a smaller subpanel pulls power from the main panel and sends it to a specific area. For example, a home might have a subpanel in the basement, garage, or outdoor shed to control circuits for that space.
In electrical distribution panels or load centers, the main lug is the point where the primary service conductors connect. Main lugs are rated for specific amperage levels and come in various sizes and configurations, depending on the electrical main panel's design. They are commonly used in electrical panels when a separate main disconnecting means is required by code or design.
Main lug panels are also known as split buss panels, and many older homes feature them. They are identified by the fact that they have no main breaker.
Loop's Meaning in Electrical Wiring Explained
You may want to see also
Explore related products
Main lug panels are also known as a split buss panel
Main lug panels, also known as split bus panels, are often used when a primary panel with a main breaker is already present. They help extend circuits and distribute electricity to specific areas of a building, such as a garage or workshop. These panels work well as subpanels, pulling power from the main panel and sending it to a particular area.
Main lug panels do not have a main electrical shut-off mechanism. Instead, they rely on an upstream breaker to control the power. This means that if the breaker fails, there is no way to stop an electrical overload or short circuit from spreading. Therefore, it is essential to ensure that the primary panel has the proper protections in place.
Split bus panels typically feature two independent sets of bus bars, with the wires delivering power to the panel connected directly to the lugs for the upper bus. The top bus bar feeds electrical current to the main circuit breakers, supplying power to major appliances.
The National Electrical Code requires that split bus panels be able to shut off power using six throws (breakers) or fewer. This requirement was put in place because large main breakers were once prohibitively expensive, and it was more cost-effective to use several smaller breakers to do the same job.
Understanding Electrical Line Meanings: A Comprehensive Guide
You may want to see also
Frequently asked questions
A main lug is a component in electrical paneling or distribution equipment. It is the point where the electrical supply enters the panel and connects to the primary service conductors.
A main lug serves as a connection hub, channeling energy without the ability to interrupt. A main breaker, on the other hand, connects the power and acts as a shield, providing safety through controlled disconnection and overcurrent safeguards.
Main lugs are commonly used as subpanels in remote parts of a building, such as a garage or workshop, to connect to the main power supply located elsewhere. They are also used in industrial settings where multiple distribution points are required.
Main lug panels help extend circuits and distribute electricity to specific areas. They work well as subpanels, pulling power from the main panel and sending it to a particular location.
