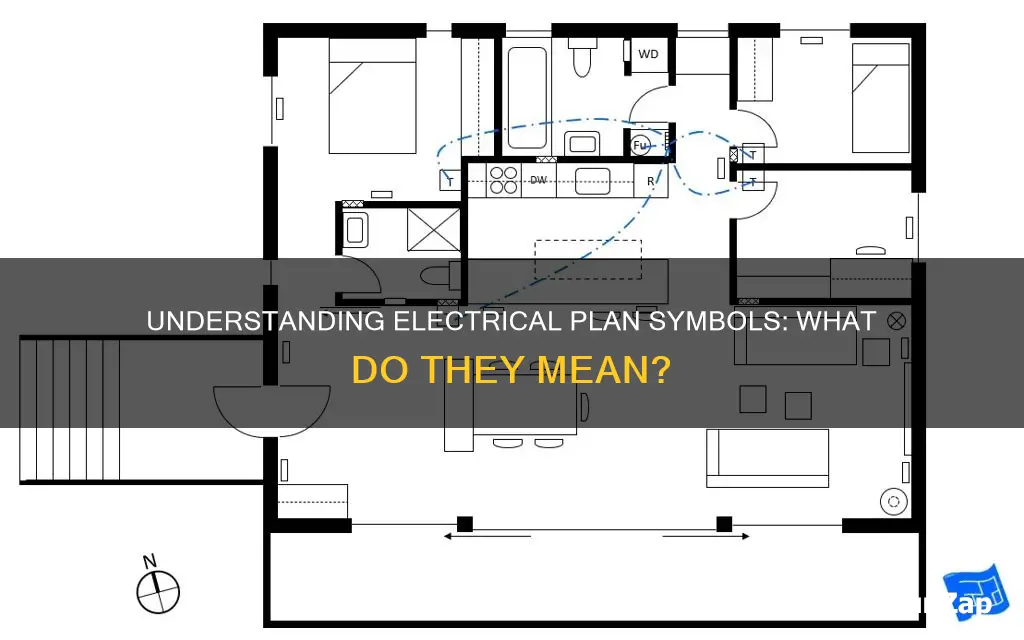

An electrical plan is a detailed technical drawing that gives a clear visual representation of the electrical points in a building. It is used by electrical engineers during construction, renovation, or remodelling projects. Electrical plans are also known as electrical drawings, wiring diagrams, or blueprints. They use lines and symbols to show the location of wiring, circuits, fixtures, and electrical components in a building. The symbols used in electrical plans represent every component of an electrical system, including switches, outlets, wires, lamps, fans, smoke detectors, fire alarm units, and more. Electrical plans are important for ensuring safety, efficiency, and interior aesthetics. They also help contractors comply with code regulations and identify potential risks before installations or modifications are performed.
Explore related products
What You'll Learn
- Electrical plans are visual representations of a building's electrical and wiring systems
- They are used by electrical engineers, architects, and designers to ensure a building's electrical system functions as intended
- Electrical plans are created using software or graph paper and include symbols, lines, and annotations
- They show the location of wiring, circuits, fixtures, and electrical components in a building
- Electrical plans are important for safety, efficiency, and compliance with code regulations
Electrical plans are visual representations of a building's electrical and wiring systems
An electrical plan is a type of technical drawing or blueprint that is typically included with the building's floor plan. The symbols used in an electrical plan represent every component of an electrical system, including switches, outlets, wires, lamps, fans, smoke detectors, fire alarm units, and more. It also identifies structural components such as stairs, railings, and other features that need to be considered or modified.
The purpose of an electrical plan is to provide a clear visual of the electrical points in a building, ensuring that all necessary devices are placed in their right locations. It helps architects and designers install power outlets and other equipment according to the user's needs. A properly drafted plan contributes to smooth electrical installation, long-term efficiency, and interior aesthetics. It also ensures safety by highlighting potential risks and helping to anticipate issues that can cause injury to technicians.
To create an electrical plan, one must first understand the building layout and create a scale drawing of the room, including furniture, counters, cabinets, and other items. It is important to consider the wiring layout, deciding whether cables will run under the floor or through the interior or exterior of the walls. The placement of switches, outlets, and appliances should be carefully planned, taking into account entry points, exits, and electrical loads on the circuit. A physical walkthrough of the area with the electrical plan in hand is recommended to verify the accuracy of the drawing and make any necessary changes.
