MWBC, or Multi-Wire Branch Circuits, are a type of electrical wiring method where two circuits share a neutral wire. This configuration is often used to save time and money by reducing the amount of electrical cable needed. While MWBCs are permitted by the National Electric Code (NEC) in the US, they have fallen out of favour due to safety concerns and changing code requirements. For example, in some jurisdictions, MWBCs are no longer allowed in residential installations due to issues with arc fault regulations. Additionally, working with electricity can be unsafe if not done by a licensed professional electrician.
Explore related products
What You'll Learn
MWBCs are two circuits that share one neutral
MWBC stands for multi-wire branch circuit. It is a wiring method where an electrician uses one cable for two circuits. The two circuits share one neutral. A more technical definition would be when two ungrounded conductors share one grounded conductor.
The purpose of MWBCs is to save time and money. Copper is expensive, and using this method can save dozens of feet of copper by running less electrical cable. The most common places to use MWBCs are at the garbage disposal and dishwasher because it's easy to run a cable to the kitchen cabinet and then split it into two different circuits.

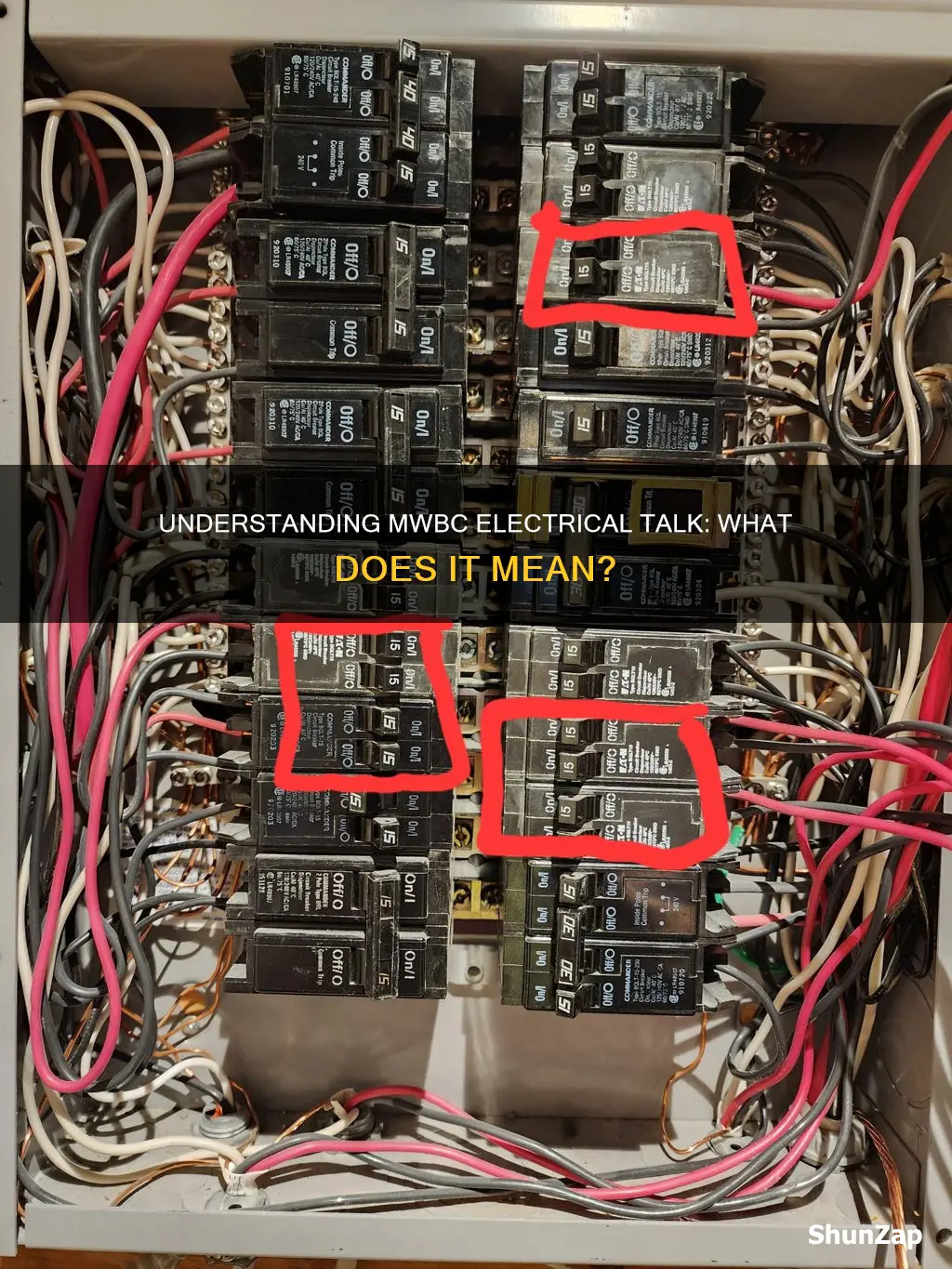

MWBCs are legal according to the NEC (National Electric Code). However, there are specific requirements for their use. For example, the source of an MWBC must be either a single breaker with a common trip on all poles or single-pole breakers with a handle tie so that manually opening one breaker opens the rest. This is to prevent someone from being surprised by current or voltage when working on one leg of an MWBC. Additionally, the breakers for the MWBC should be tied together to shut off power to both hot wires, preventing an electrician from being shocked.
While MWBCs are legal, some people have strong opinions against their use due to safety concerns. If wired improperly, an MWBC can cause the neutral to become overloaded or loose, resulting in unexpected voltages. It is important to consult a professional licensed electrician for advice or assistance when working with electrical systems.
Understanding MSA: Electrical Safety and Maintenance
You may want to see also
They save time and money by reducing the length of electrical cable needed
MWBC stands for Multi-Wire Branch Circuit. It is a type of electrical wiring where two circuits share a single neutral wire. This method is used to save time and money by reducing the length of electrical cable needed.
The use of MWBCs can result in shorter cable lengths because only one neutral wire is required instead of two, which can lead to significant cost savings, especially when dealing with expensive materials like copper. This is particularly common in garbage disposals and dishwashers, where it is easy to run a single cable to the kitchen cabinet and then split it into two different circuits.
However, it is important to note that MWBCs have also been a source of controversy and safety concerns. Some electricians argue that MWBCs can be dangerous, especially if not installed or maintained properly. There have been reports of issues with shared neutrals, unexpected voltages, and difficulties in troubleshooting. As a result, some jurisdictions have placed restrictions on the use of MWBCs in residential installations.
It is always recommended to consult with a professional licensed electrician when dealing with electrical systems to ensure safety and compliance with local regulations.
Understanding KAIC: Electrical Circuit Breaker Ratings and Their Importance
You may want to see also
They are considered dangerous by some electricians
MWBC stands for "Multi-Wire Branch Circuit". It is a type of electrical wiring method used in residential and commercial buildings. While MWBCs can provide several benefits, such as reduced wiring size and cost, they are also considered dangerous by some electricians due to the potential risks they pose if not installed and used properly.
One of the main concerns with MWBCs is the possibility of unbalanced loads. In a typical MWBC configuration, two separate 120-volt circuits are combined to supply power to a single 240-volt circuit. If the loads on each of the 120-volt legs are not carefully balanced, it can lead to voltage imbalances and overloading of one leg, resulting in tripped breakers, voltage drop, and even electrical fires.
Another issue with MWBCs is the potential for incorrect wiring or misidentification of circuits. If a MWBC is improperly wired, it can lead to cross-connection between the two circuits, resulting in incorrect polarity and potential shock hazards. Additionally, if electricians are not aware of the presence of a MWBC, they may mistakenly assume that the two 120-volt circuits are separate and independent, leading to incorrect wiring or troubleshooting procedures.
The shared neutral wire in a MWBC can also be a point of concern. If a fault occurs on one circuit, it can affect the other circuit sharing the same neutral. This can lead to unexpected behavior, such as lights dimming or flickering when appliances are turned on, or even damage to sensitive equipment. Furthermore, if the shared neutral wire becomes loose or disconnected, it can result in an open neutral condition, which is a dangerous situation that can lead to arcing, fire, or electrical shock.
Some electricians also believe that MWBCs can complicate troubleshooting and maintenance. With two circuits sharing a common neutral, it can be more challenging to isolate and identify issues. Proper labeling and documentation during installation are critical to mitigate these concerns. However, if these practices are not followed, it can lead to confusion and potential safety hazards during future maintenance or repairs.
While MWBCs have their advantages in certain applications, it is important for electricians and homeowners to be aware of the potential dangers associated with them. Proper planning, installation, and maintenance are crucial to ensure the safe and reliable operation of MWBCs. It is always recommended to consult with qualified and experienced electricians who are familiar with local codes and regulations before installing or working with MWBCs.
Electricity's K and Horseshoe Symbols: What Do They Mean?
You may want to see also
They are no longer permitted in residential installs
MWBC, or multi-wire branch circuits, are two circuits that share one neutral. They are used to save time and money, as they require less electrical cable, and therefore less copper, to run. The most common places to find MWBCs are at garbage disposals and dishwashers, as it is easy to run a cable to the kitchen cabinet and then split it into two different circuits.
However, MWBCs have been criticised for being confusing and unsafe. Some electricians have reported close calls with MWBCs, and others have stated that they are extremely dangerous and should be banned. In 2016, one electrician reported that they had heard "POP POP" sounds and seen sparks flying from a surge protector, which they immediately turned off. They later discovered that the neutral wire in the romex had been cut, causing the issue.
Due to the potential dangers of MWBCs, they are no longer permitted in residential installs as of the '11 code cycle. This is because of new arc fault regulations, which have made using MWBCs more difficult. While some electricians have disputed this, stating that they are not illegal in residential installs, the new regulations mean that MWBCs are less attractive than they once were.
To ensure safety, it is always best to hire a qualified, professional electrician to carry out any electrical work.
Electric Oven Sparks: What You Need to Know
You may want to see also
They are still used for services and feeders
MWBC, or multi-wire branch circuits, are still commonly used for services and feeders due to their ability to provide a cost-effective and efficient means of delivering power. Services and feeders refer to the electrical supply and distribution system within a building or structure.
One of the primary advantages of MWBCs in these applications is their ability to provide multiple branch circuits using a reduced number of conductors. This is particularly beneficial when space is limited or when working within confined conduits or cable trays. By utilising a shared neutral conductor, MWBCs can deliver two separate 120-volt circuits, each capable of powering individual loads or devices.
This configuration not only reduces the overall wiring requirements but also simplifies the installation process. With fewer conductors to manage, installation becomes more straightforward, especially when navigating through tight spaces or existing infrastructure. The use of MWBCs can also result in cost savings due to the reduced amount of wire needed.
Additionally, MWBCs offer flexibility in terms of load balancing and power distribution. By utilising two separate circuits, loads can be distributed evenly, ensuring that no single circuit becomes overloaded. This is especially advantageous in settings where multiple high-demand appliances or equipment are in use, such as in commercial kitchens or industrial applications.
While MWBCs offer these benefits, it is important to note that they also come with certain considerations and challenges. Proper sizing and protection of the shared neutral conductor are critical to ensure safety and prevent overloading. Careful planning and adherence to electrical codes and standards are necessary to address these challenges and ensure a safe and reliable installation.
USB Low Electric Current: What Does It Mean?
You may want to see also
Frequently asked questions
MWBC stands for Multi-Wire Branch Circuit. It is essentially two circuits that share one neutral.
Yes, MWBCs are legal according to the NEC (National Electric Code). However, there are different rules and regulations that apply to MWBCs, and these vary by location.
MWBCs have been described as "the devil's work" by some electricians due to their complexity and potential dangers. A loose neutral can place wildly unexpected voltages across things that are expecting a steady 120V.
MWBCs can save time and money as they require less electrical cable, and therefore less copper, to be installed.
Yes, it is strongly advised to hire a professional licensed electrician to install an MWBC as they can be unsafe if not installed correctly.
