The electrical power systems can be divided into three main categories: generation, transmission, and distribution. Each of these categories is operated at different voltage levels. The voltage, usually represented in volts, kilovolts, or megavolts, shows the capacity of the grid at each point. There are three main types of voltage: high voltage, medium voltage, and low voltage. In this context, the term MV refers to Medium Voltage, which is a level of electrical voltage used in power grids to transmit electricity with a voltage between 1 and 36 kV.
Explore related products
What You'll Learn
MV refers to medium voltage in electricity
MV stands for medium voltage in electricity. Electrical power systems are divided into three main categories: generation, transmission, and distribution. These categories are operated at different voltage levels for efficiency.
Medium voltage usually comes into play when distributing the energy that comes through large high-voltage lines. At this stage, electricity passes through electrical substations, which function as energy distributors for consumers. The voltage is then stepped down to medium voltage for distribution. Normally, medium voltage is considered to be within a range of 1 to 36 kV.
Medium voltage systems can be thought of as the circulatory system of the whole electrical grid, as they usually provide the linkage between transmission and low-voltage stages. They are more subtle than high-voltage systems, which are recognizable due to their towers and lines. Once medium voltage leaves the substations, it flows through underground grids until it reaches distribution and low-voltage distribution centers near consumption points.
In medium-voltage systems, earthing should be carefully performed to completely de-energize the system. This is because passive components of the system, such as capacitors and inductors, can store energy for short periods. Only after ensuring the system is de-energized and properly connected to the earth, can work be started. Another important safety consideration is that Personal Protective Equipment (PPE) used for low-voltage systems is not suitable for medium-voltage systems. Therefore, PPEs that are certified for medium-voltage levels according to international standards should be used.
Understanding Electrical Grounding: What Does it Mean to Ground Out?
You may want to see also
Explore related products
MV electricity is usually within a range of 1-36 kV
MV stands for 'medium voltage' in electricity. It is one of the three main types of voltage, the other two being high voltage and low voltage. Medium voltage is usually within a range of 1-36 kV (1,000-36,000 volts).

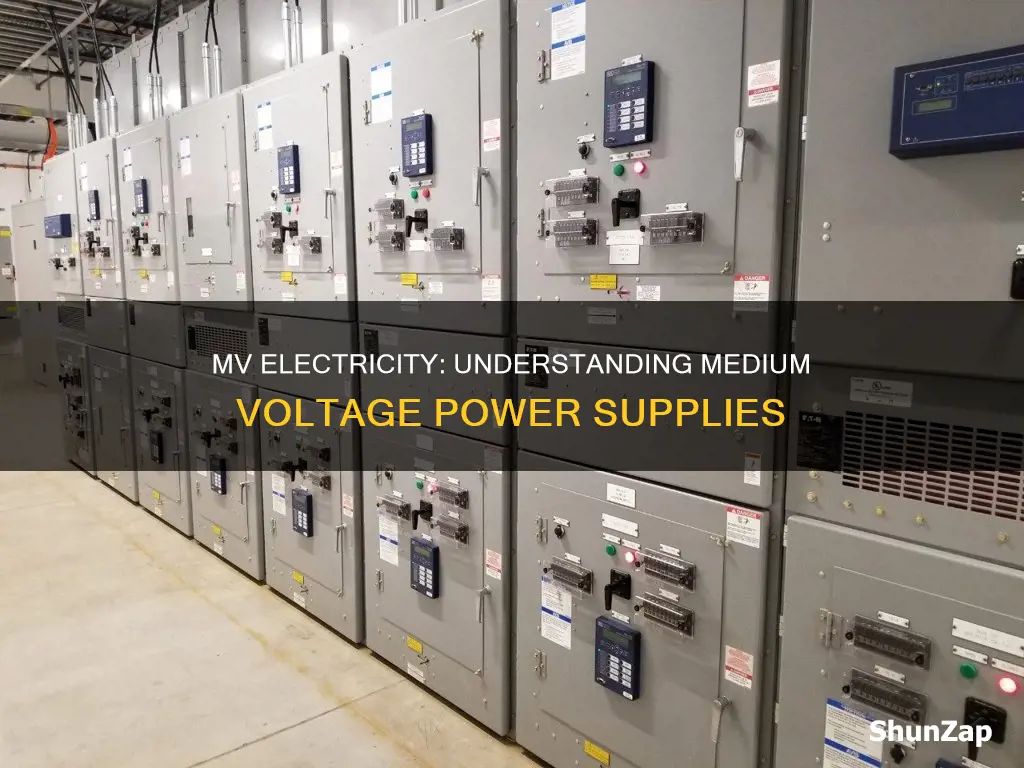

Medium voltage comes into play when distributing the energy that comes through large high-voltage lines. At this point, electricity passes through electrical substations, which function as energy distributors for consumers. Here, different components of the switchgear adapt the energy to continue its path.
Medium-voltage electrical installations enable electricity to be transported from substations to transformer stations, which supply power to localities. It is also used to supply large electricity consumers, such as industries, airports, or hospitals. Medium voltage is obtained in electrical substations, where electricity is transformed from high voltage to medium voltage.
The voltage is usually represented in volts, kilovolts, or megavolts, and it shows the capacity of the grid at each point. A higher voltage is required in the initial phases of energy transportation, where greater electrical potential is needed to increase the "flow" and reduce losses. The voltage depends on the type of network, and it is higher in the initial phases of energy transportation.
Understanding 'In Phase' Electrical Concepts: Meaning and Applications
You may want to see also
Explore related products
MV electricity is distributed through underground grids
MV stands for medium voltage in electricity. Medium voltage electricity is usually in the range of 600–35,000 V. Electrical variational analysis dictates that voltage and amperage are inversely proportional, meaning that when voltage is increased, amperage is decreased to complete the operation. This is why medium voltage electricity is often used in large industrial complexes and factories that require substantial amounts of power.
Electric power transmission is the bulk movement of electrical energy from a generating site, such as a power plant, to an electrical substation. The transmission network is distinct from the local wiring between high-voltage substations and customers, which is typically referred to as electric power distribution. The combined transmission and distribution network is part of electricity delivery, known as the electrical grid.
Underground power transmission has a significantly higher installation cost and greater operational limitations than overhead power lines. However, it lowers maintenance costs and is less susceptible to adverse weather conditions that can cause transmission interruptions, such as high winds and low temperatures. Underground lines are limited by their thermal capacity, which permits less overload or re-rating lines.
Long underground AC cables have significant capacitance, which reduces their ability to provide useful power beyond 50 miles (80 kilometres). DC cables, on the other hand, are not limited in length by their capacitance. DC technology is used for greater efficiency over longer distances, and DC voltage is stepped up for transmission and then reduced for local distribution.
The implementation of a distribution automation system (DAS) has been proposed to improve the performance of underground MV distribution networks. Fault location, isolation, and service restoration (FLISR) is one of the most beneficial applications of DAS for self-healing and reliability improvement of distribution networks. A case study has shown that an automated underground MV distribution network has a higher reliability level compared to a non-automated network.
Understanding UK Electrical Wiring: L & N Explained
You may want to see also
Explore related products
MV electricity is a step down from high-voltage (HV)
The terms "low voltage", "medium voltage", and "high voltage" refer to the different voltage levels at which electrical power systems operate. These categories are generation, transmission, and distribution.
Electrical power is usually generated at the most efficient voltage for that type of generation. It is then stepped up to extra-high voltage (EHV) for transmission and then stepped down to high voltage (HV) at the sub-transmission level.
High voltage is typically considered any voltage over approximately 35,000 volts. More specifically, voltages between 600V and 38,000V are considered medium voltage (MV), and voltages above 38,000V are considered high voltage (HV).
At the distribution area, where energy is distributed to industrial, commercial, or household consumers, the voltage is stepped down from HV to MV. MV electricity is used in large industrial complexes and factories that require a substantial amount of power. Finally, if the load point is a household or commercial consumer, the voltage is stepped down further from MV to LV for consumer use.
It is important to note that voltage levels and classifications can vary depending on the specific context and standards being used, such as the International Electrotechnical Commission or the US National Electrical Code.
Understanding Electrical Unit LB: What Does It Mean?
You may want to see also
Explore related products
MV electricity requires different personal protective equipment (PPE) to low-voltage (LV)
MV, or millivolt, is a unit of electric potential and electromotive force in the International System of Units (SI). It represents one-thousandth of a volt, with the prefix "milli" being derived from the Latin "mille", meaning one thousand.
Working with MV electricity requires a different approach to safety and personal protective equipment (PPE) compared to low-voltage (LV) applications. MV electricity poses a higher risk of electrical hazards, including electrical shock, burns, and arc flash events.
When working with MV electricity, it is crucial to wear appropriate PPE to safeguard against these hazards. This typically includes insulating gloves and boots, which are designed to provide protection against electrical hazards. For example, Class 1 gloves are issued to personnel working with MV electricity to operate air-break switch disconnector handles or link and fuse operating rods. It is recommended to use a leather protective outer glove to prevent premature damage to the insulating glove.
In contrast, LV applications may require different PPE, such as electrical insulating matting, to ensure safety during the inspection, testing, and commissioning of low-voltage electrical equipment and power systems.
The specific PPE requirements for MV electricity vary depending on the task and the associated risks. It is essential to conduct a hazard assessment to determine the necessary protective equipment, such as voltage detectors, phase comparators, and short-circuiting portable earthing equipment. Additionally, arc flash clothing protection and arc-rated apparel are crucial considerations for MV electricity, providing protection during electrical arc events.
Overall, the unique characteristics and higher voltage levels associated with MV electricity demand a distinct set of PPE compared to LV applications, ensuring the safety of personnel working in these environments.
Understanding Electrical Switch Load Ratings: What's Your Switch's Capacity?
You may want to see also
Frequently asked questions
MV stands for Medium Voltage in electricity. It is one of the three main voltage categories, along with High Voltage (HV) and Low Voltage (LV).
Medium Voltage is the voltage level that electricity is stepped down to after High Voltage transmission. It is typically within a range of 1-36 kV and is used to distribute electricity to consumption points like homes, workplaces, and public services.
Medium Voltage electricity is transmitted through underground grids and power lines. Tubular poles, pre-stressed concrete columns, and fibre optic routes are also used in the transmission process to provide stability and safety.
