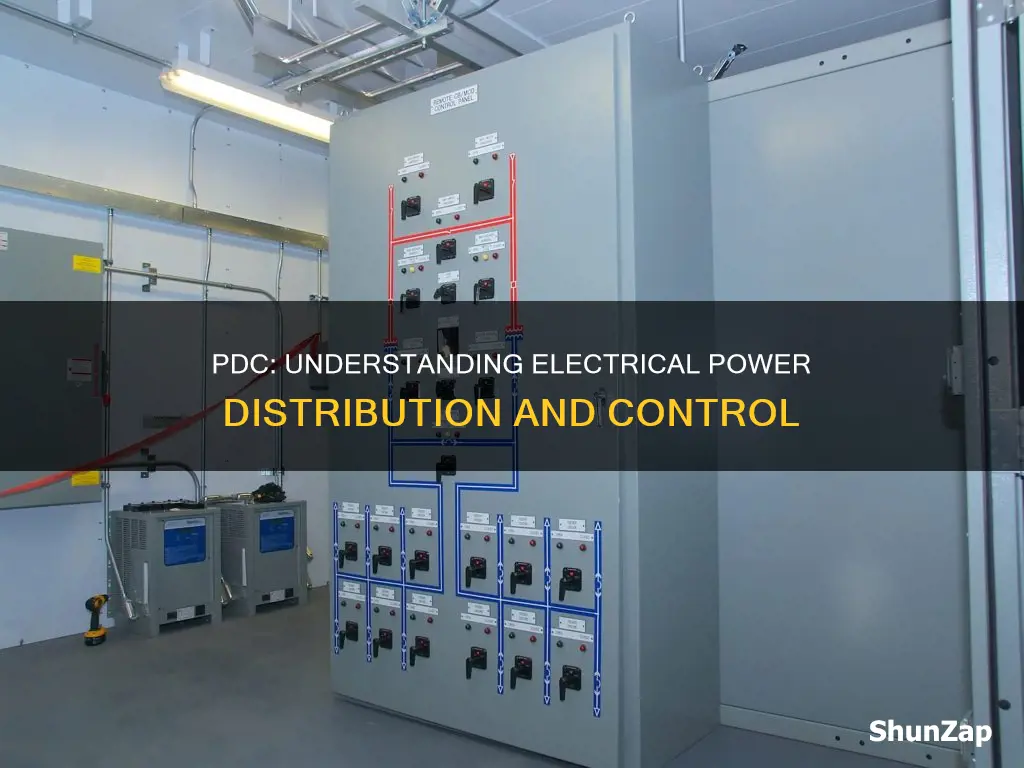

In electrical engineering, PDC stands for Power Distribution Center. A PDC is a factory-built structure designed to house electrical equipment for power distribution, metering, and control. It serves as a transition point between the main power source and downstream equipment that uses electricity. PDCs are typically pre-fabricated enclosures with custom-engineered interior components that vary depending on the project. They are designed to protect electrical equipment from the elements and ensure safe operating temperatures with the use of HVAC systems. PDCs also feature batteries to ensure an uninterrupted power supply and allow for a safe and controlled shutdown of equipment in the event of power loss. Overall, PDCs provide a cost-effective, durable, and modular solution for power distribution in various applications, including industrial and automotive contexts.
| Characteristics | Values |
|---|---|
| Full Form | Power Distribution Center |
| Purpose | Regulate the distribution of electrical power to various equipment |
| Housing | Contains a transformer, protective relays, monitoring equipment, fuses, terminal points, etc. |
| Power Source | Switchgear supplies power to the PDC |
| Voltage | Higher than Motor Control Centers (MCCs) |
| Safety | Includes batteries to ensure uninterrupted power supply and prevent uncontrolled shutdown |
| Design | Prefabricated, modular, and customizable to client specifications |
| Benefits | Cost-effective, reduces lead time, protects electrical equipment from harsh weather |
Explore related products
What You'll Learn
Power Distribution Center (PDC)
A PDC provides a secure enclosure for housing electrical equipment for power distribution, metering, and control. It serves as a transition point between the main power source and downstream equipment that uses electricity. The exterior of a PDC is typically a pre-fabricated enclosure, with interior components custom-engineered to the job. The equipment inside a PDC can vary depending on the project but generally includes switchgear, remote terminal units, control panels, AC/DC panels, a UPS system, HVAC, and batteries.
PDCs have a higher voltage coming into the transformer than Motor Control Centers (MCCs). Switchgears distribute this higher voltage to the PDC transformers, which then step down the incoming power to a lower voltage to feed other plant loads.
There are several industry standards that guide the design of PDCs, including NEMA, ANSI, AISC, IEEC, NFPA, and IBC. To ensure safety, electrical equipment installation must meet NEC spacing requirements to prevent unintentional energization. PDC buildings can also be customized to suit specific project needs and demands.
The modular design of PDC buildings offers significant advantages, including reduced lead time, installation expenses, and ownership costs. They are easy to use as they are pre-assembled and prefabricated by the manufacturer. Additionally, PDC buildings protect electrical equipment from harsh external weather conditions and environmental factors.
