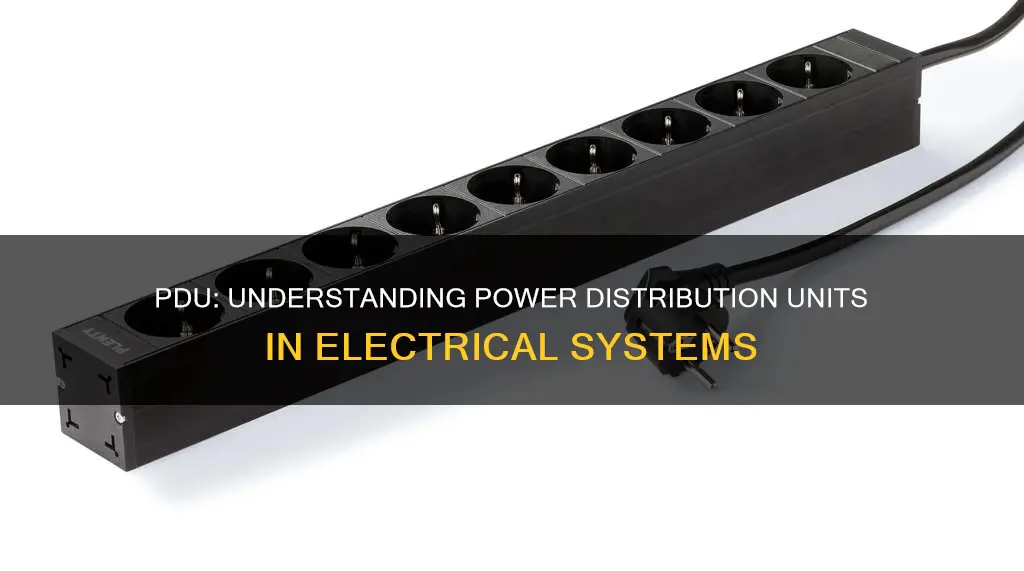

PDU stands for power distribution unit. It is an electrical device with multiple outputs that distributes power, usually to servers and other IT equipment. PDUs are available in numerous configurations, such as rack-mounted, wall-mounted, and standalone units. They are used in data centers to distribute power efficiently across all the racks, cabinets, and technology within. They are also used to improve power management, increase reliability, and better monitor power usage.
| Characteristics | Values |
|---|---|
| Full Form | Power Distribution Unit |
| Function | Distributes power to IT equipment within a rack |
| Number of Outlets | Up to 60 outlets |
| Mounting | Wall-mounted, rack-mounted, standalone |
| Types | Basic, intelligent, metered, switched, floor-mounted, rack-mounted, ultra-high-density, ATS |
| Features | Circuit breakers, fuses, remote management, power control, environmental sensors, firmware updates, security enhancements |
| Standards | NEMA, IEC |
Explore related products
What You'll Learn
PDU stands for power distribution unit
PDU stands for "power distribution unit". It is an electrical device with multiple outputs that distributes power, usually to servers and other IT equipment. A PDU is essentially a large power strip with multiple electrical outlets for plugging in IT equipment.
PDUs have up to 60 outlets—far more than a power strip—and can support a much greater power load. They are used in data centers to distribute power efficiently across all the racks, cabinets, and technology within. In addition, power distribution unit components typically include a main input circuit breaker, an isolation output transformer, a monitoring/operation control panel, an integrated communication server, and a sub-feed breaker system.
PDUs are available in numerous configurations. Some can be mounted to a wall or the outside of a rack, but the most popular versions mount within the rack or cabinet. These are known as rack-mount PDUs. They minimize the distance between the IT equipment and the available outlets. Rack-mount PDUs come in a variety of form factors, from 1U and 2U units that fit in the equipment-mounting area to 0U units that mount vertically in the back of a cabinet.
There are two main types of PDUs: basic and intelligent. Basic PDUs are power strips that distribute the correct voltage and current to multiple outlets that power IT equipment in racks. Intelligent PDUs, on the other hand, have several features and capabilities that can help improve data center management, including metering, remote power control, environmental sensors, firmware updates, SNMP trap notifications, and security enhancements.
Designing Electrical Systems for Buildings: A Comprehensive Guide
You may want to see also
Explore related products
PDUs distribute power to multiple devices
A power distribution unit (PDU) is a device that distributes power to multiple devices. It is an electrical device with multiple outputs, designed to distribute electric power to IT equipment, servers, routers, switches, and networking equipment located within a data center. PDUs are available in various configurations, such as basic PDUs and intelligent PDUs, also known as smart or managed PDUs. Basic PDUs are essentially high-capacity power strips that distribute power from a single source to multiple outlets, enabling multiple devices to be powered from a central point. They are commonly used in small businesses and cost-efficient environments where power distribution requirements are straightforward.
Intelligent PDUs, on the other hand, offer advanced features such as real-time power monitoring, remote management, and control capabilities. They allow IT administrators to remotely monitor voltage, current, and power usage through a web-based interface or SNMP tools. This enables administrators to reboot individual devices connected to the PDU without physical access. Intelligent PDUs also provide metering, remote power control, environmental sensors, firmware updates, security enhancements, and SNMP trap notifications.
Both basic and intelligent PDUs play a crucial role in distributing power to multiple devices, ensuring efficient power management and reliable operations in data centers and industrial environments.
PDUs are particularly useful in data centers, where numerous devices require power. They can be mounted on racks or installed on the data center floor, providing a centralized power distribution system. PDUs can have up to 60 outlets, supporting a greater power load than traditional power strips. This makes them ideal for powering multiple devices simultaneously, including servers, routers, and networking equipment.
Additionally, PDUs offer flexibility in terms of inlet and outlet types, accommodating both domestic and international standards. They also come in various form factors, such as 1U, 2U, and 0U units, allowing for versatile mounting options within data center racks or cabinets.
Lightning Speed: English Electric's Rapid Rise
You may want to see also
Explore related products
$439 $608.8
They are available in various configurations
Power Distribution Units (PDUs) are available in various configurations, including rack-mounted, wall-mounted, and standalone units. The most common versions are rack-mounted PDUs, which can be installed within a rack or cabinet to minimize the distance between IT equipment and power outlets. These come in different form factors, such as 1U and 2U units that fit in the equipment-mounting area, and 0U units that mount vertically at the back of a cabinet. Rack-mounted PDUs can also be installed horizontally, occupying 1U or 2U of rack space, or vertically to save space.
Wall-mounted PDUs, on the other hand, can be attached to the wall or the side of an equipment rack, preserving rack space. However, this configuration increases the distance between the PDU's power outputs and the inputs of connected devices.
Floor-mounted PDUs, also known as main distribution units, can supply 300kVA or more to power multiple racks and cabinets. They are available in standard-density and high-density options, with the latter capable of providing up to 10kW of power.
PDUs also come in basic and intelligent varieties. Basic PDUs, also known as "dumb" PDUs, are essentially power strips that distribute the correct voltage and current to multiple outlets. Intelligent PDUs, on the other hand, offer advanced features such as metering, remote power control, environmental sensors, firmware updates, and security enhancements.
In addition to these configurations, PDUs can be further specialized for specific applications. For example, Maintenance Bypass (MBP) PDUs enable seamless transfers from UPS power to utility power, ensuring uninterrupted operation of connected equipment. ATS (Automatic Transfer Switches) PDUs provide power redundancy for equipment with a single power supply, distributing power from redundant plugs to receptacles.
Voltage in Greece: Understanding the Electric Current
You may want to see also
Explore related products
PDUs can be basic or intelligent
A power distribution unit (PDU) is a device with multiple power outlets that provides electrical protection and distributes power to IT equipment within a rack. PDUs can be basic or intelligent.
Basic PDUs, also known as "dumb" PDUs, are power strips that distribute the correct voltage and current to multiple outlets that power IT equipment in racks. They are a low-cost power distribution option. Basic PDUs can be monitored, metered, or switched. Monitored PDUs visually display current electric information locally. Metered PDUs capture a variety of metrics, including current, voltage, and power usage, to help users avoid overloading circuits and optimize energy use. Switched PDUs provide precision control of devices for advanced power management and reduced risk.
Intelligent PDUs have several features and capabilities that can improve data center management. They can include metering, remote power control, environmental sensors, firmware updates, SNMP trap notifications, and security enhancements. Intelligent PDUs can be integrated with Data Center Infrastructure Management (DCIM) software to enhance their features and capabilities. This allows for remote management and power actions, bulk firmware updates, cloning configurations, and restoring from backups through a single UI.
PDUs are available in various configurations, including rack-mounted, wall-mounted, and standalone units. Rack-mounted PDUs are mounted directly into the equipment rack to monitor and control the power supply, assisting in balancing power loads for specific devices. They decrease the distance between the power outputs of the PDU and the power inputs of the devices. Wall-mounted PDUs can be attached to the side of an equipment rack to preserve rack space.
Overall, PDUs are essential for managing and distributing electrical power in a wide variety of settings, including data centers, IT rooms, and server rooms. They help improve power management, increase reliability, and better monitor power usage.
Mastering Electric Love on Violin
You may want to see also
Explore related products
They are essential for power management
PDU stands for "power distribution unit". It is a device with multiple power outlets that distributes electrical power to IT equipment within a rack. PDUs can have up to 60 outlets, far more than a power strip, and can support a much greater power load. They are used in data centers to distribute power across racks, cabinets, and technology.
PDUs are available in several configurations, including floor-mounted, wall-mounted, and standalone units. They are also known as main distribution units and can supply 300kVA or more to power multiple racks and cabinets.
PDUs are essential for power management in a variety of settings. They help manage power loads, enable redundancy, and avoid overload conditions. For example, metered PDUs help users determine power usage and available capacity, allowing them to avoid overloading circuits and optimize energy use. Switched PDUs provide precision control of devices for advanced power management and reduced risk.
PDUs are also important for data center management. They can be remotely monitored and managed, allowing technicians to power on, off, and reboot individual outlets, enable power sequencing delays, and prevent the unauthorized installation of devices.
Additionally, intelligent PDUs have features such as metering, remote power control, environmental sensors, firmware updates, SNMP trap notifications, and security enhancements. These capabilities can be further enhanced through the use of Data Center Infrastructure Management (DCIM) software, which provides a single interface for managing all the features and capabilities of PDUs.
Overall, PDUs play a crucial role in power management by providing reliable power distribution, improving energy efficiency, and ensuring the continuous operation of connected equipment.
Electrical Symbols in Excel: Quick Insertion Guide
You may want to see also
Frequently asked questions
PDU stands for "Power Distribution Unit".
A PDU distributes electrical power from a primary source to multiple devices. It can deliver AC or DC power from an uninterruptible power supply, a generator, or utility power to equipment.
A power strip allows you to plug multiple electrical devices into a single outlet, whereas a PDU has multiple outlets and can support a much greater power load.
