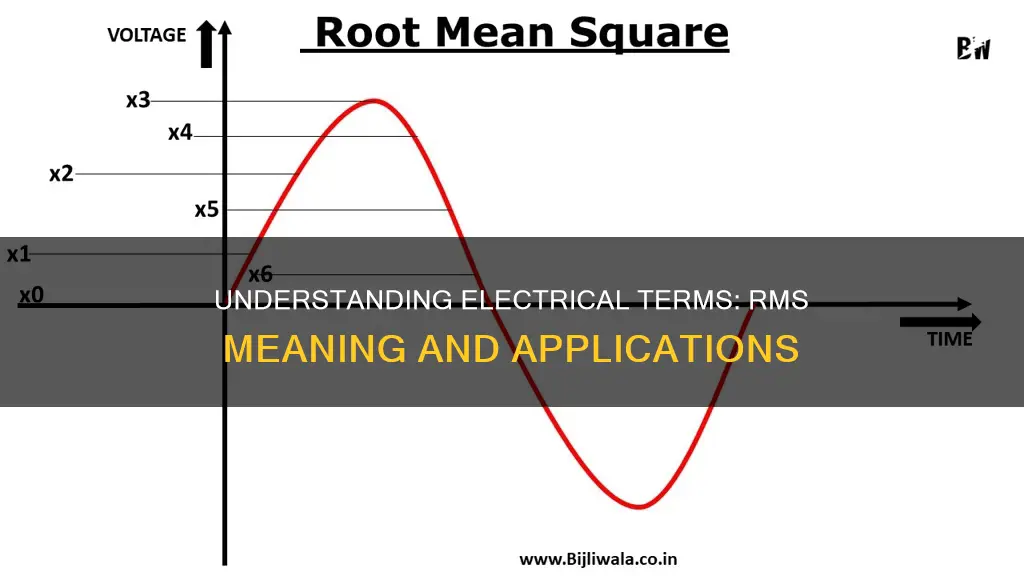

RMS stands for Root Mean Square and is used to calculate the equivalent direct current (dc) value of an ac waveform. In other words, it determines the effective heating value of any ac wave shape. This is calculated by squaring the original waveform, taking the average of the square over one full period, and then taking the square root of that average. A true-RMS meter is preferred as it can accurately measure both sinusoidal and non-sinusoidal ac waveforms.
What does RMS mean in electrical terms?
| Characteristics | Values |
|---|---|
| Full Form | Root Mean Square |
| Calculation | Square the original waveform, then take the average of the square over one full period, and finally take the square root of that average |
| Use | To calculate how much voltage and current are going into a device or circuit |
| Measurement | Used to measure alternating current (ac) or ac voltage |
| Comparison with True RMS | RMS measurement is reliable when the sine wave is perfect, whereas True RMS uses more complex mathematical formulas that allow getting a value closer to reality |
Explore related products
What You'll Learn
- RMS is the Root Mean Square
- It calculates the equivalent direct current (dc) value of an ac waveform
- It is one of three tools that can measure alternating current (ac) or ac voltage
- It is used to calculate how much voltage and current is going into a device or circuit
- It is the most reliable way to measure voltage when the sine wave is perfect
RMS is the Root Mean Square
RMS stands for Root Mean Square. It is one of three tools that can measure alternating current (AC) or AC voltage. The other two tools are average-responding meters and true-RMS meters.
The RMS measurement calculates the equivalent direct current (DC) value of an AC waveform. In other words, it determines the "effective" DC heating value of any AC wave shape. This is done by sampling the current at tiny intervals of time, squaring each value, adding up the squares, and dividing by the number of samples to find the average square or mean square. The final step is to take the square root of that value.
A true-RMS meter is the preferred choice for taking measurements because it can accurately measure both sinusoidal and non-sinusoidal AC waveforms. Sinusoidal waves are pure, without distortion, and have symmetrical transitions between peaks and valleys. On the other hand, non-sinusoidal waves are distorted and irregular, with spikes, pulse trains, squares, triangles, or sawtooth patterns.
The need for true-RMS meters has increased as the possibility of non-sinusoidal waves in circuits has become more common. This is due to the multiple sources of noise in any installation, such as drives, variable switches, appliances, computers, and cheap power supplies of routers, and battery chargers.
