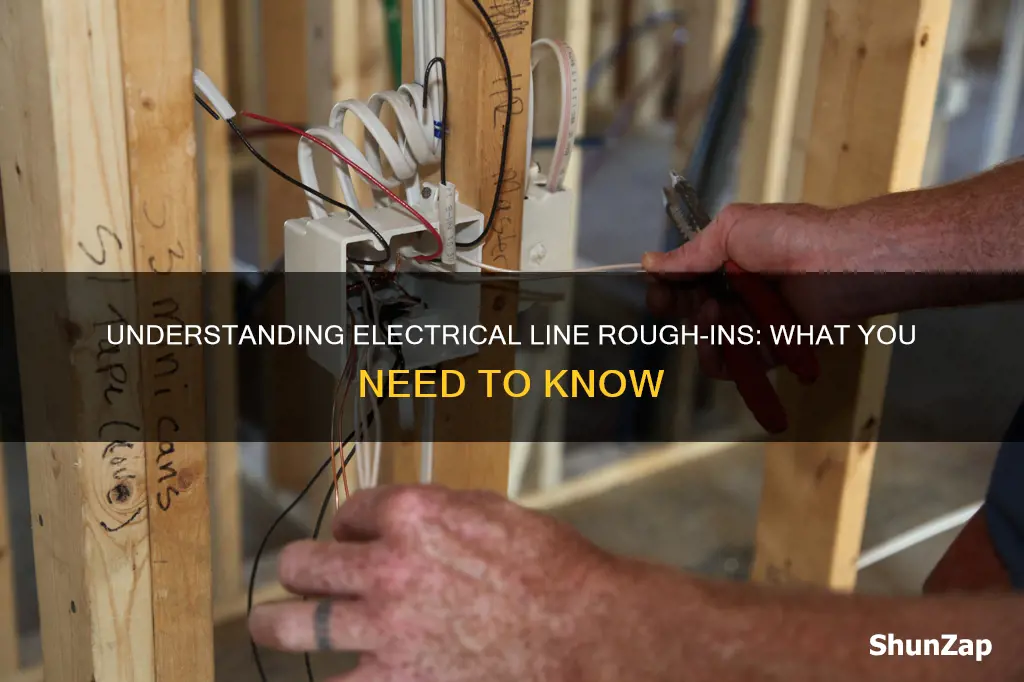

Roughing in electrical wiring involves pulling electrical cables through the studs of the wall and placing boxes for light switches, outlets, and receptacles. However, the wiring is not connected to the breaker box, and the switches, outlets, and receptacles are not installed. This process is a crucial phase in any construction project as it lays the foundational wiring and connections that will power the entire building. It involves the placement of wires, electrical boxes, and service panels that will later be connected to the main power supply.
| Characteristics | Values |
|---|---|
| Definition | The rough-in stage of a construction project when the various mechanical, electrical, and plumbing lines are brought in. |
| Start time | Once the framing is up and the basic framework of the home is completed. |
| Electrical rough-in | Includes laying out lines, mounting junction boxes, pulling wiring, grounding, and setting up the electrical panel. |
| Electrical rough-in does not include | Connecting wiring to the main panel, breaker box, switches, outlets, or devices. |
| Importance | Crucial for ensuring that the building's electrical system is safe, efficient, and compliant with local codes. |
| Who can do it | Requires advanced knowledge of electrical systems, local codes, and precise attention to detail. It is recommended to hire a licensed electrician. |
Explore related products
What You'll Learn
Rough-in wiring
During the rough-in stage, electrical cables are pulled through the wall studs, and boxes for light switches, outlets, and receptacles are installed. It is important to sketch out the wiring plan before beginning work, considering the number and location of light switches, electrical outlets, and other fixtures. The placement of these boxes is crucial, as they must be accessible and comply with local building codes and safety standards.
To install the boxes, mark the studs where the centre of each box will be located, typically with switches at 48" above the floor and outlets at 12" above the floor. Centre each box on the mark and nail it to the stud, ensuring the box extends out in front of the stud so that it will be flush with the wall covering. It is important to double-check that the box is parallel with the framing member. The electrical code specifies the maximum number of wires allowed in each box, and the minimum box size required can be calculated based on the number of wires and devices.
Once the boxes are installed, the next step is to run wires from these boxes back to the main service panel. It is recommended to leave about 4 feet of extra cable at the panel to give the electrician room to work when connecting the circuit to the breaker. After pulling the cables through the studs, it is important to secure them with cable staples at regular intervals to avoid long spans of unsupported wiring. Group wires of the same colour together and mark the corresponding circuit to simplify the process of hooking up switches and outlets.
The rough-in stage is a critical step in ensuring the electrical system's safety and compliance with local codes. It is important to obtain a permit and schedule an inspection with a building official to verify that the work has been completed correctly and safely. Mistakes made during this stage can lead to serious issues, affecting the functionality of electrical appliances and outlets. Therefore, it is crucial to approach rough-in wiring meticulously and consult professionals when needed.
Legs Down: Electrical Safety and You
You may want to see also
Explore related products
Rough-in electrical boxes
The rough-in stage of electrical installation is a crucial phase in any construction or renovation project. It involves the foundational wiring and connections that will power the entire building. This includes installing electrical boxes and outlets, as well as running wires between them. The rough-in stage ensures that the electrical system is safe and compliant with local codes and regulations.
During the rough-in stage, electrical boxes are installed at designated points. These boxes serve as mounting points for switches, outlets, and other fixtures. Proper placement and installation are critical for a functional electrical system. The boxes should be securely fastened to the wall studs, ensuring they are level and flush with the stud face. The convention is to place switch boxes 48" above the floor and outlet boxes 12" above the floor.
When installing electrical boxes, it is important to consider the surrounding features. For example, if placing a light switch just inside a door, you must account for the trim around the door. You can adjust the placement of the box by nailing an extra piece of 2x4 to gain a few more inches. It is also crucial to ensure that wall outlets do not conflict with tiles, cabinets, casework, or baseboard heating.
To facilitate the wiring process, you should drill holes in the studs to run the cables through. It is recommended to use a heavy-duty right-angle drill with a 1" bit for this task. Wall holes drilled at knee height are usually suitable for outlets. Additionally, ensure that all cables running into metal or plastic boxes are secured to the boxes using internal or external clamps.
The rough-in stage of electrical installation is a complex and crucial aspect of any construction or renovation project. It requires advanced knowledge of electrical systems and local codes and attention to detail. It is important to prioritize safety and follow all code requirements and manufacturer's instructions during this stage.
Mains Electricity Supply: What's the Meaning and How It Works?
You may want to see also
Explore related products
Rough-in electrical outlets
Rough-in electrical work is a crucial phase in any construction project. It involves installing electrical wiring, outlets, switches, and other components, but not yet connecting them to the main power supply. This stage lays the foundation for the electrical system, ensuring it is safe and functional. The rough-in stage is when electrical boxes and outlets are installed, and wires are run between them. It is important that the wires are connected correctly, and all safety standards and
During the rough-in stage, electrical cables are pulled through the studs of the wall, and boxes for light switches, outlets, and receptacles are placed. The placement of these boxes is important, with switches typically 48" above the floor, and outlets at 12". The boxes should be centred on the stud and nailed, ensuring they extend out in front of the stud so that the front edge of the box is flush with the wall covering. It is also crucial to leave some slack in the cables, in case they are cut too short, and to protect them from wayward nails and screws.
The rough-in stage is a good opportunity to save some money by doing the work yourself, but it requires a detailed plan and knowledge of electrical systems and local codes. A sketch of your wiring plan is a smart first step, considering your electrical needs, such as the number of light switches and electrical outlets, and their locations. Once the plan is in place, the electrical boxes can be installed at the designated points, followed by running wires from these boxes back to the main service panel.
The rough-in stage is an important step in ensuring the electrical system is safe and functional, and it is always best to consult a professional electrician to handle this task and ensure it is done correctly.
Understanding Electrical Lockout: Definition and Importance
You may want to see also
Explore related products
$17.01 $18.91
Rough-in electrical safety
Rough-in electrical work is a crucial phase in any construction or renovation project. It involves installing electrical wiring, outlets, switches, and other components, but not yet connecting them to the main power supply. This stage is essential for ensuring the future safety, efficiency, and functionality of the electrical system. Here are some detailed instructions for ensuring rough-in electrical safety:
Planning and Preparation:
Before starting any rough-in electrical work, it is imperative to have a detailed plan in place. This plan should include a sketch or blueprint outlining the placement of electrical panels, outlets, switches, fixtures, and wiring. Consult with a professional to ensure your plan complies with local building codes and safety standards. It is also essential to have the right tools and materials, including electrical cables, backing plates, cable staples, and electrical boxes.
Installing Electrical Boxes:
Electrical boxes serve as mounting points for switches, outlets, and fixtures. Install these boxes securely onto the studs of the wall, ensuring they are properly spaced from doorways or windows. The convention is to place switches at 48" above the floor and outlets at 12" above the floor. Mark the stud to indicate the type and position of each box. Center each box on the mark and nail it to the stud, ensuring the box extends out in front of the stud to be flush with the wall covering.
Running Electrical Wires:
Pull the electrical cables through the studs of the wall, leaving about 4 feet of extra cable at the cable box for the electrician to work with. Avoid long spans of unsupported wiring by attaching the cables to the studs with cable staples at regular intervals. Group wires of the same color together and mark the corresponding circuit to simplify connecting switches and outlets. Run the wires from the boxes back to the main service panel, connecting all components according to the electrical plan.
Safety Considerations:
It is crucial to comply with local codes, regulations, and manufacturer's instructions during rough-in electrical work. Ensure that all electrical connections are secure and not exposed. Before closing up the walls, an inspection must be conducted to compare the installed system with the electrical plan, ensuring everything matches and is up to code. Properly executed rough-ins reduce the risk of electrical accidents, prevent short circuits, and ensure secure connections to avoid electric shocks.
In summary, rough-in electrical safety requires careful planning, precise execution, compliance with codes and regulations, and thorough inspections. By following these instructions, you can ensure the safety and functionality of your electrical system, enhancing the value of your building and protecting its occupants.
Electrical Pole Dreams: Falling Hazards and Their Meanings
You may want to see also
Explore related products
Rough-in electrical compliance
Planning
A detailed plan or blueprint is crucial for rough-in electrical compliance. This plan should outline the placement of all electrical panels, outlets, switches, and fixtures. It is important to consider your electrical needs, such as the number and location of light boxes, light switches, and electrical outlets. Evaluating the existing wiring and consulting with a professional are essential steps before beginning any rough-in work.
Installation of Electrical Boxes
Once the plan is in place, the next step is to install electrical boxes at the designated points. These boxes serve as mounting points for switches, outlets, and other fixtures. Proper placement and installation are crucial for a functional electrical system. It is important to follow local codes and regulations during this step to ensure compliance and safety.
Running Wires
After installing the electrical boxes, the next phase is to run wires from these boxes back to the main service panel. This includes running wires between boxes to ensure all components are connected according to the electrical plan. It is essential that the wires are connected correctly and securely installed and not exposed. Leaving about 4 feet of extra cable at the cable box provides electricians with flexibility during the connection process.
Rough-in Inspection
A rough-in inspection is crucial to ensure compliance with electrical safety standards. This inspection typically occurs when all branch circuit wiring and outlet boxes are installed, before they are concealed by insulation, drywall, or other materials. The inspection confirms that all cables are installed, supported, and strapped correctly, and that all required outlet boxes are securely fastened. It also verifies that all bonding connections are completed and protected against nails or screws.
In summary, rough-in electrical compliance is a meticulous process that requires advanced knowledge of electrical systems and local codes. It is a foundational step in construction, ensuring the safety and functionality of the electrical system. By following the outlined steps and working with licensed electricians, you can achieve rough-in electrical compliance and create a safe and efficient electrical system for your building.
Understanding the Electrical Acronym 'REQ': What Does It Mean?
You may want to see also
Frequently asked questions
"Rough in" refers to the stage of a construction project when electrical, mechanical, and plumbing lines are laid out, but final connections are not made. In electrical wiring, this involves installing electrical boxes and outlets, and running wires between them.
The purpose of the rough-in stage is to ensure that the electrical system is safe and meets local codes and regulations. It also provides a basic outline of how the finished product will look.
Yes, with some basic tools and knowledge of electrical systems and local codes, you can do the rough-in wiring yourself. However, it is recommended to hire a licensed electrician to ensure the work is done accurately and to avoid unnecessary costs and potential risks down the line.
