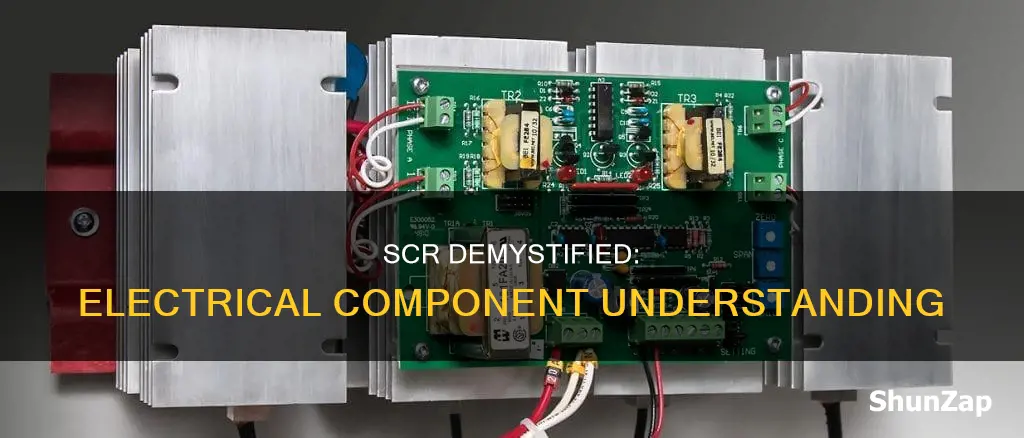

SCR stands for silicon-controlled rectifier, a four-layered semiconductor device that controls the flow of electricity. It is a type of thyristor, a solid-state switching device that can be used to control high-power electrical devices, such as motors, heaters, and lights. SCRs are commonly used in power electronics to convert AC current to DC current and regulate power. They are also used in various applications, including power switching circuits, speed control of DC shunt motors, and computer logic circuits.
Explore related products
What You'll Learn
SCR stands for Silicon Controlled Rectifier
Silicon-controlled rectifiers are unidirectional devices, meaning they can conduct current in only one direction. They are used to control high power, often at high voltages, and are suitable for medium- to high-voltage AC power control applications. They are used in devices such as lamp dimmers, power regulators, and motor control.
The SCR was developed by a team of power engineers led by Gordon Hall and commercialized by Frank W. "Bill" Gutzwiller in 1957. The principle of four-layer p–n–p–n switching was developed by Moll, Tanenbaum, Goldey, and Holonyak of Bell Laboratories in 1956.
SCRs are used in power electronics to convert AC current to DC current (rectification). They are also used in other applications such as power regulation, inversion, and speed control of DC shunt motors. They are constructed from silicon and can handle high values of current and voltage, making them suitable for industrial applications.
Understanding the Electrical Term PEN and Its Definition
You may want to see also
Explore related products
SCRs are four-layered semiconductor devices
SCR stands for Silicon Controlled Rectifier, which is a type of thyristor. Thyristors are electrical control devices with at least four layers of alternating n-type and p-type material. SCRs are constructed from silicon and are used for converting AC current to DC current (rectification). They are also used in other applications such as regulation of power, inversion, etc.
The SCR is a four-layered semiconductor device that forms an NPNP or PNPN structure, which eventually forms three junctions: J1, J2, and J3. The three terminals of the SCR are the anode, cathode, and gate. The anode is the positive electrode and is on the P-layer, while the cathode is the negative electrode and is on the N-layer of the SCR. The gate acts as a control terminal. The outer P and N layers where the two electrodes are placed will be heavily doped, and the middle P and N layers will be lightly doped. The gate terminal will be connected to the P-layer in the middle.
There are three modes of operation for an SCR depending on the biasing given to it:
- Forward blocking mode: When no current is applied to the gate, the SCR is in the forward blocking state. This is the normal OFF state, and the device restricts current flow to the leakage current.
- Forward conduction mode: When the gate-to-cathode current exceeds a certain threshold, the device turns ON and conducts current. The SCR will remain in the ON state even after the gate current is removed, as long as the current through the device exceeds the holding current.
- Reverse blocking mode: When a negative voltage is applied to the anode and a positive voltage to the cathode, the SCR is in reverse blocking mode, making J1 and J3 reverse biased and J2 forward biased. A small leakage current flows. If the reverse voltage is increased to the critical breakdown level, an avalanche occurs at J1 and J3, and the reverse current increases rapidly.
SCRs are unidirectional devices, meaning they can conduct current in only one direction. They are used in applications where the control of high power, possibly coupled with high voltage, is needed. They are commonly used in medium- to high-voltage AC power control applications, such as lamp dimming, power regulators, and motor control. They are also used in welding machine control, electronic switches, power switching circuits, controlled rectifiers, speed control of DC shunt motors, and more.
Understanding the Nominal in Electrical Terms: A Comprehensive Guide
You may want to see also
Explore related products
They are used to control power delivered to a load
SCR stands for Silicon Controlled Rectifier, a type of thyristor. It is a four-layer solid-state current-controlling device with three terminals: the anode, cathode, and gate. The anode is a positive electrode, the cathode is a negative electrode, and the gate acts as a control terminal.
SCRs are used to control the power delivered to a load in several ways. They can be used to vary the voltage across a load, such as in the case of a DC motor, where the speed of the motor can be controlled by varying the voltage. This is achieved by replacing two of the diodes in a diode bridge with SCRs, which then becomes a rectifier bridge. The average amount of voltage across the DC motor can then be controlled.
SCRs are also used in power switching circuits, where they can be triggered to conduct electricity and deliver power to a load. In a bridge rectifier circuit, SCRs must conduct in opposite pairs, and while they have individual cathode connections, they can be triggered simultaneously in pairs.
SCRs are unidirectional devices, meaning they can conduct current in only one direction. This makes them suitable for AC power control applications, where they can handle high power and voltage. They are used in lamp dimming, power regulators, motor control, and welding machines.
SCR controls can deliver electrical power to heaters in several ways, including phase angle fired, zero voltage switched, and on/off control. Phase angle firing offers the quickest response to load change and provides maximum heater life, while zero voltage switching turns on and off each full cycle of the power line, producing less RFI line noise.
Understanding Electrical Infinity: Infinite Possibilities, Infinite Power
You may want to see also
Explore related products
$7.99
SCRs are unidirectional devices
Silicon Controlled Rectifier (SCR) is a four-layer solid-state current-controlling device. It is a member of the thyristor family and is constructed from silicon. SCRs are unidirectional devices, meaning they can conduct current in only one direction. This is in contrast to TRIACs, which are bidirectional and can conduct current in both directions.
The unidirectionality of SCRs means that they can only deliver half-wave power to the load, as they operate in the half-cycle of AC where the supply voltage polarity is positive on one side and negative on the other. This makes them inherently DC devices. However, they can be used for AC power control applications due to the unique response of a thyristor to alternating current. When used for AC power control, multiple SCRs may be employed, with one or more facing each direction to manage the current through both half-cycles of the AC wave.
SCRs have three terminals: the anode (positive electrode), the cathode (negative electrode), and the gate (control terminal). The anode is situated on the P-layer, while the cathode is on the N-layer. The gate terminal is connected to the P-layer in the middle. The outer P and N layers, where the electrodes are placed, are heavily doped, while the middle P and N layers are lightly doped.
SCRs are commonly used for converting AC current to DC current (rectification), which is reflected in their name, "Silicon Controlled Rectifier." They are also used in other applications such as power regulation, inversion, and motor control. SCRs are well-suited for handling high currents and voltages, making them valuable in industrial applications.
Understanding KA and Block in Electrical Circuits
You may want to see also
Explore related products
They are used in devices where control of high power is needed
Silicon Controlled Rectifiers (SCRs) are used in devices that require the control of high power, possibly coupled with high voltage. SCRs are four-layer solid-state current-controlling devices that are constructed from silicon. They are used for AC power control applications, despite being inherently DC (unidirectional) devices. SCRs can only conduct current in one direction, as opposed to TRIACs, which are bidirectional.
The ability of SCRs to switch large currents on and off makes them suitable for medium- to high-voltage AC power control applications. They are used in devices such as lamp dimmers, power regulators, and motor control. SCRs are also used in the control of welding machines, particularly gas tungsten arc welding.
In addition, SCRs are used for rectification of high-power AC in high-voltage direct current power transmission. They can handle high currents and voltages, making them suitable for most industrial applications. Press pack SCRs, for example, are used for high-current applications of 200A or above and applications with voltages exceeding 1200V.
SCRs are also used as electronic switches in various devices, including early solid-state pinball machines, where they control lights, solenoids, and other functions electronically.
Understanding 'Per Line' in Electrical: A Comprehensive Guide
You may want to see also
Frequently asked questions
SCR stands for Silicon Controlled Rectifier. It is a four-layer solid-state current-controlling device.
SCRs are unidirectional devices, meaning they can conduct current only in one direction. They are used to control high power and voltage in devices. They are also used for AC power control applications such as lamp dimming, power regulators and motor control.
SCRs offer a level of control that is unattainable with other devices. They can cycle on and off more than a billion times, extending the life of heaters. They are also low-maintenance and have fast response times.
