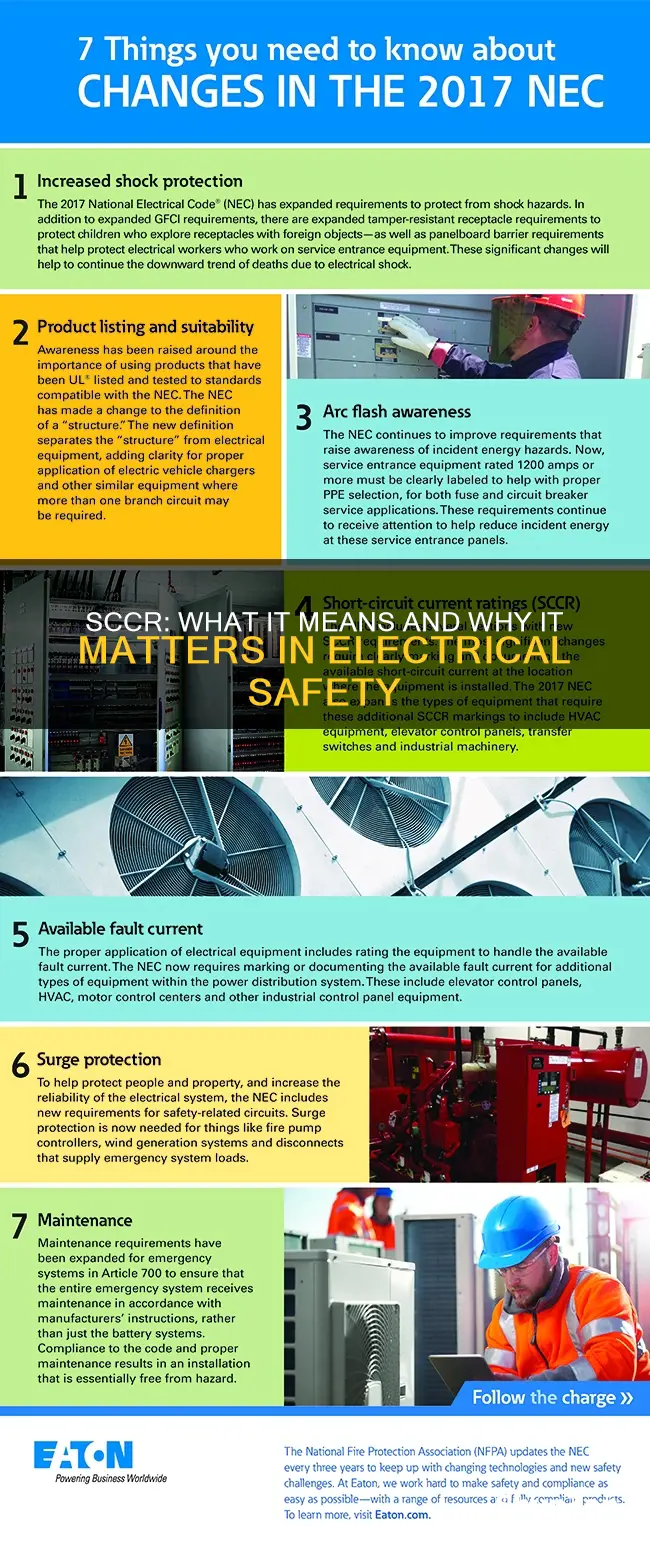

Short Circuit Current Rating (SCCR) is a rating on components and assemblies representing the maximum level of short-circuit current that a component or assembly can withstand. This rating is used to determine compliance with the National Electric Code (NEC). The SCCR of equipment must be no less than the Available Fault Current (AFC). The AFC is the maximum amount of unwanted current that will flow on the grounded metal of the equipment in the event of a fault.
Explore related products
What You'll Learn
- SCCR is a rating representing the maximum short-circuit current a component can withstand
- It determines compliance with NEC 110.10, requiring SCCR labelling on panels and assemblies
- SCCR is calculated by examining the maximum ratings of devices connected to branch circuits
- The device with the lowest rating becomes the limiting factor
- Mersen High-Speed Class J fuses are recommended for the best protection of electrical components
SCCR is a rating representing the maximum short-circuit current a component can withstand
Short Circuit Current Rating (SCCR) is a rating assigned to components and assemblies of electrical equipment. It represents the maximum amount of short-circuit current that a component or assembly can withstand without experiencing damage or failure. In other words, it is the equipment's ability to withstand high levels of current that may occur during a short circuit or other fault.
The SCCR is typically measured in amps and is used to determine the equipment's compliance with safety standards, such as the National Electrical Code (NEC). For example, NEC section 408.6 states that switchboards, switchgear, and panel boards must have an SCCR rating not less than the available fault current. This ensures that electrical panels and equipment can handle the high currents that may result from a short circuit or ground fault.
The SCCR rating is an important consideration in electrical design and equipment selection. It helps ensure that the equipment can safely operate within the electrical system and protect against potential hazards. The SCCR rating of a motor control system, for instance, is determined by evaluating the maximum ratings of the individual devices connected to the branch circuits. The device with the lowest rating becomes the limiting factor for the entire system.
Fuses are often used in conjunction with SCCR ratings to provide protection against short circuits. The primary role of a fuse is to prevent equipment fires by limiting the current during a fault. However, it is important to select the appropriate fuse size and type to ensure compatibility with the SCCR rating of the equipment. Maximum fuse sizing is typically dictated by the National Electric Code and standards set by organizations like Underwriters Laboratories (UL).
