In electrical wiring, the terms line and load refer to wires that deliver and carry power. Line refers to the wires that deliver power from the source to a device, while load refers to the wires that carry power onwards to other devices further along the circuit. When wiring low-voltage circuits, line refers to the parts of the circuit that are at full household voltage, while load describes the electrical demand or power draw that a device or appliance places on a circuit. In electrical blueprints, lines are used to indicate the route of wiring throughout a house, while symbols represent outlets, switches, and fixtures.
Explore related products
What You'll Learn
Line and load wiring
The "line wire" is the wire that delivers power from the source to a device. It is the incoming electricity, always active, and carrying an electrical current. These wires are considered the "supply lines" of electrical power. Line wires are typically connected to the bottom terminal of a switch and are generally found lower than load wires. They are often black, but can also vary, and may be identified by a silver-coloured screw.
The "load wire", on the other hand, carries electricity from a terminal point to the point of use. It is the outgoing electricity, moving power to the next device on the circuit. Load wires are usually connected to the top terminal of a switch and are often found near the top of outlets and switches. They are typically red, black, or white, but the colour is not a reliable indicator.
It is important to note that the terms "line" and "load" are relative to the location of the device in the circuit. For example, in a series of outlets wired in sequence, the load wire feeds electricity from the first outlet to the remaining boxes, and the line wire for one outlet becomes the load wire for the next outlet downstream.
When working with line and load wiring, safety is paramount. Incorrect wiring can lead to short circuits, electrical shocks, or fires. If you are unsure about the wiring in your home, it is recommended to contact a professional electrician for assistance. They can provide guidance, ensure safe handling, and help prevent potential hazards.
Electricity and Poor Conductors: What's the Connection?
You may want to see also
Explore related products
Electrical blueprint symbols
Some common electrical blueprint symbols include:
- Curving dashed lines: These indicate the rough route of wiring throughout a house. They are not meant to show the exact location of the wires but rather to give an idea of how the homeowner will interact with the switches and fixtures.
- Circle with two parallel lines extending from it: This represents a typical outlet or receptacle with two sockets.
- Circle with two angled lines extending from it: This represents a ceiling fan, with the lines symbolising the blades.
- Dollar sign or an "S": This is the symbol for a basic, single-pole switch.
- 3-Way Switch: This means there are two switches in the home that control the same item, typically a light or group of lights.
- 4-Way Switch: Similar to the 3-way switch, but with three switches controlling a light or group of lights.
- Double Pole Switch: Used to switch outlets and appliances on 240-volt circuits.

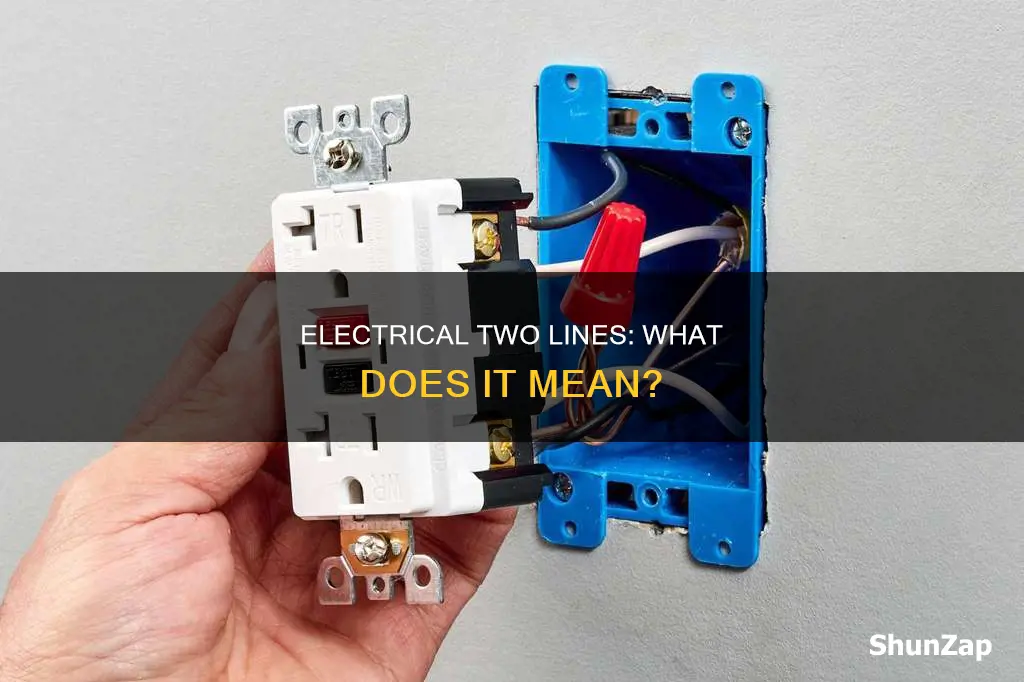

In electrical wiring, the terms "line" and "load" refer to the wires that deliver and carry power. The "line" is the wire that brings power from the source to a device, while the "load" carries the power onwards to other devices further along the circuit. Line and load have special meanings when wiring ground-fault circuit interrupter (GFCI) outlets, which have two pairs of screw terminals marked as LINE and LOAD.
