Electrical plans are technical drawings that visually represent and describe electrical systems and circuits. They are important for documenting, communicating information about, and troubleshooting power systems on-site. Electrical plans are also used to ensure compliance with code regulations and to prevent hazardous situations. In the context of the UK, electrical wiring is regulated by building regulations and legislation such as the Electricity at Work Regulations 1989 to ensure safety. This includes standards for voltage, phase, electrical signals, cable design, and circuit design.
Explore related products
What You'll Learn

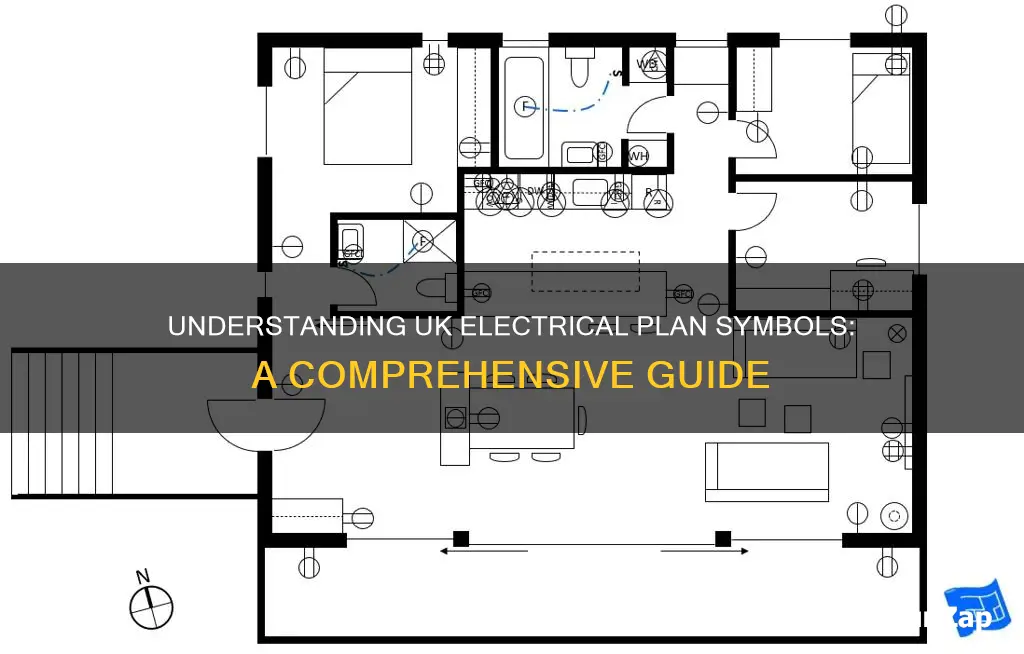

Electrical plan symbols and colours
Electrical plan symbols are universally recognised icons or drawings that represent the various components of an electrical system. They are used in engineering drawings, wiring schematics, circuit diagrams, and architectural blueprints. Understanding these symbols is essential for architects, electricians, and other professionals in the construction industry.
There are standard symbols for different types of lights, such as recessed lights, surface-mounted lights, and pendant lights. For example, fluorescent fixtures are shown as a circle with four outward-extending lines, while a light bulb is depicted as a circle with a small cross inside. Outlets or receptacles also have specific symbols; a standard wall outlet is a small rectangle, while a Ground Fault Circuit Interrupter (GCFI/GFCI) outlet is shown with the letter "G" inside a rectangle. Special purpose outlets, like those for electric stoves or dryers, have unique symbols. Switch symbols vary depending on the type, such as a single-pole, three-way, or dimmer switch, and are typically represented by a break in a line with a small angled line nearby.
Larger components like transformers, generators, and motors have distinct symbols, often consisting of a circle with specific letters or symbols inside to indicate their function. A transformer, for instance, is represented by two coils (circles with lines inside) placed side by side. A diode is depicted as a line with a triangle pointing towards it, with the triangle side being the positive (anode) and the line side the negative (cathode). The symbol for a transistor depends on its type; a bipolar junction transistor combines diode symbols.
It is important to note that every engineering office may use its own set of electrical symbols, so referring to the legend sheet in your plan is crucial for accurate interpretation. Additionally, while most symbols are black, they can also be in red, blue, or yellow, and you can customise the colours in tools like RoomSketcher.
Understanding TX in Electrical Terms: A Comprehensive Guide
You may want to see also
Explore related products
Electrical wiring standards and regulations
One key regulation is the Electricity at Work Regulations, which requires individuals to be competent in preventing danger and injury related to electrical installations. This regulation also covers the design and operation of consumer units, distribution boards, and overcurrent protection devices.
Another important standard is BS 7671, also known as the IET Wiring Regulations. This standard is co-published by the IET and the British Standards Institution (BSI) and is the authority on electrical installation in the UK. BS 7671 provides detailed descriptions and requirements for electrical installations, including wiring colours and circuit designs. It is regularly updated to incorporate new technology and advancements in safety procedures, with the current version being the 18th edition.
In addition to national standards, electrical wiring in the UK also adheres to wider European regulations and the IEC 60446 standard. Mains cable colours have been standardised across Europe and the UK since 2006 to comply with international standards. It's important to note that while regulations provide a framework, the specific application may vary based on the project's unique requirements.
Finally, electrical safety is of paramount importance. A "permit to work" is essential when dealing with wiring and circuitry, and only qualified, registered electricians should undertake complex or large-scale electrical work.
Understanding NEC: Electrical Safety and Standardization
You may want to see also
Explore related products
Electrical plan software
There are several electrical plan software options available, some of which are free. Kozikaza, for example, offers free 2D and 3D home plan design software. It allows users to create a virtual house and integrate an electrical plan. The software includes a catalogue of electrical symbols, such as sockets, switches, light points, and electric panels, which can be added to the plan. It also offers a shopping list feature, which provides a list of purchases needed for the project.
Another free option is Blender, a community-driven, open-source software for 3D modelling, animation, and rendering. Draw.io is also a free option for basic electrical drawings, and Inkscape can be used for marking over existing plans.
For those looking for a paid option, uplan is an intuitive app for planning electrical installations. It offers auto-generated documentation, including layout, wiring diagrams, and bills of materials. It also allows users to plan their Wi-Fi network and surveillance system with heatmaps.
These software options can be useful for both professionals and homeowners. They can help ensure that electrical plans are well-designed and meet the necessary standards and regulations.
Electrical Hazard Boots: Safety and Their Meaning Explained
You may want to see also
Explore related products
Electrical plan drawings and layouts
An electrical plan, also known as an electrical drawing or wiring diagram, is a type of technical drawing that provides a visual representation of electrical circuits and systems. It uses electrical symbols and lines to communicate an engineer's electrical design to clients. Electrical plans are essential for documenting, communicating information, and troubleshooting power systems on-site. They also ensure compliance with code regulations and help distribute power to various appliances efficiently and safely.
Electrical plans encompass lighting, electronics, appliances, and the structure of the building. They consider the interconnection of electrical wires and other parts of the system, such as switches, outlets, lights, and circuit breakers. These plans are drawn to scale and include details like wire length, cable types, and other components. Understanding electrical symbols, labels, and conventions is crucial to interpreting electrical plans effectively. Different line types, colours, and shading may represent specific wires, voltages, or grounding.
When creating an electrical plan, it is essential to consider the location of furniture and lighting arrangements. For example, placing outlets near counters and tables and deciding on locations for appliances like TVs and computers. Drawings of individual systems can make complex electrical plans easier to understand. Software tools like RoomSketcher and EdrawMax offer templates and features that aid in creating detailed and accurate electrical plans, ensuring compliance with regulations and enhancing safety.
In the UK, electrical wiring is regulated by building regulations, such as the Building Regulations 2010, and the Electricity at Work Regulations 1989. The detailed rules for wiring are provided by BS 7671 Requirements for Electrical Installations (IET Wiring Regulations). While UK standards are largely harmonised with European regulations, some specific national practices and traditions differ significantly. Accessories in the BS 4662 format, for instance, have been criticised for lacking the product diversity found in other European markets.
Understanding Dedicated Circuits: Powering Your Home Efficiently
You may want to see also
Explore related products
$27.28 $46.99
Electrical plan safety considerations
Electrical plans are an important aspect of ensuring safety in any building project. In the UK, electrical wiring and installations are regulated to ensure compliance with safety standards. Here are some key safety considerations for electrical plans:
Regulations and Standards
Compliance with regulations and standards is crucial to ensure electrical safety. In the UK, electrical installations are governed by the Building Regulations 2010, which includes "controlled services" such as electrical wiring that must adhere to specific directions and standards. The Electricity at Work Regulations 1989 also outline requirements, such as ensuring competent persons prevent danger and injury. Additionally, the BS 7671 (IET Wiring Regulations) provides detailed descriptions for electrical installations.
Risk Assessments
Thorough risk assessments are vital to identify electrical hazards. These assessments should consider the type of electrical equipment, its usage, and the environment in which it is used. Wet environments, for example, pose specific risks, and equipment must be suitable for such conditions. Regular checks and inspections by competent persons are necessary to identify potential issues and ensure equipment safety.
Competent Professionals
Hiring qualified and competent electricians is essential for electrical safety. In the UK, electricians should be registered with government-approved schemes, such as NICEIC or ELECSA, to demonstrate their competence and compliance with Part P requirements. These professionals can identify hazards, design safe installations, and ensure compliance with regulations.
Specific Safety Measures
Several specific safety measures should be considered in electrical plans. These include allowing sufficient slack in appliance wiring for maintenance, ensuring outlets in bathrooms are ground fault circuit interrupters (GCFI) for safety, and considering the spacing of outlets to provide convenient and safe access to electricity. Additionally, using residual current devices (RCDs) can provide extra protection, especially in wet or confined spaces.
Documentation and Records
Maintaining detailed records of electrical installations and safety measures is important. These records can demonstrate compliance with safety standards and best practices, which is valuable for insurance purposes and risk management. Organisations like Electrical Safety First in the UK provide resources and promote electrical safety awareness.
By following these safety considerations and adhering to regulations, competent professionals, and specific safety measures, electrical plans can help ensure the safety of individuals and properties.
