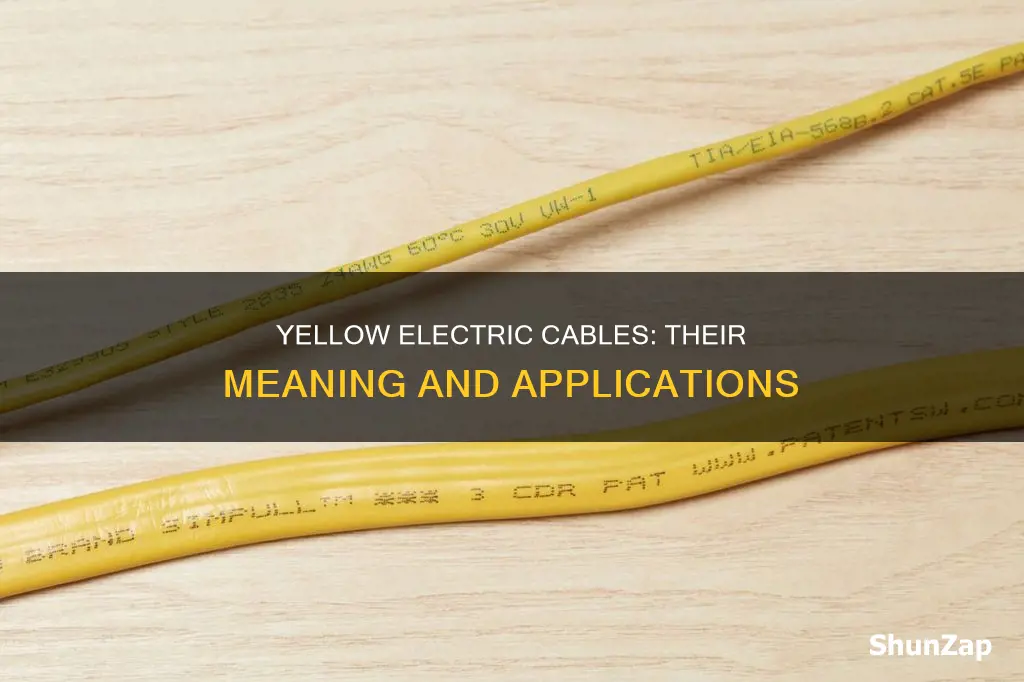

The colour of an electrical cable is not a random choice, but an important visual cue that indicates its function, purpose, and potential danger. Yellow cables are 12-gauge wires, typically used for 20-amp circuits that power general household outlets for plug-in appliances. They are also used as live wires pulled through a conduit, powering fixtures like lighting and ceiling fans. In the context of electrical wiring, yellow cables are always assumed to be live and carrying power.
| Characteristics | Values |
|---|---|
| Purpose | Yellow cables are used as live wires pulled through a conduit. |
| Usage | Yellow cables are used in fixtures like lighting and ceiling fans. |
| Gauge | Yellow cables are 12-gauge wires. |
| Amperage | Yellow cables are 20-amp wires. |
| Voltage | Yellow cables can be 120 or 240V. |
| Identification | Yellow cables are identified by their bright colour and are used to indicate the start of a circuit. |
| Grounding | Yellow cables are not grounding wires. |
Explore related products
What You'll Learn
Yellow cables are 12-gauge wires
The colour of an electric cable indicates its function. In the US, the National Electrical Code (NEC) designates the colour code for electrical cables. Yellow cables are 12-gauge wires.
Yellow 12-gauge cables are used for 20-amp circuits that power general household outlets used for a variety of plug-in appliances. They are also used for dedicated appliance circuits. The cable that goes into the box contains one white cable and one black cable that has an extra red wire. The white cable is the neutral wire, while the black cable is hot. The red wire is a switch-hot or traveller wire.
The wire gauge or size and amperage rating of the wire within are identified by the colour of the outer sheathing on nonmetallic sheathed cable (NM). The colour-coding is not mandatory, but most manufacturers follow the standard colour scheme. The five basic colour schemes used for the NM cable in residential construction are white, yellow, orange, black, and grey.
It is important to note that the wire gauge is not always indicated by the colour of the insulation. While black usually indicates a hot wire, white a neutral wire, and red a switch-hot or traveller wire, these are standards and not rules. The best way to know the wire size is to measure its cross-sectional area or diameter or check the sheath of the cable for any markings that indicate the size of the wires within.
In the US, all home electrical wires follow standard colour codes that identify how each one functions in a circuit. Blue and yellow wires are hot wires for ceiling fans and three- or four-way switches. They are frequently found in commercial and industrial buildings that use three-phase power.
