When towing a trailer, it is a legal requirement to have your trailer lights connected to your vehicle. U-Haul trailers require a 4-way flat connection, which is the industry standard for trailers not equipped with electric trailer brakes. Most utility trailers operate on a 4-pin trailer plug, with the green wire for the right turn/brakes, the yellow wire for the left turn/brakes, brown wire for taillights, and white wire for the ground. For heavier towing jobs, a 5-pin or 6-pin wiring kit may be required. U-Haul offers a range of wiring kits and adapters to ensure your trailer lights are connected safely and securely.
| Characteristics | Values |
|---|---|
| Number of pins | 4, 5, 6, 7 |
| Wire colours | Green, yellow, brown, white, blue |
| Functions | Right turn/brakes, left turn/brakes, taillights, ground, reverse or backup lights |
| Connection type | Round, flat |
| U-Haul trailer connection | 4-way flat |
| Vehicle connection | 7-way round |
| Kits | Quick Connect, Universal, 7-Way Spade Type & 4-Way Flat Connector, T-One T-Connector Harness |
Explore related products
What You'll Learn
- U-Haul offers a range of wiring kits and adapters for trailers
- The 4-pin trailer wiring is the standard for trailer wiring
- The 5-pin trailer wiring is less common but has an important fifth function
- The 7-pin trailer wiring is used for heavy items and RVs
- Quick Connect wiring kits are a popular choice for their ease of use
U-Haul offers a range of wiring kits and adapters for trailers
U-Haul offers a range of wiring kits and adapters to ensure your trailer lights are connected to your vehicle. This is important because it's a legal requirement and enables everyone's safety on the road.
The 4-pin trailer is the standard for trailer wiring, with most utility trailers operating on a 4-pin trailer plug for safety while towing. The 5-pin trailer wiring is less common, but the fifth wire is important for certain functions, such as showing reverse or backup lights. For heavier towing jobs, a 6-pin trailer wiring adapter may be needed, which uses the same colour code as the 4- and 5-pin trailer wiring but adds an additional function.
U-Haul offers the 47335 as a solution for vehicles equipped with a 7-way connector that need to tow a trailer with a 4-flat plug. The Nite-Glow Adapter is another option for connecting a U-Haul trailer to your 7-way round vehicle outlet. This adapter is weather-resistant, simple to use, and glows for ease of use during the day or night.
U-Haul also provides quick connect wiring kits, which are a popular choice due to their ease of use, as well as universal wiring kits, replacement plugs, and sockets. They offer free standard shipping on qualifying orders over $100 USD within the contiguous US and provide same-day delivery in most areas for a fee.
Porsche's Electric Speedster: How Fast Can It Go?
You may want to see also
Explore related products
The 4-pin trailer wiring is the standard for trailer wiring
When it comes to towing a trailer, safety is paramount. Trailer wiring is essential and, in fact, legally required. Connecting your trailer lights to your vehicle ensures that your trailer's turn signals are in sync with your vehicle's, enhancing safety for yourself and other road users.
The 4-pin wiring is popular due to its ease of installation. It uses frame clips to separate each wire, reducing confusion during the installation process. The wires can be clamped tightly for a secure assembly. The CURT 4-pin Flat wiring harness, for example, is renowned for its high quality and ergonomic design, making it a dependable and seamless choice for LED additions.
While the 4-pin wiring is the standard, there are other options available depending on your specific needs. The 5-pin trailer wiring, for instance, adds a blue wire for reverse or backup lights. This type of wiring is commonly used for boat trailers. If you're towing heavier loads, you might consider a gooseneck trailer with 6-pin trailer wiring, which adds another function while using the same colour code as the 4- and 5-pin wiring. For RVs and heavy-duty towing, the 7-pin wiring is often used, providing a 7-way round connector.
Quick Guide: Reloading Your Rapid 100 Electric Stapler
You may want to see also
Explore related products
The 5-pin trailer wiring is less common but has an important fifth function
When towing a trailer, it is important to have the trailer lights connected to your vehicle. This is not only for safety but also because it is required by law.
The 4-pin trailer wiring is the standard for trailer wiring. The 5-pin trailer wiring, although less common, has an additional fifth wire, typically blue, which serves an important function. This fifth wire is used for the reverse or backup lights. Not all trailers have reverse lights, so the use of 5-pin wiring depends on whether or not this function is needed. Boat trailers, for example, commonly use 5-pin wiring.
The 5-pin flat trailer connector is designed to provide power to various components of your trailer. Each pin in the connector has a specific function and must be wired correctly for the trailer's electrical system to work properly. The five pins in a 5-pin flat trailer connector are typically used for connecting the following electrical systems: brake lights, turn signals, tail lights, ground wire, and electric brakes. Understanding the purpose of each pin is crucial for properly wiring the connector and ensuring all necessary electrical functions are operational.
The first pin is typically designated as the ground pin, providing a path for the electrical current to flow back to the vehicle's battery. The second pin is the tail light pin, which powers the trailer's tail lights when the vehicle's lights are turned on. The third and fourth pins are for the left and right turn signals, respectively, and the additional fifth pin is for the reverse lights.
It is important to follow a wiring diagram when connecting a 5-pin flat trailer connector to avoid wiring mistakes and ensure a safe and reliable connection. Additionally, it is crucial to use the correct wire colours for each function, such as brown for tail lights, yellow for the left turn signal, and green for the right turn signal.
Enhancing Your Heart: Electrical System Optimization
You may want to see also
Explore related products
The 7-pin trailer wiring is used for heavy items and RVs
When pulling a U-Haul trailer, it is important to ensure that your trailer lights are connected to your vehicle. This is not only important for your safety but is also a legal requirement.
The 7-pin trailer wiring is commonly used for heavy items and RVs. It is one of the many wiring options available for those looking to tow heavy items. The 7-pin wiring has seven different colours, each with a specific function. It is important to be aware of what each colour means before connecting your wiring. The colours and their functions can vary, but generally, the green wire is for taillights, the red wire is for left turns/brakes, the white wire is for the ground, the blue wire is for electric brakes, the brown wire is for right turns/brakes, the black wire is for +12-volt auxiliary power, and the yellow wire is for reverse lights.
There are two types of 7-way connectors: one with flat pins or blades, and the other with round pins. The round pin style is very rare, whereas the RV style 7-way with flat pins is common and often found on newer trucks and SUVs equipped with a trailer hitch. The 7-way round trailer plug is different from the 7-way RV blade plug in terms of wiring connections and placement, so it is important to review your trailer connector before wiring.
U-Haul offers a range of wiring kits, adapters, and other towing components to assist with your trailer wiring installation. They also provide truck and trailer rentals for towing needs.
Electricity's Journey to Indian Homes
You may want to see also
Explore related products
Quick Connect wiring kits are a popular choice for their ease of use
When pulling a U-Haul trailer, it is essential to have proper trailer lighting, as it is legally required. Trailer wiring is a simple connection that enables everyone's safety on the road. Quick Connect wiring kits are a popular choice for their ease of use. They offer a plug-and-play harness that easily connects to your specific vehicle, making them a convenient option.

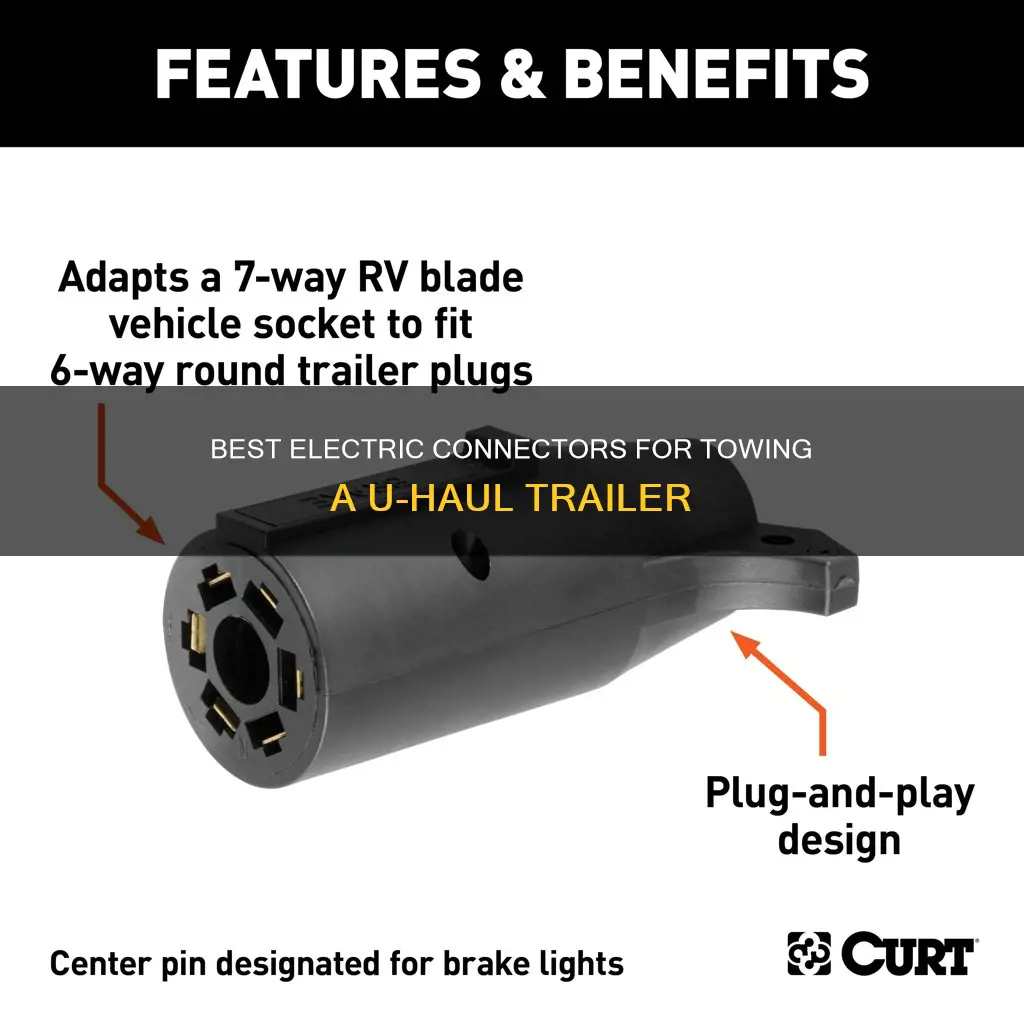

U-Haul offers a range of Quick Connect wiring kits to adapt to different wiring configurations. For instance, the Quick-Connect 7-Way Adapter kit adapts a 4-way Piggyback to a 7-Way plug, using industry-standard wiring configurations and colour codes. This kit provides tail light, left and right turn functions, and the white wire must be grounded to assure proper trailer light function.
The Quick-Connect 6-Way Adapter kit is another option, adapting a 4-way Piggyback to a 6-Way plug. U-Haul also offers a 7-Way Round RV to 6-Way Round Adapter, which is suitable for a 2006 Chevrolet Trailblazer.
For those with a 4-way flat on their U-Haul truck and a 7-way plug on their trailer, U-Haul recommends parts 13321 and 47185 to adapt the two. These parts must be properly grounded to the vehicle for the lighting to function correctly.
U-Haul provides detailed instructions for installing its Quick Connect wiring kits, ensuring that customers can confidently and safely connect their trailers. The company also offers in-store pickup and next-day delivery options for added convenience.
GE vs Whirlpool Electric Range: Which Brand is Better?
You may want to see also
Frequently asked questions
U-Haul trailers require a 4-way flat connection. Most full-sized vehicles come with a 7-way round connection, so you will need to purchase a Nite-Glow Adapter to connect your trailer.
The Nite-Glow Adapter is a simple and quick installation that allows you to connect your U-Haul trailer to your vehicle's 7-way round connector. It is weather-resistant and glows in the dark for ease of use.
There are multiple wiring kits available, including Quick Connect wiring kits, Universal Wiring kits, and replacement plugs and sockets. You can also opt for a 7-Way Spade Type & 4-Way Flat Connector, which provides 7-way round and 4-way flat towing capabilities.
Yes, U-Haul offers installation services for trailer wiring. You can schedule a visit with a hitch professional by visiting the U-Haul website or by downloading the U-Haul App.
