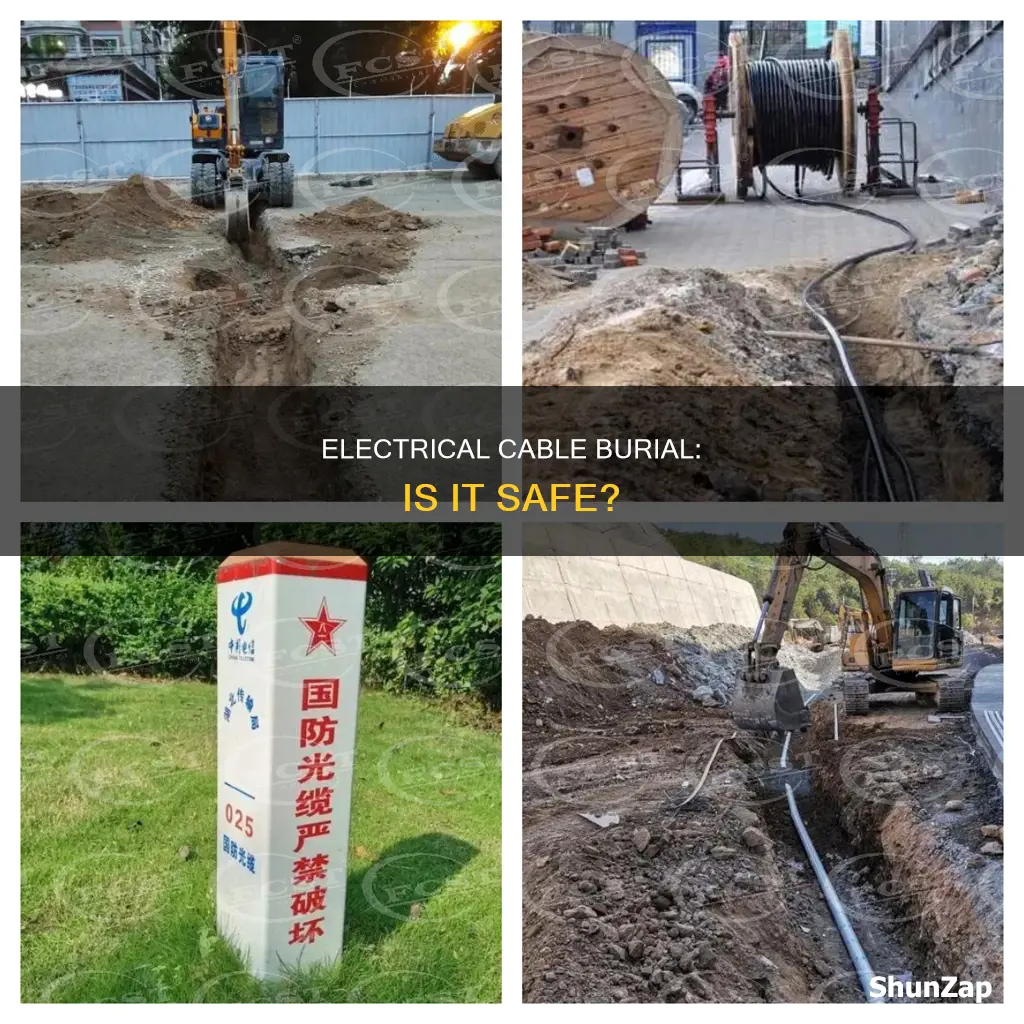

Burying electrical cables is a complex process that requires careful planning and execution to ensure safety and compliance with local regulations. The process involves trenching, wiring, and conduit installation, with specific depth requirements and material choices that depend on the soil type and project needs. Before beginning any work, it is crucial to consult local authorities and professionals to avoid hazards and ensure the project's legality and safety.
| Characteristics | Values |
|---|---|
| Soil type | Granular, rocky, heavy clay |
| Trench depth | 18 inches, 24 inches |
| Cable type | Type THWN-2, Type UF, GFCI-Protected Underground Feeder Cable |
| Conduit type | PVC, metal, plastic |
| Conduit depth | 6 inches, 12 inches, 18 inches |
| Additional tools | Propane-powered heat gun, joist hangers, cable staples, trencher |
Explore related products
What You'll Learn
Soil type considerations
Soil type plays a significant role in determining the method and materials used for burying electrical cables. Here are some considerations regarding different types of soil:
- Granular Soil: If you have granular soil that is easy to dig, you can opt for deeper burial methods, such as burying electrical cables 24 inches underground. This can save you money on electrical materials, as you may not need to install metal or plastic conduit for additional protection. Renting a trenching machine can be a convenient option for digging in granular soil.
- Rocky Soil or Heavy Clay: In contrast, if the soil is rocky or composed of heavy clay, you can minimise digging by using metal or plastic conduit to protect the buried wiring. This method allows you to keep the burial depth relatively shallow.
- Tree Roots: Similarly, if you encounter numerous tree roots, using conduit protection means you won't have to dig as deeply.
- Water Presence: Consider the water presence in the soil. If you're using THWN-2 conductors, they are water-resistant and can be run inside PVC conduit at an 18-inch depth. GFCI-protected cable can be used at a shallower depth of 12 inches and offers enhanced electrical safety.
- Local Requirements: Check with your city or community for specific depth requirements for underground utilities. For example, 240v power typically requires a minimum depth of 18 inches.
- Future Digging: If you anticipate future digging in the area, consider using conduit to protect the wiring. This will safeguard against accidental damage from future excavation projects.
Unlocking Your Colgate Electric Toothbrush: A Guide
You may want to see also
Explore related products
Required depth
The required depth for burying electrical cable depends on the type of cable, conduit, and soil.
If you are using direct-burial underground feeder cable, it needs to be buried at a depth of 24 inches or more. At this depth, you don't need to use conduit, but you will need to provide PVC conduit on your vertical feeds starting at 18 inches. If you use galvanized EMT (metal electrical conduit) with individual conductors inside, you only need to bury it 6 inches deep.
The type of soil you have will also determine the required depth. If you have granular soil that is easy to dig, you can save money on electrical materials by digging deeper and not installing metal or plastic conduit to protect the wiring. However, if the soil is rocky or heavy clay, or there are lots of tree roots, you can minimise digging and protect the wiring in metal or plastic conduit.
It is important to call your local building inspection department to find out if an electrical permit and inspections are required for your project, as well as to follow all depth requirements for underground wiring laid out by your city or community.
Electricity's Chemical Change: Unveiling the Power of Electrons
You may want to see also
Explore related products
Conduit options
The type of conduit you choose depends on the type of soil you have, the depth of burial, and the local code requirements. Here are some options to consider:
- PVC conduit: PVC conduit is a popular choice for burying electrical cables. It is relatively inexpensive and provides good protection for the wires. The required depth for PVC conduit is 18 inches. However, make sure to use electrical-grade PVC as random cheap PVC may not work as effectively.
- Metal conduit: Metal conduit is another option that offers protection for your electrical cables. It is not expensive if purchased from somewhere other than a big-box store. Metal conduit can be buried at a shallower depth of 6 inches.
- Plastic conduit: Plastic conduit is a good option if you are connecting electricity to an interior source. You can use a plastic conduit to cover the area from the bottom of the trench to a hole bored in the wall. A propane-powered heat gun can help bend the conduit to conform to the foundation.
- Twin-walled cable ducting: This option offers better protection for your cables and anyone who may come across them in the future. While it may be more expensive than other options, it ensures a safer and more durable installation.
- No conduit: In some cases, you may not need to use a conduit at all. If the wiring is in an area that is not likely to be disturbed and won't interfere with future digging, direct burial cable might be the best option. However, if the wiring runs through the middle of your yard, using a conduit for added protection is recommended.
It is important to follow the specific depth requirements and local codes for your area when installing underground electrical wiring. Additionally, consider renting a trencher to save time and hassle during the installation process.
Electro Hypostasis: Beating it Without Amber
You may want to see also
Explore related products
Electrical wire type
Burying electrical cables is a task that can be done by oneself, but it is important to follow safety precautions and adhere to the National Electrical Code (NEC) and local codes. The type of electrical wire to be used depends on various factors, such as the soil type, depth of burial, voltage, and local requirements.
If the soil is granular and easy to dig, one may opt for a deeper burial without the need for a protective metal or plastic conduit. In such cases, a direct-buried Type UF-B cable can be used, provided it is protected by a ground-fault circuit interrupter (GFCI) and a circuit breaker or fuse rated no higher than 20 amperes. This type of cable is suitable for various backyard projects or detached buildings.
For rocky or heavy clay soils, or areas with tree roots, minimising digging is a priority. In these cases, the electrical wiring should be protected by a conduit. One option is to use galvanised rigid metal electrical conduit with individual insulated wires. Alternatively, PVC conduit can be installed with individual insulated wires, such as Type THWN-2 (thermoplastic/wet location/nylon jacket), which is suitable for wet locations. The depth of burial for PVC conduit is typically 18 inches.
Another factor to consider is the voltage. For 240V power, a depth of at least 18 inches is generally required. GFCI-Protected Underground Feeder Cable, for instance, requires a depth of 12 inches.
It is important to consult with local officials and professionals to ensure compliance with regulations and safety standards.
Switching Showers: Converting Electric to Mains
You may want to see also
Explore related products
Safety precautions
Burying electrical cables is a complex task that requires careful planning and execution to ensure safety. Here are some detailed safety precautions to follow when undertaking such a project:
Firstly, it is crucial to understand the specific code requirements, trench depth options, and conduit material choices. Different localities have varying depth requirements for underground wiring, so it is essential to check with local officials and call for an inspection if required. Additionally, the type of soil plays a significant role in determining the depth and method of installation. If the soil is granular and easy to dig, you can save costs by digging deeper and potentially forgoing the use of a conduit. Conversely, if the soil is rocky or clayey with extensive tree roots, you may necessitate the use of a metal or plastic conduit to protect the wiring without extensive digging.
Secondly, selecting the appropriate wire type is vital. Indoor wires are unsuitable for underground use as they will degrade and leak over time. Instead, opt for outdoor-rated direct burial cables such as UF (underground feed) cables. These cables can be installed directly without a conduit if buried deep enough, typically at 24 inches, as per the depth requirements. However, when using PVC or metal conduits, ensure they meet the electrical code standards and are specifically designed for electrical applications.
Thirdly, proper installation techniques are essential. Before beginning any digging, call to check for buried water lines, electrical lines, or sewage drains to avoid accidental damage. Renting a trencher can make the digging process more efficient and less time-consuming. Once the trench is dug, lay the conduit, pull the wires through, and ensure they are rated for wet locations. Cover the cables with sand, lay caution tape, and backfill the trench.
Lastly, always have a licensed electrician make the final wire connections at the main electrical panel to ensure safety and compliance with electrical standards. It is better to seek professional help than risk electrical hazards or non-compliance with local regulations.
Cleaning Electrical Connections: Removing Corrosion the Right Way
You may want to see also
Frequently asked questions
Before you start, call your local building inspection department to find out if an electrical permit and inspections are required for your project. Then, call local utility companies and have them mark existing underground utilities. Plan your course and use flags to mark out critical lines before you start digging.
You can use direct-burial underground feeder cable, THWN-2 conductors, or GFCI-protected cable. If you use galvanized EMT (metal electrical conduit) with individual conductors inside, you can bury it at a depth of 6 inches. If you are using a pipe, it should be at least 1 1/4 inches in diameter.
The depth you bury your electrical cable at will depend on the type of wire and conduit you use. Direct-burial cable should be installed at a depth of 24 inches or more. If you use PVC conduit, you can install at a depth of 18 inches. GFCI-protected cable should be buried at a depth of 12 inches.
Cover the cable with about 2 inches of sand, then lay caution tape on top of the sand along the entire trench. Backfill the trench with the excavated soil. Have a licensed electrician make the final wire connections at the main electrical panel.
