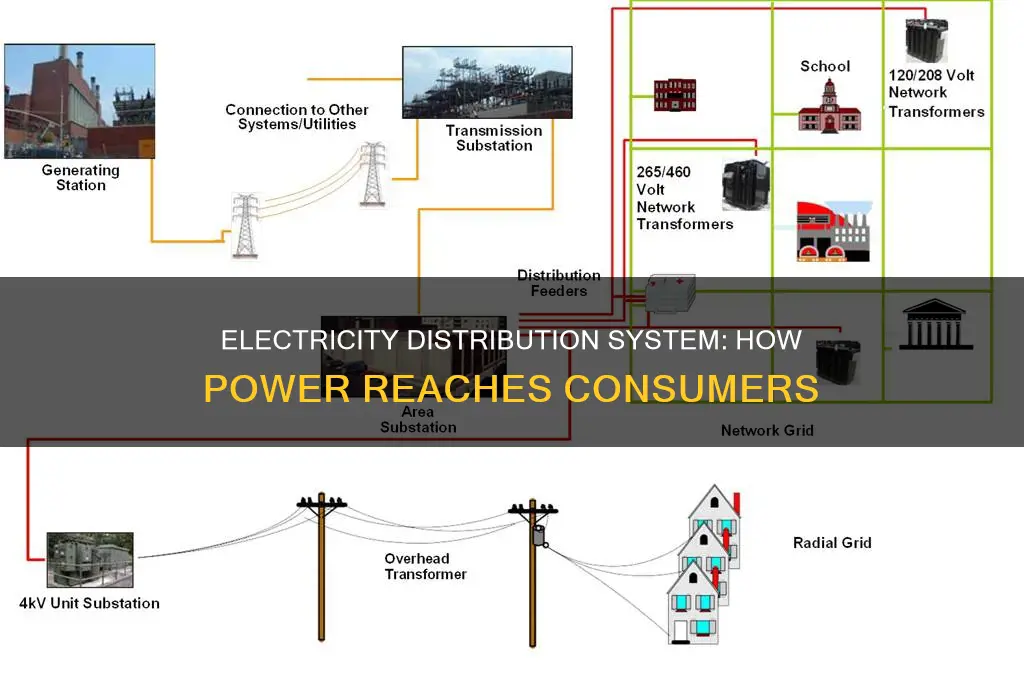

Electrical distribution systems are the final stage in the delivery of electricity, transporting it from the transmission system to individual consumers. This process involves reducing the high voltage of the power transmission lines to a level that can be used by lighting and household appliances. The distribution system is made up of primary and secondary circuits. The primary circuit carries medium voltage power to distribution transformers located near the customer's premises. The secondary circuit then delivers the low-voltage power to the customer. The design and operation of these systems aim to provide a continuous and flexible service at a low cost, with minimal voltage variations and interruptions.
| Characteristics | Values |
|---|---|
| Definition | The final stage in the delivery of electricity from the transmission system to individual consumers |
| Distribution substations | Facilities that reduce high voltage to medium voltage (2 kV to 33 kV) with transformers |
| Primary distribution lines | Carry medium voltage power to distribution transformers near the customer's premises |
| Distribution transformers | Lower voltage to utilization voltage used by lighting, industrial equipment and household appliances |
| Rural electrification | Uses higher distribution voltages due to longer distances covered by distribution lines |
| Urban distribution | Usually underground |
| Rural distribution | Usually above ground with utility poles |
| Suburban distribution | A mix of underground and above-ground |
| Smart grids | Sustainable and efficient electrical systems that use technology, automation, and artificial intelligence |
| Distributed generation | Energy produced through small generation sources (microgeneration) installed near the final consumer |
| Distribution System Operator (DSO) | Manages real-time operational support, local resource scheduling, and monetization of local resources |
Explore related products
$44.27 $63.99
What You'll Learn
Distribution substations
The transformers within the distribution substations are crucial for voltage conversion. They “step down” the supply line voltage to the required distribution level voltage. These transformers can be three-phase transformers or banks of single-phase transformers. Generally, two transformers are used for reliability and maintenance purposes, but the number can vary based on the specific requirements of the distribution system and the importance of the consumers fed from the substation.
Overall, distribution substations play a vital role in the electricity distribution process by converting high transmission voltages to lower levels suitable for end-user applications, ensuring a safe and reliable electricity supply to homes, businesses, and industrial facilities.
Back Hair? Try a DIY Electric Shaver for Smooth Skin
You may want to see also
Explore related products
Primary and secondary distribution lines
Electric power distribution is the final stage in the delivery of electricity, carrying it from the transmission system to individual consumers. Distribution systems are highly interconnected and are referred to as radially operated networks.
Primary distribution systems consist of feeders that deliver power from distribution substations to distribution transformers. Primary distribution lines carry medium-voltage power, ranging from 4 kV to 35 kV, to these distribution transformers, which are located near the customer's premises. Primary lines, or primaries, are higher-voltage lines located at the top of utility poles, above the transformers. Primary wires are typically made of copper, aluminium, or aluminium with steel-reinforced conductors. Some are coated with a protective covering but should not be considered insulated. Typical primary voltages include 7,200 volts single-phase and 12,500 volts three-phase.
Secondary distribution lines then carry the power from these transformers to the end consumers. Secondary lines, or secondaries, are located lower down on utility poles, usually below the transformers. Typical secondary voltages are between 120 and 480 volts. Although the voltage is lower, these lines can still deliver a severe electric shock if contacted. In the US, residential customers are supplied with a standard 120/240 V.
The design of distribution systems varies between rural and urban areas. Rural distribution is mostly above ground, using utility poles, whereas urban distribution is mainly underground. Rural services tend to use higher distribution voltages due to the longer distances covered by distribution lines.
Quartz Showers: Electric or Mixer?
You may want to see also
Explore related products
Rural vs urban distribution
Electric power distribution is the final stage in the delivery of electricity, carrying it from the transmission system to individual consumers.
Electricity distribution in rural areas is mostly above ground, with utility poles and power lines. In contrast, urban distribution is primarily through underground cables, sometimes in common utility ducts. Rural electrification systems tend to use higher distribution voltages because of the longer distances covered by distribution lines. This is in contrast to urban systems, where the final circuit length may be less than 15 metres (50 ft), while a rural customer's connection may be over 91 metres (300 ft).
The lack of electricity access in rural areas is often due to the absence of delivery infrastructure, such as grid connectivity. In urban areas, slums and informal settlements may lack legal, safe, and affordable energy access. Power distribution utilities may hesitate to operate in these areas due to the risk of non-payment of bills and electricity theft.
In terms of energy efficiency, urban areas benefit from mass transit systems and denser layouts, which promote walking and bicycling. Urban households have lower annual energy use per household and household member. However, the heat island effect in cities, caused by concrete and asphalt, leads to higher energy consumption during summers.
Activating Your Electric Water Heater: A Simple Guide
You may want to see also
Explore related products
Smart grids
The smart grid is a critical component of the shift from centralized energy generation, where electricity is produced at large industrial facilities, to a distributed energy resource system. In the latter, sources at various scales can be added to the supply mix with limited disruption. Smart grids enable producers to increase or decrease production accurately and predictably in relation to the variable generation of renewable electricity, thereby facilitating the further deployment of renewable energy sources.
The digitalisation of the distribution grid is still lagging in many countries, limiting the availability of real-time information. However, investments in smart grids are increasing, with the European Commission expecting EUR 170 billion (USD 184 billion) of investments in smart meters, automated grid management, and digital technologies for metering and field operations by 2030.
Electrical Signals: Neurons' Intricate Communication Process
You may want to see also
Explore related products
Distribution system operators
DSOs play a crucial role in ensuring the reliable and efficient delivery of electricity to consumers. They manage the complex task of stepping down high-voltage electricity from transmission systems to the lower voltages required for lighting, household appliances, and industrial equipment. This process involves the use of distribution substations and transformers to reduce voltage levels.
With the transition towards renewable and decentralized energy systems, the role of DSOs has evolved. They now have additional responsibilities, such as managing peak loads, network congestion, and providing reactive power support to transmission system operators (TSOs). DSOs leverage digital technologies, including smart meters, real-time systems, and data analytics, to optimize distribution networks and integrate distributed energy resources (DERs), such as electric vehicles (EVs) and rooftop solar installations.
DSOs also collaborate with various parties, including TSOs, wholesale energy markets, and DER aggregators, to ensure a stable and efficient energy supply. They monitor grid conditions, including congestion, voltage, transformer loading, and overall grid health, and dispatch local resources in real time to meet the dynamic needs of the distribution system. Additionally, DSOs oversee the management of DERs, flexible loads, and the integration of local assets into the broader market, facilitating capital investments, voltage maintenance, and peak load mitigation.
Electric Razor Maintenance: Putting the Blade Back
You may want to see also
Frequently asked questions
An electrical distribution system is the final stage in the delivery of electricity, carrying power from the transmission system to individual consumers.
The purpose of an electrical distribution system is to deliver electricity from the source to end consumers. The system aims to provide a service with few variations in voltage and few or no interruptions.
An electrical distribution system consists of all the structures needed to efficiently supply energy to end users. Distribution substations connect to the transmission system and lower the voltage using transformers. Primary distribution lines then carry this medium-voltage power to distribution transformers located near the customer's premises. The transformers further lower the voltage to the utilization voltage used by lighting, industrial equipment, and household appliances.
Urban distribution systems are mainly underground, while rural distribution is mostly above ground with utility poles. Suburban distribution is a mix of the two. Rural distribution systems tend to use higher distribution voltages because of the longer distances covered by distribution lines.
In the past, the electric power industry was often vertically integrated, with one company handling generation, transmission, distribution, metering, and billing. Starting in the 1970s and 1980s, nations began the process of deregulation and privatization, leading to competitive markets for generation, retail, and sometimes transmission systems. The distribution system remains regulated, with distribution operators taking on a more real-time "system operator" role, managing tasks such as grid monitoring and local resource scheduling.
