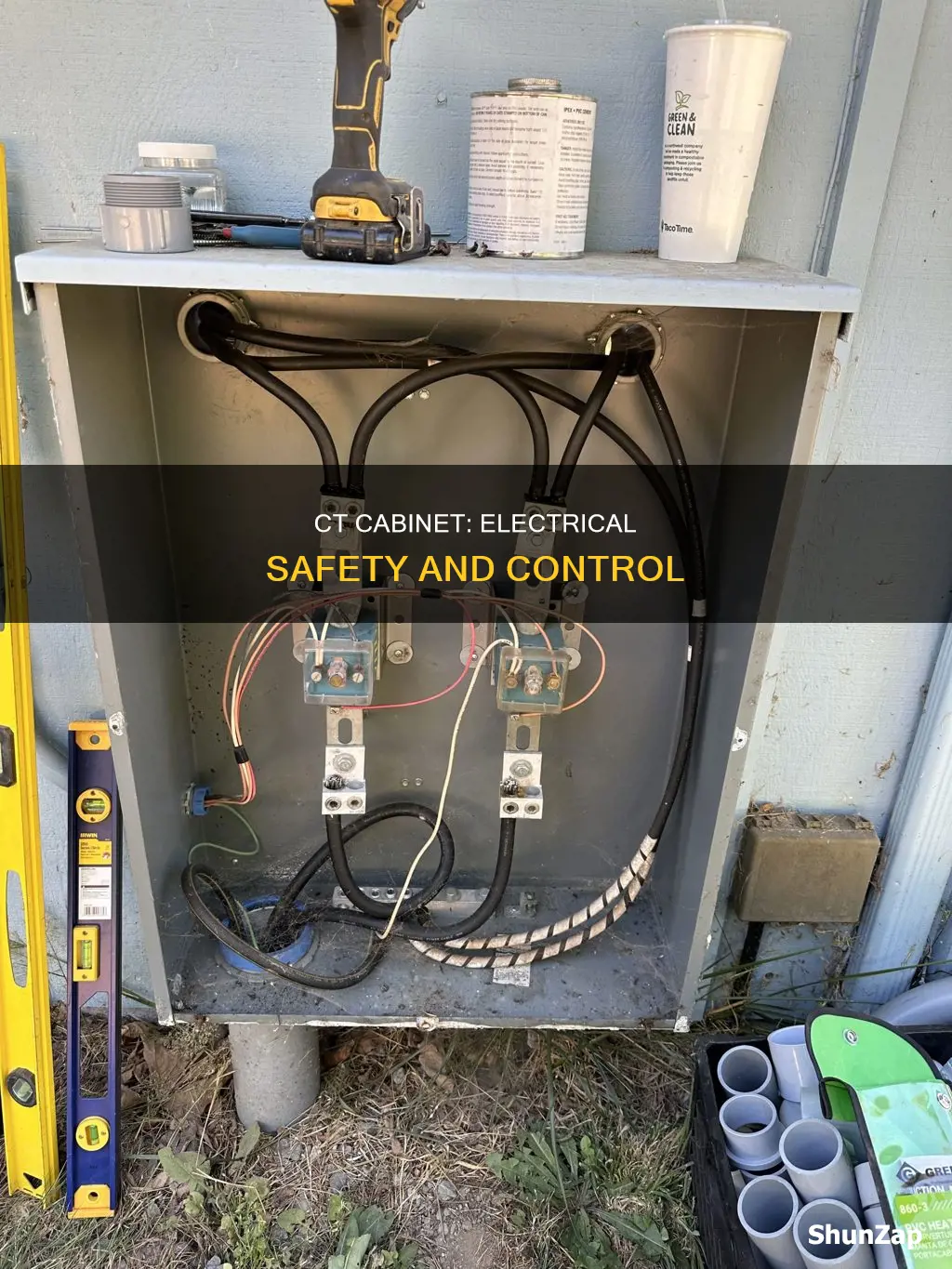

CT cabinets, or Current Transformer Cabinets, are an important component of an electricity distribution system. They are electrical enclosures that house current transformers (CTs) used for electricity metering. CTs convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio, and CT cabinets protect users from electric shocks by setting up a physical barrier between them and the large currents flowing through the CTs. They are used in both indoor and outdoor settings, in homes and industries. CT cabinets are generally made from carbon steel, galvanized iron, aluminium, or stainless steel, and they come in various types, including freestanding/pedestal mount, pad-mounted, wall-mounted, and double-door models.
| Characteristics | Values |
|---|---|
| Purpose | To encase current transformers or CTs which are used for electricity metering |
| Protection | Protects users from electrocution and electric shocks by setting up a physical barrier |
| Use | Used both indoor and outdoor, in homes and industries |
| Materials | Carbon steel, galvanized iron, aluminium, stainless steel, synthetic materials |
| Mounting | Wall-mounting, pad-mounting, free-standing |
| Safety Ratings | Underwriters Laboratories (UL), National Electrical Manufacturers Association (NEMA) |
| NEMA Standards | NEMA Type 1, NEMA Type 3R, NEMA Type 4X |
| UL and NEMA Classification | Based on the harshness of external conditions the cabinet can endure |
| Amperage | Used for amperage higher than 200 |
| Voltage | Used for voltage of 480 |
Explore related products
What You'll Learn
- CT cabinets are electrical enclosures that house current transformers (CTs)
- They protect users from electric shocks and harsh conditions
- CT cabinets are made from metallic materials like carbon steel and galvanized iron
- They are classified by mounting type and access point/door type
- CT cabinets are used for metering current and voltage levels
CT cabinets are electrical enclosures that house current transformers (CTs)
The current transformer (CT) converts primary current into a secondary current of a smaller or larger value through a certain transformation ratio. Most of the time, the current transformer reduces large currents for protection, measurement, and other purposes. Due to the large currents flowing through them, CT cabinets are important for safeguarding users from possible electric shocks.
CT cabinets are classified based on their type of mounting, such as wall-mounting, pad-mounting, or free-standing, which depends on the nature and size of the transformers. They can also be classified by their design, such as freestanding/pedestal mount, pad-mounted, wall-mounted, or double-door models. The doors for electrical cabinets are constructed in cold-rolled sheets and must open at least 120 degrees laterally. They must also have a handle and hinges made of galvanised or stainless steel, bronze, or aluminium.
CT cabinets are also classified by the environment in which they can be used. For example, the National Electrical Manufacturers Association (NEMA) specifies that certain types of cabinets can be used in environments with rain, snow, sleet, or windblown dust. In some cases, a transocket, which houses both the meter socket and CT, is used. This is often used in commercial settings where metering accuracy and ease of installation are crucial.
How Much Power Does 20 Watts Provide?
You may want to see also
Explore related products
They protect users from electric shocks and harsh conditions
CT cabinets, or current transformer cabinets, are an important component of an electricity distribution system. They are electrical enclosures that house current transformers (CTs) used for electricity metering. CTs convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio. This process helps reduce large currents for protection, measurement, and other purposes.
Due to the large currents flowing through CTs, it is crucial to safeguard users and operators from potential electric shocks. CT cabinets serve as physical barriers, protecting individuals from direct contact with live electrical parts. This protective function is essential for both indoor and outdoor applications, in homes and industries.
The design of CT cabinets also contributes to user safety. These enclosures are typically constructed from materials such as carbon steel, galvanized iron, or stainless steel. The steel construction enables the cabinet to be utilised as an earthing system in specific transformer setups, providing an additional layer of safety. Furthermore, CT cabinets undergo powder coating, which creates a protective barrier against external elements. This coating consists of a mix of epoxy and polyesters, safeguarding the cabinet from chemicals, solvents, extreme weather conditions, and physical damage.
In addition to user protection, CT cabinets also protect the current transformers themselves. By encasing the CTs, the cabinets shield them from harsh environmental conditions. This protective feature ensures the longevity and proper functioning of the transformers.
The classification of CT cabinets is based on their mounting type, such as wall-mounted, pad-mounted, or freestanding, and their access points or doors. To ensure safety, CT cabinets must adhere to standards set by organisations like Underwriters Laboratories (UL) and the National Electrical Manufacturers Association (NEMA). These organisations have developed rating scales that evaluate the harshness of external conditions the cabinets can withstand, providing certifications to manufacturers upon successful testing.
Electric Skillets in Dorms: What's the Verdict?
You may want to see also
Explore related products
CT cabinets are made from metallic materials like carbon steel and galvanized iron
CT cabinets, or Current Transformer Cabinets, are essential for electrical metering systems, used both indoors and outdoors, in homes and industries. They are the enclosures in which current transformers are mounted. These transformers convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio.
CT cabinets are also made to prevent electrocution by setting up a physical barrier. Manufacturers of CT cabinets ensure that this equipment meets the safety standards of the Underwriters Laboratories (UL) and/or the National Electrical Manufacturers Association (NEMA). NEMA ratings are used to specify where and in what types of environments electrical enclosures can be used. For example, they might be classified according to their ability to withstand rain, snow, sleet, and even windblown dust.
CT cabinets are generally made from metallic materials like carbon steel, galvanized iron, aluminium, or stainless steel. The use of steel enables the cabinet to be used as an earthing system in certain transformer setups. The doors for electrical cabinets are often constructed in cold-rolled sheets. All doors must open at least 120 degrees laterally. They must have a handle that facilitates their operation. The hinges must be galvanized, chromed, nickel-plated, or made of stainless steel, bronze, or aluminium. These hinges must be strong enough to rigidly secure the door of the structure.
To shape the cabinet, fabrication methods including cutting, welding, and bending are utilized. Powder coating is electrostatically applied to the cabinet walls, creating a protective barrier against several external elements. The powder has a mix of epoxy and polyesters, which protect the cabinet from chemicals, solvents, extreme weather, and scratches. The interior section of the cabinet generally has a pre-fabricated mounting frame to enable the transformers to be mounted either vertically or horizontally.
The Thrill of Electric Skateboards: Top Speeds and More
You may want to see also
Explore related products
They are classified by mounting type and access point/door type
CT cabinets are essential for electrical metering systems, both indoors and outdoors, and in homes and industries. They are used to protect users and operators from possible electric shocks by housing current transformers (CT). CTs convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio.
CT cabinets can be classified based on their type of mounting and access point/door type. The type of mounting depends on the nature and size of the transformers. The following are the different types of mounting:
- Wall-mounting
- Pad-mounting
- Free-standing/pedestal mounting
The access point or door type of a CT cabinet is another dimension of classification. The following are the different types of access points or doors:
- Screw cover
- Lift-off cover
- Hinged screw
- Hinged double door
- Vented double door
The doors of CT cabinets are constructed with cold-rolled sheets and must open at least 120° laterally. They must have handles that facilitate their operation and hinges that are galvanized, chromed, nickel-plated, or made of stainless steel, bronze, or aluminum. These hinges must be strong enough to rigidly secure the door of the structure.
Electric Fence Installation: Driveway Edition
You may want to see also
Explore related products
CT cabinets are used for metering current and voltage levels
CT cabinets, an essential component of electrical metering systems, are used for metering current and voltage levels. They encase current transformers (CTs), which are used for electricity metering. CTs convert primary current into a secondary current of a smaller or larger value through a certain transformation ratio. This process is necessary for protection, measurement, and other purposes.
CT cabinets are used to protect users and operators from electric shocks by setting up a physical barrier. They are made from materials such as carbon steel, galvanized iron, aluminium, or stainless steel. The use of steel enables the cabinet to be used as an earthing system in certain transformer setups. The cabinets are designed to meet safety standards set by organisations such as Underwriters Laboratories (UL) and the National Electrical Manufacturers Association (NEMA).
CT metering sockets are typically required when a certain amperage or voltage is reached. According to the Electric Utility Service Equipment Requirements Committee (EUSERC), if an application is above 200 amps, a CT will be required. In some cases, a transocket, which houses both the meter socket and CT, may be used.
The primary applications for electric meter sockets are commercial and industrial rather than residential. In commercial settings, metering accuracy and ease of installation are crucial. CT cabinets with PT (Potential Transformer) cabs are used to measure both current and voltage levels in an electrical system. This arrangement is convenient for utility and substation applications where monitoring current and voltage is critical.
Charging Your EV Without a Key: A Guide
You may want to see also
Frequently asked questions
CT stands for current transformer. A CT cabinet encases current transformers, which are used for electricity metering. They are an essential part of electrical metering systems and are used both indoors and outdoors, in homes and industries.
CT cabinets are generally made from carbon steel, galvanized iron, or stainless steel. They can also be made from synthetic materials.
CT cabinets can be classified based on their type of mounting: wall-mounting, pad-mounting or freestanding. They can also be classified by their access point or door type: screw cover, lift-off cover, hinged screw, hinged double door, or vented double door.
CT cabinets serve two main purposes. Firstly, they protect users from electric shocks by acting as a physical barrier between the user and live parts of the electrical system. Secondly, they protect the current transformers from harsh conditions.
