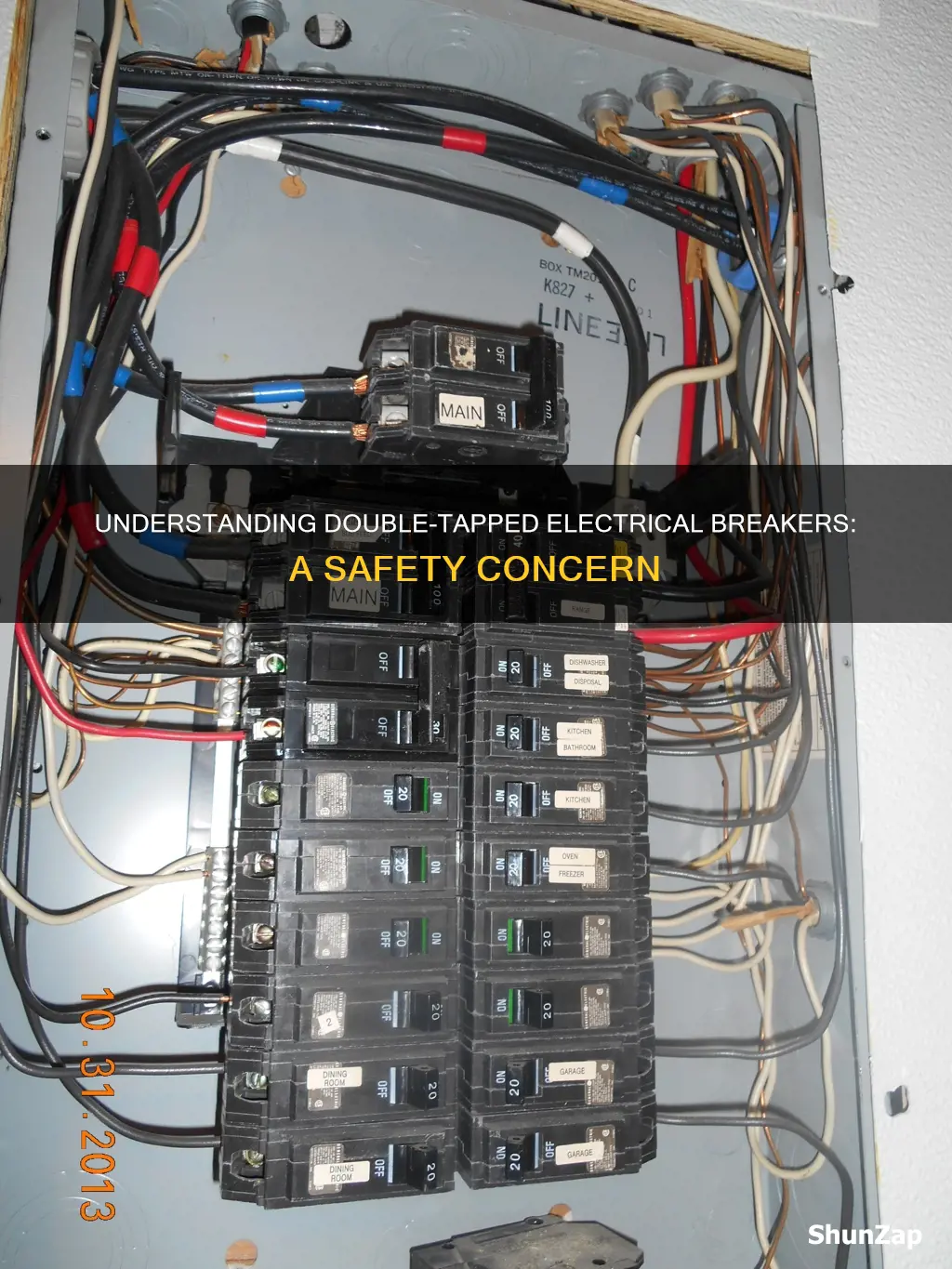

A double-tapped breaker, also known as a double-tap, is when more than one wire is connected to a circuit breaker. While some breakers are designed to accept multiple wires, others are not, and this can lead to a loose connection, an overloaded breaker, or a fire hazard. Double-tapped breakers are a common issue flagged during home inspections, and they can be easily fixed by a licensed electrician.
| Characteristics | Values |
|---|---|
| Definition | Two wires under one circuit breaker that is designed for one wire |
| Other Names | Double-tap |
| Cause | Attaching more than one wire (conductor) to a breaker |
| Risk | Loose connection, overloaded breaker, nuisance trips, fire hazard |
| Solution | De-terminate the two wires, add a short pigtail, wirenut the three together, and then attach the pigtail to the breaker |
| Cost | Minimal fee charged by an electrician |
Explore related products
What You'll Learn
Double-tapped breakers are a fire hazard
Circuit breakers are designed to protect the circuit, not what is connected to them. Double-tapping a breaker can cause a loose connection, which can lead to a spark or an arc. A spark or arc can then cause a fire. Therefore, double-tapped breakers are a fire hazard.
Additionally, an overloaded breaker could continuously trip or overheat, which can also increase the risk of a fire. While it is not likely that double-tapped breakers will burn a house down, it is still a fire hazard and should be fixed.
If you have double-tapped breakers, it is important to call a licensed electrician to fix them. The fix is relatively simple and involves detaching the two wires, adding a short pigtail, wirenutting the three together, and then attaching the pigtail to the breaker.
It is important to note that some breakers are designed to accept multiple wires, and in those cases, it is not a problem. However, it is always best to consult a professional to ensure the safety of your home.
Electricity's Intriguing Similarities: Unveiling the Common Threads
You may want to see also
Explore related products
Breakers with multiple wires are designed to accept them
A double-tapped breaker occurs when someone attaches more than one wire (or conductor) to a breaker. This is generally not allowed and can be a fire hazard under certain conditions. A loose connection can potentially spark or arc, and an overloaded breaker could continuously trip or overheat.
However, it is important to note that some breakers are designed to accept multiple wires, and in these cases, it is not considered a problem. Circuit breakers are designed to protect the circuit, not what is connected to them. Breakers with multiple wires are designed to accept them, and this can be determined by checking the breaker. Some manufacturers, such as Square D and Cutler Hammer, produce breakers that can withstand the additional amperage of multiple wires.
If you have a double-tapped breaker that is not designed for multiple wires, it can be easily fixed by detaching the wires, adding a short pigtail, connecting the wires together with a wire nut, and then attaching the pigtail to the breaker. This is a simple process, but if you don't have experience working with electrical panels, it is best to call a professional electrician.
Additionally, if there is room in the electrical panel, you can add another breaker and move one of the wires. This option may be more expensive, but it can provide a more permanent solution to the issue of double-tapped breakers.
Electrical Cord Dimensions: Understanding Wire and Cable Sizes
You may want to see also
Explore related products
Loose connections can spark or arc
A double-tapped breaker is when two or more wires are incorrectly connected to a single breaker. While some breakers are designed to accept multiple wires, most are not. Double-tapped breakers are a common issue flagged during home inspections and can be a fire hazard under certain conditions.
If a breaker is not designed for more than one wire, a double tap can create a loose connection. This is because the chances of a loose connection are much higher with multiple wires than with just one. Overheating can also occur if a breaker is overloaded.
To fix a double-tapped breaker, a small section of wire and a wire nut are needed. The three wires are twisted together, and the single wire is then connected back to the breaker. Alternatively, a larger panelboard may be required. However, only an electrician can determine if a replacement panel is necessary.
Hyundai Elantra: Electric Parking Brake Standard?
You may want to see also
Explore related products
Overloaded breakers can continuously trip
A double-tapped breaker is when two wires are connected under one circuit breaker designed for a single wire. This can cause a loose connection, leading to potential sparking or arcing, which may result in a fire. It can also cause an overloaded breaker, leading to continuous tripping or overheating. While this issue is typically not hazardous, it is essential to address it to maintain the integrity of your electrical system.
Now, let's focus on the issue of overloaded breakers continuously tripping:
To prevent breakers from tripping due to overloaded circuits, it is advisable to unplug any appliances that are not in use. Spreading out the use of high-powered appliances throughout the day can also help reduce the load on the circuit. For example, avoid using the dishwasher, iron, and microwave simultaneously.
If your breaker continues to trip despite these measures, it is recommended to call a professional electrician to assess the situation and identify the root cause. They can help determine if there is a problem with the breaker itself or if there are other issues with your electrical system.
To summarise, overloaded breakers trip to protect your electrical system from potential damage caused by excessive current flow. By addressing the overload and seeking professional help when needed, you can maintain the safety and functionality of your electrical system.
Disconnecting Honda ATV Electrical Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
How to fix double-tapped breakers
A double-tapped breaker is when two wires are connected to a single circuit breaker that is only designed to accommodate one wire. This issue is commonly flagged during home inspections and is considered a defect because it may lead to loose wires, potentially causing overheating, sparking, or arcing, which can ignite fires. While it is unlikely that double-tapped breakers will burn down a house, it is still essential to address this issue.
If you discover double-tapped breakers during a home inspection, it is recommended to hire a licensed electrician to fix them. Working with electrical components, especially inside an electric panel, can be dangerous, and even a small mistake can have severe consequences. Electricians are trained professionals who can safely and effectively resolve this problem.
However, if you have experience working with electrical panels and choose to fix double-tapped breakers yourself, there are a few methods you can use. One common approach is to add another circuit breaker to the panel and connect one of the wires to it. This solution is feasible when there is enough space in the panel for an additional breaker.
Another option is to use a pigtail connection. This method involves twisting all three wires together, capping them with a wire nut, and then connecting the single pigtail wire back to the breaker. This approach ensures that the connection is secure and reduces the risk of overheating or arcing.
It is important to note that some circuit breakers are designed to accept multiple wires, and double tapping is permissible in such cases. Before attempting any repairs, carefully inspect the breaker to determine if it is rated for multiple connections. Some manufacturers, such as Square D and Cutler Hammer, produce breakers that are explicitly designed to accommodate two wires.
Bark Collars: Electric Shock Safety for Dogs
You may want to see also
Frequently asked questions
A double-tapped breaker occurs when someone attaches more than one wire (or conductor) to a breaker. Some breakers are designed to accept multiple wires, but most are designed for one wire.
Double-tapping can lead to loose connections, which can cause sparking or arcing, potentially leading to a fire. An overloaded breaker could also continuously trip or overheat.
You can fix a double-tapped breaker by adding another breaker if there is room in the electrical panel. Alternatively, you can de-terminate the wires, add a short pigtail, wirenut the three wires together, and then attach the pigtail to the breaker. It is recommended to hire an electrician to perform these fixes.
