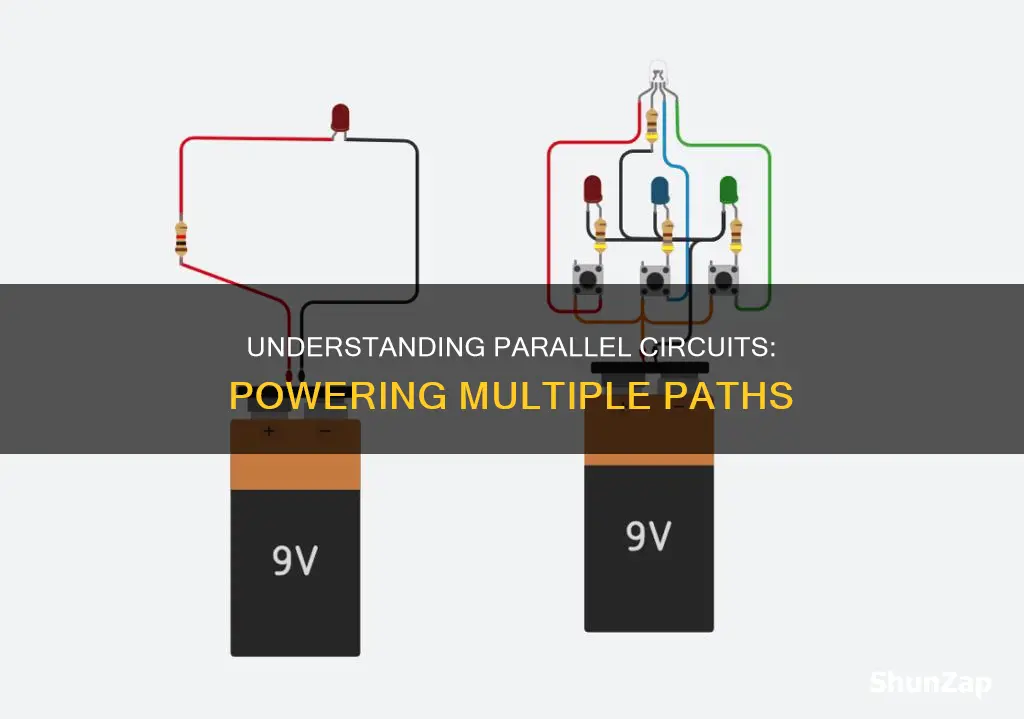

A parallel circuit is an electrical path that branches out, allowing the current to divide and flow through multiple paths. This is in contrast to a series circuit, where components are connected end-to-end, forming a single path for the current to flow. In a parallel circuit, each component is connected directly to the power source, creating its own loop or branch. This setup ensures that each component receives the same voltage, but the current may vary depending on the power requirements of each component. Parallel circuits are commonly found in home lighting systems, where each bulb is independently connected to the power source, ensuring that if one bulb goes out, the others remain functional. Understanding the behaviour of parallel circuits is crucial for designing and fixing electrical systems, especially in consumer electronics where reliability and consistent voltage are essential.
| Characteristics | Values |
|---|---|
| Definition | An electrical path that branches so that the current divides and only a part of it flows through any branch. |
| Number of electrically common points | Exactly two |
| Number of paths for current flow | Multiple |
| Voltage across each component | Same |
| Current through each component | Variable |
| Reliability | Higher than series circuits |
| Resistance | Lower than series circuits |
| Examples | Home lighting systems |
Explore related products
What You'll Learn
How does a parallel circuit work?
A parallel circuit is defined by its components being connected across the same two points, creating multiple paths for current to flow. Each component is connected directly to the power source, forming its own loop or branch. This setup allows each branch to operate independently, which is crucial in systems where a consistent voltage across components is necessary.
In a parallel circuit, the voltage across each component is the same. However, the amount of current that flows through each branch may differ. This is because when the circuit is closed, electricity can flow through multiple paths at the same time, and when the flow of electricity branches off in different directions at the nodes, the amount of current is divided.
The total current passing through the circuit is the sum of the individual currents passing through each resistor. After passing through the components, the separated currents rejoin so that the total current exiting the circuit is equal to the sum of the currents flowing through each branch.
A common example of a parallel circuit is a home lighting system. If one light bulb goes out, the others continue to work because each bulb is independently connected to the power source.
