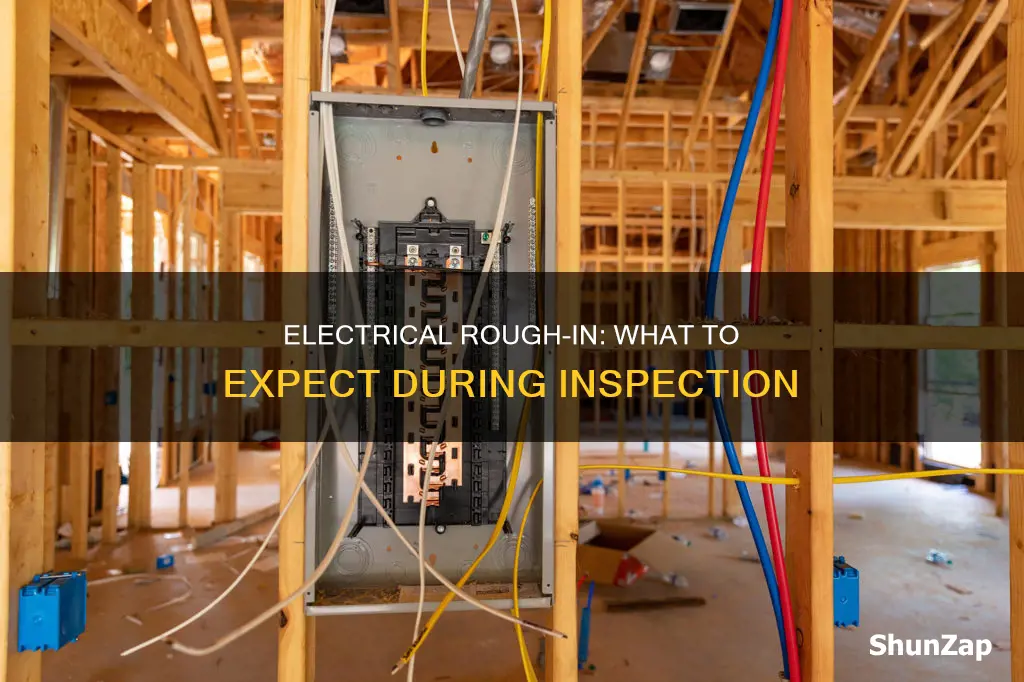

A rough-in electrical inspection is a formal check of electrical systems to ensure they are up to code and safe to use. It occurs after electrical system installation but before the construction of finishing touches, such as insulation, vapour barriers, drywall, painting, and flooring. During a rough-in inspection, inspectors verify the proper installation of electrical boxes, cables, wiring, and conduit. They check that electrical boxes are flush with the wall, large enough to accommodate wire conductors and devices, and securely fastened. Inspectors also ensure that cables are anchored correctly, labelled, and protected by metal plates from nails and screws. Homeowners are advised to use spacious electrical boxes, label wires, and tie ground wires together to increase the likelihood of passing inspection.
| Characteristics | Values |
|---|---|
| Occasion | When all electrical boxes, cables, wires, and conduit are installed, but before the walls are closed in by surfaces, insulation, vapour barrier, drywall, etc. |
| Purpose | To verify the proper installation of all outlet boxes, cables, wiring, and conduit. |
| Inspection items | - All electrical boxes are flush with the wall, large enough, and securely fastened. |
- Outlet and switch heights are consistent.
- Proper cable anchoring.
- All cables are installed, strapped, and supported as required.
- All cables have their outer jacket removed and are terminated in outlet boxes.
- All bonding connections are completed.
- Protection plates against nails/screws are installed.
- No wiring is concealed by insulation or floor, wall, and ceiling materials.
- Fire block.
- Plug holes in boxes.
- Use the correct breaker. |
Explore related products
$21.98 $24.97
What You'll Learn
The purpose of a rough-in electrical inspection
A rough-in inspection takes place after the electrical system installation but before the construction of finishing touches, such as walls or ceilings, thereby allowing easy access for the inspection of crucial system components. During this inspection, electrical inspectors verify the proper installation of all outlet boxes, cables, wiring, and conduits. Inspectors need both physical and visual access to all new electrical components, so it is important to ensure that the area is clean and organised before the inspection.
There are several specific aspects that inspectors will examine during a rough-in inspection. Firstly, they will check that all electrical boxes are flush with the wall and are large enough to accommodate the number of wire conductors and devices they will contain. The boxes should also be securely fastened. Inspectors will also measure outlet and switch heights to ensure they meet the required standards, which are typically at least 15 inches above the floor for outlets and 48 inches for switches, with allowances made for children's rooms or accessibility.
Another important aspect of the rough-in inspection is cable anchoring. Inspectors will verify that cables are properly anchored, attached to wall studs, and secured with staples no further than 8 inches from a box and at least every 4 feet thereafter. To protect the wires from penetration by drywall screws and nails, cables should be run through the centre of wall studs and protected by metal protective plates. Inspectors will also check that all cables have their outer jackets removed and are terminated in outlet boxes, and they will review how the cables are clamped and supported.
Additionally, inspectors will ensure that all bonding connections are completed at outlet boxes and that protection plates against nails and screws are installed where required. They will also verify that no wiring is concealed by insulation or floor, wall, and ceiling materials without proper authorisation. Overall, the rough-in inspection serves as a critical step in the construction process to ensure that electrical installations are safe, up to code, and constructed properly.
Best Way to Reheat Pizza in an Electric Oven
You may want to see also
Explore related products
What to expect from a rough-in electrical inspection
A rough-in electrical inspection is a formal check of important systems, such as MEP or fire safety, that occurs after system installation but before the construction of finishing touches. The goal of the inspection is to ensure that applicable electrical codes are being followed and that the installation is safe. Here are some things to expect and prepare for a rough-in electrical inspection:
Clean up the area
Before the scheduled appointment, take time to clean up the construction area. Pick up any debris and create a clear path to the new electrical installations. Allow enough space for the inspector to move around without any obstacles.
Organize the wiring
Connect all grounding wires, leaving only those that will eventually attach to devices. Ensure that no devices are connected to the new circuits when the inspector arrives. Outlets, lights, or switches must remain disconnected until approval is received.
Inspect electrical boxes
Inspectors will check to see that all electrical boxes are flush with the wall and are large enough to accommodate the number of wire conductors they will contain, along with any devices that will be installed. The boxes should be securely fastened, and the heights of outlets and switches should be consistent and in accordance with local codes.
Review cables and wires
Inspectors will review how the cables are anchored and secured. The cables should be attached to wall studs and protected by metal protective plates to prevent penetration by drywall screws and nails. They will also check that the outer jackets of the cables have been removed and that the cables are terminated in outlet boxes where required.
Verify bonding connections
All bonding connections should be completed at all outlet boxes, and a bonding conductor should be provided for the final connection where required to a wiring device, luminaire, or equipment.
Check for fire safety
Any holes or penetrations between floors or wiring passages should be blocked to prevent fires from using these openings as a source of oxygen. Typically, fire block expanding foam or regular fiberglass insulation can be used to fill these holes.
It is important to note that the specific requirements and procedures may vary depending on local codes and regulations. It is always a good idea to consult with a qualified electrician or inspector to ensure that your installation meets all the necessary standards and requirements.
Converting Binary to Hexadecimal: Electric Style
You may want to see also
Explore related products
How to prepare for a rough-in electrical inspection
A rough-in inspection is the first of two mandatory electrical inspections. It takes place after all electrical boxes, cables, wires, and conduits have been installed, but before the walls are closed up. The inspector will need to have clear access to all wire runs, so this inspection must be done before insulation is installed.
- Clean up the area: Before the inspector arrives, ensure that the space is tidy and organised. Remove any construction debris and create a clear path to the new electrical installations.
- Organise the wiring: Connect all grounding wires, leaving only those that will eventually attach to devices unconnected. Ensure that no devices are connected to the new circuits. Outlets, lights, and switches must remain disconnected until the inspector approves.
- Check electrical boxes: Inspectors will check that all electrical boxes are flush with the wall and are large enough to accommodate the number of wire conductors and devices they will contain. The box should be securely fastened, and outlet and switch heights should be consistent and comply with local codes.
- Check cable anchoring: Inspectors will check that cables are properly anchored and attached to wall studs to secure them. The first staple should be no further than 8 inches from a box, and then placed at least every 4 feet thereafter. Cables should be run through the centre of wall studs to protect them from penetration by drywall screws and nails.
- Label wires: Check local code requirements, but generally, it is reassuring for inspectors to see wires in electrical boxes labelled with circuit numbers and amperage.
- Fire block: Any holes or penetrations from one floor to the next or from one wiring passage to another need to be blocked to prevent a fire from using the hole as a breathing hole or chimney. Use fire block expanding foam or regular fibreglass insulation to fill these holes.
- Communicate with the inspector: When scheduling the inspection, ask the inspector about any specific requirements or potential pitfalls to avoid.
Understanding Electricity Connection Fee Structure
You may want to see also
Explore related products
The timing of a rough-in electrical inspection
A rough-in electrical inspection is typically conducted after the electrical system installation but before the construction of finishing touches. It is a formal check to ensure that crucial electrical components, such as electrical boxes, cables, wires, and conduits, are installed correctly and safely. This inspection must be done before the walls are closed up and any insulation, vapour barrier, drywall, or other covering materials are installed. The timing ensures that the inspector has clear access to all electrical components and wire runs from the service panel to fixtures and appliances.
During the rough-in inspection, inspectors will verify that all electrical boxes are properly installed, securely fastened, and flush with the wall. They will also check the height of outlets and switches to ensure they meet local code requirements. Inspectors will review cable anchoring to ensure cables are attached securely to wall studs, with proper spacing and protection plates to prevent penetration by screws or nails.
The rough-in inspection also includes checking that all cables have their outer jackets removed and are terminated in outlet boxes. All bonding connections must be completed, and any joints or splices in the wiring at outlet boxes should be inspected. Additionally, inspectors will confirm that fire blocks are in place to prevent the spread of potential electrical fires.
In some cases, inspectors may prefer to witness system tests, such as turning on the electricity, to check for proper functioning and identify any potential issues. It is recommended to run these tests before the rough-in inspection to avoid surprises and address any problems beforehand.
It is important to note that the rough-in inspection is usually followed by a final inspection, which occurs when the house is complete but before it is occupied. The final inspection ensures that all circuits are functioning, light fixtures are connected, and the work meets professional standards and local codes.
Jump-Starting Your Fiat Electric: A Step-by-Step Guide
You may want to see also
Explore related products
The second inspection
During the final inspection, the inspector will verify that all circuits are functioning properly and that all light fixtures have been installed and connected correctly. This inspection is typically more straightforward when a professional electrician or contractor with a good reputation conducts the electrical work. However, if you are performing the electrical work yourself, be prepared for a more thorough inspection.
To ensure a smooth final inspection, it is advisable to have a conversation with the inspector beforehand to understand their specific requirements and avoid potential pitfalls. Additionally, make sure to clean up the area and create a clear path to the electrical installations. Keep your schedule flexible on the inspection day to accommodate the inspector's needs.
It is important to understand that the goal of electrical inspections is to ensure compliance with electrical codes and to guarantee the safety of the installation. By conducting these inspections, potential hazards such as electrical fires can be prevented. While failing an inspection can be disappointing, it is an opportunity to make necessary changes and ensure the safety of the occupants.
In summary, the second inspection, or the final inspection, is a crucial step in the construction process to ensure the electrical work meets professional standards and complies with safety regulations. By working collaboratively with inspectors and adhering to electrical codes, you can enhance the safety and functionality of the space.
Understanding Residential Electrical Plans: Note Bonding
You may want to see also
Frequently asked questions
A rough-in electrical inspection is a formal check of electrical systems to ensure they are safe and up to code. It occurs after electrical systems are installed but before the construction of finishing touches like drywall, insulation, or ceilings.
A rough-in inspection occurs after a room or area has been framed, and important electrical systems and outlet boxes have been installed. It is the first of two inspections, the second being the final inspection.
Inspectors will check that all electrical boxes are flush with the wall, securely fastened, and large enough to accommodate wire conductors and devices. They will also check that cables are properly anchored, strapped, and supported, with the outer jacket removed and terminated in outlet boxes.
Before the inspection, clean up the area and remove any construction debris. Organize the wiring, connecting all grounding wires except those that will attach to devices. Ensure no devices, outlets, lights, or switches are connected to the new circuits.
The process can last several hours, depending on the size of the job and the inspector's familiarity with your work.
