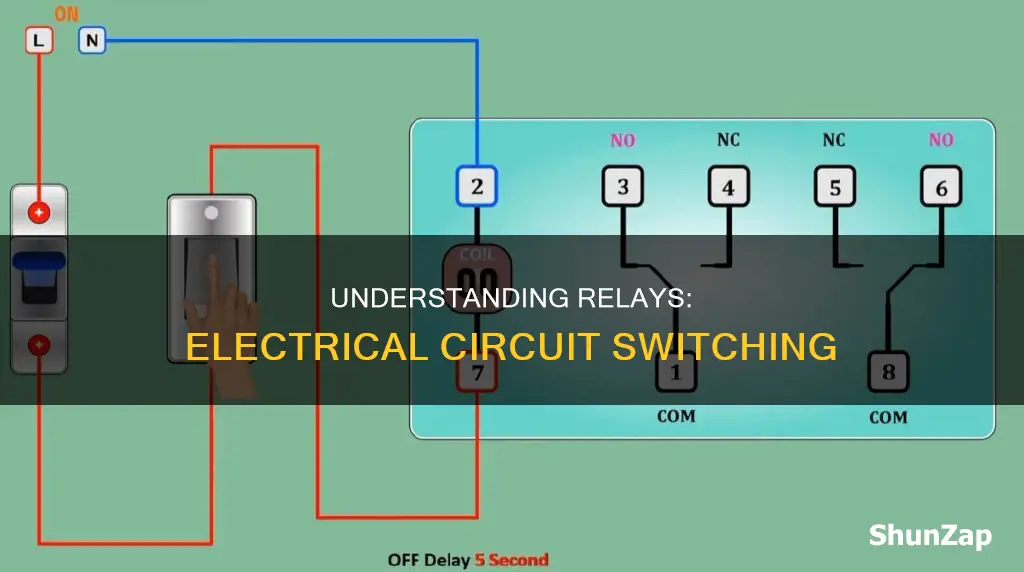

A relay is an electrically operated switch that controls the flow of electrical current between two separate circuits. It acts as a bridge or a mediator, allowing an electrical signal or current to be switched on or off in one circuit by energizing or de-energizing a coil or electromagnet in another circuit. Relays are used to control a circuit by an independent low-power signal and to control several circuits by one signal. They are commonly used in various electrical and electronic applications, including industrial automation, HVAC systems, automotive electronics, and telecommunications.
| Characteristics | Values |
|---|---|
| Definition | An electrical switch or device that controls the flow of electrical current between two separate circuits. |
| Function | Controls and switches circuits, allowing a low-power signal or circuit to manage a higher-power one. |
| Composition | A coil of wire, an armature, and one or more sets of contacts. |
| Coil | Receives an electric signal and converts it to a mechanical action. |
| Armature | The moving part of a relay that opens and closes the contacts. |
| Contacts | The conducting part of the switch that makes (closes) or breaks (opens) a circuit. |
| Types | Electromagnetic relays, solid-state relays, and reed relays. |
| Uses | Switching high-voltage loads with a low-voltage control signal, amplifying weak signals, providing isolation between circuits, and allowing for the automation of complex processes. |
| Applications | Industrial automation, HVAC systems, automotive electronics, telecommunications, and more. |
Explore related products
What You'll Learn
- Relays are electrically operated switches
- They control the flow of electrical current between two separate circuits
- They are used to protect electrical circuits from overload or faults
- They can be mechanical or electromechanical
- They are used in industrial automation, HVAC systems, automotive electronics, and telecommunications
Relays are electrically operated switches
A relay is an electrically operated switch used to control a circuit independently. It consists of a coil that receives an electric signal and converts it to a mechanical action, and contacts that open and close the electric circuit. The coil is on the energizing side, and the contacts are on the contact side. When the coil is energized, a current flows through it, creating a magnetic field. This magnetic field then causes the relay switch contacts to change position, either opening (turning off) or closing (turning on) the connection in the output circuit.
Relays are used to control a circuit by an independent low-power signal and to control several circuits with one signal. They enable a low-power signal or circuit to manage a higher-power one, providing essential isolation and protection. They are widely used in industrial automation, HVAC systems, automotive electronics, and telecommunications. For example, they trigger machinery and processes in automation and start engines and control lights in the automotive industry.
The basic principle of a relay involves an input (control) circuit and an output (load) circuit. The input circuit is activated when a voltage higher than the relay's specified pickup voltage is applied to the relay's input. The input circuit is deactivated when the voltage applied is less than the specified minimum dropout voltage of the relay. The control circuit determines when the output component is energized or de-energized.
Relays come in various forms and configurations, including electromagnetic relays, solid-state relays, and reed relays, each suited to specific applications and requirements. A simple electromagnetic relay consists of a coil of wire wrapped around a soft iron core (a solenoid), an iron yoke, a movable iron armature, and one or more sets of contacts. The armature is hinged to the yoke and mechanically linked to one or more sets of moving contacts. The armature is held in place by a spring so that when the relay is de-energized, there is an air gap in the magnetic circuit. In this condition, one set of contacts is closed, and the other is open.
The terminology applied to switches is also applied to relays. Normally open (NO) contacts connect the circuit when the relay is activated, and the circuit is disconnected when the relay is inactive. Normally closed (NC) contacts disconnect the circuit when the relay is activated, and the circuit is connected when the relay is inactive.
Understanding Electromagnetic Waves: Air Collision Mystery
You may want to see also
Explore related products
$12.59 $13.99
They control the flow of electrical current between two separate circuits
A relay is an electrically operated switch that controls the flow of electrical current between two separate circuits. It acts as a bridge or a mediator, allowing an electrical signal or current to be switched on or off in one circuit by energizing or de-energizing a coil or electromagnet in another circuit. The relay thus enables a low-power signal or circuit to manage a higher-power one, providing essential isolation and protection.
The basic principle of a relay involves an input (control) circuit and an output (load) circuit. The input circuit is the portion of a relay's frame to which the control component is connected. When a voltage or current is applied to the input circuit, it energizes the relay's coil, creating a magnetic field. This magnetic field then causes the relay's switch contacts to change their position, either opening (turning off) or closing (turning on) the connection in the output circuit.
The relay's coil is on the energizing side, and the contacts are on the contact side. When the coil is energized, current flows through the coil, creating a magnetic field. This magnetic field attracts a ferrous plate, which is part of the armature. The armature is the relay's moving part and opens and closes the contacts. An attached spring returns the armature to its original position.
Relays can have a single-pole contact (SP) or a double-pole contact (DP). An SP can carry current through only one circuit at a time, while a DP can carry current through two isolated circuits simultaneously. The maximum number of poles is 12, depending on the design of the relay. Relays are widely used in industries such as automation, telecommunications, automotive, and control systems, where they play a critical role in ensuring the safe and efficient operation of various electrical systems and devices.
Buzzing Mystery: Insects That Sound Like Electricity Revealed
You may want to see also
Explore related products
![Electromagnetic Power Relay, 8-Pin 10 AMP 110V/120V AC Relay Coil with Socket Base, LED Indicator, DPDT 2NO 2NC - MY2NJ [Applicable for DIN Rail System]](https://m.media-amazon.com/images/I/61gCqb-JjbL._AC_UY218_.jpg)
They are used to protect electrical circuits from overload or faults
A relay is an electrically operated switch that can be used to protect electrical circuits from overload or faults. It has input terminals for control signals and operating contact terminals. The switch may have multiple contacts in various forms, such as make contacts and break contacts. Relays are used to control a circuit independently, allowing for the control of several circuits by a single signal.
Relays with calibrated operating characteristics and multiple operating coils are specifically designed to protect electrical circuits from overload or faults. These relays can detect abnormal operating conditions, such as over-current, overvoltage, reverse power flow, over-frequency, and under-frequency. When an overload or fault is detected, the relay trips the circuit breaker to prevent damage.
One example of overload protection relays is in electric motors, where they monitor the current in the motor circuit and break the circuit when an overload or phase failure is detected. This prevents damage to the motor and avoids costly repairs or replacements. Overload protection relays are also used in industrial motors, offering an inexpensive way to prevent downtime caused by excessive current.
Another type of relay used for protection is the latching relay, which requires only a single pulse of control power to operate the switch persistently. Magnetic latching relays are useful when interrupted power should not affect the controlled circuits.
In modern electric power systems, protective relays are often digital instruments that provide more complex protective functions. These digital relays can emulate the functions of multiple electromechanical relays in a single device, simplifying protection design and maintenance. They can also provide advanced features such as communications interfaces, monitoring of contact inputs, and metering.
Smart Meter Risks: Are They Safe or Dangerous?
You may want to see also
Explore related products
They can be mechanical or electromechanical
A relay is an electrically operated switch that controls the flow of electrical current between two separate circuits. It acts as a bridge or a mediator, allowing an electrical signal or current to be switched on or off in one circuit by energizing or de-energizing a coil or electromagnet in another circuit. Relays are commonly used in various electrical and electronic applications, including industrial automation, HVAC systems, automotive electronics, and telecommunications. They enable a low-power signal or circuit to manage a higher-power one, providing essential isolation and protection.
Relays consist of a coil, which generates an electromagnetic field when energized, and contacts that open and close the electric circuit. The coil is on the energizing side, and the contacts are on the contact side. The armature is the moving part of the relay, opening and closing the contacts. An attached spring returns the armature to its original position.
There are two main types of relays: mechanical relays and electromechanical relays. Mechanical relays have physical spacing between the coil and the contact component to achieve the appropriate level of insulation. They also have fixed and movable contacts that open and close the control circuit. Electromechanical relays, on the other hand, use an electromagnet to open or close the contacts. They are further categorized into two types: machine control relays and general-purpose relays.
Machine control relays are heavy-duty relays used to control starters and other industrial components. They are more expensive than general-purpose relays but offer expandable functionality through the addition of accessories. General-purpose relays are economical, easy to replace, and allow for a wide range of switch configurations. They can control currents ranging from 2A to 30A and operate with common voltages such as 12V, 24V, 48V, 120V, and 230V.
Analog-to-Digital: Electrical Signal Conversion Explained
You may want to see also
Explore related products
They are used in industrial automation, HVAC systems, automotive electronics, and telecommunications
A relay is an electrically operated switch that plays a crucial role in controlling electrical circuits. It has a set of input terminals for receiving control signals and a set of operating contact terminals. Relays are widely used in industrial automation, HVAC systems, automotive electronics, and telecommunications to control and protect electrical circuits.
In industrial automation, relays are essential for improving production efficiency and protecting industrial circuits. Time relays, for instance, are commonly used in automated assembly lines to control the interval time and sequence of material transmission on conveyor belts. They ensure that materials are sent to workstations at regular intervals, preventing material accumulation or shortage and maintaining a smooth production flow. Relays also work in conjunction with sensors to enhance and modify the production mode of industrial production lines.
In HVAC (heating, ventilation, and air conditioning) systems, relays are crucial for regulating electricity between control panels and various system components. They act as electromechanical switches, utilizing electromagnets to control physical contacts. Relays control the flow of electricity to components such as compressors, fans, and heating elements, ensuring proper temperature management and overall system functionality. When a desired temperature is achieved, relays interrupt the electricity flow to conserve energy.
In automotive electronics, relays are employed to perform various functions. For example, glow plug relays provide power to glow plugs in diesel engines, while fuel injection relays supply power to fuel injectors in petrol engines based on signals from the Engine Control Unit (ECU). Timer relays are used in circuits for heated rear windows, and flasher relays operate indicators and hazard lights. These relays can be linked to perform logical operations and offer cost-effective solutions for aftermarket projects.
Additionally, relays find applications in telecommunications, particularly in early long-distance telegraph circuits as signal repeaters. They were also used in telephone exchanges and early computers to execute logical operations.
