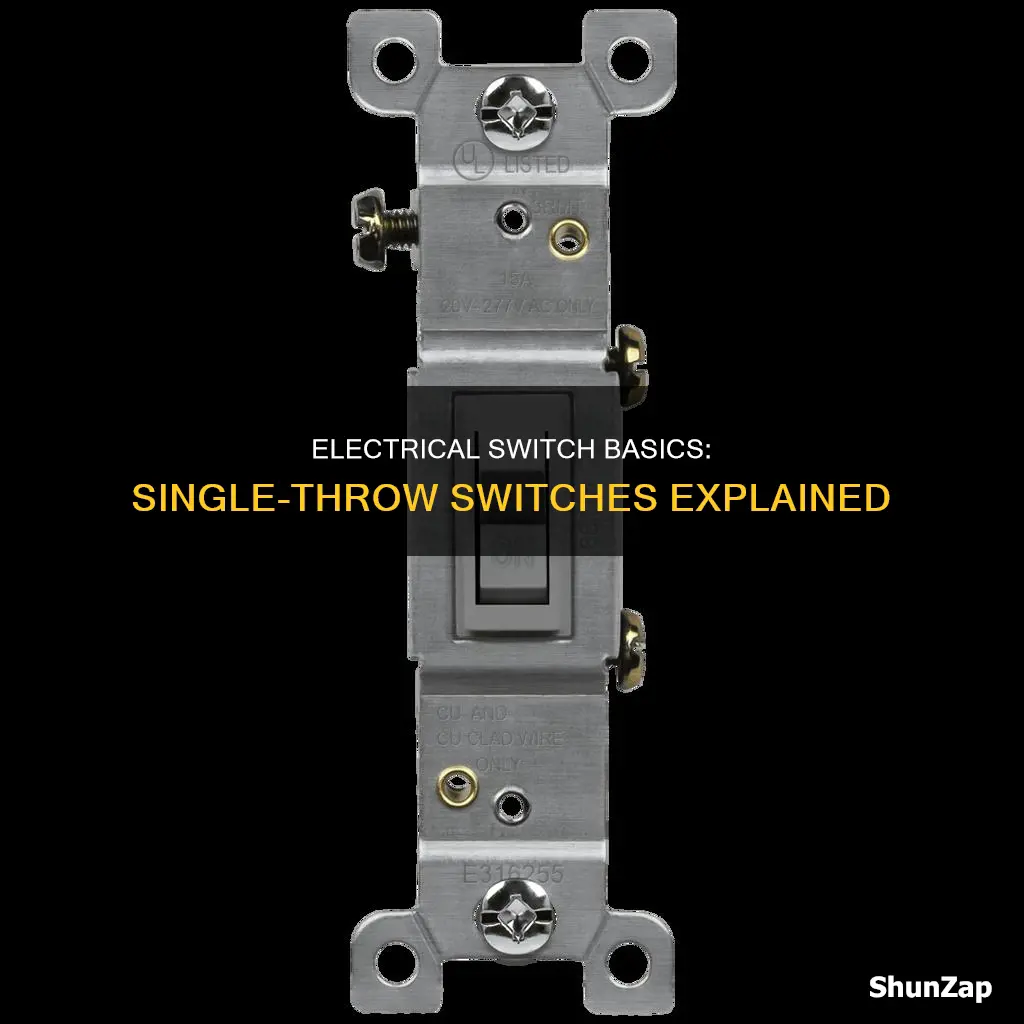

A single throw electrical switch is a type of switch that operates with a single power source. It has one input (line) and one output (load). When the switch is turned on, electricity flows freely through it without disrupting the circuit it is connected to. Single throw switches are typically used to connect and disconnect a single power source to a load. They are also used to isolate power to specific machinery, as an emergency stop, or to disconnect power in electrical systems. Single throw switches are simpler to operate and less expensive than double throw switches.
| Characteristics | Values |
|---|---|
| Pole | Single |
| Number of circuits controlled | 1 |
| Number of input and output | 1 each |
| Number of contact points | 1 |
| Number of positions | 2 ("on" or "off") |
| Wiring | Wired either normally open or normally closed |
| Type of wiring | Can be latching or momentary |
| Use | Used for applications where on/off is required |
| Use case | Used when the load is fed by only one source |
| Safety | Can be used as a safety switch to de-energize circuits in an emergency |
Explore related products
What You'll Learn
Single-throw switches are used when the load is fed by a single source
Single-throw switches are commonly used in applications where an on/off configuration is required. They are simpler and more common in everyday life, often used to connect two source terminals to their respective output terminals. For example, a SPST switch can be used to isolate power to specific machinery or as an emergency stop. They are also useful in situations where you need to connect and disconnect a single power source to a load.
In contrast, a double-throw switch can close a circuit in two positions and has a neutral position where neither circuit is activated. This type of switch is used when the load is fed by two sources, such as utility power and a generator, but not simultaneously. Double-throw switches are more complex and used for more complicated applications.
Single-throw switches are a simple and safe option for controlling electricity in various settings. They are often used in conjunction with Camlock Connection Switches (CCS) to provide on/off switching capabilities, helping to prevent electrical hazards and protect users.
The Cost of Electricity in Costa Rica
You may want to see also
Explore related products
![[50 Pack] BESTTEN Single Pole Decorator Wall Light Switch with Wallplate, 15A 120/277V, On/Off Rocker Paddle Interrupter, UL Listed, White](https://m.media-amazon.com/images/I/71pklf7G38L._AC_UL320_.jpg)
$26.99 $28.49
They are more common in everyday life
A single throw electrical switch is a type of switch that can either be connected or disconnected. It controls just a single circuit and has one input and one output. This means it has two states: "on" or "off".
Single throw switches are more common in everyday life and can be used to describe the majority of switches that people interact with regularly. They are simple switches used for applications where an on/off function is required. They are often used to connect two source terminals to their respective output terminals.
Single throw switches are also used as safety switches to prevent electrical hazards and protect people from accidents. For example, they can be used to isolate power to specific machinery, as an emergency stop, or to disconnect power in electrical systems. They are commonly found in settings that require a large amount of power, such as concerts, factories, and construction sites.
Single throw switches are also more affordable and simpler to operate than double throw switches, as they often include fewer moving parts. They are excellent for situations where you need to connect and disconnect a single power source to a load.
Electric Scooters: Aurora's Sidewalk Rules Explored
You may want to see also
Explore related products
They are simpler and cheaper than double-throw switches
Single-throw electrical switches are a type of switch where the "pole" refers to the number of separate circuits that the switch can control. Single-pole switches control just one circuit and have one input and one output. They can be wired to be normally open or normally closed and can be either latching or momentary. Single-pole switches are simpler and cheaper than double-throw switches because they have fewer moving parts and are easier to operate. They are also more common in everyday life and can be used to describe the majority of switches that people regularly interact with. Single-throw switches are often used in applications where an on/off configuration is required.
Single-throw switches can be used in safety applications to prevent electrical hazards and protect people and equipment from harm. They can instantly open or close circuits, providing on/off switching capabilities to ensure safety. Single-throw switches are also used in wall-mountable designs, making them easy to install.
In contrast, double-throw switches can connect with multiple sources and draw power from either one. They have two possible output connections and can switch between two power sources, such as utility power or generator power. However, double-throw switches cannot draw power from both sources simultaneously. They are more complex switches used for more complicated applications.
Single-throw switches are ideal for situations where a single power source needs to be connected or disconnected from a load. For example, they can be used to isolate power to specific machinery or as an emergency stop. On the other hand, double-throw switches are used when the load is fed by either of two sources but not both at once, providing flexibility in power source selection.
Overall, single-throw switches offer simplicity, ease of operation, and cost-effectiveness, making them a versatile and widely used option for controlling single circuits in various applications, including safety switches and everyday switches.
Astrocytes: Electrical Insulation for Neurons?
You may want to see also
Explore related products
They can be used as an emergency stop
A single-throw electrical switch is a simple device with a straightforward function: it controls the flow of electricity through a circuit by opening or closing the contact points. This basic function has a wide range of applications, one of which is as an emergency stop mechanism. In this context, a single-throw switch can be an essential safety feature in a variety of electrical systems. When used as an emergency stop, the single-throw switch is typically wired in the "normally closed" position, which means that under regular operating conditions, the circuit is complete, and electricity flows through it. However, in the event of an emergency or when the system needs to be quickly shut down, the single-throw switch can be manually operated to open the circuit and cut off the power. This immediate interruption of power can be crucial in preventing damage to equipment, avoiding hazardous situations, or even saving lives.
For example, in industrial machinery, a single-throw switch can be used as an emergency stop button. When pressed, the switch opens the circuit, immediately cutting power to the machinery and stopping its operation. This can be vital to prevent further damage or injury if something goes wrong with the machine's operation. Similarly, in a laboratory setting, a single-throw switch could be employed as an emergency power cutoff. In the event of an electrical fault or a dangerous experiment going awry, flipping the switch would instantly disconnect the power supply, helping to minimize risks. This application of single-throw switches is particularly useful in environments where quick responses are necessary to ensure safety.
Single-throw switches used as emergency stops are also valuable in residential settings. For instance, a single-throw switch could be installed as a kill switch for the entire home's electrical supply. In the event of a fire or other emergency, activating this switch would immediately shut off power to the whole house, reducing potential fire spread or electrical hazards. On a smaller scale, single-throw switches could be used as emergency stops for specific appliances or systems within the home, such as a garage door opener or a pool pump. This would allow for quick and easy isolation of power to those specific systems when needed.
The use of single-throw switches as emergency stops is also prevalent in automotive applications. Many vehicles have a single-throw switch that, when activated, cuts power to the fuel pump or ignition system, bringing the car to a safe and controlled stop. This feature can be especially useful in emergency situations or when the vehicle needs to be quickly immobilized. Additionally, single-throw switches can be employed in racing cars to control specific functions, such as turning off the engine during pit stops or activating a fire suppression system in the event of a fire.
The versatility and reliability of single-throw switches make them ideal for emergency stop applications across a wide range of industries and settings. Their simple design and functionality ensure that they can be relied upon to work as intended, even in high-pressure or emergency situations. Whether in industrial, residential, or automotive contexts, single-throw switches provide a critical safety function by allowing for the rapid shutdown of electrical systems when necessary. Understanding the role of single-throw switches in emergency stop scenarios highlights their importance in maintaining the safety and functionality of electrical systems.
Upgrading Your Shed's Electrical: A DIY Guide
You may want to see also
Explore related products
$2.69 $3.23
Single-throw switches have two states: on or off
Single-throw switches are a basic method for opening and closing an electrical circuit. They are simple switches that can be used for applications where an on/off configuration is required. Single-throw switches have two states: on or off. When the switch is in the "on" position, it closes the circuit, allowing electricity to flow. In the "off" position, the circuit is open, and electricity cannot flow.
Single-throw switches are also known as Single Pole Single Throw (SPST) switches. The pole refers to the number of separate circuits that the switch can control. In the case of a single-pole switch, it can only control one circuit. These switches have one input and one output.
SPST switches are commonly used in applications where only one power source is available, such as normal utility power. They are often used in everyday life and can be found in most electrical devices and appliances. For example, a light switch in your home is typically a single-throw switch, controlling the flow of electricity to the light fixture.
Single-throw switches are simple and easy to use, but they have limitations. If you have multiple power sources or need more complex control over your circuits, you would need to use a different type of switch, such as a double-throw or double-pole switch.
Understanding the fundamentals of switch poles and throws is important when designing electrical circuits. Different types of switches have various pole and throw configurations, and choosing the right switch for the specific application is crucial to ensure proper functionality and safety.
Tanzania's Power Plug: What You Need to Know
You may want to see also
Frequently asked questions
A single-throw electrical switch is a safety switch that operates with a single power source. It has one input (line) and one output (load). When the switch is turned on, electricity flows freely through it so as not to disrupt the circuit it is connected to.
A single-throw switch will close a circuit in one position, whereas a double-throw switch will close a circuit in two positions. A double-throw switch has a neutral position where neither circuit is activated. Single-throw switches are used when the load is fed by only one source, while double-throw switches are used with two sources.
A single pole switch controls just one circuit and has one input and one output. It is either connected or disconnected and has two states: "on" or "off".
Single-throw switches are used to isolate power to specific machinery, as an emergency stop, or to disconnect power in electrical systems. They are also used to protect against electrical hazards and in settings that require a large amount of power, such as concerts, factories, and construction sites.
