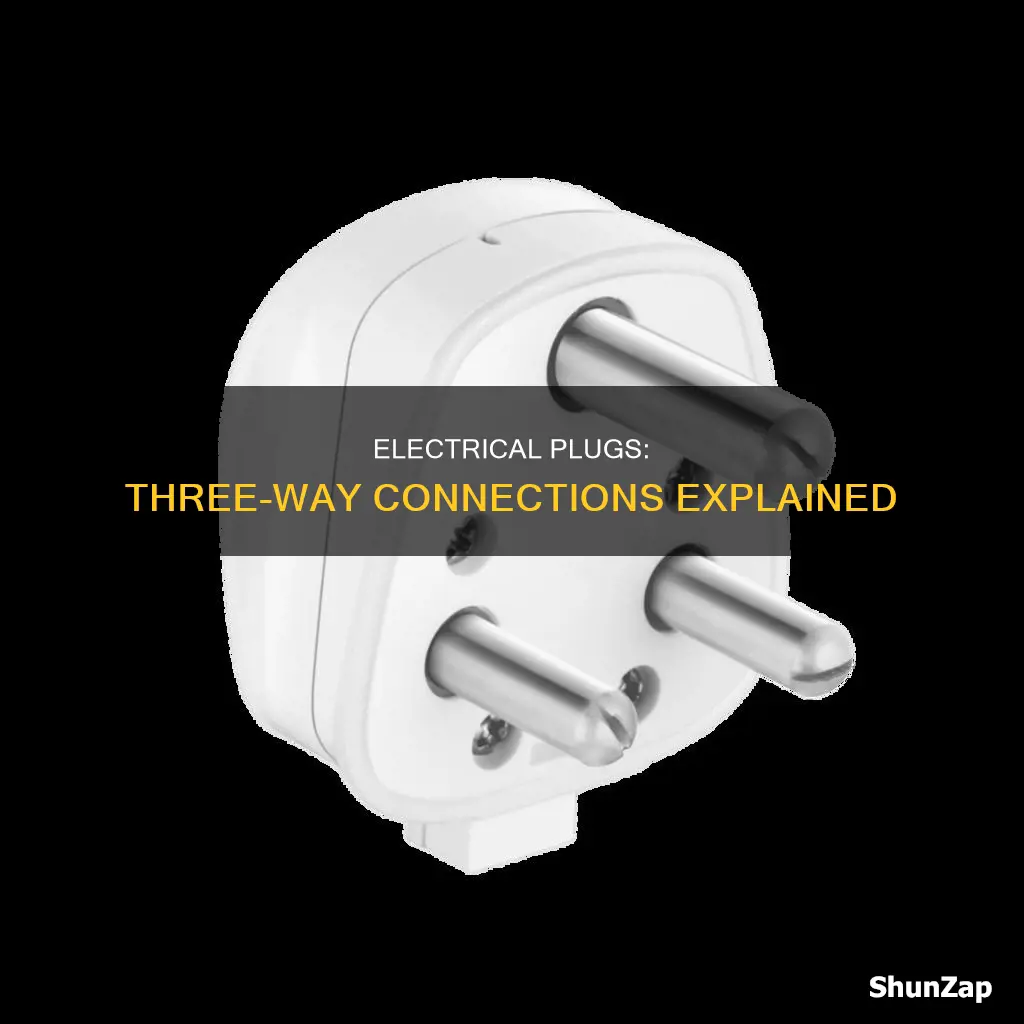

Three-way electrical plugs, also known as three-prong plugs, are used to connect electrical components in vehicles and appliances with metal casings. They are designed to safely supply electricity by providing a grounding mechanism that protects against power surges, electrical faults, and electric shocks. The first pin is for power supply, the second for ground connection, and the third for data transmission or other specific purposes. These plugs are commonly used in automotive wiring for systems like lighting, electronics, and engine control, ensuring a secure and stable electrical connection.
Characteristics and Values of a Three-Way Electrical Plug
| Characteristics | Values |
|---|---|
| Number of Prongs/Pins | Three |
| Function | To provide a secure and stable electrical connection |
| Application | Used in automotive wiring to connect electrical components in vehicles |
| Safety | Protects against interference, short circuits, and unwanted resistance |
| Grounding | The third prong is a grounding safety feature that protects from electric shock and electrical malfunctions |
| Compatibility | Only compatible with three-prong outlets, adapters are not recommended for long-term use |
| Usage | Recommended for high-voltage or metal-cased equipment |
Explore related products
![K KASONIC - 3-Outlet Grounding Adapter, [UL Listed] Plug Extender, Heavy-Duty Grounded Power Tap - 3 Pack (Black)](https://m.media-amazon.com/images/I/81IlLpYKTzL._AC_UL320_.jpg)
![[UL Listed] Cable Matters 3-Pack 3 Way Plug Adapter 15A 1875W, 3 Prong 3 Outlet Adapter, Power Splitter Plug Outlet, 3 Way Electrical Splitter, Multicolored (White, Gray, Orange)](https://m.media-amazon.com/images/I/71CuygCpTiL._AC_UL320_.jpg)
What You'll Learn
Three-prong plugs and electric shock prevention
Three-prong plugs are equipped with an additional grounding or earthing pin, which is an essential safety feature in electrical installations. This third pin is connected directly to the electrical system's ground wire and is placed below the hot and neutral pins.
The ground wire's role is to transmit any excess electrical energy directly into the ground. For example, during a lightning strike, the ground wire prevents every device and appliance in the circuit from burning or exploding.
In the case of a wiring fault or power surge, the ground pin provides a safe path for stray electricity, diverting excess current into the ground. This prevents electrical shocks and appliance damage. The grounding mechanism is particularly important for high-power or sensitive electronics and metal-cased equipment, where a loose wire can come into contact with the metal casing, delivering a lethal shock to anyone who touches it. With the ground wire in place, the electricity from the hot wire is transmitted to the ground, tripping the circuit breaker and shutting down the appliance safely.
While two-prong plugs are safe to use with devices that don't have a metal casing, three-prong plugs are recommended for new installations or when upgrading electrical systems to maximise safety and protect electronics. Adapters can be used to connect three-prong plugs to two-prong outlets, but these are not recommended for long-term use as they disable the safety function of the ground prong.
Switch Basics: Electrical Flow Control
You may want to see also
Explore related products
Grounding and circuit breakers
A three-way electrical plug features three prongs. The right slot, which is narrower, is for the hot wire, while the left slot, which is wider, is for the neutral wire. The third prong is a safety feature that connects the device directly to the ground wire. This wire transmits any excess electrical energy into the ground, preventing the electrical circuit from overloading.
Grounding is the process of creating a connection between an electrical circuit and the earth or a conductive surface. This connection allows excess electrical energy to be transmitted safely into the ground, preventing electrical shocks, fires, and equipment damage. In the context of a three-way plug, the third prong is connected to the ground wire, which serves as a safe pathway for excess electricity.
Circuit breakers are like switches that automatically open or disconnect a circuit when faults or overloads occur. They are essential safety devices that help prevent electrical fires and equipment damage. When a circuit breaker trips, it interrupts the flow of electricity, protecting the circuit and connected appliances.
In a home electrical system, grounding wires run parallel to the hot and neutral wires. These grounding wires are typically made of bare copper and are connected to every device and metal electrical box. They terminate in a grounding bar in the main service panel, which is then connected to a rod deep underground outside the home. This system provides an alternate pathway for electrical current in the event of breakdowns, loose wire connections, or damage, helping to prevent electrical fires and shocks.
Hawaiian Electric's Monopoly: Controlling the Energy Sector
You may want to see also
Explore related products
![K KASONIC - 3-Outlet Grounding Adapter, [UL Listed] Plug Extender, Heavy-Duty Grounded Power Tap - 3 Pack (Orange)](https://m.media-amazon.com/images/I/81UJCS+5x8L._AC_UL320_.jpg)
![[UL Listed] Cable Matters 3-Pack 3 Way Plug Adapter 15A 1875W, 3 Prong 3 Outlet Adapter, Power Splitter Plug Outlet, 3 Way Electrical Splitter, Black](https://m.media-amazon.com/images/I/81WMzK05j2L._AC_UL320_.jpg)
Two-prong plugs and safety
A three-way electrical plug is one that has three prongs. The third prong on a plug is a safety feature that protects users from electric shock and prevents electrical faults and fires. It is also known as a grounding or earthing pin.
Two-prong plugs are still safe to use and are the standard household plug in many regions. They are typically found in older homes and are suitable for devices without metal casing. They are also used for low-power or double-insulated devices. However, they do not include a grounding mechanism, which makes them less safe than three-prong plugs.
The grounding wire in a three-prong plug is an extra safety measure that prevents serious electrical hazards. It protects your home from shocks and fires by redirecting excess electricity outside in the event of a power surge. This is done by transmitting the excess electricity into the ground wire, which trips the circuit breaker.
Two-prong plugs do not have this safety feature, so a power surge can cause severe electrocution and damage to electronics and appliances. It can also increase the risk of electrical fires as the excess electricity can enter the walls and flooring of your home.
If you have two-prong outlets in your home, it is recommended that you replace them with three-prong models to enhance safety and protect your electronics and appliances.
Reviving Old, Dry Electric Cables: A Simple Guide
You may want to see also
Explore related products
![[UL Listed] Cable Matters 3-Pack 3 Way Plug Adapter 15A 1875W, 3 Prong 3 Outlet Adapter, Power Splitter Plug Outlet, 3 Way Electrical Splitter, White](https://m.media-amazon.com/images/I/61RrEx-QbzL._AC_UL320_.jpg)
Three-prong plugs in automotive wiring
Three-prong plugs are an essential component in the safe operation of automotive electrical systems. They are designed to supply electricity safely to various devices and appliances, including those found in vehicles. The third prong on these plugs serves as a critical safety feature, providing grounding or earthing.
In automotive wiring, three-prong plugs are commonly used for high-voltage or metal-cased equipment. The grounding mechanism ensures that any excess electricity is safely diverted, reducing the risk of electrical shock or appliance damage. This is especially important in vehicles, where electrical faults can lead to hazardous situations.
When it comes to automotive lighting, three-prong plugs are often utilised for LED lighting solutions. These plugs provide a secure connection, ensuring that the lights receive a stable power supply. Additionally, three-prong adapters and extensions are available to accommodate different lighting setups and customisations.
It is worth noting that while two-prong plugs are still safe to use in some applications, they lack the grounding mechanism offered by three-prong plugs. In the automotive context, where electrical stability and safety are crucial, three-prong plugs are generally preferred to ensure compliance with safety standards and building codes.
Consulting a licensed electrician or a specialist in automotive electrical systems is always recommended when dealing with three-prong plugs in automotive wiring. They can advise on the appropriate plugs for specific applications and ensure that installations meet the necessary safety standards.
Bonding Your Pool: Electrical Safety Essentials
You may want to see also
Explore related products
![[UL Listed] Cable Matters 3-Pack 3 Outlet Wall Adapter (Grounded Cube Tap, Outlet Splitter, 3 Way Plug Adapter, 3-Prong Power Splitter), White](https://m.media-amazon.com/images/I/61gVIsANQDL._AC_UL320_.jpg)
Safety standards and building codes
Electrical plugs are designed to ensure the safe transmission of electricity from the source to the appliance. The standard electrical plug will differ in its number of pins, voltage and current specifications, depending on the region and its safety standards.
The safety of electrical plugs is ensured by their compliance with various safety standards and building codes. These standards dictate the design and usage of electrical plugs, including the number of prongs and the voltage specifications. For example, in North America, plugs adhere to the National Electrical Code (NEC) and Canadian Electrical Code (CEC), which mandate the use of Type A and Type B plugs with grounding pins. This is to prevent electric shocks and ensure proper grounding of appliances.
The International Electrotechnical Commission's (IEC) standard IEC 60906-1 is prevalent in Europe, where Type C plugs are used with two round pins for a different voltage of 230 volts AC at 50 Hz. The UK has its own standard, Type G plugs, which include specific safety features like fuses and shutters to protect against electrical hazards. China's plug types adhere to GB standards, using Type A, Type C, and Type I plugs, with Type I including an earth pin for higher-power appliances.
The National Electrical Code (NEC) in the US has required grounded receptacles in all locations of the home since 1974. This was preceded by Underwriters Laboratories mandating three-prong plugs on major appliances for safety in 1969. The NEC is updated every three years, with new revisions published by the National Fire Protection Agency (NFPA). Compliance with these codes helps to minimize liability and prevent electrical accidents and costly repairs.
In modern construction and new installations, three-slot grounded outlets are required to facilitate the use of grounded plugs and maintain electrical safety. The extra prong on a three-pronged plug ensures equipment grounding, offering protection against accidental faults and complying with international safety standards like IEC and UL. Three-pronged plugs are essential for high-wattage appliances and sensitive electronic equipment, as they provide a safe path for stray electricity in the event of a short circuit, faulty insulation, or electrical surges.
It is important to note that using adapters or altering plugs or outlets to bypass the need for three-pronged plugs can be hazardous and is illegal in some jurisdictions. Instead, it is recommended to consult with certified electrical professionals and use UL-listed plugs, cords, and adapters to ensure safety and compliance with local codes.
Sound Waves to Electrical Signals: The Science Behind It
You may want to see also
Frequently asked questions
A three-way electrical plug is a plug with three prongs or pins. The third prong is a safety feature that connects to the electrical system's ground wire, preventing electrical malfunctions and protecting users from electric shock.
Two-pronged plugs are typically used for devices with lower power requirements and those without metal casing. Three-pronged plugs are used for high-voltage or metal-cased equipment, providing an additional safety measure.
The first prong is responsible for the power supply, the second for the ground connection, and the third for data transmission or other specific purposes.
