A whip, also known as a power whip or cable whip, is a type of electrical cable used to connect a building's main power supply to electrical components such as computers and other devices in offices, or HVAC (heating, ventilation, and air conditioning) units. Whips are pre-assembled electrical conduits that include conductors and connectors, simplifying the installation process by providing a flexible, safe, and efficient solution for routing electrical power. They are commonly used by electricians in the construction industry to connect equipment and provide insulation and grounding, reducing the risk of electric shock when working on live circuits.
| Characteristics | Values |
|---|---|
| Definition | A pre-assembled electrical conduit that includes conductors and connectors |
| Other Names | Power whip, cable whip |
| Use | Connects electrical equipment, such as a building's main power supply to its electrical components, or an air conditioning or heating unit to an electrical junction box |
| Composition | Flexible metal conduit, insulated conductors, connectors |
| Compliance | Manufactured in compliance with relevant electrical codes and standards |
| Safety | Provides insulation and grounding, reducing the risk of electric shock |
| Length | Variable, depending on the distance between the electrical box and the unit |
| Weatherproofing | Available in a weatherproof version for outdoor installations |
Explore related products
What You'll Learn
A whip is a pre-assembled electrical conduit
A cable whip is used to secure and fasten electrical cables in place when they are connected to outlets or other electrical components. It consists of a length of metal, typically steel or copper, with a loop at one end and a hook at the other. The loop is placed around the electrical cable, and the hook secures the cable to the desired location. This two-part mechanism ensures that the cable does not slip out and remains firmly in place.
Whips are also used to connect two pieces of electrical equipment, such as a switch and a lamp. They provide insulation and grounding, making it safer for electricians to work on live circuits without the risk of electric shock.
In addition to the traditional cable whip, there are also power whips, which are larger electrical conduits that can handle much higher electrical loads. Power whips are often used in office settings with multiple computers or IT equipment that require a substantial amount of energy. They are typically installed under flooring to remain out of sight. Power whips can prevent power overloads, reducing the risk of electrical fires and protecting the electrical grid of the building and the company.
Best Electric Pressure Washers: Power and Performance
You may want to see also
Explore related products
It connects fixed-in-place devices to modular assets
A power whip, also known as a base power infeed or base feed module, is a cable that connects fixed-in-place devices to modular assets. In other words, it is used to convert a fixed-in-place device to a modular asset. In offices, it connects the building's main power supply to the electrical system contained within the panels of cubicles or workstations, delivering electricity to computers, phones, and other devices. The first step in installing a power whip is to ensure that the furniture is properly installed and positioned near a power source.
Power whips are also used in data centers for modular equipment connectivity. They connect the main power supply to the electrical components of a building, office, or large data center. IEC power whips, for example, are designed based on standards set by the International Electrotechnical Commission, ensuring safety and efficiency in voltage systems worldwide.

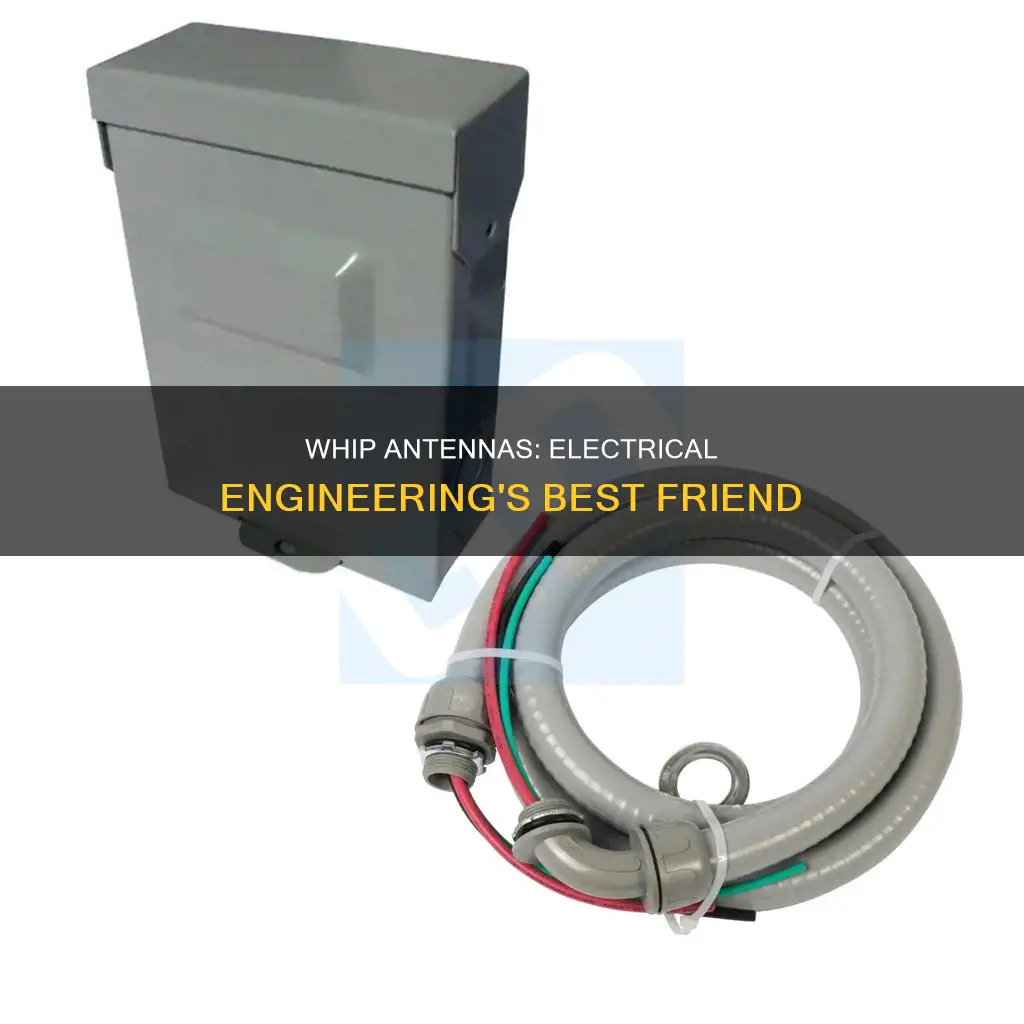

In the context of HVAC (Heating, Ventilation, and Air Conditioning) systems, an electrical whip is used to connect the outdoor condenser unit to the electrical panel or disconnect box. It simplifies the installation process by providing a flexible solution for routing electrical power from the source to the unit. The whip is typically made of flexible metal conduit, allowing for easy bending and positioning. It comes pre-assembled with conductors (wires) and connectors, ensuring correct sizing and termination of the wiring.
In the construction industry, electricians use cable whips to secure the ends of electrical cables when connecting them to outlets or other electrical components. A cable whip consists of a length of metal, usually steel or copper, with a loop at one end and a hook at the other. The loop is placed around the electrical cable, and the hook secures the cable in place, preventing it from slipping out. This tool is essential for ensuring safe and secure connections, reducing the risk of accidents caused by faulty electrical wiring.
Cutting Office Electricity Bills: Simple Tricks to Save Big
You may want to see also
Explore related products
Whips are used in data centres for connectivity
A power whip is a cable that converts a fixed-in-place device to a modular asset. In offices, it delivers power to computers and other devices. In the context of data centres, power whips are used for connectivity and are specifically designed for connection. They connect the building's main power supply to the electrical components of a data centre.
Data centre power whips are also known as PDU whips, referring to their connection of a primary power source to a power distribution unit (PDU). This process brings power to rows of racks or cabinets in a data centre. The PDU whip has a "whip tail" that is hardwired into a breaker on the power panel, with the other end being a connector that plugs into the PDU.
There are various types of data centre power whips, including IEC power whips, which are designed based on standards set by the International Electrotechnical Commission (IEC). These IEC power whips are heavy-duty cables that can fit voltage systems worldwide and are ideal for high-voltage systems. NEMA power whips are another type that is traditionally the standard for power distribution in data centres across North America, with voltage ratings between 125 and 600 volts.
RussellStoll power whips are also available, which connect only to other RussellStoll devices. They allow for a higher flow of current at a lower temperature operation. Power whips can be pre-assembled to reduce installation time and costs, and they also improve safety by distributing electricity more efficiently.
Easy Fix: Modernize Old Electrical Plugs
You may want to see also
Explore related products
They are manufactured to comply with electrical standards
Electrical whips, also known as power whips, are manufactured to comply with relevant electrical standards and codes. These standards are set by organisations such as the International Electrotechnical Commission (IEC) and the National Electrical Manufacturers Association (NEMA). Compliance with these standards ensures safety, regulatory compliance, and efficiency.
IEC power whips, for example, are designed based on worldwide standards for electrical and electronic technologies set by the IEC. This ensures that these heavy-duty electrical whip connector cables can be used safely and efficiently across different voltage systems. Similarly, NEMA electrical whips are traditionally the standard for power distribution in data centres across North America, with voltage ratings between 125 and 600 volts and service effective from 15 to 60 amps.
Another example of compliance with electrical standards is the RussellStoll whip, a watertight electrical whip connector with a pin and sleeve design that meets safety standards and regulations. These whips are rated for volts and amps to prevent hazardous mismatching, ensuring a safe and effective electrical connection.
In addition to these specific standards, electrical whips are also manufactured to comply with local electrical codes and regulations. When installing an electrical whip, it is crucial to follow these local codes and the manufacturer's specifications to ensure safety and regulatory compliance. This includes selecting the appropriate whip length to accommodate different installation scenarios and ensuring that the whip is correctly sized and terminated.
By adhering to these electrical standards and regulations, manufacturers of electrical whips can provide a safe, efficient, and compliant product for use in various applications, including data centres, offices, and HVAC systems.
A Simple Guide to Replacing Your Electrical Socket
You may want to see also
Explore related products
Cable whips are tools to secure electrical cables
Cable whips are tools used to secure electrical cables and prevent them from coming loose. They are commonly used by electricians and other tradespeople in the construction industry, especially on urban construction sites. Cable whips are essential for connecting electrical equipment safely and securely. They provide insulation and grounding, making it safer for electricians to work on live circuits without the risk of electric shock.
A cable whip is typically made of metal, often steel or copper, with a loop at one end and a hook at the other. The loop is placed around the electrical cable, and the hook secures the cable to the outlet or another electrical component. This design ensures that the cable is firmly held in place and will not slip out.
The term "cable whip" has been used in electrician construction for over a century, originating in America. It initially referred to a flexible electrical cable with a connector on one end, used to connect two pieces of electrical equipment, such as a switch and a lamp. Today, cable whips are still important tools for electricians, helping to prevent accidents and injuries caused by faulty electrical wiring.
In addition to their traditional use, cable whips are also known as "power whips" when used in office spaces or buildings with heavy electrical loads. Power whips allow for the redirection of electrical current from the entire building to a specific area, such as an office, through a modular outlet. They are usually installed under flooring to remain out of sight due to their large size and high electrical load capacity.
Power whips are designed to handle much larger electrical loads than standard wiring, making them ideal for offices with multiple computers requiring high energy consumption. They also enhance safety by withstanding large power surges and providing electricity directly from the mainline power source. This reduces the chances of overloading circuits, blowing fuses, and dealing with surges that could lead to potential breakdowns.
Smart Tips to Save Electricity with Your AC
You may want to see also
Frequently asked questions
An electrical whip, also known as a "whip" or a
Electrical whips simplify the installation process by providing a ready-made, flexible solution for routing electrical power from the source to the unit. They also ensure that cables are held securely and will not come loose.
A power whip is a type of electrical whip or cable that converts a fixed-in-place device to a modular asset. It connects the building's main power supply to the electrical system contained within panels of cubicles or workstations.
Some examples of electrical whip types include IEC power whips, NEMA wiring devices, and RussellStoll whips. IEC power whips are designed based on standards set by the International Electrotechnical Commission, ensuring safety and efficiency. NEMA wiring devices are traditionally used for power distribution in data centers across North America. RussellStoll whips provide a higher flow of current at lower temperature operations and are known for their safety and effectiveness.
