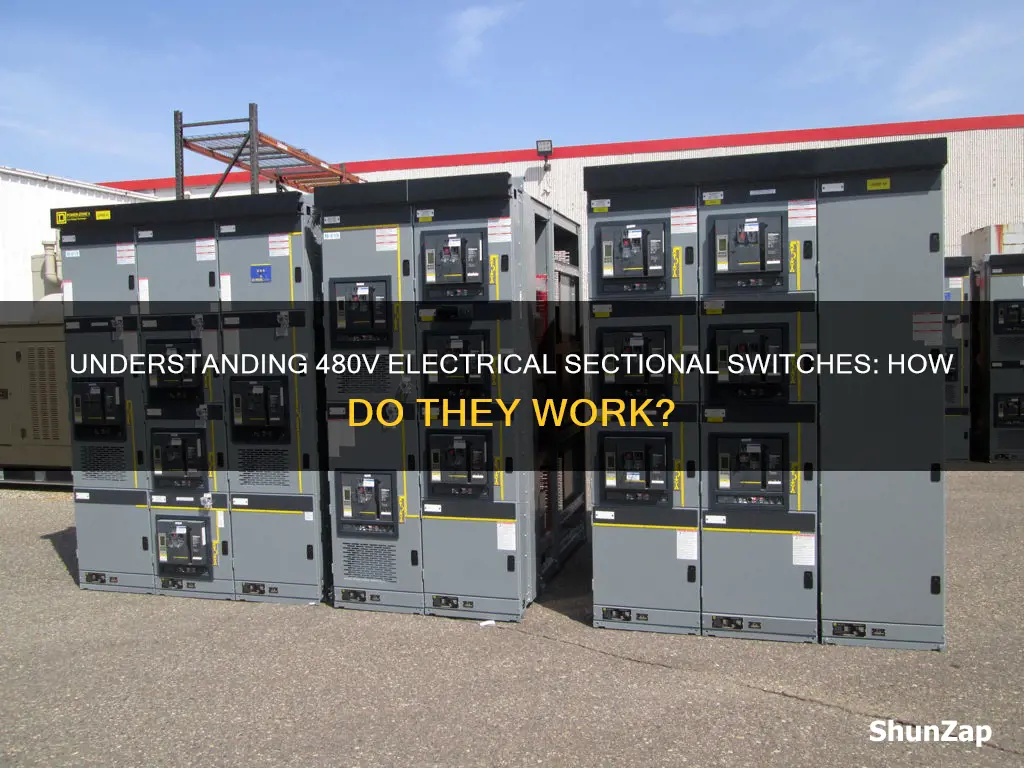

An electrical sectionalizer, also known as a sectionalizing switch or disconnect switch, is a non-load break device used to isolate a section of an electrical distribution circuit. Electrical sectionalizers can be used for both AC and DC electrical systems. DC systems, which power electrified transit, are more straightforward, while AC systems, which power towns and cities, are more intricate and complex. Sectionalizers can be manually or electrically operated, and they are often housed in fiberglass enclosures to protect them. In terms of 480V control switches, they are not the most common but are sometimes seen on HOA switches for irrigation pumps. Many industrial safety departments require a line-side disconnect switch for all 480V receptacles.
Explore related products
$8.98
What You'll Learn
Electrical sectionalizers are used to isolate a section of an electrical distribution circuit
An electrical sectionalizer, also known as a sectionalizing switch or disconnect switch, is a non-load break device used to isolate sections of an electrical distribution circuit. Electrical sectionalizers are used in power distribution networks that provide electricity for household use, traction power, and overhead catenary system (OCS) transit.
In the context of OCS transit, electrical sectionalizers are used to sectionalize portions of the overhead wire from which a train's pantograph collects current. This effectively “chops up” the entire distribution circuit into smaller sections, allowing for maintenance or closure of specific sections as needed. As a result, a fault in one section of the circuit will not disrupt the entire system. Electrical sectionalizers can be used for both AC and DC electrical systems, with AC systems typically being more intricate and complex, while DC systems are generally more straightforward.
Sectionalizers can be manually or electrically operated and are designed to work with either a knife or bolted pressure style. They are typically located near the load side of the electrical transmission and distribution circuit. Depending on the system configuration, they can be pad-mounted, wall-mounted, or pole-mounted.
Safety precautions must be observed when working with sectionalizing switches. It is crucial to always de-energize the system before performing any maintenance or work on the switches. Additionally, grounding the switch before working on it helps eliminate the risk of electrocution.
Some circuit breakers feature a recloser mechanism that opens when a short circuit occurs, such as a fallen tree branch. Typically, the short circuit clears itself, and the recloser checks if the fault has been rectified. If so, it recloses the circuit breaker. If the fault persists after several attempts, the circuit breaker remains open until an operator intervenes to fix the issue and reset it.
Dispose of Your Philips Electric Toothbrush the Right Way
You may want to see also
Explore related products
$6.99 $7.73
They are non-load break switches
An electrical sectionalizer, or sectionalizing switch, is a non-load break device. This means that it does not have a high current flowing through it. Non-load break switches are ""offload devices",", which can only be operated when there is no current running through the circuit. They are used to isolate equipment from the circuit so that it can be replaced or maintained.
Non-load break switches are a safety feature, as they prevent sparking or smoking when they are opened. They are also used to isolate a section of an electrical distribution circuit. Electrical sectionalizers are used in traction power and overhead catenary system (OCS) transit. In the case of an OCS, the switches can be used to sectionalize portions of the wire that the train's pantograph collects current from. This means that a fault in one section of the circuit will not bring down the entire system.
Sectionalizers can be used for both AC and DC electrical systems. AC systems are used to supply power to towns and cities, while DC systems are used to power electrified transit. DC systems and their switches are more straightforward than AC systems. Disconnect switches for electrified transit are typically located next to the DC substation or on a pole by the track.
Non-load break switches are different from load-break switches, which can open a circuit while current is going through it. Load-break switches are used to turn whole systems off and are more expensive than non-load break switches.
Testing an Electric Breaker: A Step-by-Step Guide
You may want to see also
Explore related products
They can be used for both AC and DC electrical systems
An electrical sectional switch is a device used to control and protect electrical equipment and circuits in industrial and commercial applications. One of its key features is its versatility in being able to handle both AC (alternating current) and DC (direct current) electrical systems. This makes it a very adaptable device for a wide range of applications. AC and DC systems each have their own unique characteristics, and the sectional switch is designed to accommodate these differences. AC power is the most common form of electricity used in buildings and it powers most appliances and equipment. DC power, on the other hand, is becoming more prevalent with the increase in renewable energy sources and battery storage systems. The electrical sectional switch is designed to handle the specific requirements of each type of current. In an AC system, the current regularly changes direction, and the voltage varies in a sinusoidal waveform. A sectional switch is designed to open and close at specific points in this waveform to minimize arcing and voltage spikes, which could damage the equipment. In a DC system, the current flows in one direction only, and the voltage is constant. Here, the sectional switch is designed to handle the specific requirements of controlling and protecting the circuit, as DC systems can have very different behavior during fault conditions.
These switches are particularly useful in applications where there is a mix of AC and DC equipment, such as in data centers, where AC is used for lighting and cooling, and DC is used for server power supplies. They can also be employed in renewable energy systems, where solar panels generate DC power, which needs to be converted to AC for use in the grid or for powering AC equipment. Electric vehicles are another example, as they typically use high-voltage DC systems for propulsion but also have AC systems for accessories and charging. The versatility of these switches means they can manage multiple voltage levels and types within a single installation, providing a safe and efficient means of power distribution and control.
The ability to handle both AC and DC power means these switches can be used in a wide range of applications and provide a flexible solution for electrical system design and management. They offer a robust and reliable means of controlling and protecting electrical equipment, ensuring a safe and efficient power supply. It is important to note that while these switches are versatile, there are still specific considerations for each type of current. For example, the arcing behavior of AC and DC currents differs, and the switch design must account for this. Similarly, the voltage levels and rates of rise can vary, and the switch must be rated appropriately for the intended application.
The use of sectional switches provides a level of future-proofing for electrical systems, as they can accommodate changes in technology and energy sources. With the increasing adoption of renewable energy and DC power systems, the ability to adapt to these changes is becoming increasingly important. These switches offer a level of flexibility and peace of mind for system designers and installers, ensuring that electrical systems can be safely and effectively managed, regardless of the current type or voltage level. This versatility, combined with their reliability and safety features, makes them an essential component in modern electrical system design.
Understanding Your Electricity Bill: Cost Calculation Factors
You may want to see also
Explore related products
They can be manually or electrically operated
An electrical sectionalizer, also called a sectionalizing switch or disconnect switch, is a non-load break device used to isolate a section of an electrical distribution circuit. Electrical sectionalizers can be used for both AC and DC electrical systems. They can be manually or electrically operated, in either a knife or bolted pressure style.
Electrical sectionalizers are often used in traction power and overhead catenary system (OCS) transit. In the case of an OCS, the switches can be used to sectionalize portions of the wire that the train's pantograph collects current from. This type of sectionalizer is often called a section insulator, effectively "chopping up" the entire distribution circuit into smaller sections that can be maintained or closed off as required.
Disconnect switches for electrified transit are typically located next to the DC substation or on a pole by the track. They can be individual feeder switches or a gang of three switches in a feeder-tie-feeder configuration. Electrical sectionalizers are non-load break switches, meaning they do not have a high current flowing through them and do not operate regularly.
In the context of 480V control switches, manual starters or manual motor starters are mentioned in online forums. It is noted that manual motor starters for 480V 3-phase motors are preferred due to their smaller physical size compared to larger combination starters. Safety precautions are also discussed, with some industrial safety departments requiring a line-side disconnect switch for all 480-volt receptacles.
A sectional switch box is a type of modularly designed electrical box that can be joined or ganged together. It is important to note that electrical sectionalizers require basic safety precautions before any work or maintenance is performed. It is recommended to always de-energize the system and put a ground on the switch to eliminate electrocution risks.
Exploring Androids' Dreams: Electric Sheep in a Futuristic World
You may want to see also
Explore related products
$18.99
Safety precautions must be taken when working on sectionalizing switches
An electrical sectionalizer, also known as a sectionalizing switch or disconnect switch, is a non-load break device used to isolate a section of an electrical distribution circuit. It is often used in traction power and overhead catenary system (OCS) transit, where it can sectionalize portions of the wire. This effectively chops up the distribution circuit into smaller sections that can be maintained or closed off as needed.
Safety Precautions When Working on Sectionalizing Switches:
- Before any work or maintenance is carried out on a sectionalizing switch, it is imperative to de-energize the system. This is a crucial step to eliminate the risk of electrocution.
- Put a ground on the switch before working on it to further reduce the risk of electrocution.
- Do not perform any wiring or soldering work when power is supplied to the switch. Always follow the instructions provided for correct wiring and soldering procedures.
- Do not touch any charged terminals when the switch is energized.
- Select a suitable switch for the specific operating environment and load conditions. Ensure the switch is appropriate for the rated current, operating load, actuator type, and environment.
- Do not use switches in environments with combustible or explosive gases, high humidity or heat, or harmful gases such as sulfide gas (H2S, SO2), ammonia gas (NH3), nitric acid gas (HNO3), or chlorine gas (Cl2).
- Mount a cover on the switch if it is installed in a location where accidental operation or worker error could occur.
- Do not drop or disassemble switches as this can lead to damage, electric shock, or burning.
- Test the switch under actual operating conditions before use to ensure it functions correctly and safely.
- Do not use a switch with improper wiring as it may lead to abnormal heating and burning when power is supplied.
Strategies to Locate a Missing Electric Dog Collar
You may want to see also
Frequently asked questions
An electrical sectional switch, also known as a sectionalizing switch or disconnect switch, is a non-load break device used to isolate a section of an electrical distribution circuit.
480V electrical sectional switches are used in some irrigation pumps and for 3-phase motors. They are not the most common but are also not unusual.
Always de-energize the system before attempting any work or maintenance on a 480V electrical sectional switch. It is also important to put a ground onto the switch to eliminate the risk of electrocution.
Many industrial safety departments require a line-side disconnect switch for all 480V receptacles. If it is hard-wired to a device, a disconnect switch is not necessary.
