In today's digital world, electrical safety is paramount. As homes and businesses become increasingly reliant on complex electrical systems, protecting them from faults is a top priority. An RCBO, or Residual Current Operated Circuit Breaker, is a critical safety measure that protects electrical circuits. It combines the benefits of two electrical protection devices: a residual current device (RCD) and a miniature circuit breaker (MCB). An RCD detects and protects against electrical leakage or fault currents, while an MCB provides overcurrent protection by monitoring the current flowing through the circuit and automatically tripping if it exceeds the safe threshold. By integrating these two functions into a single device, RCBOs offer a comprehensive solution that ensures both personal safety and equipment protection.
| Characteristics | Values |
|---|---|
| Full Form | Residual Current Operated Circuit Breaker |
| Purpose | Critical safety measure to protect electrical circuits |
| Function | Current sensing component |
| Protection | Protects against overcurrents and earth leakage currents |
| Protection from | Electric shocks, fires, electrocution and sudden earth faults |
| Installation | Should be installed by a qualified electrician |
| Wiring | Appropriate connection of wiring is necessary for proper functioning |
| Cabling | Should be attached to the corresponding terminal and tightened with a screwdriver |
| Earth Wire | Should be connected from the RCBO to the bar, tightened with a screwdriver |
| Testing | Test buttons are available to test functionality |
| Circuit | Trips the circuit in case of a fault |
| Use Cases | Homes, factories, warehouses, office buildings, wet environments like bathrooms and kitchens |
Explore related products
What You'll Learn

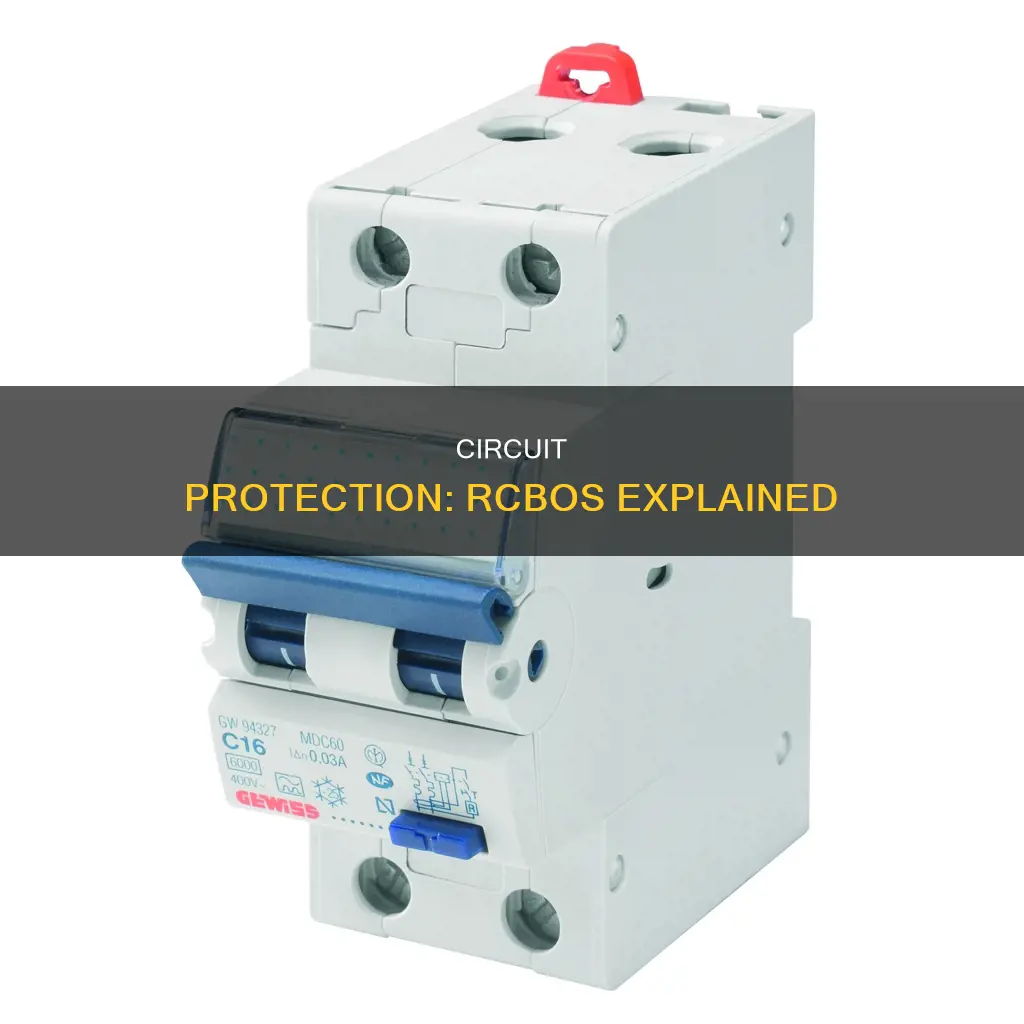

Residual Current Operated Circuit Breaker (RCBO)
A Residual Current Operated Circuit Breaker (RCBO) is a critical safety measure for electrical circuits. It is a current-sensing component that can automatically disconnect and measure the circuit whenever the current exceeds the rated sensitivity or a fault occurs in a connected circuit. The device's primary purpose is to protect against the risk of electrical shocks, fires, and electrocution. It can also assist in sudden earth faults.
RCBOs work on Kirchhoff's principle, which states that the incoming current should be equal to the outgoing current in a circuit. It compares the difference in current values between the neutral and live wires, ensuring that the current flowing into the circuit from the live wire equals the current flowing out through the neutral wire.
The RCBO combines the functionalities of two electrical protection devices: a residual current device (RCD) and a miniature circuit breaker (MCB). The RCD component detects and protects against electrical leakage or fault currents, continuously monitoring the electrical circuit. If it detects a difference in current, it quickly disconnects the power supply, mitigating the risk of electric shock or electrical fires. The MCB component provides overcurrent protection by monitoring the current flowing through the circuit. If the current exceeds a safe threshold, it automatically trips and interrupts the power supply, preventing damage to electrical devices and equipment caused by excessive current flow.
RCBOs are recommended in electrical installations in areas with a higher risk of electrical shock, such as wet environments like bathrooms and kitchens. They are also employed in critical installations where an uninterrupted power supply is essential. These devices come in different current ratings to accommodate the specific requirements of various circuits and loads. They are designed to fit into standard electrical distribution panels or consumer units, making them convenient for new installations or retrofitting existing systems.
To ensure proper functioning, correct wiring connections must be made, and the RCBO should be tested periodically using the test button to verify its operation.
Building an Electric Jet Turbine: A Step-by-Step Guide
You may want to see also
Explore related products
RCD and MCB functions
Residual Current Devices (RCDs) are electrical safety devices that protect against electric shocks, residual currents, and earth faults. RCDs work by disconnecting the power supply when they detect an imbalance between the current flowing into and out of an electrical circuit. This imbalance is referred to as residual current and occurs when there is a current leakage due to faulty equipment or a breakdown of insulation. RCDs are standalone devices typically installed at the origin of the electrical installation and offer protection to a group of circuits or the entire installation.
Miniature Circuit Breakers (MCBs) are electromechanical devices that protect against overcurrent by automatically disconnecting the circuit when the current flowing through it exceeds a certain level. MCBs do not protect against electric shocks or earth faults but do protect against fires caused by overloading a circuit. They are used for low currents, up to 125 amps, and offer protection to building wiring, preventing overload and appliance damage.
Residual Current Breakers with Overcurrent (RCBOs) are a combination of RCD and MCB functionalities. They offer protection from overcurrent, earth leakage faults, short circuits, and overload. RCBOs are used in single circuits and provide individual circuit protection, allowing for selective disconnection in the event of a fault without affecting other circuits.
In summary, RCDs and MCBs are both critical safety measures in electrical circuits, with RCDs prioritising protection against electric shocks and residual currents, while MCBs focus on protecting circuits from overloading. RCBOs, on the other hand, integrate the benefits of both devices, providing comprehensive protection against a wide range of electrical faults.
Deep Trenches: Electrical Plumbing for Pools Explained
You may want to see also
Explore related products
Installation and wiring
A Residual Current Operated Circuit Breaker (RCBO) is a critical safety measure for protecting electrical circuits. It is a current-sensing component that can automatically disconnect and measure the circuit whenever the current exceeds the rated sensitivity or a fault occurs in a connected circuit.
RCBOs are a single device that combines a circuit breaker and an RCD (residual current device). As they must sense the current in both the line and neutral, they have connections for both. The installation process for an RCBO is as follows:
- Isolate the electrical supply: Before beginning any installation or wiring work, it is crucial to ensure that the power supply is disconnected. This step is essential for safety and should be handled by a qualified electrician.
- Detach the unit's front cover: Most units have a simple mechanism for removing the front cover. Typically, there will be two fasteners holding the cover in place, which need to be turned about 90 degrees to unlock and remove it.
- Prepare the terminal: Check the bottom of the unit to locate the terminal. This step involves readying the terminal for the new RCBO installation.
- Place the RCBO in position: Identify the din rail and bus bar on your circuit board, where new components can be installed. Place the RCBO in the appropriate position on the bus bar, ensuring it is secure and firmly set in place.
- Secure the RCBO: Once the RCBO is in position, close the clip at the bottom to secure it in place. Then, find the lower terminal screw and tighten it to ensure the RCBO is properly fixed.
- Connect the cables: Attach the cabling to the corresponding terminal and tighten it with a screwdriver. Ensure the phase cable is positioned to the left of the terminal and the neutral cable to the right.
- Connect the earth wire: Proceed to connect the earth wire from the RCBO to the earth bar, again tightening it with a screwdriver.
- Test the installation: After completing the wiring, switch on the power to the RCBO and connected equipment. Test the installation by flicking the RCBO test button and ensuring that the connection trips as expected.
It is important to note that specific details of removing and installing RCBOs may vary depending on the model and type of circuit breaker. Always consult a qualified electrician and follow the manufacturer's instructions and guidelines, such as those outlined in the BS7671 standard.
DTE's Electric Meter Reading: How Does It Work?
You may want to see also
Explore related products
Safety and protection
The RCD component of an RCBO acts as a safety mechanism by detecting and protecting against electrical leakage or fault currents. It continuously monitors the electrical circuit, comparing incoming and outgoing currents. If a difference is detected, it rapidly interrupts the circuit, disconnecting the power supply and mitigating the risk of electric shock and electrical fires. This is particularly important in environments with a higher risk of electrical shock, such as bathrooms and kitchens, where RCBOs are highly recommended.
The MCB function of an RCBO provides overcurrent protection by monitoring the current flowing through the circuit. When the current exceeds a safe threshold, the MCB trips, interrupting the power supply. This protects electrical devices and equipment from damage caused by excessive current flow, including overload and short circuits. By integrating RCD and MCB functions into a single device, RCBOs simplify the electrical distribution system while ensuring both personal safety and equipment protection.
RCBOs are designed to fit standard electrical distribution panels or consumer units, making them convenient for new installations or retrofitting existing systems. They come in different current ratings to accommodate specific circuit and load requirements. Proper wiring is essential for the RCBO to function correctly, and test buttons are typically included to verify their functionality and ensure the reliability of the electrical wiring circuits.
Overall, RCBOs are invaluable devices in electrical installations, offering enhanced safety and protection against two of the most common electrical hazards: overcurrents and earth leakage currents. They provide rapid disconnection of electricity, preventing prolonged and potentially serious shocks, and ensuring fault isolation without affecting the entire electrical system.
Electrical Heart Health: Tips for a Steady Rhythm
You may want to see also
Explore related products
Advantages and disadvantages
RCBO stands for Residual Current Breaker with Over-Current. It is a critical safety measure that protects electrical circuits from damage due to excessive current conditions. It combines the functionality of an MCB (miniature circuit breaker) and an RCD (residual current device).
Advantages
RCBOs are widely used for circuit protection because they have combined protection features against leakage and overcurrent. They are particularly valuable in commercial or industrial applications where precise circuit protection is crucial. They are also useful in residential electrical systems, where you want specific circuits not to be affected by other circuits.
RCBOs are compact and can be installed within a short period, saving space in the electrical distribution panel. They are also the most advanced option, offering the benefits of both MCCBs and MCBs in one device. They are, therefore, more versatile than RCDs, which are only designed to protect against earth leakage currents.
Disadvantages
There are some disadvantages to consider when using RCBOs. Firstly, they are less common than MCCBs or MCBs, which may impact their availability and cost-effectiveness. Secondly, while RCBOs provide comprehensive circuit protection, they are not suitable for all applications. For example, MCBs are typically used to protect air conditioners, lighting circuits, and other appliances, while RCBOs are used for protection against electric shock, such as in power sockets and water heaters.
The Spark of Electricity: A Long Journey to Success
You may want to see also
Frequently asked questions
RCBO stands for Residual Current Breaker with Overcurrent Protection. It is a crucial component in electrical systems that combines the functions of two other essential safety devices: the RCD (Residual Current Device) and the MCB (Miniature Circuit Breaker).
An RCBO provides both residual current protection and overcurrent protection. It is a current-sensing component that automatically disconnects and measures the circuit whenever the current exceeds the rated sensitivity or a fault occurs in a connected circuit.
RCBOs protect against two of the most common electrical hazards: overcurrents and earth leakage currents. They are also easy to install, as they are designed to fit into standard electrical distribution panels or consumer units.
